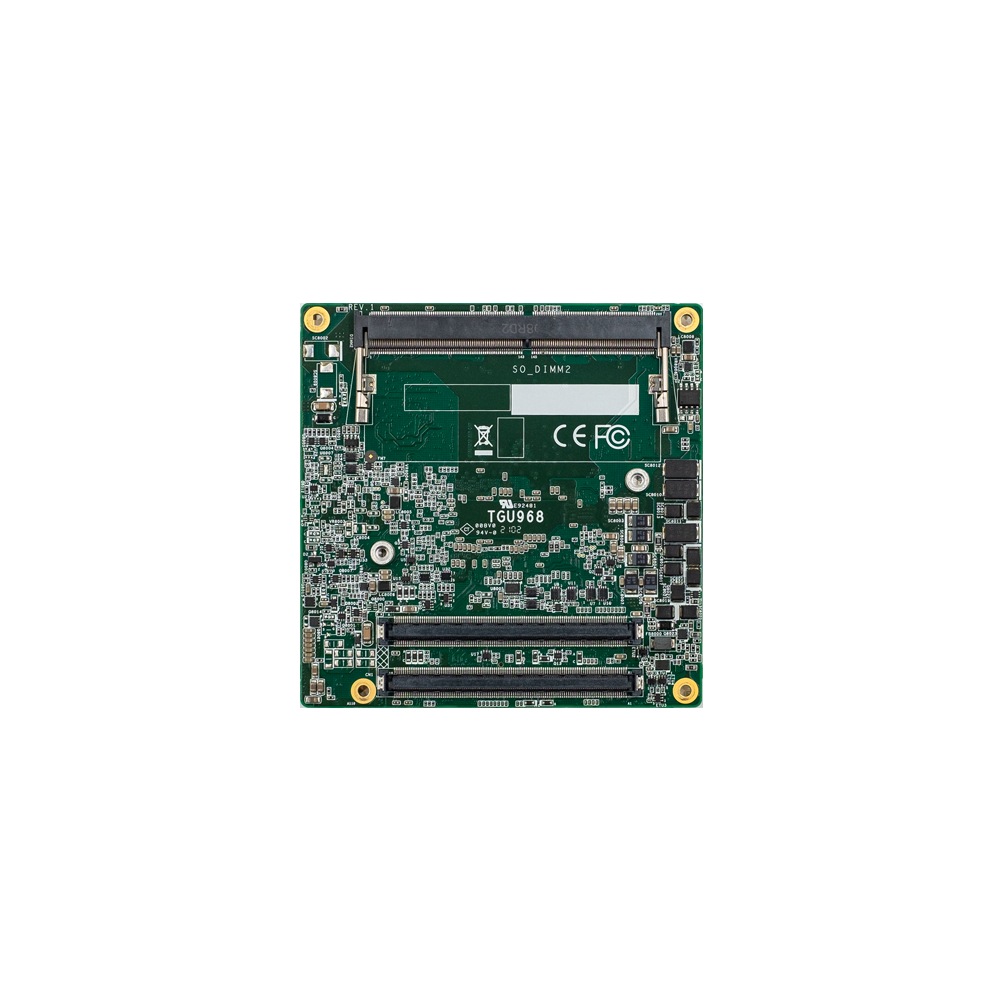

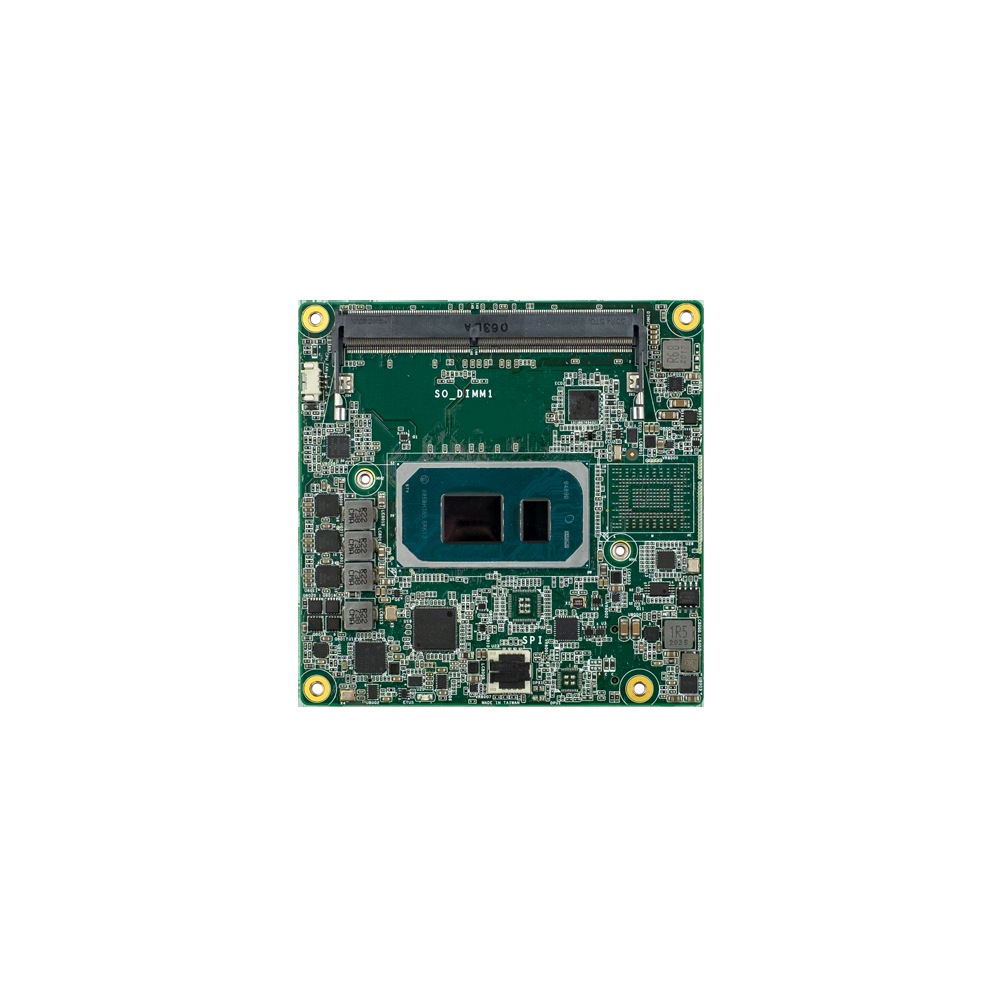

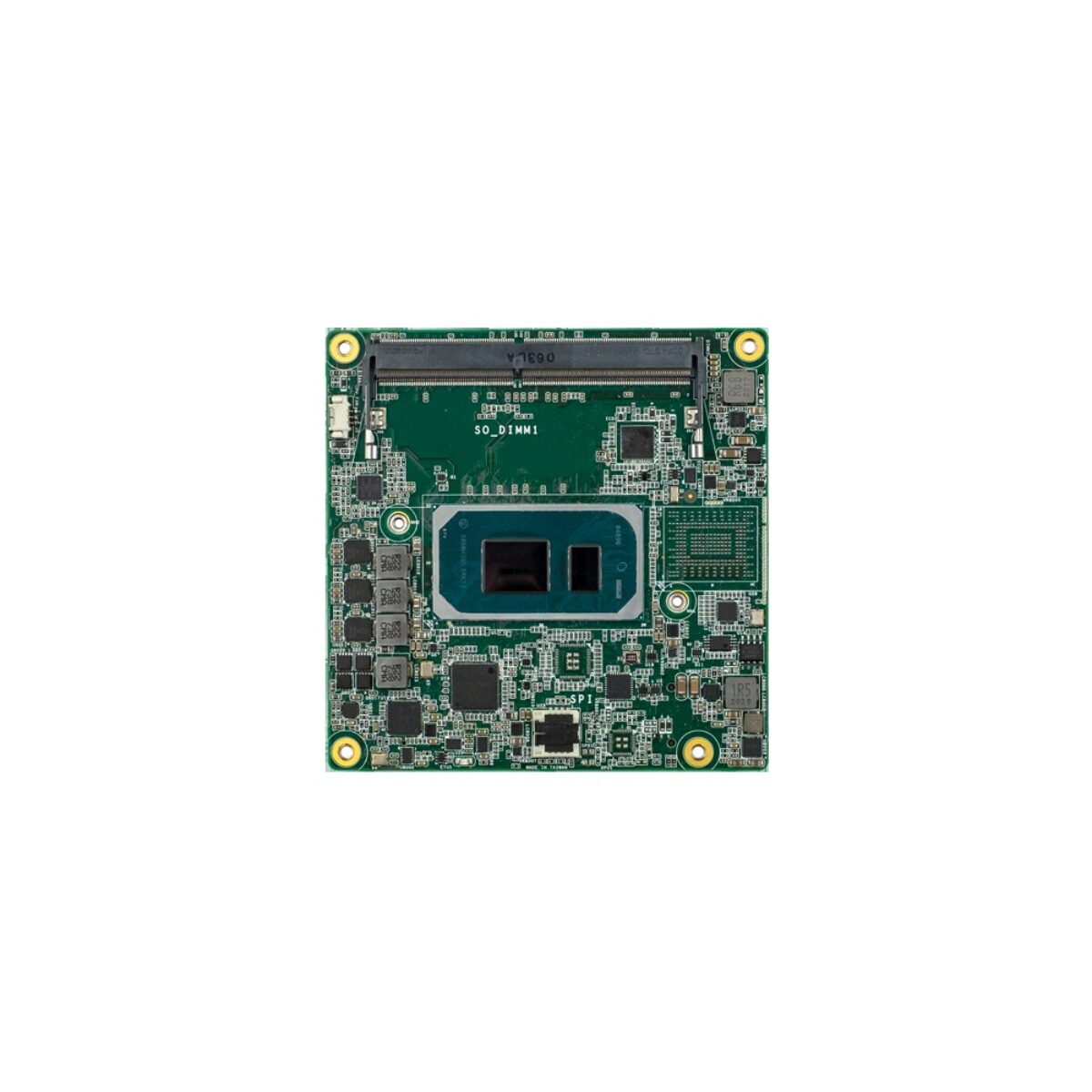

DFI TGU968 11th Gen Intel COM Express Compact Module with 2.5GbE

Processor Brand: IntelIntel
Operating Software: LinuxLinux
Operating Software: WindowsWindows
Multi Display Support: Triple Display SupportTriple Display Support
Ethernet Speed: 2.5GbE2.5GbE
USB Generation: USB3USB3
Certification: CECE
Certification: FCCFCC
USA Support Team: +1 407 214 9446 Call
Select section
  • Specifications
  • Media

TGU968 Specifications

Overview
Brand & ModelDFI TGU968
FeaturesCompact
Expandable
Performance
Processor SeriesIntel Core 11th Gen Tiger Lake
Intel Celeron 6000 Series Tiger Lake
Processor ModelsIntel Celeron 6305E: 1.8GHz, 2 Cores, 2 Threads, 4MB Cache, 15W
Intel Core i3-1115G4: 3.0~4.1GHz, 2 Cores, 4 Threads, 6MB Cache, 28W
Intel Core i3-1115GRE: 2.2~3.9GHz, 2 Cores, 4 Threads, 6MB Cache, 15W
Intel Core i5-1145G7E: 1.5~4.1GHz, 4 Cores, 8 Threads, 8MB Cache, 15W
Intel Core i5-1145GRE: 1.5~4.1GHz, 4 Cores, 8 Threads, 8MB Cache, 15W
Intel Core i7-1185G7E: 1.8~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 15W
Intel Core i7-1185GRE: 1.8~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 15W
Performance Cores2 Cores
4 Cores
Memory2x DDR4 3200MHz SO-DIMM Slots, 64GB
PCIe Gen SupportPCIe 4.0
BIOSAMI
Operating SystemLinux
Windows 10
Windows 11
Graphics
Integrated GPUIntel UHD Series
Display StandardsDP++
Multi Display SupportTriple Display Support
Display Outputs1x LVDS
1x VGA
3x Display Ports
I/O
Ethernet1x Ethernet Ports
1x 2.5 GbE LAN [Board]
LAN ControllersIntel I226
USB12x USB Ports
4x USB 3.1 Gen 2 [Board]
8x USB 2.0 [Board]
Digital I/ODIO [8-lines]
Power
Power Support ModesAT: PWR on Input
ATX: Press Button to Power
Environmental Conditions
CertificationCE
FCC
RoHS
UKCA
Mechanical Properties
Dimensions95mm x 95mm (3.74” x 3.74”)
TGU968 Case Study Card
Case Study COM Express SBC Utilizes Intel Iris Xe Graphics for Deep Learning AI A reverse vending machine recognizes containers up to five times faster using deep learning on the Iris Xe graphics of a DFI TGU968 COM Express module, optimized with Intel OpenVINO.
