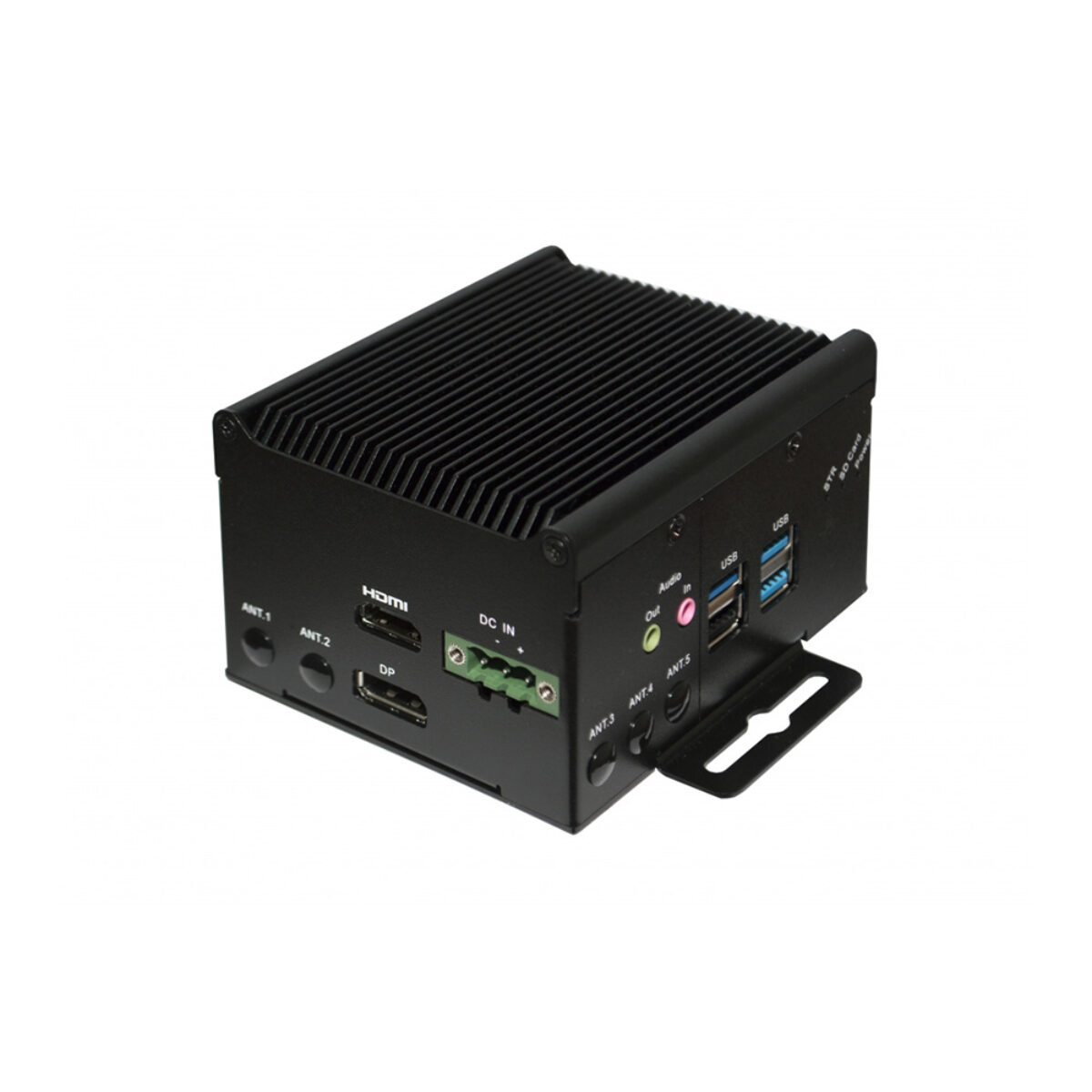

EverFocus eNVP-JON-UB NVIDIA Jetson Orin Nano Edge AI PCs with 4G LTE Option

Not every camera needs a large AI computer behind it. A people counter in a shop, a presence check on a production line or a sensor gateway in a plant room often needs modest inference, low power and very little space. EverFocus built the eNVP-JON-UB series of edge AI PCs for those jobs, putting an NVIDIA Jetson Orin Nano into a 114 x 102 x 60.7 mm unit that weighs 0.65 kg and draws a maximum of 15 W.

The Orin Nano pairs a 6-core Arm Cortex-A78AE CPU with an NVIDIA Ampere architecture GPU: 1024 cores and 32 Tensor Cores on the 8GB module, or 512 cores and 16 Tensor Cores on the 4GB module, with 128-bit LPDDR5 onboard. Storage is an M.2 M-Key 2280 NVMe slot, and three LEDs show power, SD card and SSD activity. A wireless M.2 slot and a SIM slot take expansion, and EverFocus offers an M.2 B-Key 3042 Cat 4 4G LTE kit and an I/O cable kit as accessories. The edge AI PCs run Linux with NVIDIA JetPack 5.1 and above, and EverFocus describes the board inside as its Ultra Board, the source of the UB in the series name.

Two models make up the eNVP-JON-UB range. The eNVP-JON-UB-F2000 carries the Orin Nano 4GB, which suits single-camera tasks and lighter detection models at the lowest power. The eNVP-JON-UB-F3000 moves to the Orin Nano 8GB, doubling the GPU cores and memory for more streams or larger models. Both share the same enclosure, I/O and 12 V DC input.

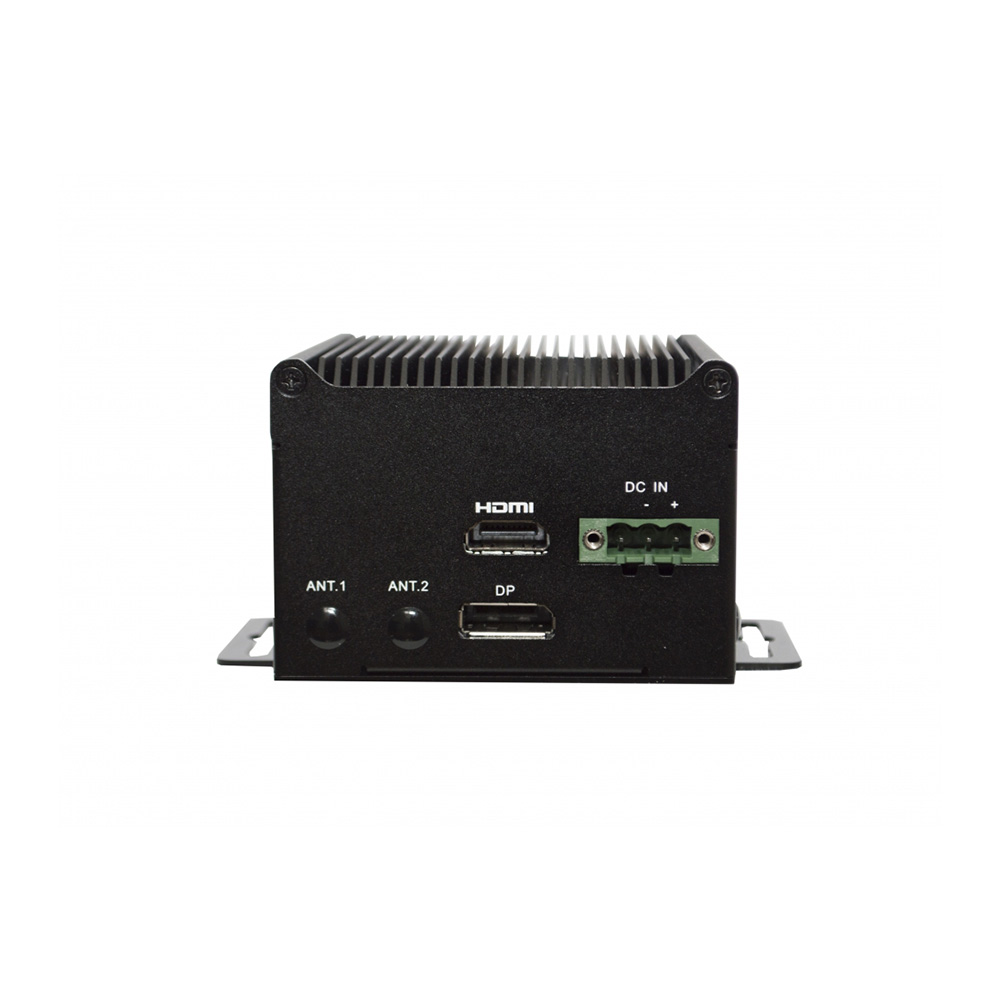

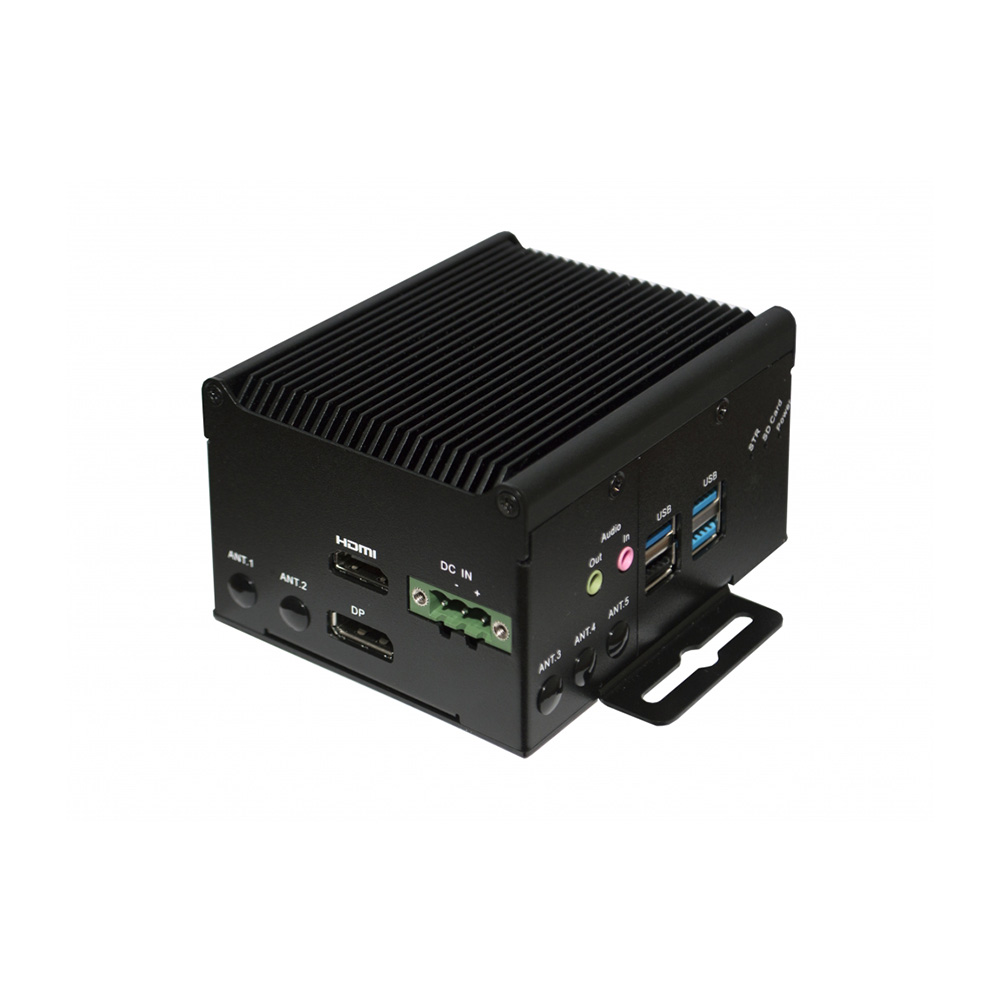

Shared I/O covers two Gigabit RJ45 ports, one CAN bus port, three USB 3.1 Type-A ports and one USB 2.0 Type-A port, an HDMI 2.0 output, a micro USB console port and SIM and micro SD slots. There is no serial port on this family. Power is 12 V DC on a terminal block, and the EverFocus eNVP-JON-UB series runs from -20 to 50 °C at 10 to 95% humidity, non-condensing, with DIN rail and wall mounting. These edge AI PCs suit shop ceilings, control panels, kiosks and plant rooms where space and power are limited. CE and FCC are listed.
