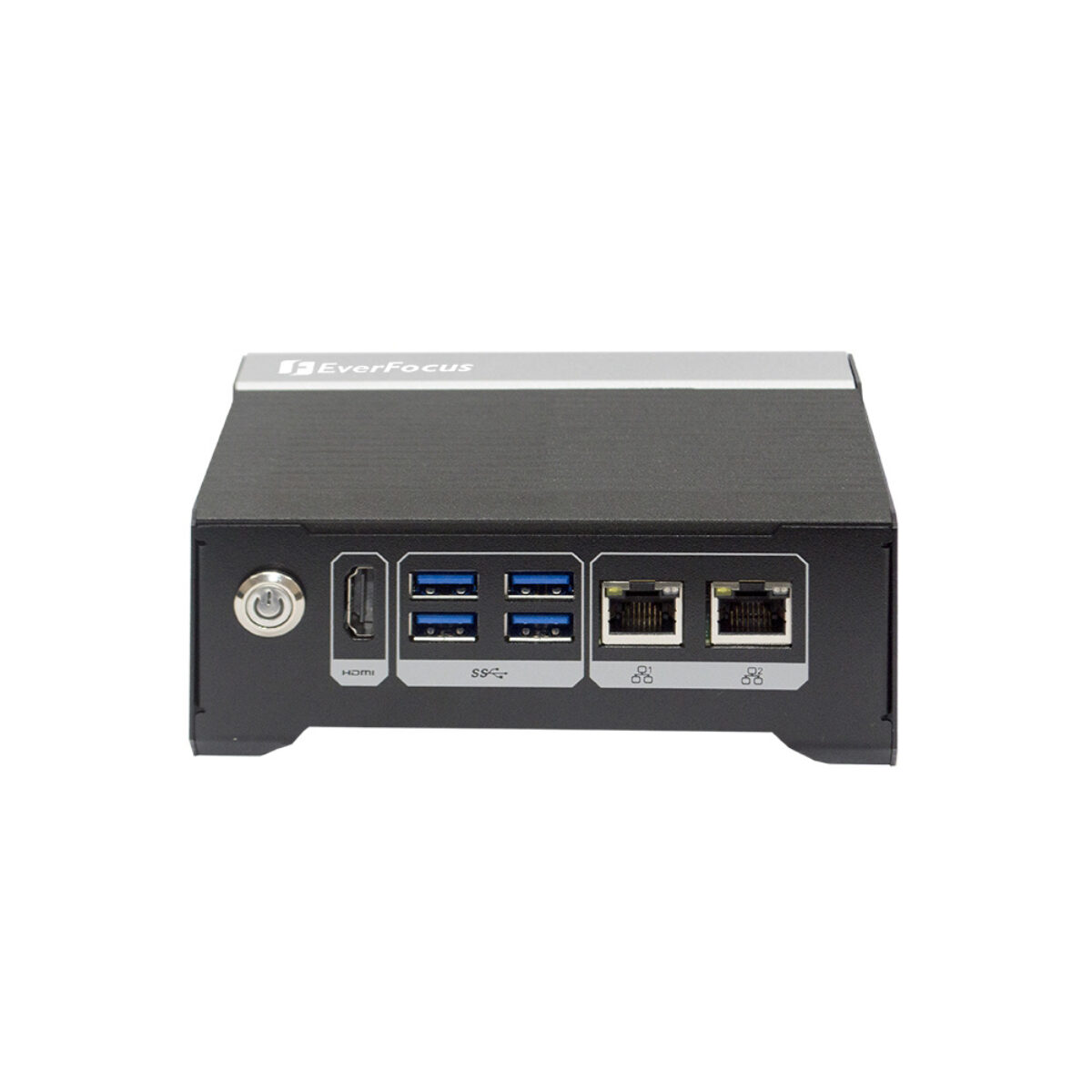

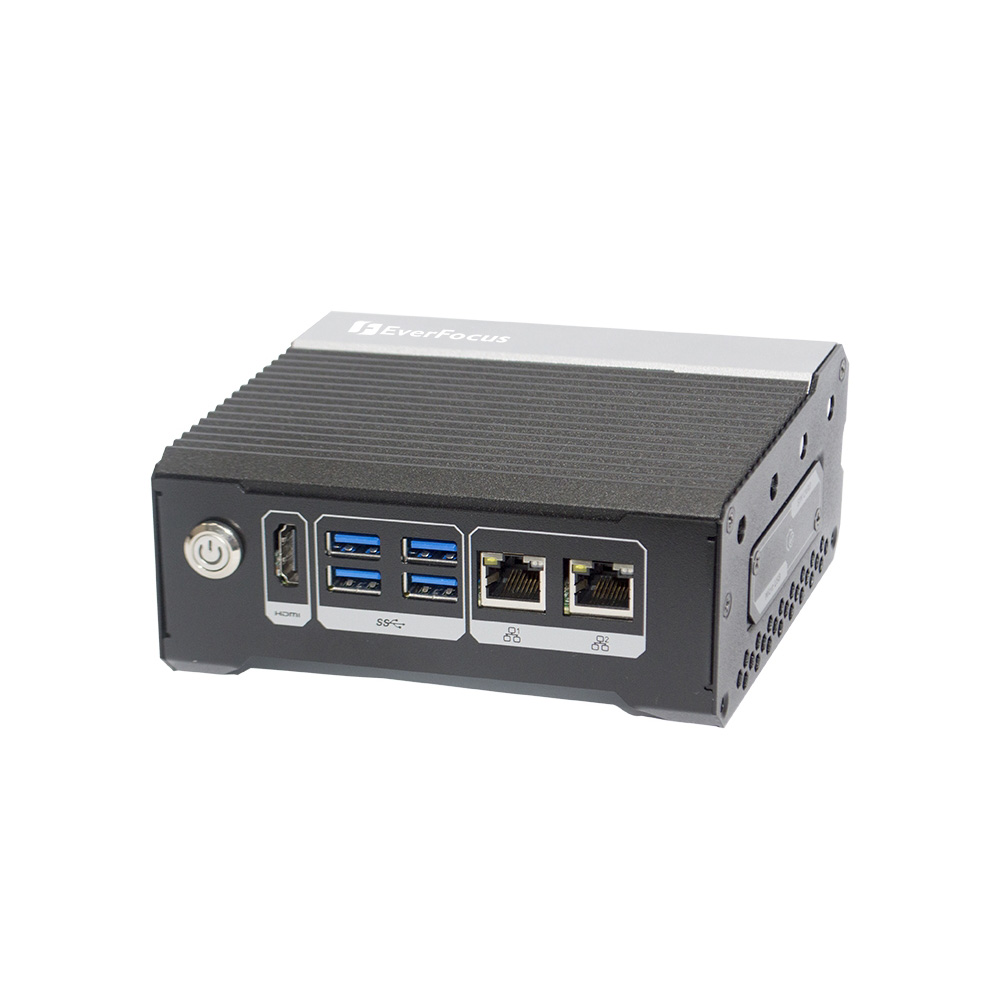

EverFocus eNVP-JON-AI NVIDIA Jetson Orin Nano AI Edge Computers with CAN-FD and DIN Mount

Plenty of vision projects need one or two cameras, a field bus connection and a computer small enough to clip onto a DIN rail beside a PLC. EverFocus aimed the eNVP-JON-AI series of AI edge computers at that job, and its own case studies place the eNVP-JON-AI in factory workforce and material inspection systems. The NVIDIA Jetson Orin Nano gives each unit GPU inference in a 136 x 110 x 57 mm enclosure that weighs 0.9 kg.

Inside, the Orin Nano combines a 6-core Arm Cortex-A78AE CPU with an NVIDIA Ampere architecture GPU: 1024 cores and 32 Tensor Cores on the 8GB module, or 512 cores and 16 Tensor Cores on the 4GB module, with 128-bit LPDDR5 onboard. The 8GB module doubles the GPU cores and Tensor Cores of the 4GB module, which matters as camera counts or model sizes rise. Storage is an M.2 M-Key 2280 NVMe slot, and an M.2 E-Key 2230 slot plus an M.2 B-Key 3052 slot take Wi-Fi or the optional 4G LTE (Cat 1) module, with GPS also offered. The AI edge computers run Linux with NVIDIA JetPack 5.1 and above, and draw a maximum of 15 W with the fan running.

Two models are listed on our site. The eNVP-JON-AI-F3000 carries the Orin Nano 8GB, which the EverFocus ordering table gives for that part number. The eNVP-JON-AI-F4000 is listed with an Orin Nano 8GB as well; EverFocus does not show an F4000 in the current eNVP-JON-AI ordering table, so we confirm the module at quotation. EverFocus also lists F2000 (4GB) and NVMe-equipped F2500 and F3500 builds for the eNVP-JON-AI series.

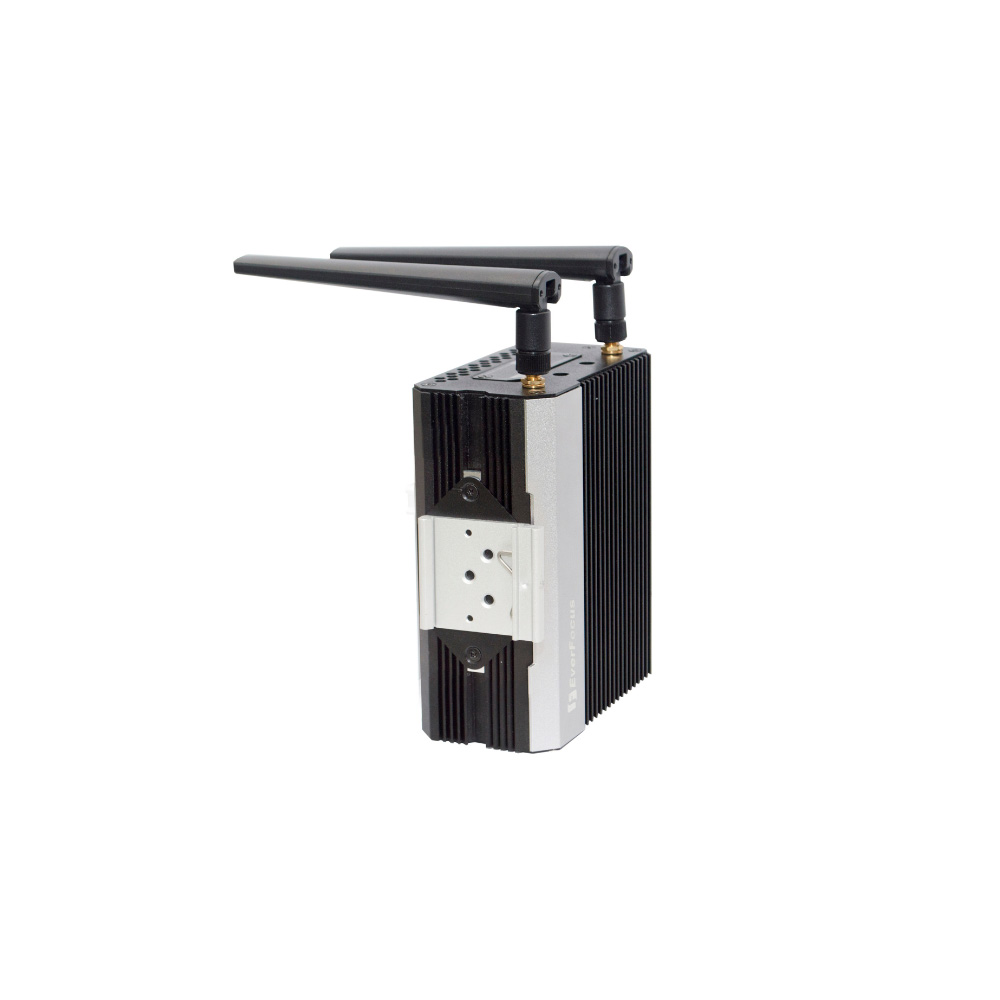

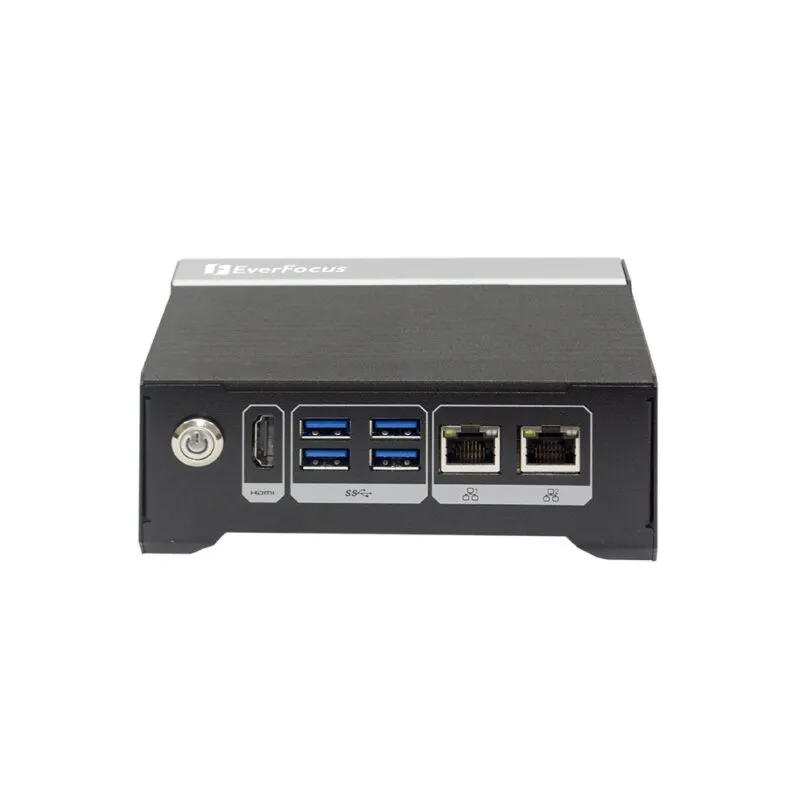

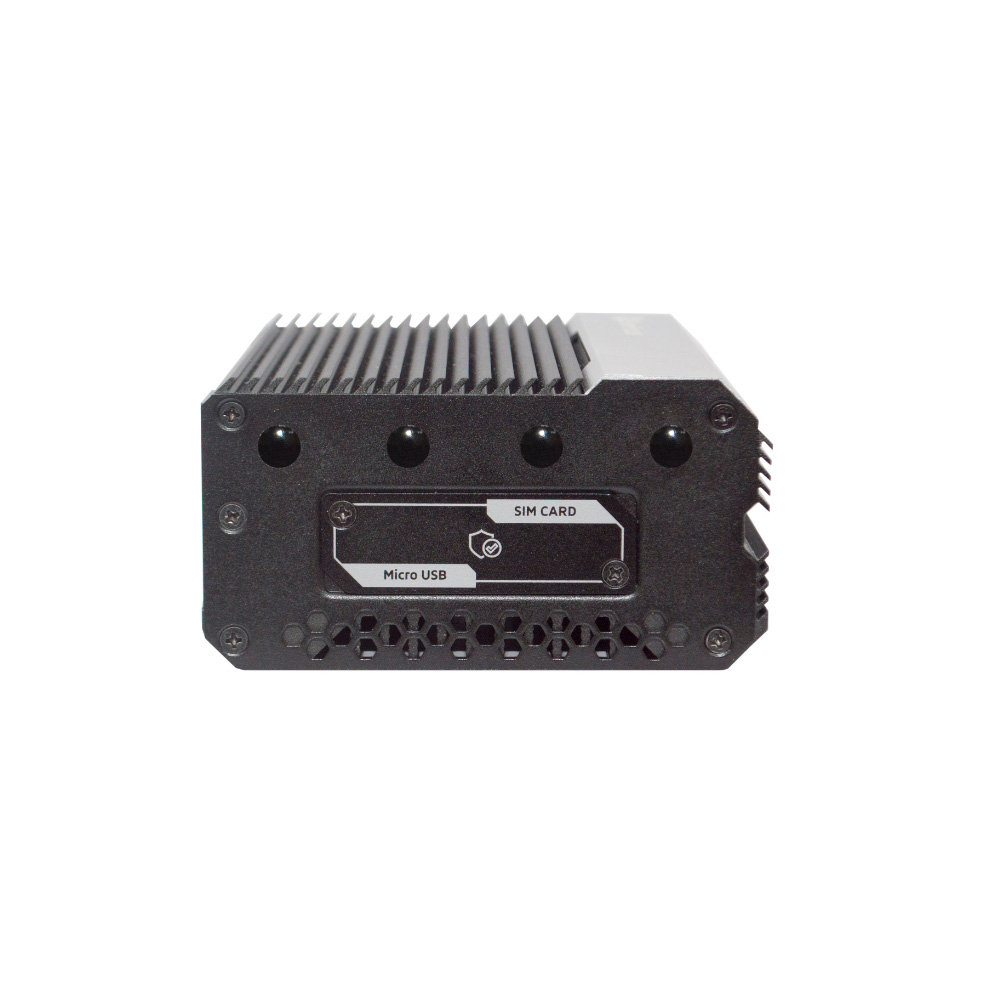

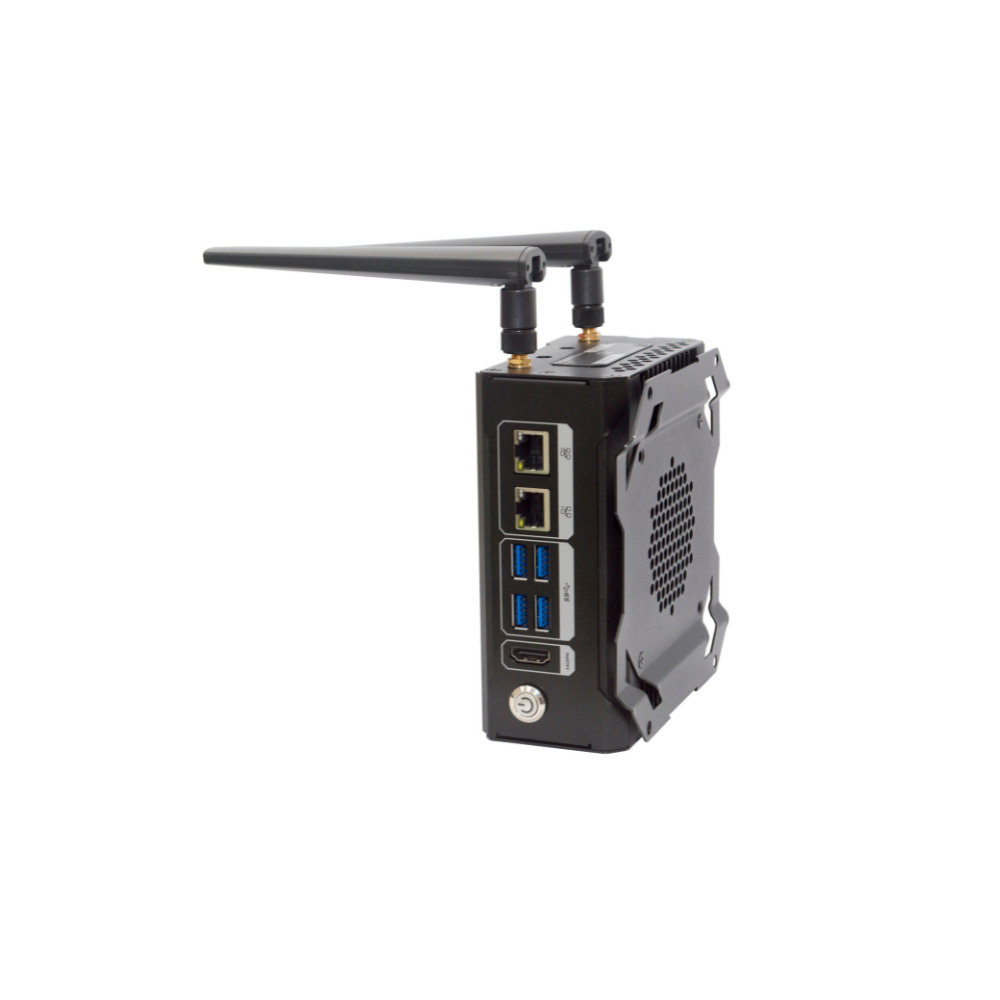

Shared I/O covers two Gigabit RJ45 ports, one RS-485 and one CAN-FD port on 5-pin terminal blocks, four USB 3.1 Type-A ports, an HDMI 2.0 output, a micro USB console port and SIM and micro SD slots. Power is 9 to 36 V DC on a 3-pin terminal block, and the EverFocus eNVP-JON-AI series runs from -20 to 60 °C at 10 to 95% humidity, non-condensing. DIN rail, wall and VESA mounting, with a wall mount in the box, make these AI edge computers a good fit for control cabinets, production lines and building plant rooms. CE and FCC are listed.
