EverFocus eNVP-JOX-AI NVIDIA Jetson Orin NX Edge AI Computers with CAN-FD and DIN Mount

When one camera stream becomes four, or a detection model grows into a segmentation model, a compact AI unit can run short of GPU. EverFocus answers that with the eNVP-JOX-AI series of edge AI computers, which keeps the small DIN rail enclosure of its Orin Nano units but fits an NVIDIA Jetson Orin NX. EverFocus also sells the design as the EAC-30N3, and its case studies place the eNVP-JOX-AI in factory workforce and inspection systems.

The Orin NX pairs an 8-core or 6-core Arm Cortex-A78AE CPU with a 1024-core NVIDIA Ampere architecture GPU and 32 Tensor Cores, on 16GB or 8GB of 128-bit LPDDR5. Storage is an M.2 M-Key 2280 NVMe slot, and an M.2 E-Key 2230 slot plus an M.2 B-Key 3052 slot take Wi-Fi or the optional 4G LTE (Cat 1) module, with GPS also offered. The edge AI computers run Linux with NVIDIA JetPack 5.1.1 and above and draw a maximum of 25 W with the fan running.

Two models are listed on our site. The eNVP-JOX-AI-F3000 carries the Orin NX 8GB with its 6-core CPU, a good fit for one or two camera streams with room to grow. The eNVP-JOX-AI-F4000 moves to the Orin NX 16GB with the 8-core CPU, for larger models, more streams or several models running side by side. Choosing between them is mainly a question of model size and stream count, since the enclosure, I/O and power input are identical. EverFocus also lists F3500 and F4500 builds with a 128GB NVMe SSD fitted.

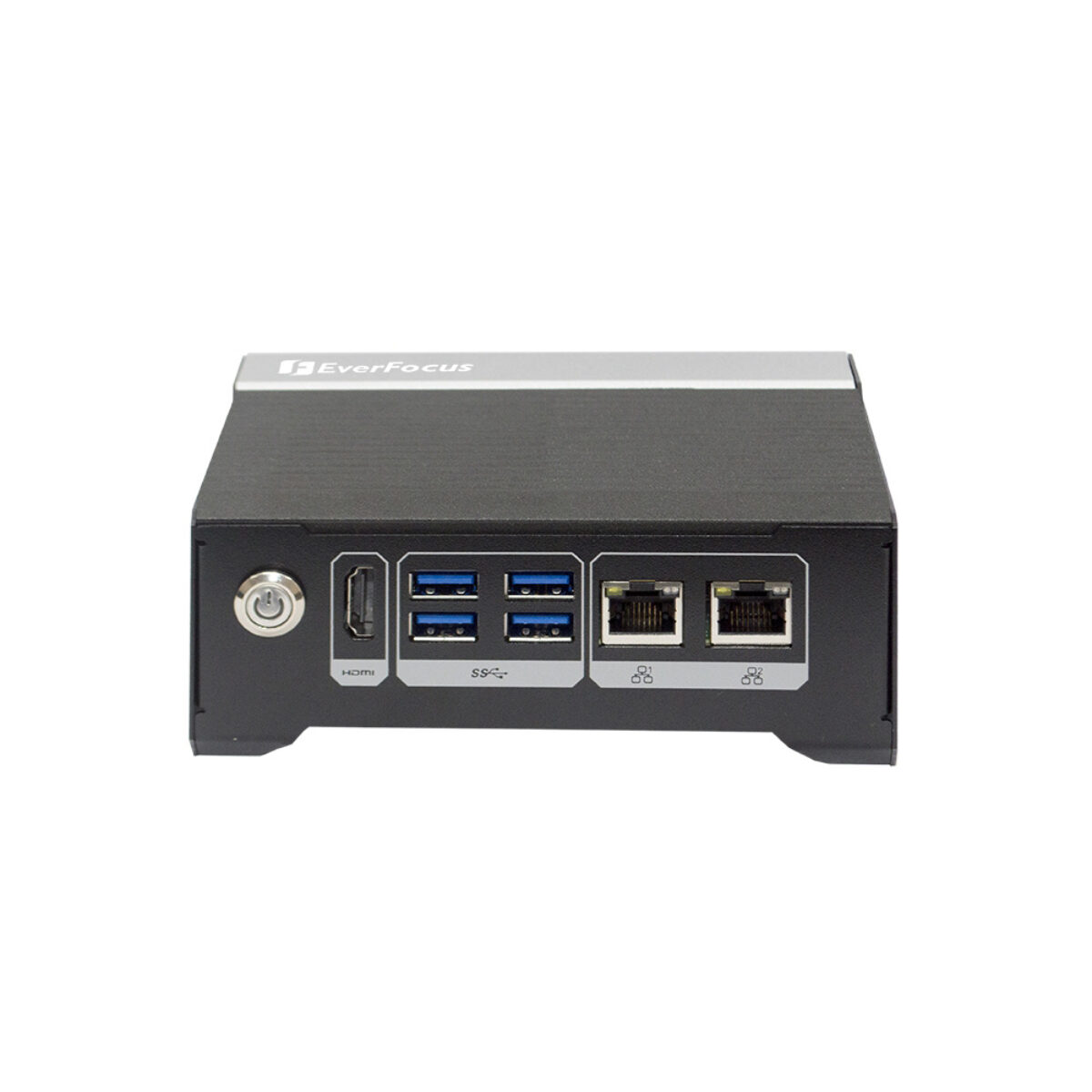

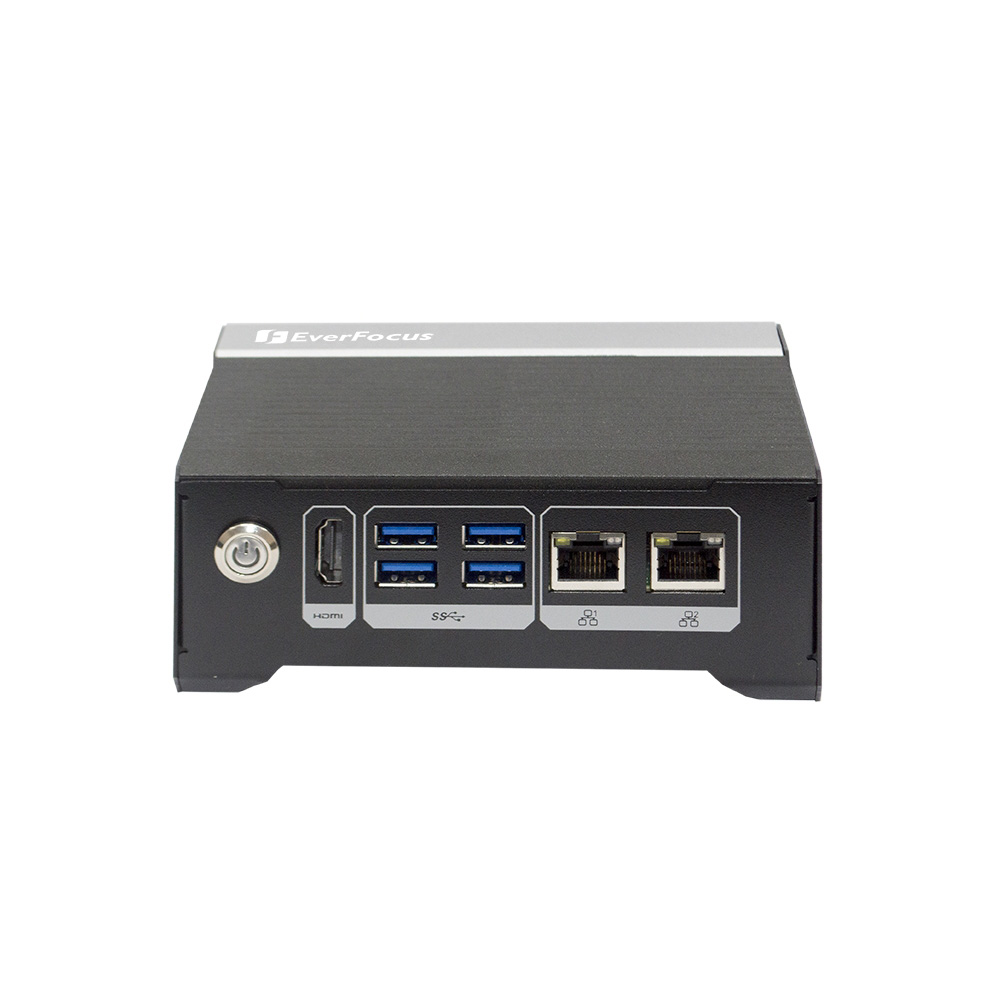

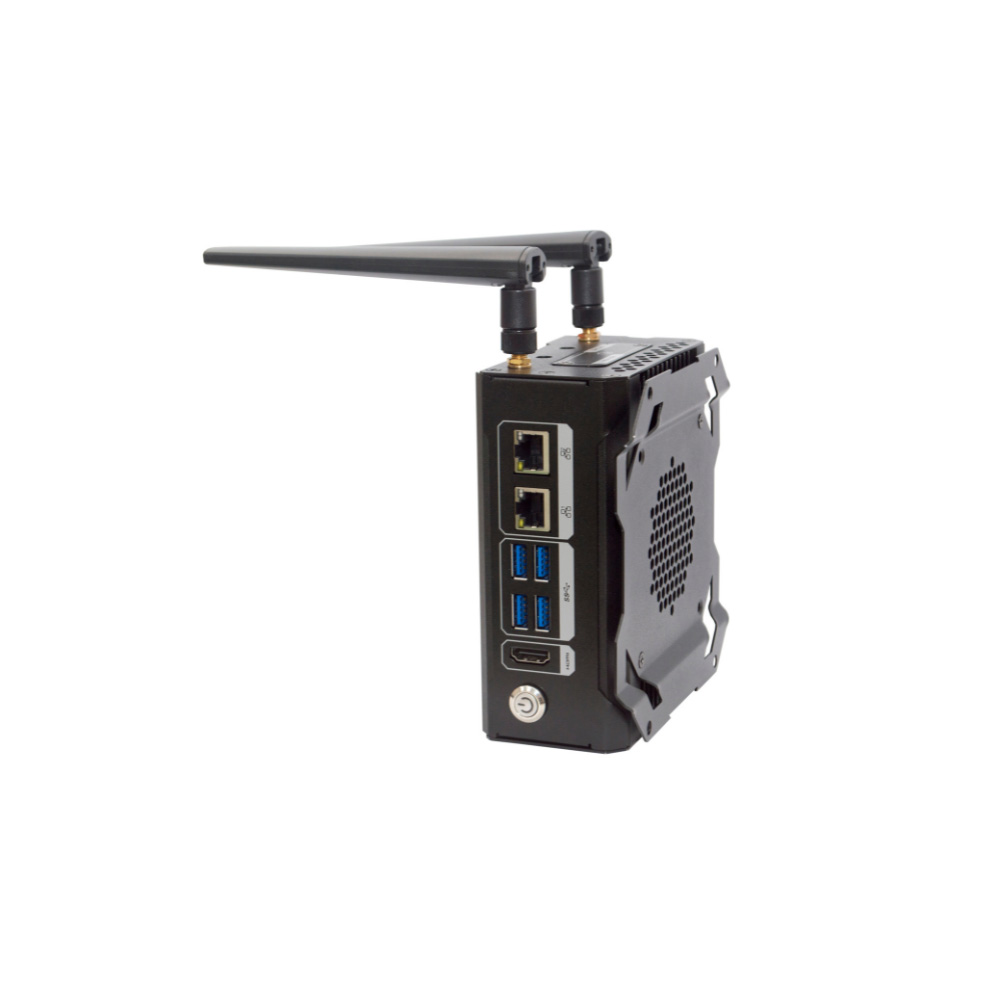

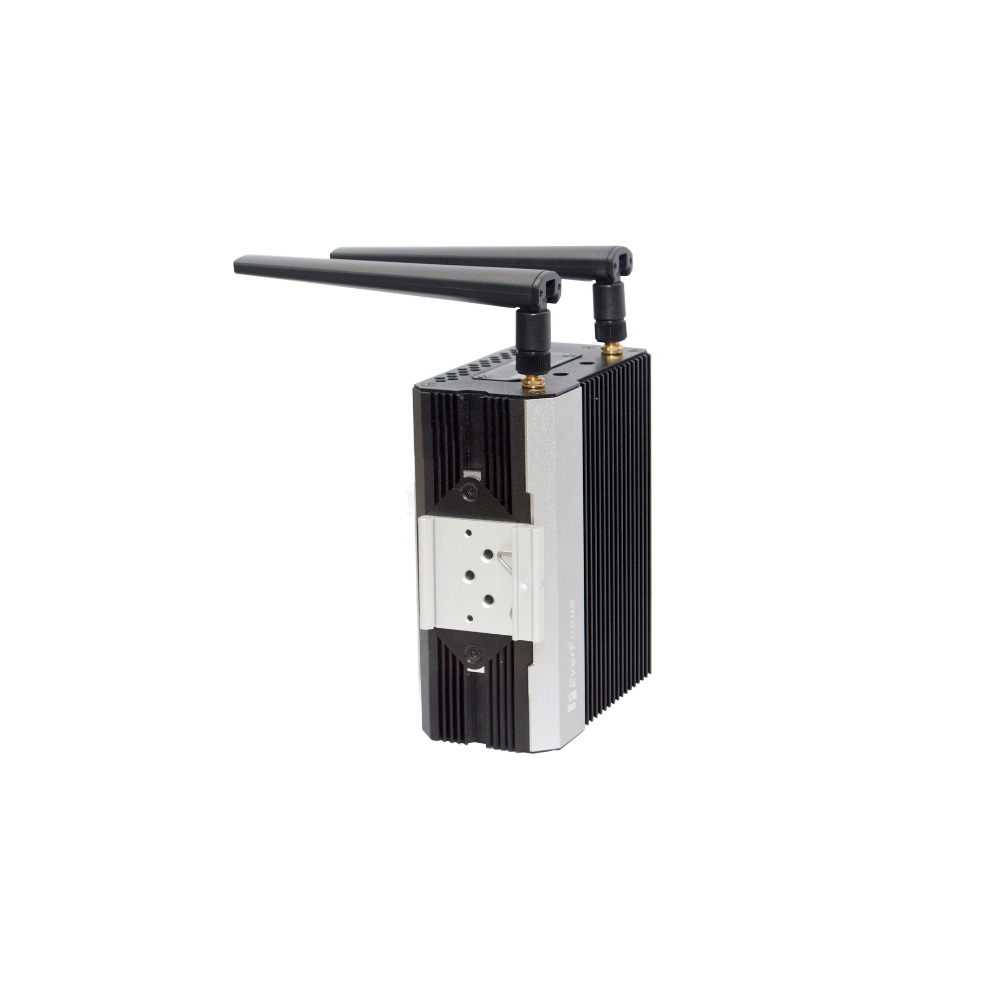

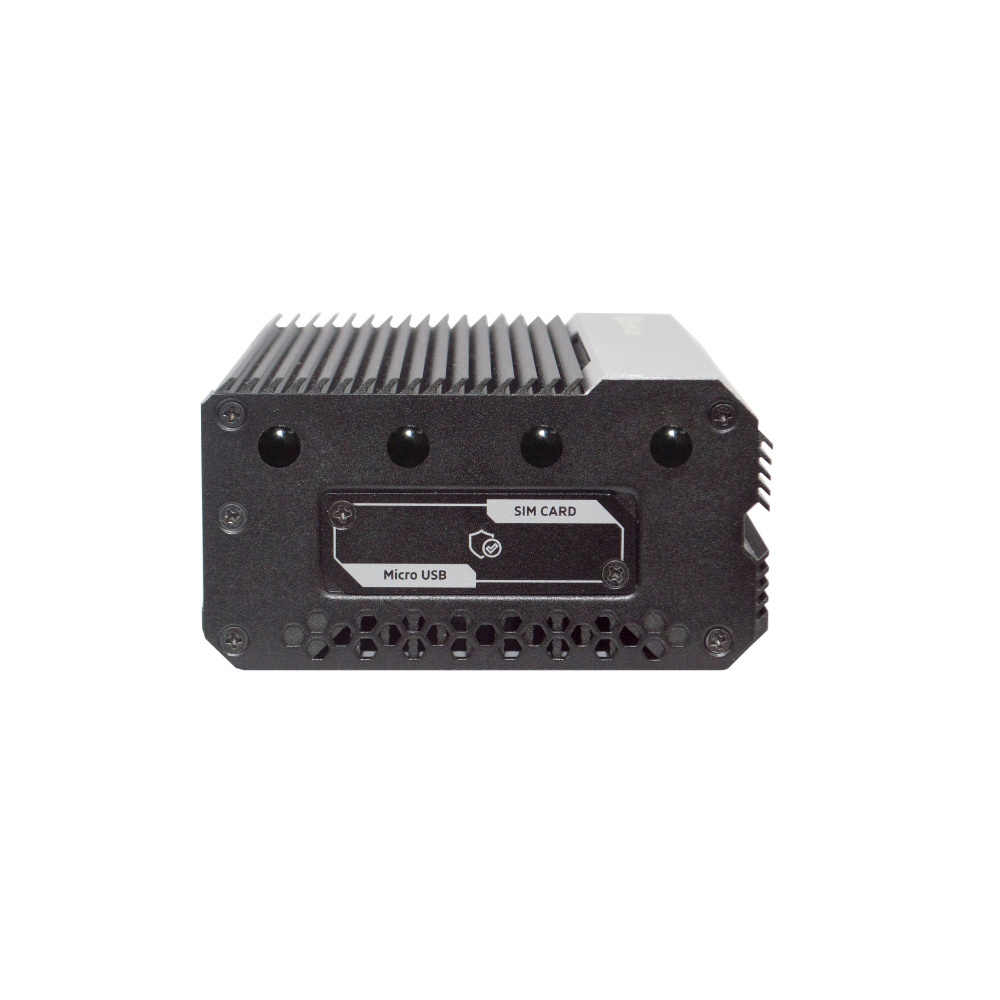

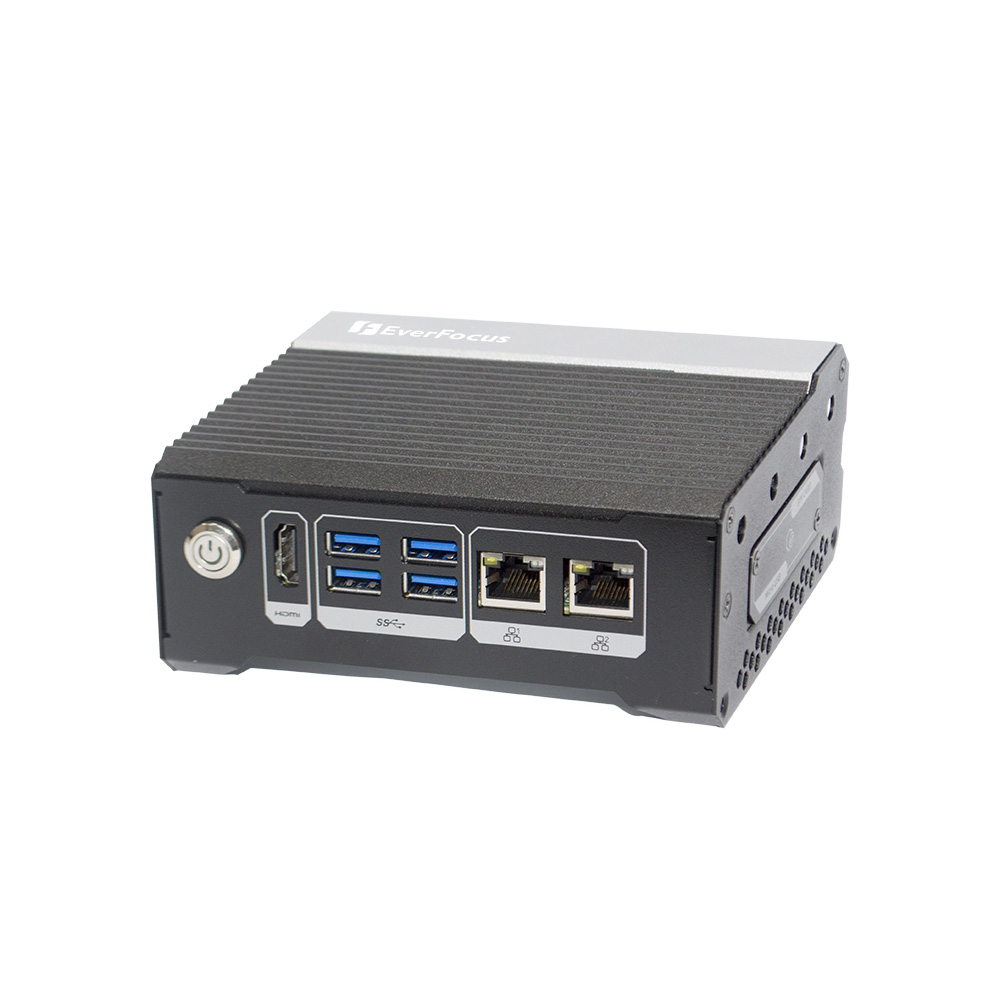

Shared I/O covers two Gigabit RJ45 ports, one RS-485 and one CAN-FD port on 5-pin terminal blocks, four USB 3.1 Type-A ports, an HDMI 2.0 output, a micro USB console port and SIM and micro SD slots. Power is 9 to 36 V DC on a 3-pin terminal block, and the EverFocus eNVP-JOX-AI series is rated from -20 to 60 °C at 10 to 95% humidity, non-condensing, in its datasheet. A wall mount and the terminal block connectors ship in the box, and the 0.9 kg enclosure mounts on DIN rail, a wall or VESA, so these edge AI computers suit control cabinets, robot cells and roadside boxes. CE and FCC are listed.
