Cat5e vs Cat6: What Is the Difference?

Cat5e vs Cat6 is the choice most people face when they install or extend copper Ethernet today. Both are four-pair twisted-pair cables defined in the TIA-568 standard and its international equivalent, ISO/IEC 11801, where Cat5e cabling is Class D and Cat6 is Class E. Both use the same RJ45 connector, and both carry gigabit Ethernet the full 100 m.

The difference is headroom. Cat6 is tested to 250 MHz rather than 100 MHz, and it has to meet tighter limits on crosstalk between its pairs and on signal loss. That headroom does nothing for a gigabit link, but it matters for multi-gigabit speeds, for long PoE runs and for installations that need to last 15 years or more. Original Cat5 is long obsolete, so any cable sold as Cat5 today is in practice Cat5e.

The two cables look alike, but four details of their construction differ.

Cable category sets the frequency the cable can handle. The IEEE 802.3 Ethernet standards then set which speed runs over which category, and how far.

The 2.5 and 5 Gb/s speeds, often called multi-gigabit, were added in 2016 so that existing Cat5e and Cat6 could carry more than a gigabit without re-cabling. Our explainer on multi-gig speeds and the cabling they need covers how switches and network cards negotiate them.

Power over Ethernet sends current down the same pairs as the data, and some of that power becomes heat in the cable. IEEE 802.3bt, which delivers up to around 60 W (Type 3) and 90 W (Type 4) at the source, is specified for Cat5e or better, so both cables are compliant.

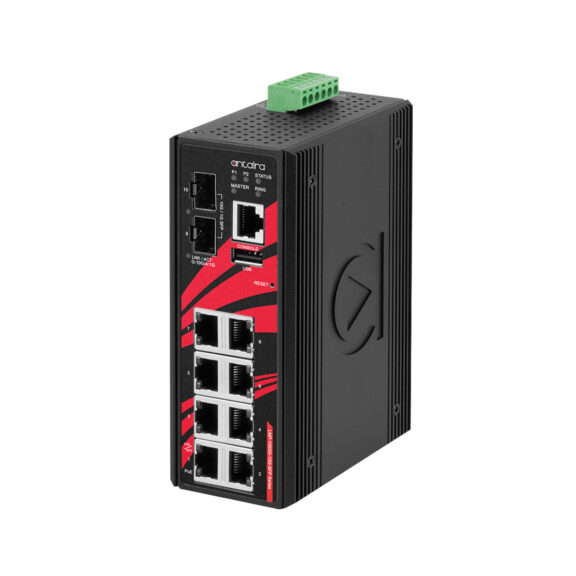

The difference shows up in bundles. When dozens of PoE cables run together in a tray, the heat builds up and the cables run warmer, which raises their resistance and loss. Cat6’s thicker conductors run cooler than Cat5e under the same load, so Cat6 is the safer choice for large PoE camera or access point installations. Our guide to industrial Power over Ethernet covers power classes and budgets, and our industrial PoE switches supply power on gigabit and multi-gigabit ports.

Both categories come unshielded (U/UTP) and shielded, most often F/UTP with a foil wrap around all four pairs. On factory floors, near variable-speed drives, welders and motor cables, a shielded cable bonded to earth at the equipment usually matters more than the step from Cat5e to Cat6. Our explainer on how twisted pair cable rejects interference covers UTP, FTP and STP construction.

The jacket matters too. PVC suits indoor trays, while PUR resists oil, abrasion and UV, and high-flex grades with stranded conductors survive drag chains and moving machinery. Both are available in Cat5e and Cat6, so choose the jacket for the environment and the category for the speed.

Before replacing Cat5e, check whether you need to. Most Cat5e runs in good condition carry 2.5 Gb/s at 100 m, which is enough for a Wi-Fi 6 access point or a single 4K camera. Upgrade where links need 5 or 10 Gb/s, where large PoE bundles are planned, or where the site is being re-cabled anyway.

An upgrade only delivers Cat6 performance if the whole channel matches: cable, wall or panel jacks, patch panels and patch leads. One Cat5e patch lead turns the link back into Cat5e. After installation, test each link with a cable certifier, which measures crosstalk and loss against the category limits rather than just checking continuity. Our guide to RJ45 pinouts and termination covers the connector end of the job.
