Giada D613 Intel 13th Gen Core Video Wall Players with Quad 4K HDMI

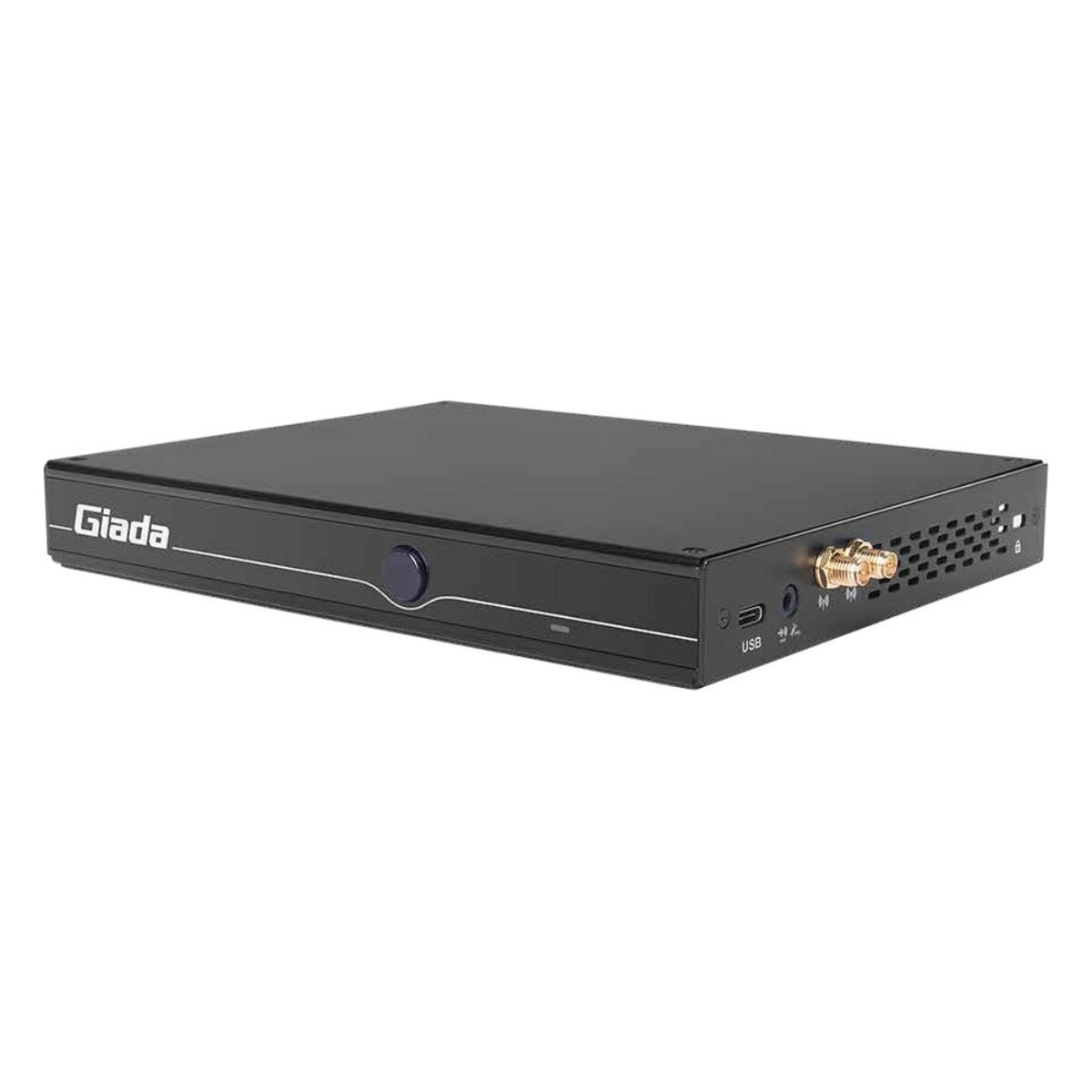

Video walls in receptions, showrooms and control rooms, and multi-screen menu boards in restaurants, need one player that can feed several displays without a rack of hardware. The Giada D613 series is a book-size player with four independent 4K HDMI outputs, so a single unit can drive a two-by-two wall or four separate screens. It runs on 13th Gen Intel Core (Raptor Lake-P) processors at 15 W base power. Giada describes it as a Raptor Lake book-size signage player, and the four outputs are independent, so each screen can show its own content.

Two builds are offered. The D613-1315U has the Core i3-1315U with six cores, eight threads and Intel UHD Graphics, and the D613-1335U has the Core i5-1335U with ten cores, 12 threads and Iris Xe Graphics. Both support DirectX 12.1, OpenGL 4.6 and OpenCL 3.0, with hardware decoding of 8K HEVC and VP9 content at 60 fps. Memory is two DDR4-3200 SO-DIMM slots up to 64 GB, and an M-Key M.2 2280 slot with PCIe 4.0 x4 holds the SSD. Giada lists Windows 11, Ubuntu and ChromeOS Flex.

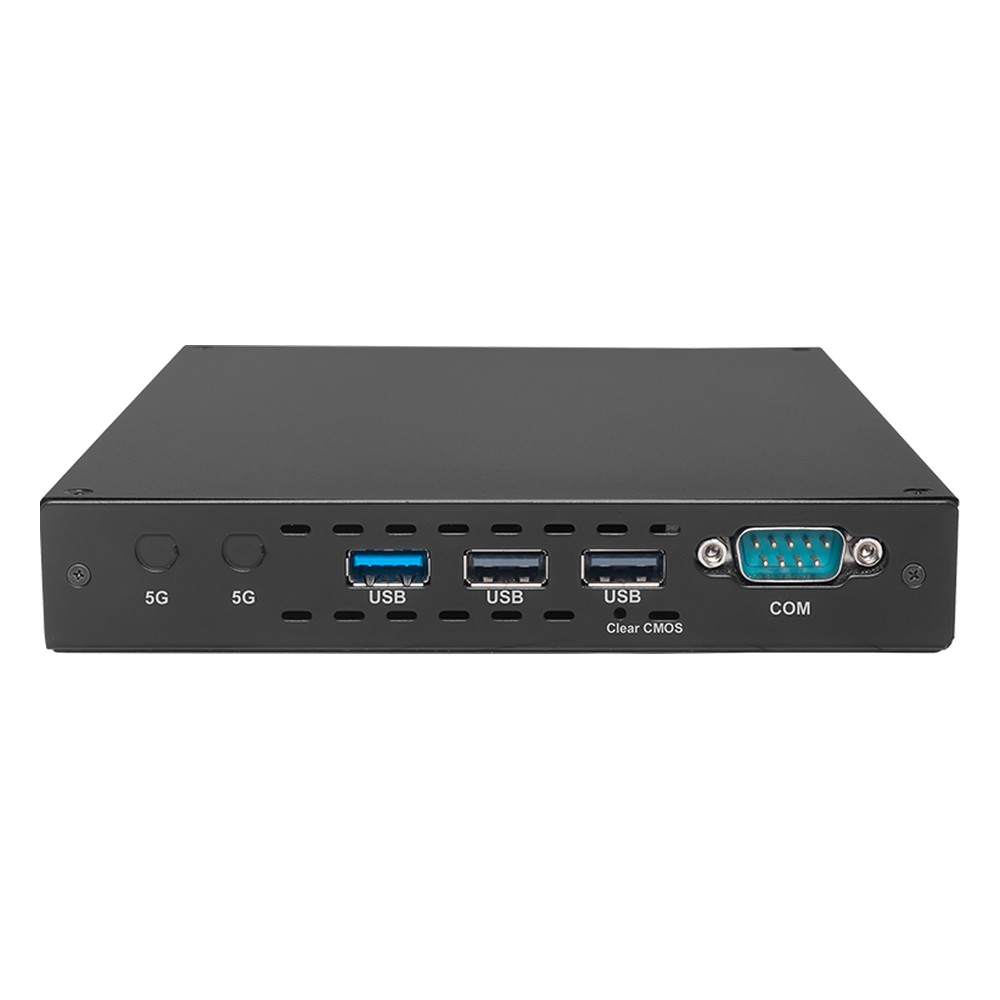

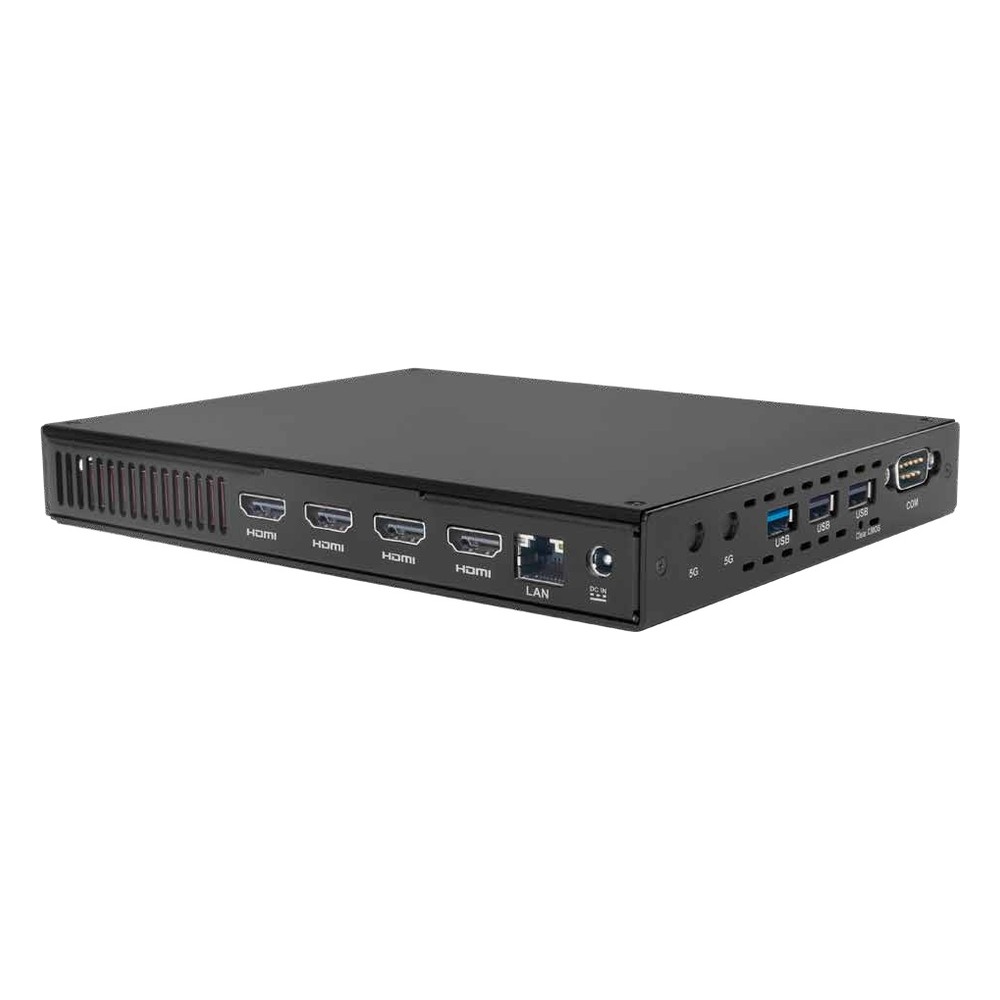

Each HDMI 2.0 port runs at up to 4096 x 2304 at 60 Hz. As an optional factory build, two HDMI ports are replaced by a DP1.4 output at up to 7680 x 4320 for an 8K screen. Other I/O covers a USB 3.2 Gen 2 Type-C port, a USB 3.2 Gen 2 Type-A port, two USB 2.0 ports, an RS232 port, a headset jack and one GbE port on Intel i219-LM. An E-Key M.2 slot takes an optional Wi-Fi card, and a B-Key M.2 3042/3052 slot with SIM takes an optional Quectel EM12 4G or RM500Q 5G module.

The D613 series runs from a 19 V DC adapter and operates from 0 °C to 45 °C at 10 to 90% humidity (non-condensing), with CE, FCC Class B and UKCA marks. Smart fan control is set in the BIOS, a watchdog timer and auto power on suit unattended screens, TPM 2.0 is optional, and an optional VESA kit mounts the player behind a display. In practice these players suit retail, hospitality, corporate and transport signage indoors, wherever the screens run for long hours and are managed remotely. Both builds share the same chassis, ports and outputs, so a mixed estate can use one mounting and cabling plan.
