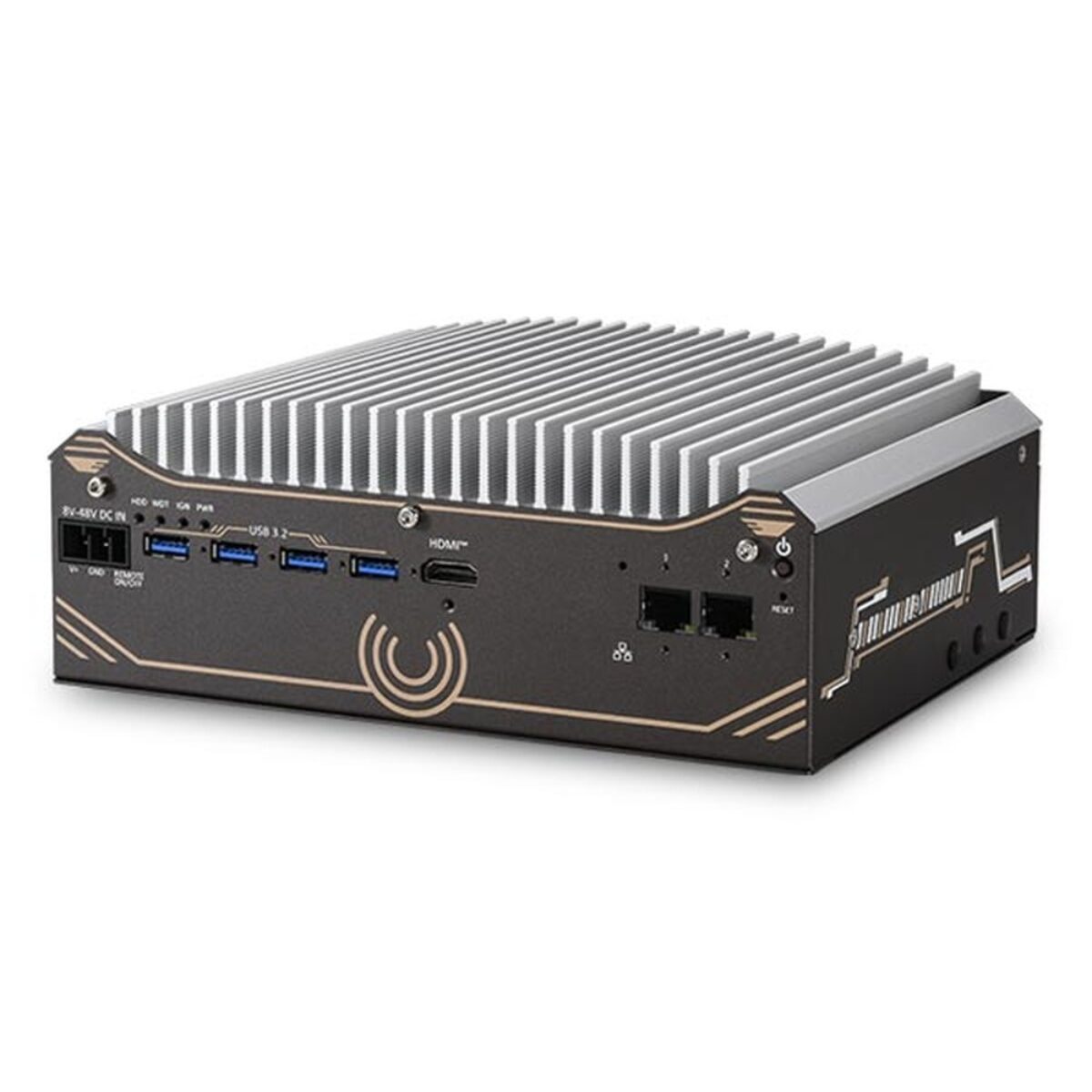

Neousys Nuvo-11501 Intel Core Ultra 200S Fanless Compact Industrial Computer with 2x 2.5GbE

Many vision and automation cells need a current processor, a couple of network ports and plenty of local storage for images or video, and not much else. The NUVO-11501 is a compact industrial computer from Neousys that does exactly that with Intel Core Ultra 200S processors, two 2.5GbE ports and a bay for a 3.5″ or 2.5″ drive in a 212 x 165 x 80 mm fanless enclosure.

The NUVO-11501 uses the Intel H810 chipset with Core Ultra 9 285, Core Ultra 7 265 or Core Ultra 5 245 processors and their T versions, at 35W or 65W on the LGA1851 socket. Neousys rates the Core Ultra 200S at nearly 120% of the previous generation performance at 80% of the power, and the integrated NPU adds AI inference alongside rule-based vision code. Memory is up to 64 GB of DDR5-6400 in one SODIMM slot, and fTPM 2.0 is standard with dTPM 2.0 as an option.

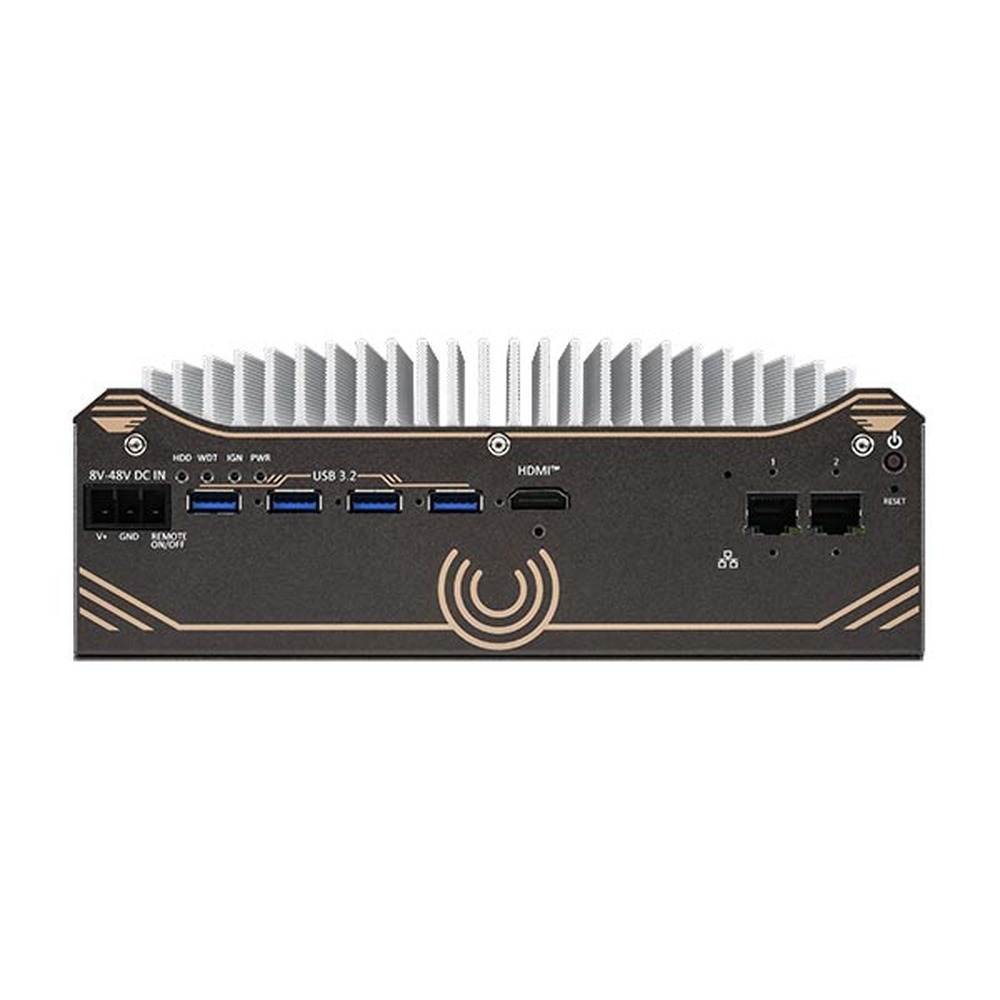

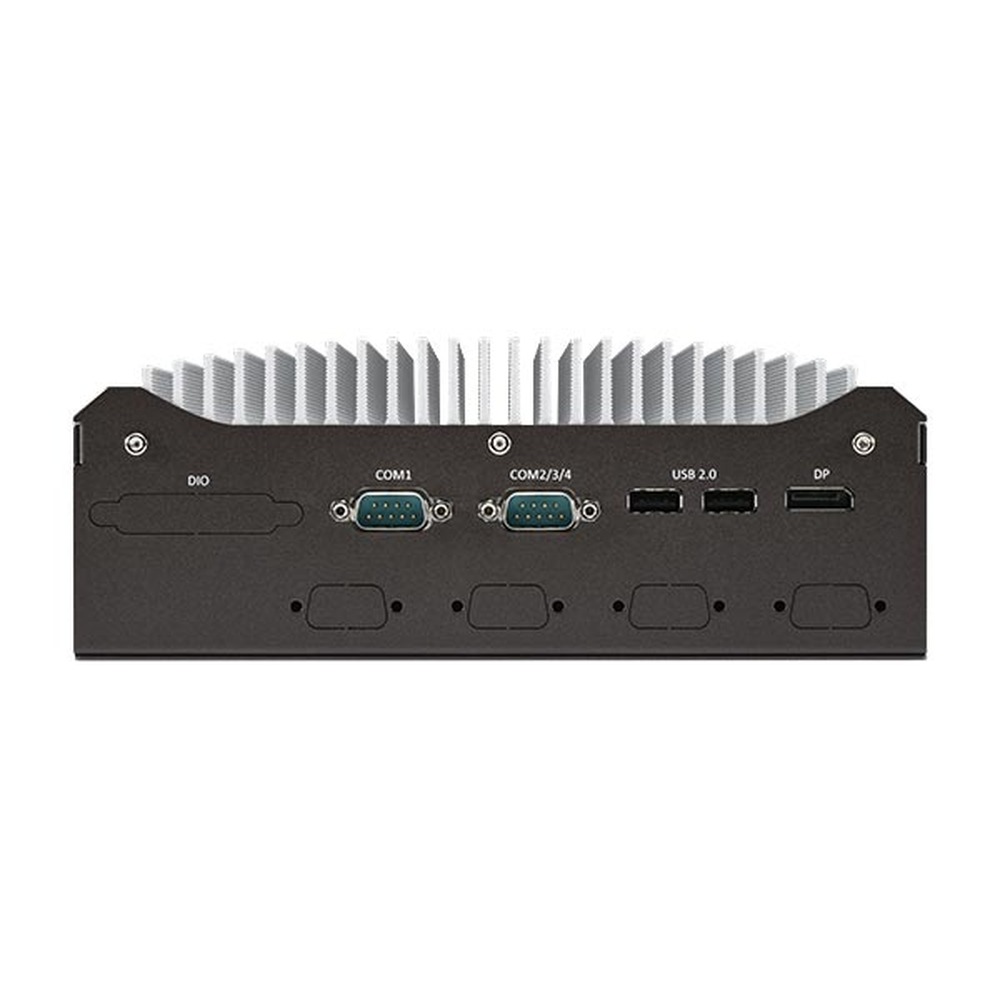

Two Intel I226-V 2.5GbE ports and four USB 3.2 Gen1 ports, all with screw-lock, connect cameras and networks, with two more USB 2.0 ports for peripherals. HDMI and DisplayPort outputs both reach 3840 x 2160, and serial devices use one RS-232/422/485 port and three RS-232 ports, or one RS-422/485 port on COM2. Storage is an M.2 2280 Gen4 x4 NVMe socket for the OS plus an internal SATA bay for one 3.5″ HDD or one 2.5″ HDD or SSD, which suits data logging and video recording. Two full-size mini-PCIe sockets with SIM and an M.2 E key socket add COM ports, Wi-Fi or 5G and 4G.

Power is 8 to 48V DC through a pluggable terminal block with remote on/off control. The NUVO-11501 runs fanless from -10°C to 60°C with 35W CPUs, and a fan kit is recommended above 50°C with 65W CPUs. It is tested to MIL-STD-810H for vibration and shock, carries CE/FCC Class A and weighs 2.5 kg, with wall and DIN-rail mounting kits as options.
