Neousys Nuvo-11531 Intel Core Ultra 200S Fanless Industrial Mini PC with 4x PoE+

An AMR or robot arm has little room for a computer, yet it still needs ports for cameras, LiDAR and I/O, and enough compute to run vision models on board. The NUVO-11531 is an industrial mini PC from the Neousys NUVO-11531/11588 series that fits Intel Core Ultra 200S compute, four 2.5GbE ports and a swappable SSD tray into a 212 x 165 x 63 mm enclosure.

The NUVO-11531 uses the Intel H810 chipset with Core Ultra 9 285, Core Ultra 7 265 or Core Ultra 5 245 processors at 35W or 65W, and up to 64 GB of DDR5-6400 in one SODIMM slot. The NPU and Xe graphics together provide up to 36 TOPS, which suits AI inspection running beside rule-based vision code. fTPM 2.0 is standard and dTPM 2.0 is optional.

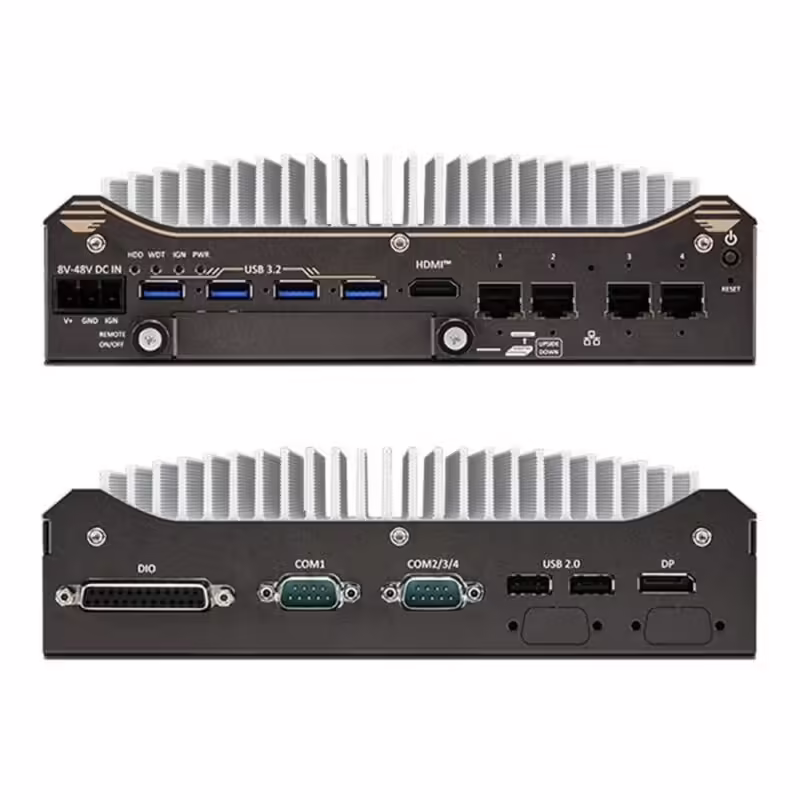

Four Intel I226 2.5GbE ports with screw-lock handle GigE cameras and plant networks, and the NUVO-11531-PoE option adds 802.3at PoE+ on all four ports with a 100 W budget. Four screw-lock USB 3.2 Gen1 ports, two USB 2.0 ports, HDMI and DisplayPort at 4K, one RS-232/422/485 port, three RS-232 ports and 4-channel isolated DI and DO cover the rest of the panel. Two full-size mini-PCIe sockets with SIM slots and an M.2 E key socket add 5G or 4G, CAN, COM or Wi-Fi, while storage is an internal M.2 Gen4 x4 NVMe socket plus a front swappable 2.5″ SSD tray.

Power is 8 to 48V DC through a pluggable terminal block with optional ignition control, and PoE+ use needs 12 to 48V. The NUVO-11531 runs fanless from -25°C to 60°C with 35W CPUs, a fan kit is recommended above 50°C with 65W CPUs, and it is tested to MIL-STD-810H for vibration and shock. It weighs 2.2 kg and wall-mounts as standard with DIN-rail mounting optional. For PoE+ as standard, more DIO and an external PCIe Gen4 x8 port, see the NUVO-11588.
