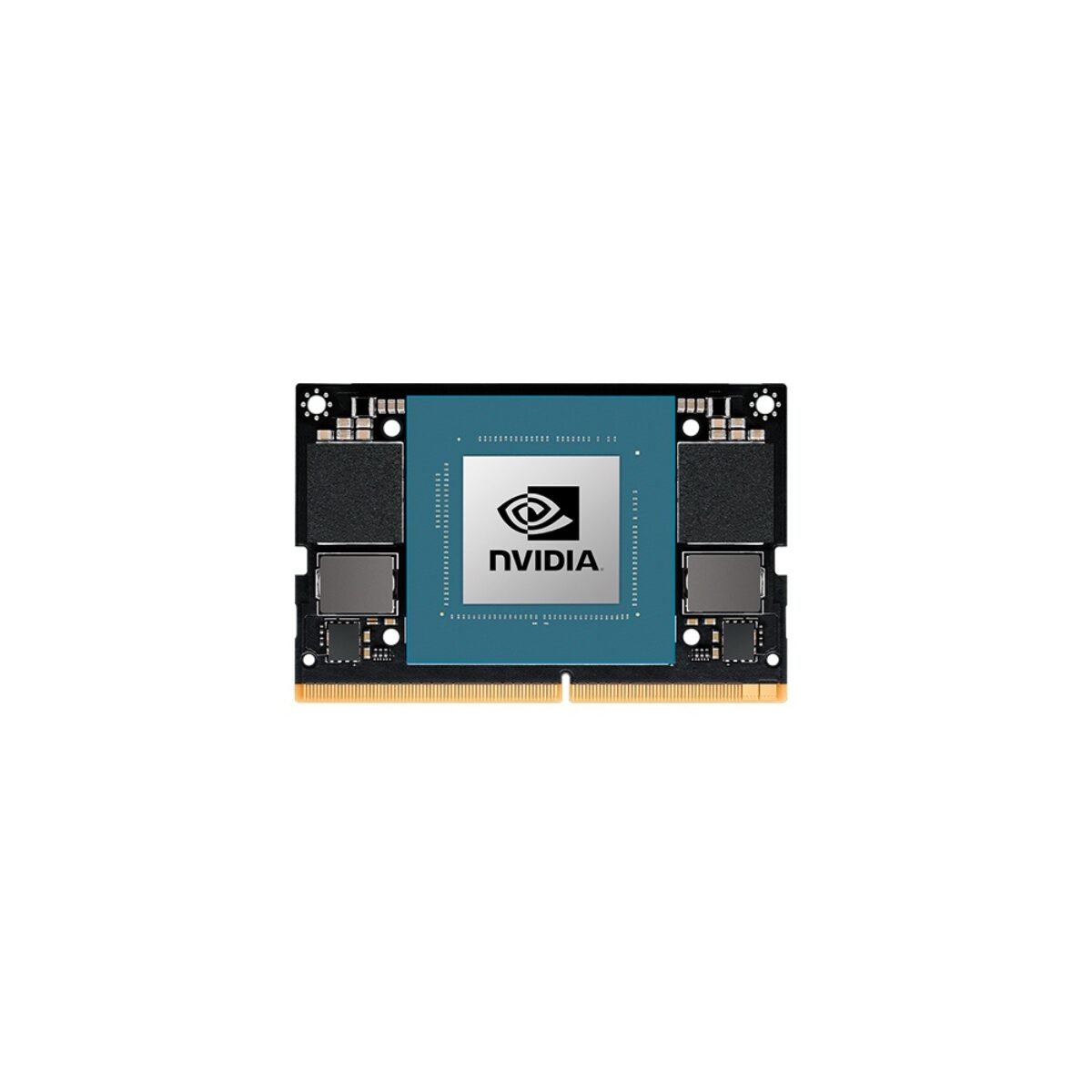

NVIDIA Jetson Orin NX 16GB Module NVIDIA Jetson Orin NX 16GB Module with 100 TOPS and 16GB LPDDR5

The Jetson Orin NX 16GB Module is the 16GB option in the NVIDIA Jetson Orin NX series, with up to 100 TOPS (157 TOPS in NVIDIA's Super configuration), a 1024-core Ampere GPU, an 8-core Arm Cortex-A78AE CPU and two NVDLA engines. It suits multi-camera vision, robotics and drone builds that run at 10 to 25 W.

  • Up to 100 TOPS, 157 TOPS Super: A 1024-core Ampere GPU with 32 Tensor Cores and two NVDLA engines give 100 sparse INT8 TOPS, or 157 TOPS with JetPack 6.2 Super Mode.
  • 8-Core Arm Cortex-A78AE CPU: Eight cores at up to 2 GHz give headroom for ROS nodes, sensor fusion and application code next to inference.
  • 16GB 128-Bit LPDDR5: 16 GB of LPDDR5 at 102.4 GB/s holds larger models and several camera pipelines; the OS runs from NVMe on the carrier.
  • 10 W, 15 W and 25 W Modes: Standard modes span 10 to 25 W; JetPack 6.2 adds 40 W and MAXN SUPER modes where the thermal design allows.
  • 260-Pin SO-DIMM Connector: Same connector as Orin NX 8GB and Orin Nano, so a carrier designed for the family can take any of these modules.
View Jetson Orin NX Series
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications
  • Downloads

Jetson Orin NX 16GB Module Overview

Robotics, drone and multi-camera designs that started on an Orin developer kit often settle on the Jetson Orin NX 16GB Module for production, and the same buyers return for replacements and stock for later batches. It is the 16GB member of the NVIDIA Jetson Orin NX series, on the 260-pin SO-DIMM connector used across Orin NX and Orin Nano.

NVIDIA rates the module at up to 100 sparse INT8 TOPS from a 1024-core Ampere GPU with 32 Tensor Cores and two NVDLA accelerators, with an 8-core Arm Cortex-A78AE CPU at up to 2 GHz and 16 GB of 128-bit LPDDR5 at 102.4 GB/s. Standard power modes are 10 W, 15 W and 25 W. JetPack 6.2 brings NVIDIA’s Super Mode, which lifts the module to 157 TOPS and adds 40 W and MAXN SUPER modes; NVIDIA asks that the thermal design be checked for the higher figures. The Jetson Orin NX 8GB Module uses six CPU cores and one NVDLA for 70 TOPS where cost or power matter more.

The Jetson Orin NX 16GB Module brings eight MIPI CSI-2 lanes (D-PHY 2.1), PCIe Gen4 as one x4 and three x1 links, 3x USB 3.2, 3x USB 2.0 and GbE to the carrier, with UART, SPI, I2C, I2S and one CAN interface. One shared HDMI 2.1, eDP 1.4 or DisplayPort 1.4a output reaches 8K30, and the video engines encode 1x 4K60 and decode 1x 8K30 or 2x 4K60 H.265. Storage is external NVMe.

NVIDIA lists the Jetson Orin NX 16GB as available through January 2032. Teams moving from the Jetson Xavier NX 16GB, which NVIDIA lists through July 2027, will find NVIDIA positions the Orin NX series at up to 7.5x the performance of Xavier NX in the same SO-DIMM form factor; carrier support is confirmed per carrier. Designs that need more than 16 GB or 10GbE move to the 699-pin Jetson AGX Orin modules.

Jetson Orin NX 16GB Module Specifications

Overview
Brand & ModelNVIDIA Jetson Orin NX 16GB Module
Performance
AI Performance100 TOPS
System-on-ModuleNVIDIA Jetson Orin NX 16GB: 100 TOPS, 1024-core Ampere GPU with 32 Tensor Cores, 8-core Arm Cortex-A78AE 2.0GHz, 16GB 128-bit LPDDR5, 10-25W

NVIDIA Jetson Modules

We supply NVIDIA Jetson modules fitted, imaged and tested in a carrier board or system as standard, as well as sourcing modules for production runs and last-time-buy needs. The Jetson Orin NX 16GB Module is part of our NVIDIA Jetson Orin NX range, alongside the 8GB module and Orin NX systems.

Carriers that take it are grouped under Orin NX carrier boards for Jetson, and the wider Jetson Orin carrier boards range adds AGX Orin and Orin Nano boards. For more memory and 10GbE, see the Jetson AGX Orin range.
