Premio JCO-1000-ORN-C-2M12 NVIDIA Jetson Orin NX or Nano Super Fanless Embedded Computer with M12 LAN and Ignition Control
Linux
2.5GbE
USB3
3x M.2
2x SIM
4G
5G
Wi-Fi
NVMe SSD
Ignition Control
Fanless
CE
FCCJCO-1000-ORN-C-2M12 Overview
On a vehicle or moving machine, RJ45 plugs can work loose under vibration, so many integrators specify screw-locked M12 connectors. The Premio JCO-1000-ORN-C-2M12 is the M12 build of the JCO-1000-ORN series, a fanless Jetson Orin NX or Orin Nano computer with X-coded M12 GbE and 2.5GbE, E-Mark and EMC to EN 50121-3-2 (the EN 50155 EMC clause).
The module sets the performance, from 20 TOPS on Orin Nano 4GB and 40 TOPS on Orin Nano 8GB to 70 and 100 TOPS on Orin NX 8GB and 16GB, or up to 157 TOPS on Orin NX 16GB in Super Mode. Storage is an M.2 PCIe x4 NVMe SSD (128 GB by default) plus Micro SD. The JCO-1000-ORN-C-2M12 runs JetPack 6.2 on Ubuntu 22.04 or JetPack 7.2 on Ubuntu 24.04, with TPM 2.0 and a watchdog timer.

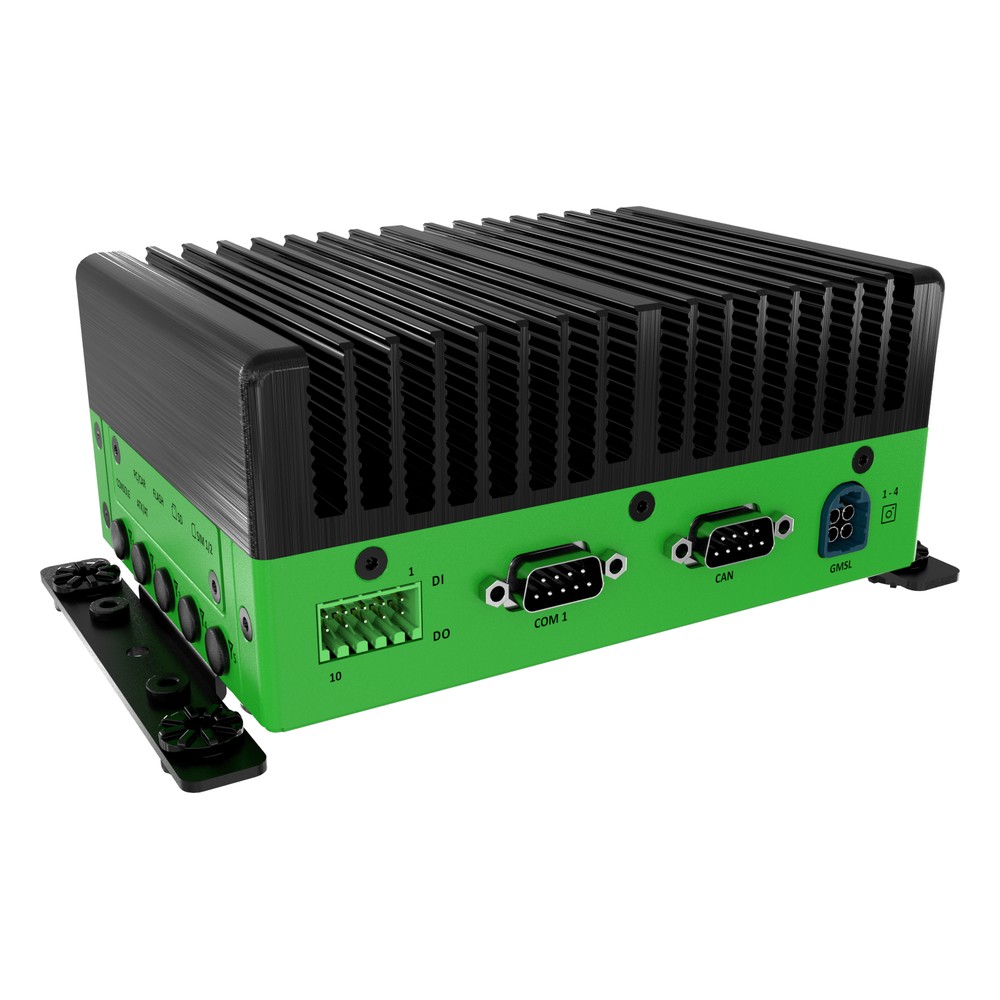

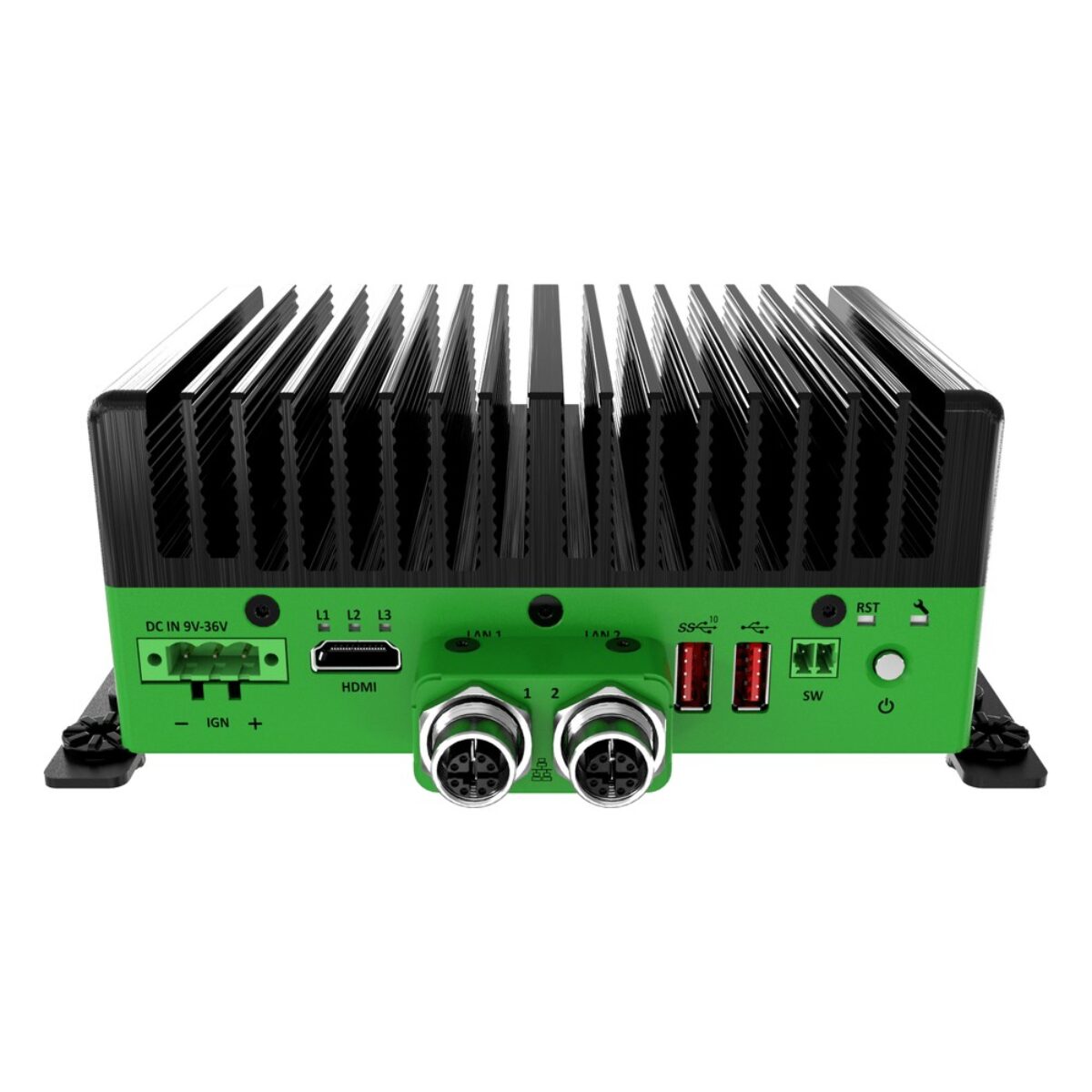

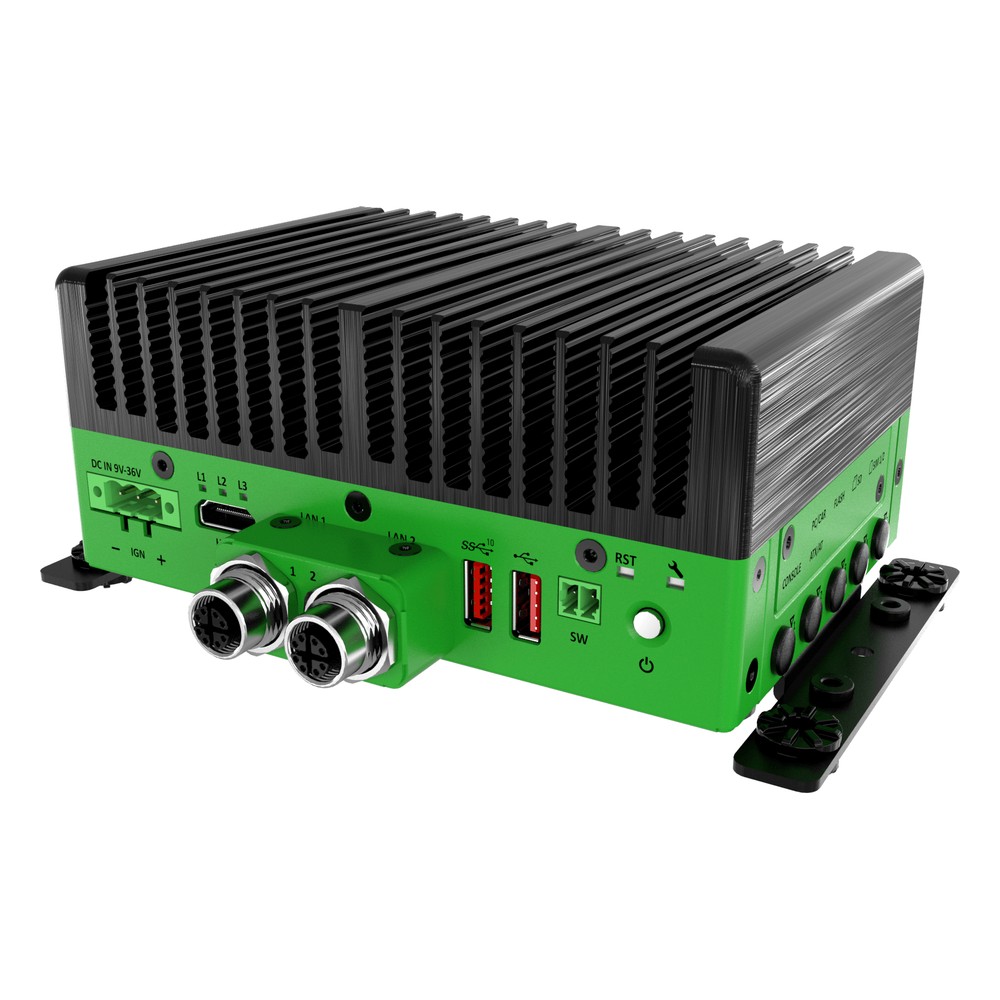

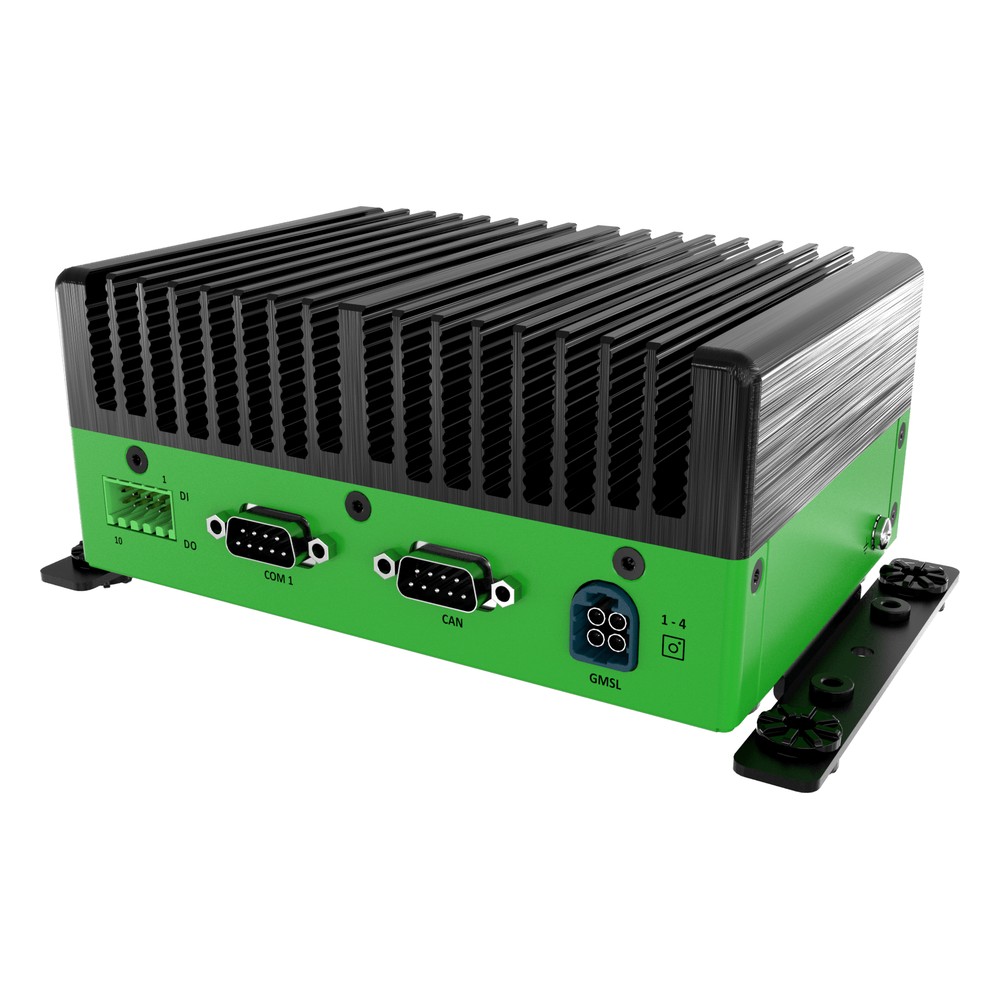

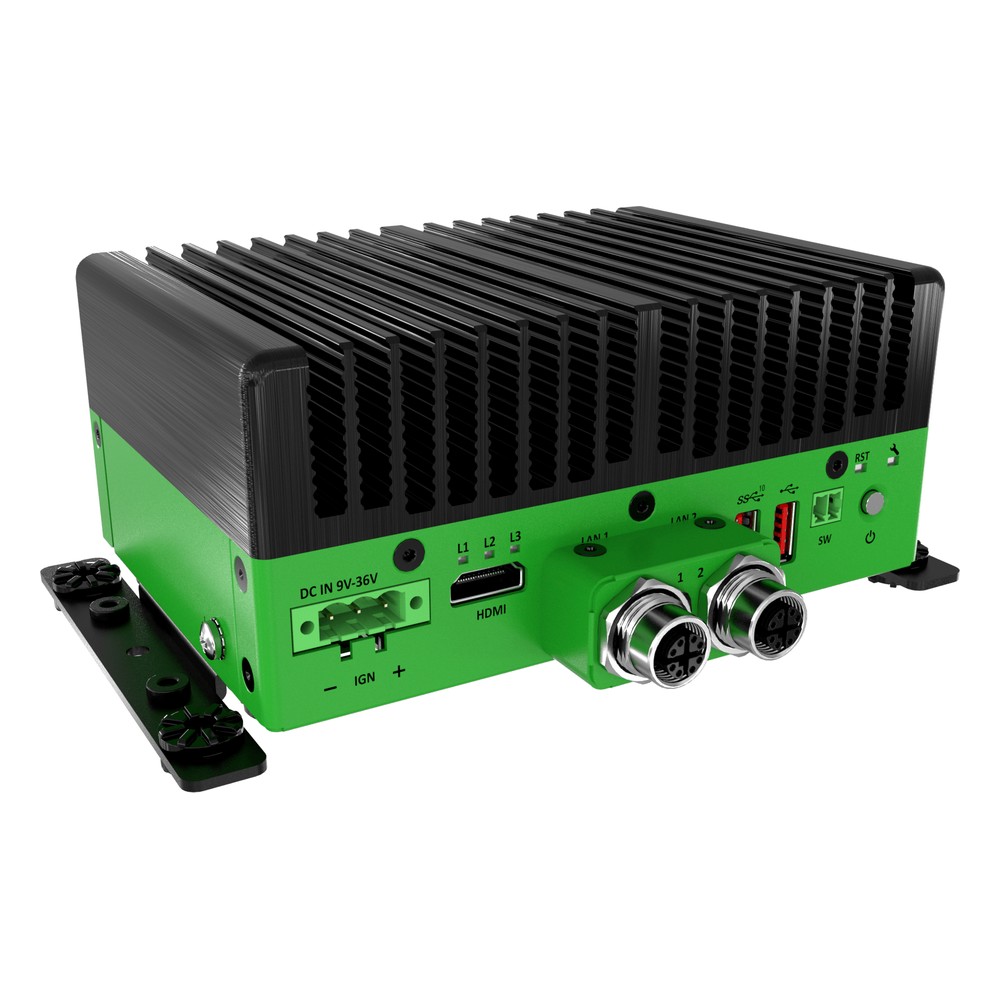

LAN is one GbE port and one Intel 2.5GbE port, both on X-coded M12 connectors. There is one USB 3.2 Gen 2 and one USB 2.0 port, one DB9 RS-232/422/485 port plus one internal, one CAN 2.0 B port, four isolated inputs and four outputs, and internal audio. HDMI 2.0 gives 4K at 60 Hz on Orin NX. An optional Mini Fakra module adds up to four GMSL2 cameras, a G-sensor and gyroscope are built in, and M.2 B key and E key sockets take optional 4G/5G and Wi-Fi with a dual nano-SIM socket.

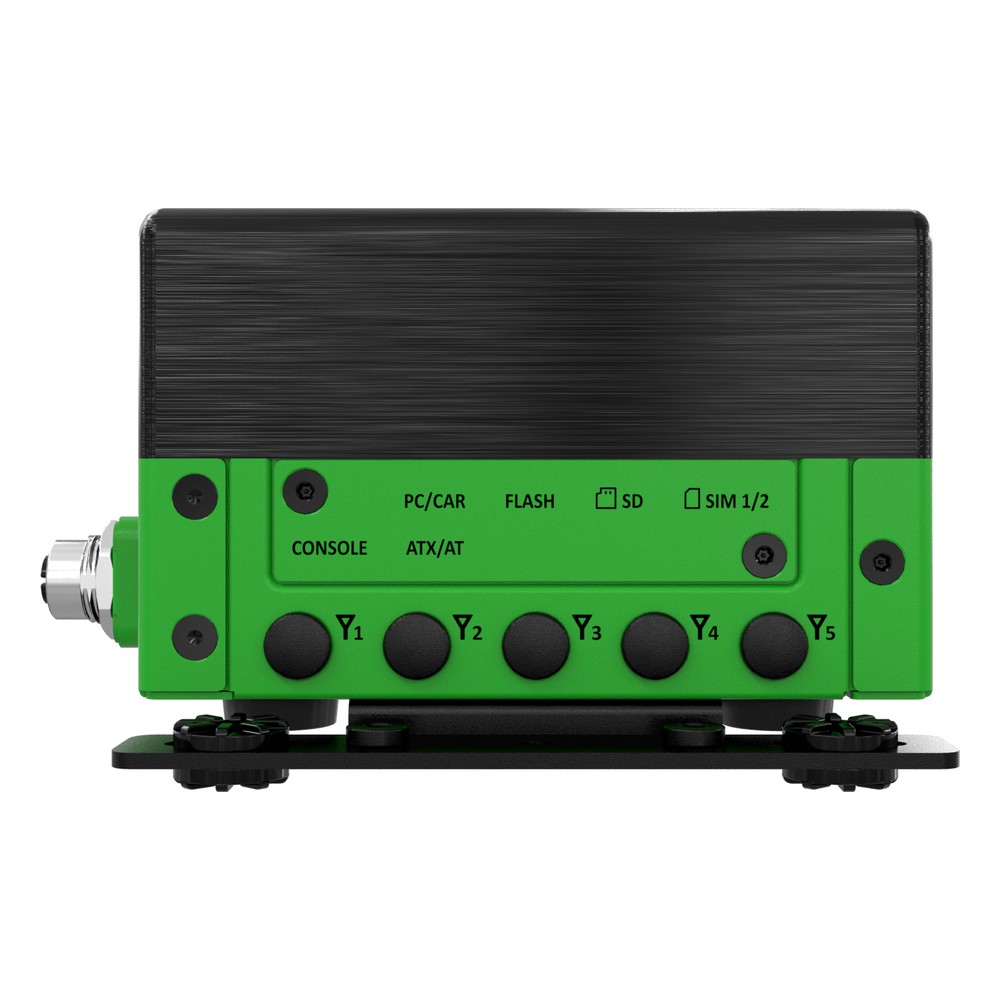

Power is 9 to 36 V DC on a terminal block with AT and ATX modes, a PC/Car mode switch for ignition control and an optional AC/DC adapter. The fanless unit runs from -20 °C to 55 °C at 15 W or 25 W and to 35 °C at 40 W, and is designed to comply with MIL-STD-810H for shock and vibration. It carries E-Mark, CE, FCC Class B, UKCA and UL 62368-1 marks, and mounts on a wall or an optional DIN rail. We supply the JCO-1000-ORN-C-2M12 configured and tested, with the NVMe SSD, JetPack image and any wireless modules fitted. The JCO-1000-ORN-B-2L has the same ports on RJ45, and the WCO-3000-ORN-A adds IP66 sealing.
JCO-1000-ORN-C-2M12 Specifications
| Overview | |
|---|---|
| Brand & Model | Premio JCO-1000-ORN-C-2M12 |
| Features | Compact Embedded Fanless GPU Industrial Low Profile M12 Connectors Rugged Isolated I/O |
| Performance | |
| AI Performance | 20–100 TOPS |
| Memory | 16GB Soldered On-board 4GB Soldered On-board 8GB Soldered On-board |
| System-on-Module | NVIDIA Jetson Orin Nano 4GB: 20 TOPS, 512-core Ampere GPU with 16 Tensor Cores, 6-core Arm Cortex-A78AE 1.5GHz, 4GB 64-bit LPDDR5, 5-10W NVIDIA Jetson Orin Nano 8GB: 40 TOPS, 1024-core Ampere GPU with 32 Tensor Cores, 6-core Arm Cortex-A78AE 1.5GHz, 8GB 128-bit LPDDR5, 7-15W NVIDIA Jetson Orin NX 16GB: 100 TOPS, 1024-core Ampere GPU with 32 Tensor Cores, 8-core Arm Cortex-A78AE 2.0GHz, 16GB 128-bit LPDDR5, 10-25W NVIDIA Jetson Orin NX 8GB: 70 TOPS, 1024-core Ampere GPU with 32 Tensor Cores, 6-core Arm Cortex-A78AE 2.0GHz, 8GB 128-bit LPDDR5, 10-20W |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Ubuntu 24.04 Linux Linux Ubuntu 22.04 |
| Jetpack Version | JetPack 6.2 JetPack 7 |
| Graphics | |
| Multi Display Support | Single Display Support |
| Display Outputs | 1x HDMI |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 1x 2.5 GbE LAN [M12] 1x GbE LAN [M12] | |
| USB | 2x USB Ports |
| 1x USB 2.0 [Type A] 1x USB 3.2 Gen 2 [Type A] | |
| Serial | 2x Serial Ports |
| 1x RS232/422/485 [Board] 1x RS232/422/485 [DB9] | |
| CANbus | 1x CANbus Ports |
| 1x CANbus, DB9 | |
| Digital I/O | Isolated DIO [4-in, 4-out] |
| Expansion | |
| M.2 | 3x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe x1/USB 3.2 Gen 2/USB 2.0/SIM] [2242/3042/3052] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4] [2242/2280] | |
| SIM Slots | 2x SIM Slots |
| Wireless Connectivity | Optional 4G/5G Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 1x Micro SD |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 9-36V DC Input [Terminal Block] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Ignition Sensing | Supports Ignition Control |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -20°C to 55°C [-4°F to 131°F] |
| Storage Temperature | -30°C to 85°C [-22°F to 185°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Certification | IEC 62368-1 CB CE E-Mark EN50121-3-2 FCC IC (ICES-003) REACH RoHS UKCA UL UL 62368-1 |
| Mechanical Properties | |
| Weight | 1.1 Kg (2.4 Lbs) |
| Dimensions | 150mm x 105mm x 65mm (5.91" x 4.13" x 2.56") |
| Mounting Options | DIN Mount Wall Mount |
Official Premio USA Distributor
Things Embedded is an official Premio USA distributor, and we supply the JCO-1000-ORN-C-2M12 configured and tested, with the NVMe SSD, JetPack image, wireless modules and antennas fitted before it ships. Within the Premio range, the JCO-1000-ORN-B-2L has the same GbE and 2.5GbE ports on RJ45 connectors.
Across our range, the JCO-1000-ORN-C-2M12 sits with our rugged Jetson computers, in-vehicle computers and DIN rail PCs.
