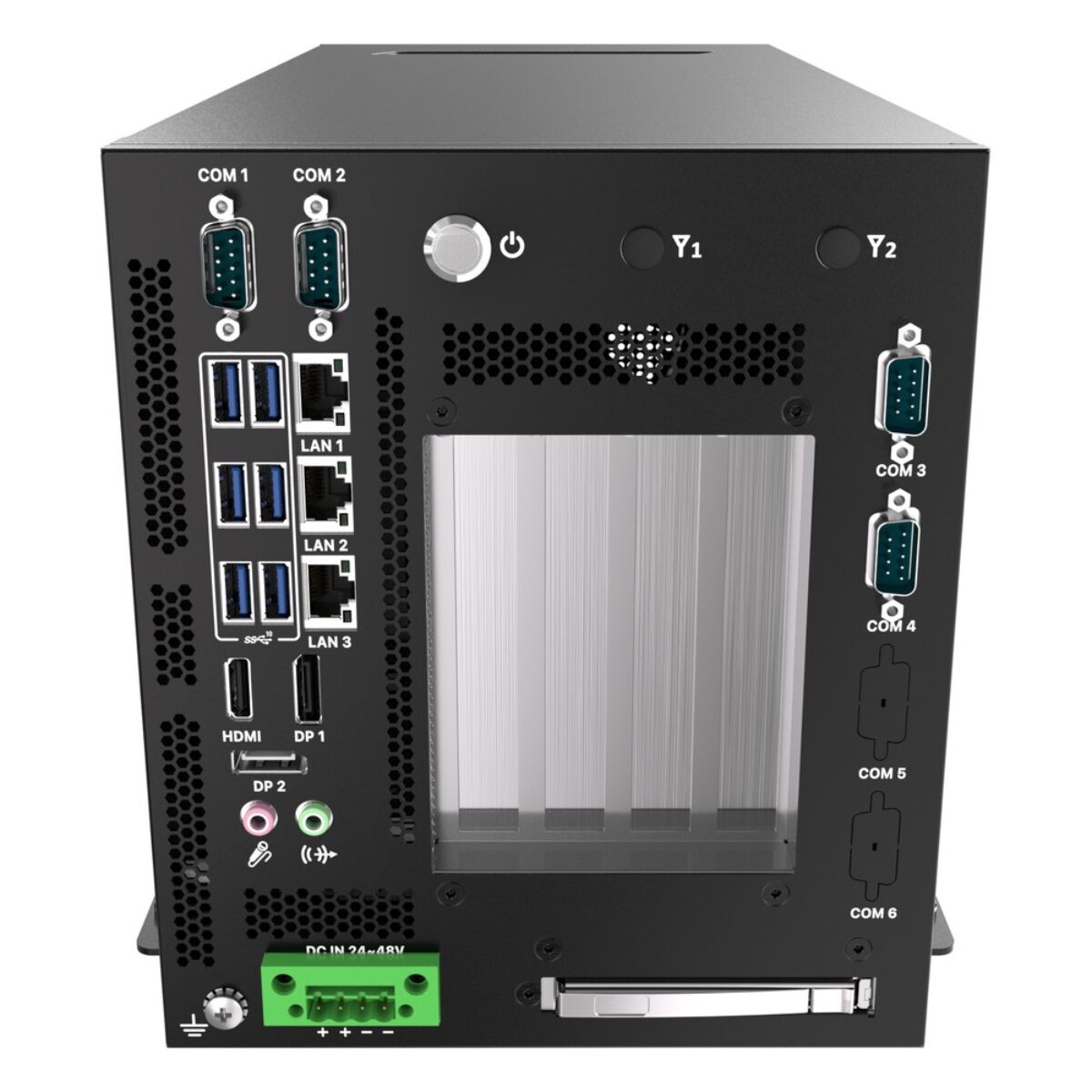

Premio KCO-6000-ARL Intel Core Ultra Series 2 (Arrow Lake-S) Edge AI Workstation with NPU, PCIe Gen5 and Triple 2.5GbE

Edge AI work now spreads across the CPU, an NPU and a discrete GPU, and a workstation that offers all three gives room to place each model where it runs best. The Premio KCO-6000-ARL is an edge AI workstation for Intel Core Ultra Series 2 (Arrow Lake-S) processors, with PCIe Gen5 riser options for GPU cards, three 2.5GbE ports and a 24 to 48 V DC input.

An LGA1851 socket on the Intel W880 chipset takes the Core Ultra 5 225 and 225T, Core Ultra 7 265 and 265T, and Core Ultra 9 285 and 285T, at 35 W or 65 W. Each carries Intel graphics and an Intel NPU, so lighter inference can run without a GPU card. Two DDR5 4800/5600 SO-DIMM sockets hold up to 96 GB, with ECC or non-ECC memory. Windows 11 and Ubuntu 24.04 LTS are supported, with TPM 2.0 on board.

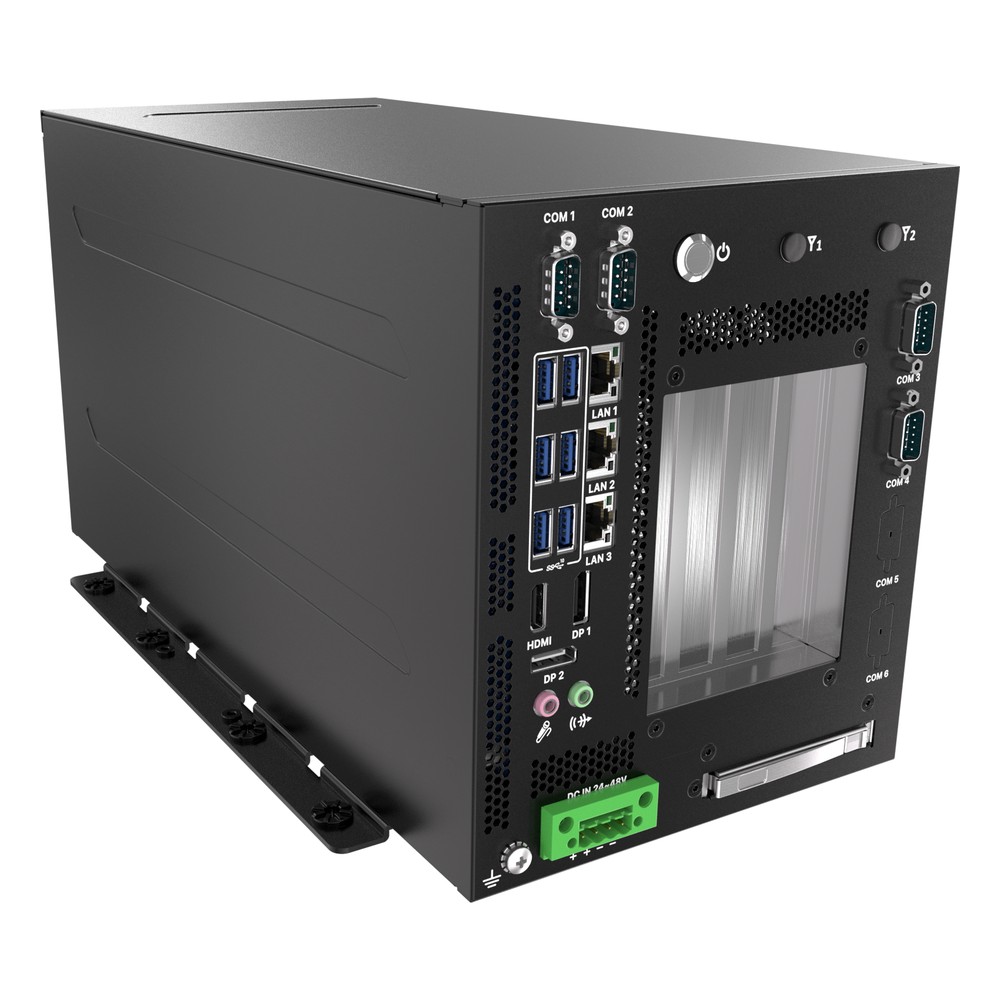

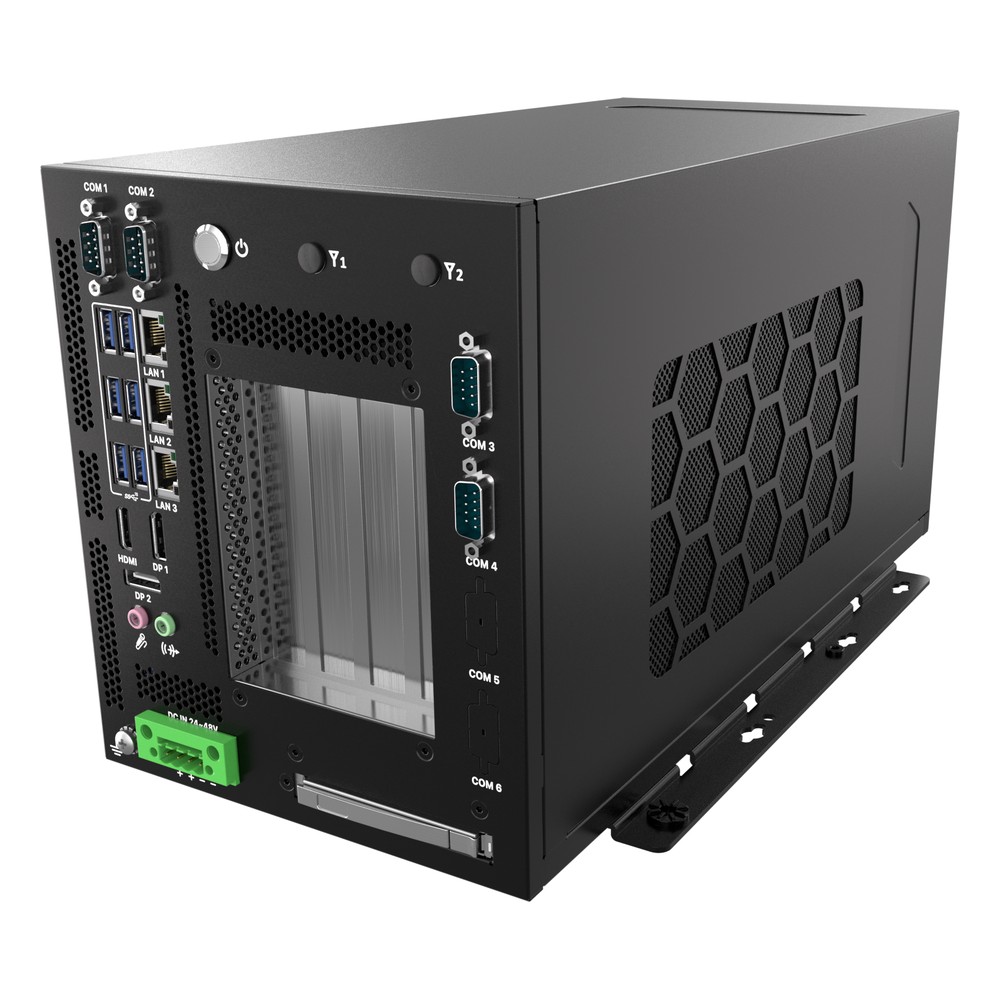

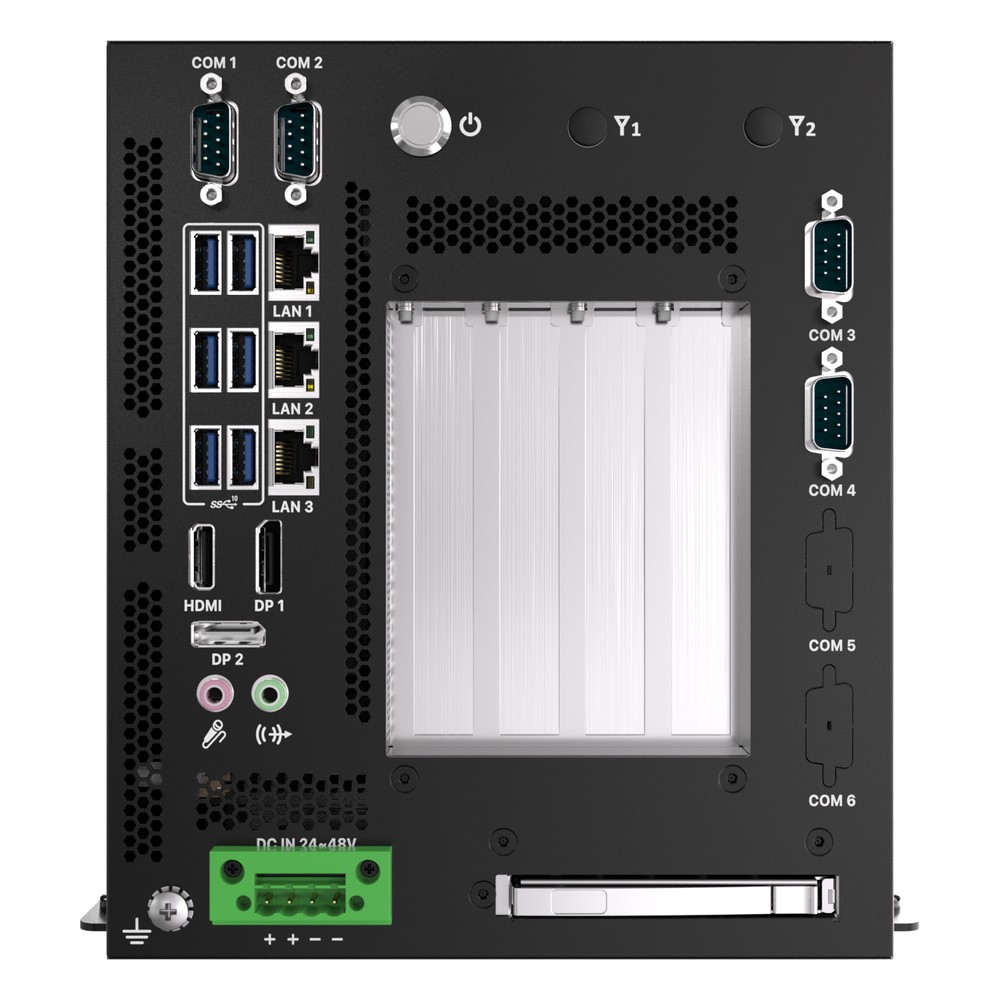

Riser card options set the expansion, either one PCIe x16 Gen5 slot with 16 lanes plus one x16 slot with four Gen4 lanes, or two x16 Gen5 slots with eight lanes each plus the same Gen4 slot. Storage covers one M.2 M key 2280 socket for NVMe or SATA, an M.2 B key for a second NVMe drive and one hot-swappable 2.5″ SATA bay, with an M.2 E key for optional Wi-Fi. I/O includes three Intel I226 2.5GbE ports, six USB 3.2 Gen 2 Type-A ports, two DP++ outputs, four COM ports (two RS-232/422/485 and two RS-232), 8-bit GPIO and audio.

Power arrives on a 24 to 48 V DC terminal block, and an optional 600 W AC/DC supply feeds GPU cards. CPU and system fans cool the KCO-6000-ARL across a 0 °C to 45 °C operating range, it is designed to comply with MIL-STD-810H for shock, and it carries CE, FCC and UKCA marks with IEC 62368-1 safety. We supply it configured and tested, with memory, storage, GPU cards and a Windows 11 or Ubuntu image fitted. For 14th Gen Core with dual GPU support on AC power, see the KCO-3000-RPL-500W, and for a compact single-card unit, the KCO-2000-RPL.
