Premio RCO-1000-ASL-X7433RE-30 4-Core Intel Atom x7433RE Rugged Compact PC with 3x EDGEBoost I/O Slots and -40 to 70 °C
Intel
Linux
Windows
Dual Display Support
2.5GbE
USB3
2x M.2
2x SIM
4G
5G
Wi-Fi
Fanless
Extended Temp
CE
FCCRCO-1000-ASL-X7433RE-30 Overview

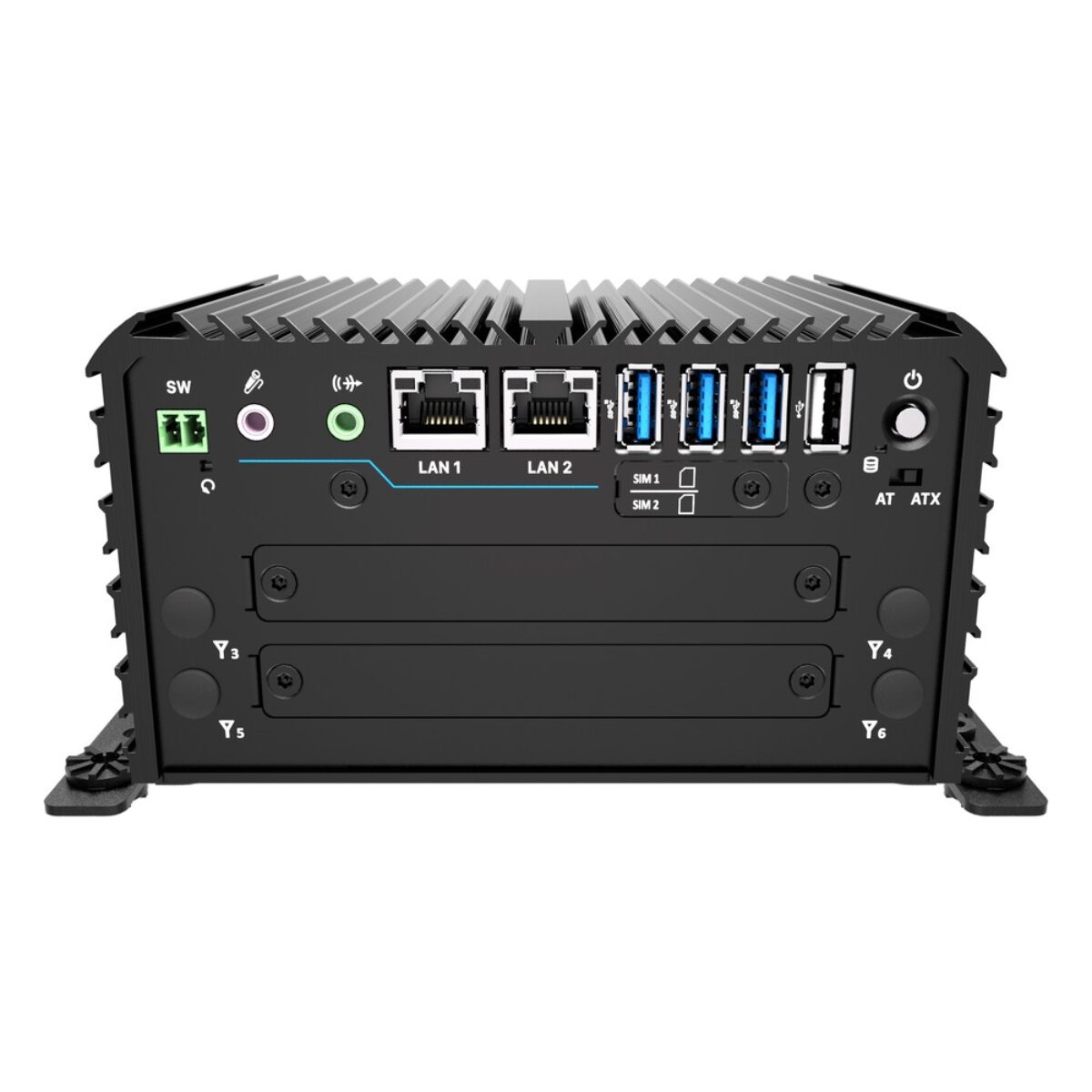

Some installs need a second display, isolated digital I/O and extra serial ports together in one small box. The Premio RCO-1000-ASL-X7433RE-30 is the Atom x7433RE three-bracket EDGEBoost I/O build of the RCO-1000-ASL series, a fanless rugged compact PC with dual 2.5GbE and a -40 °C to 70 °C rating.
The Intel Atom x7433RE is a four-core, 9 W Amston Lake processor running at up to 3.4 GHz, which suits always-on control, data collection and display work at low power. One DDR5 4800 SO-DIMM socket takes up to 16 GB with In-Band ECC supported. Storage runs from an internal 2.5-inch SATA drive bay and an M.2 B-Key socket that takes a 4G or 5G module, an AI module or a SATA SSD. TPM 2.0 and a watchdog are built in, and Windows 11 and Linux (Ubuntu 22.04) are supported.

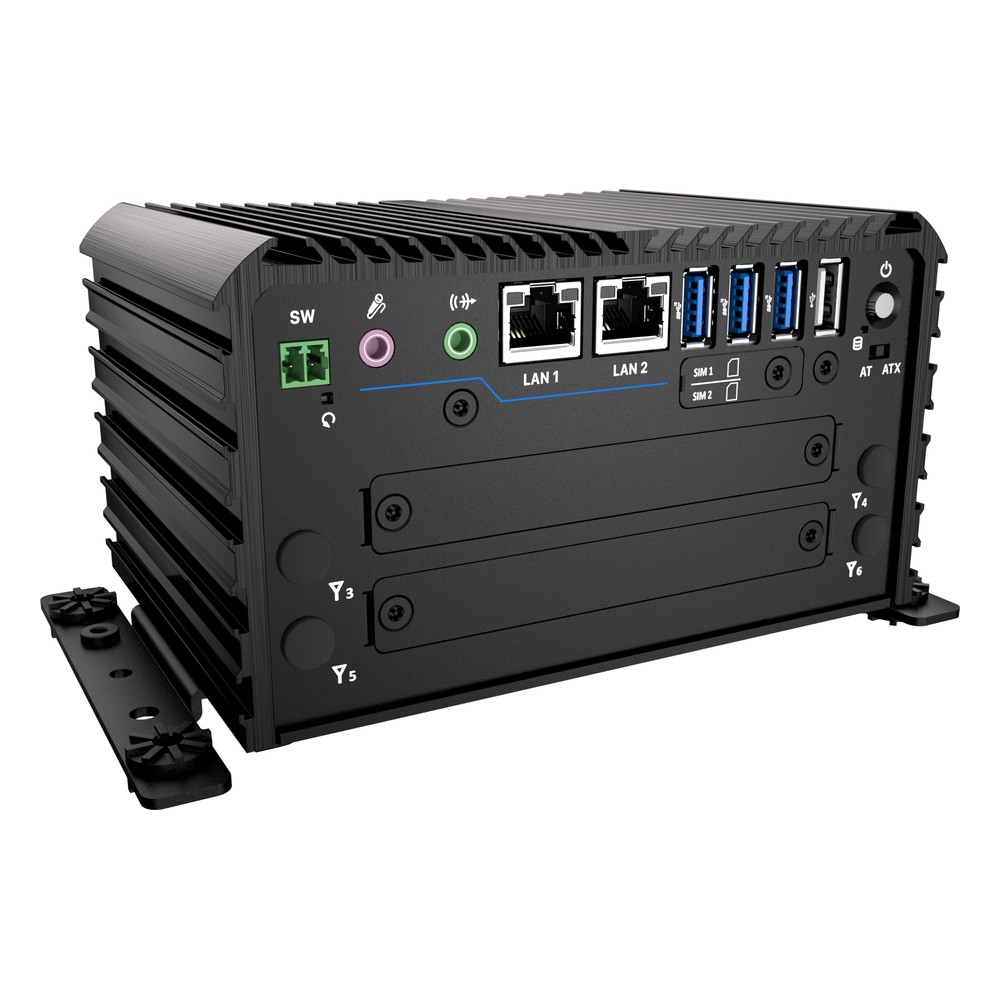

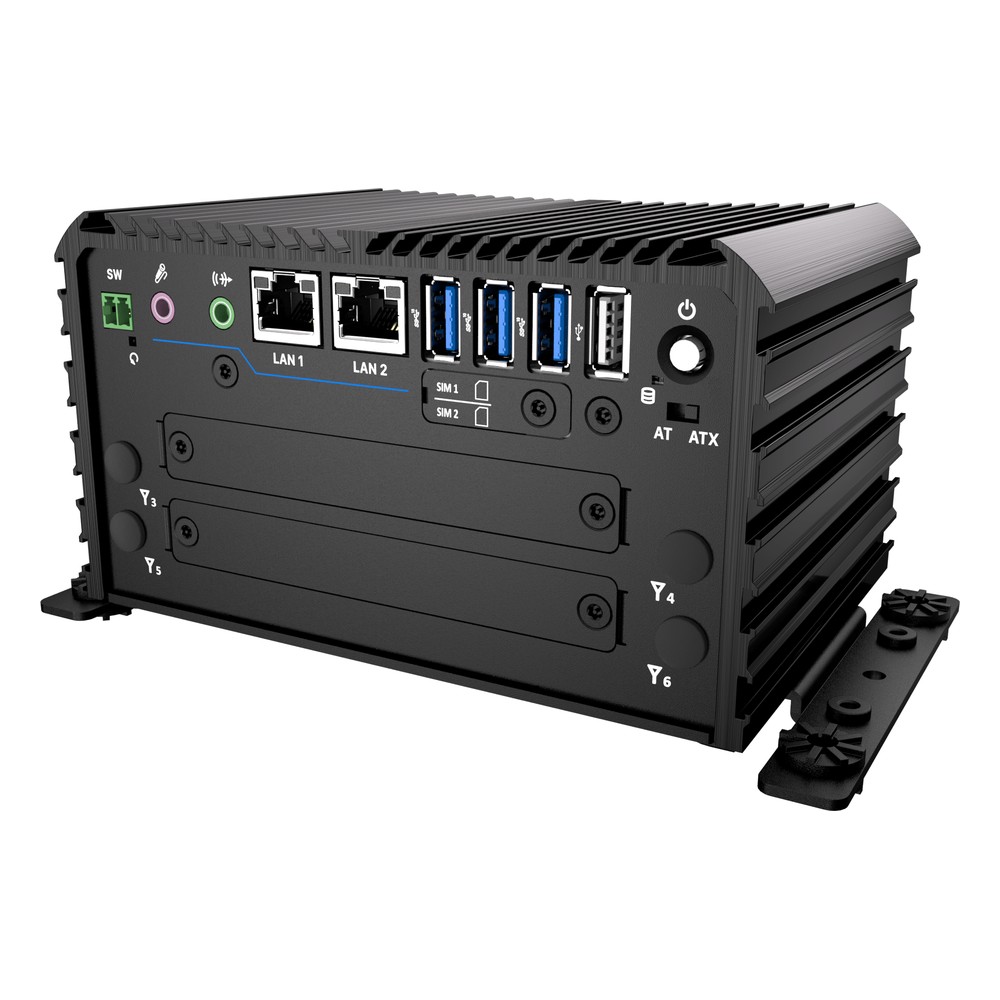

Two Intel I226 2.5GbE ports support Wake-on-LAN and PXE. There are three USB 3.2 Gen 2 ports and one USB 2.0, a 4K DisplayPort and an HDMI 1.4b output for dual displays, two RS-232/422/485 COM ports, two internal CAN 2.0 A/B headers, and mic-in and line-out. An M.2 E-Key socket takes optional Wi-Fi and Bluetooth, and two external SIM sockets serve an optional 4G or 5G module. Three EDGEBoost I/O brackets take optional COM, USB, or DisplayPort or HDMI with isolated DIO modules, the most module space in the series.

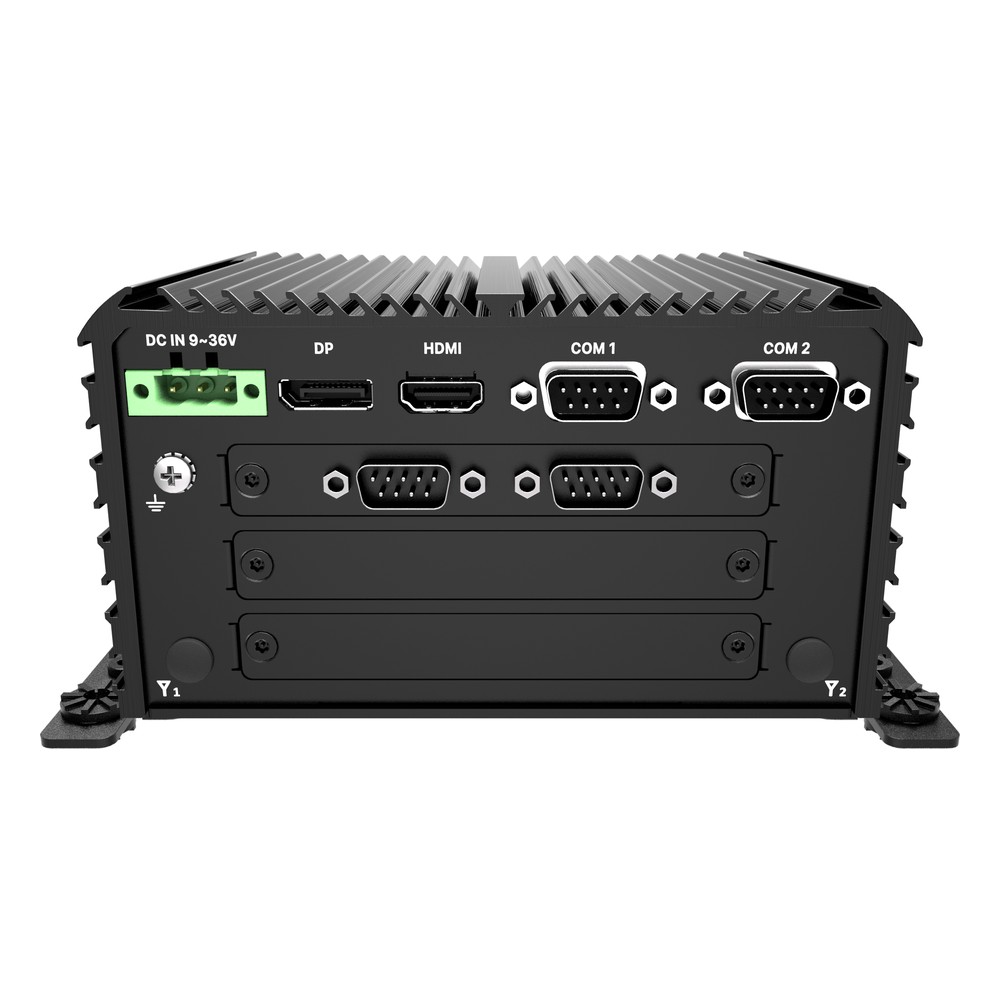

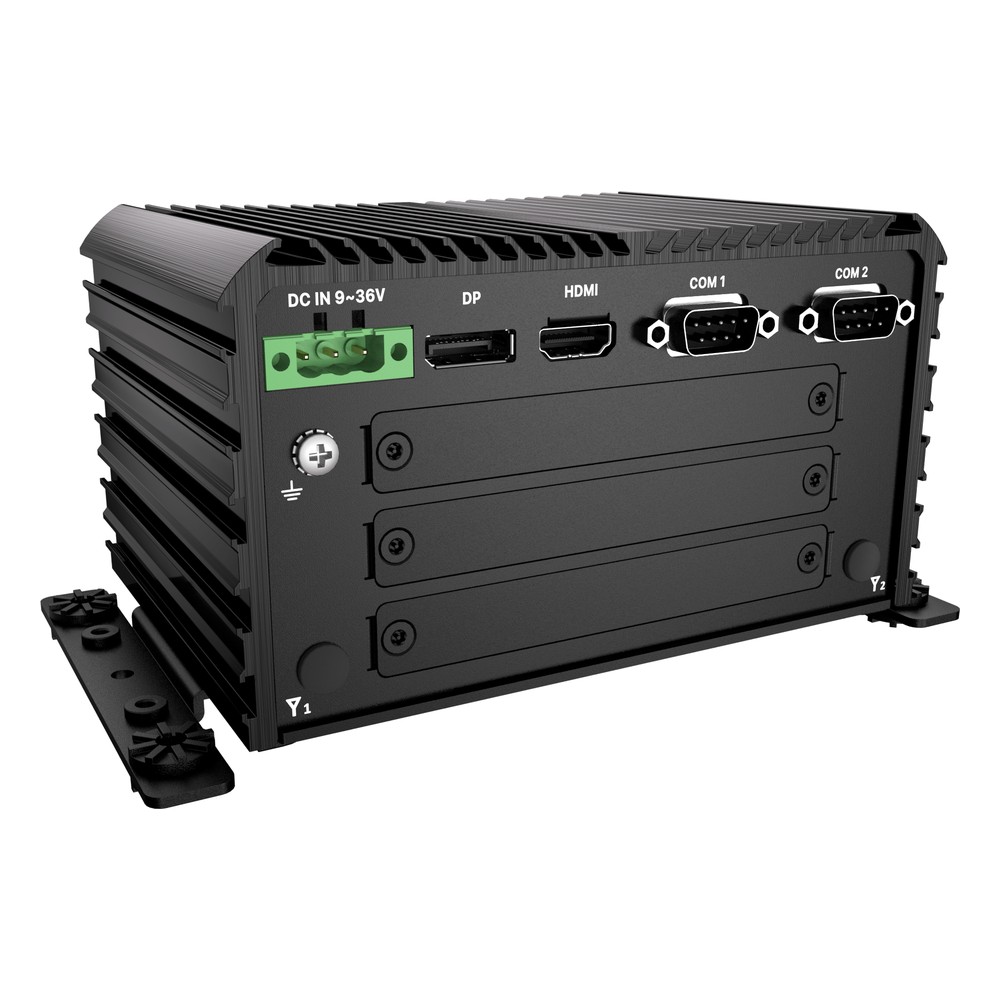

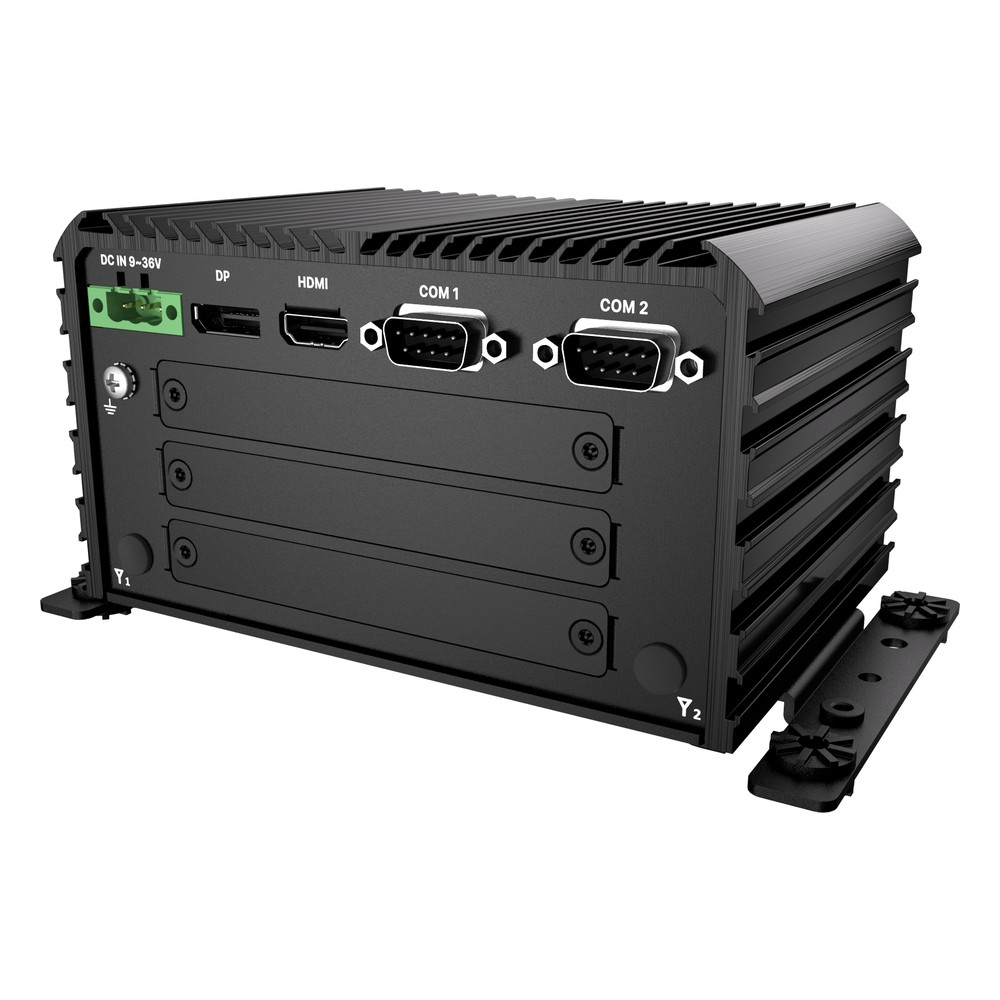

Power is 9 to 36 V DC on a terminal block with AT and ATX modes, with optional ignition management and an optional AC/DC adapter. The RCO-1000-ASL-X7433RE-30 is designed to comply with MIL-STD-810H for shock and vibration, UL listed to UL 62368-1 and wall mounted, with side, VESA and DIN-rail kits optional. We supply it configured and tested, with memory, storage, the OS image and any wireless or EDGEBoost modules fitted. The RCO-1000-ASL-X7835RE-30 uses the same build with the eight-core Atom x7835RE for more processing headroom, and the RCO-1000-ASL-X7433RE-OOB swaps the brackets for a fitted out-of-band management module and four COM ports.
RCO-1000-ASL-X7433RE-30 Specifications
| Overview | |
|---|---|
| Brand & Model | Premio RCO-1000-ASL-X7433RE-30 |
| Features | Compact Embedded Expandable Fanless Industrial Rugged |
| Performance | |
| Processor Series | Intel Atom X Series Amston Lake |
| Processor Models | Intel Atom x7433RE: 1.5~3.4GHz, 4 Cores, 4 Threads, 6MB Cache, 9W |
| Performance Cores | 4 Cores |
| Memory | 1x DDR5 4800MHz SO-DIMM, 16GB |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Linux Ubuntu 22.04 Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | HDMI 1.4b |
| Multi Display Support | Dual Display Support |
| Display Outputs | 1x Display Port 1x HDMI |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| LAN Controllers | Intel I226 |
| USB | 4x USB Ports |
| 1x USB 2.0 [Type A] 3x USB 3.2 Gen 2 [Type A] | |
| Serial | 2x Serial Ports |
| 2x RS232/422/485 [DB9] | |
| CANbus | 2x CANbus Ports |
| 2x CANbus [Board] | |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe/USB/SATA/SIM] [2242/3042/3052] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] | |
| SIM Slots | 2x SIM Slots |
| Wireless Connectivity | Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x 2.5" HDD/SSD 1x M.2 SSD [SATA] |
| Power | |
| Power Input | 9-36V DC Input [Terminal Block] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -40°C to 70°C [-40°F to 158°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Shock | IEC 60068-2-27 MIL-STD-810H |
| Vibration | IEC 60068-2-64 MIL-STD-810H |
| Certification | IEC 62368-1 CB CE FCC IC (ICES-003) UKCA UL UL 62368-1 |
| Mechanical Properties | |
| Weight | 1.2 Kg (2.6 Lbs) |
| Chassis Material | Aluminum |
| Dimensions | 150mm x 105mm x 83mm (5.91" x 4.13" x 3.27") |
| Mounting Options | DIN Mount VESA Mount Wall Mount |
- RCO-1000-ASL-X7433RE-30 Datasheet Download
Official Premio USA Distributor
Things Embedded is an official Premio USA distributor, and we supply the RCO-1000-ASL-X7433RE-30 configured and tested, with the memory, storage, operating system image and any wireless modules fitted before it ships. Within the Premio range, the RCO-1000-ASL-X7835RE-30 keeps the same build with an eight-core 12 W Atom x7835RE for more processing headroom.
Across our range, the RCO-1000-ASL-X7433RE-30 sits with our rugged mini PCs, wide temperature computers and Intel Amston Lake systems.
