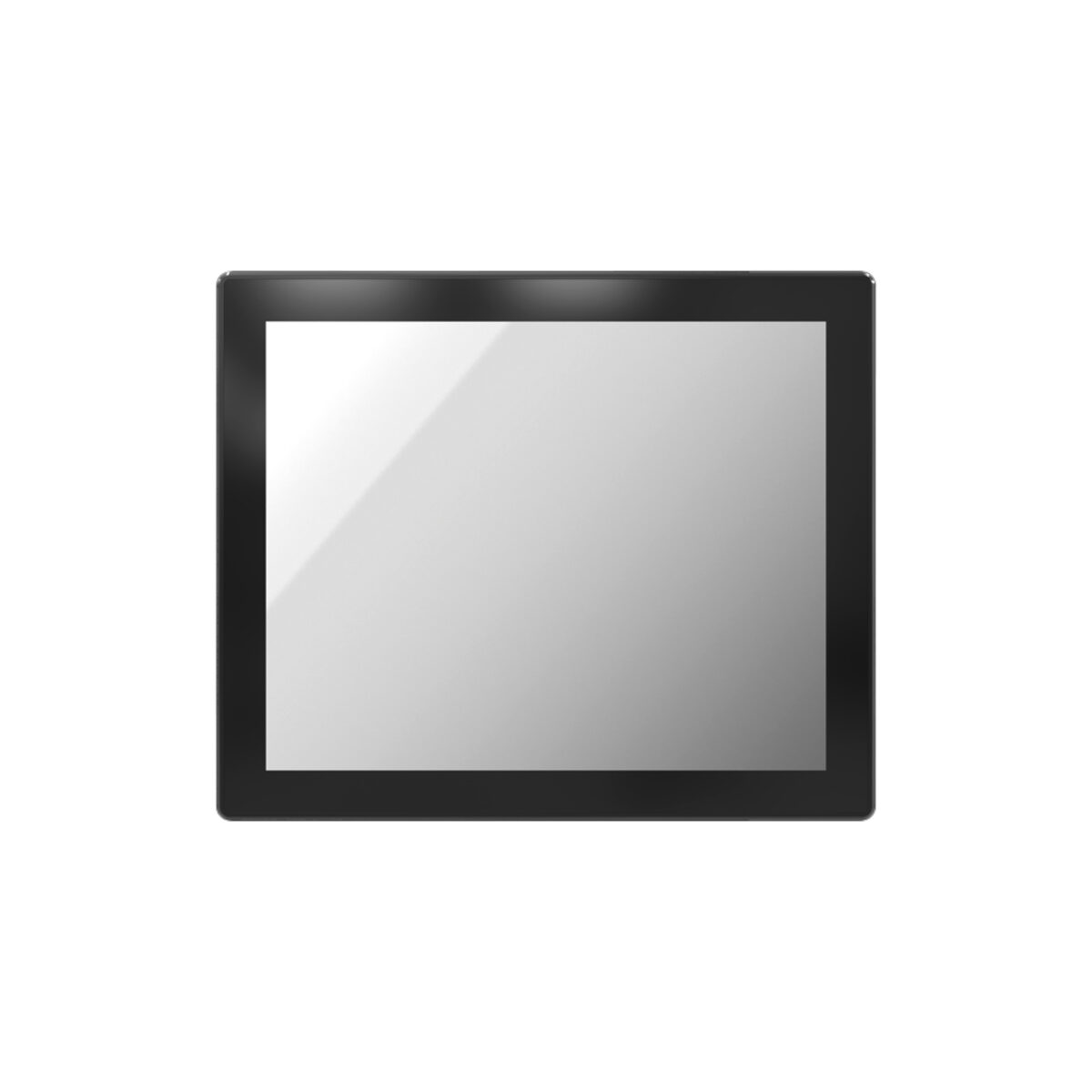

Premio VIO-219-PC100-EHL Intel Celeron J1900 19-Inch Industrial Panel PCs
The VIO-219-PC100 Series is a 19-inch SXGA industrial panel PC powered by the Intel Celeron J1900 processor. It offers resistive or capacitive touch options, rich I/O including six COM ports and isolated digital I/O, and wide 9–50 V DC input for use in industrial automation and control environments.
C&T Solution is now Premio. C&T Solution joined Premio on 1 January 2026 and the VIO-219-PC100-EHL series continues under the Premio brand. See the full Premio range.
PCAP
Intel- Linux
- Windows
Triple Display Support
2.5GbE
USB3- 2x M.2
- 1x mPCIe
- 1x PCIe
- 1x SIM
- 4G
- 5G
- Wi-Fi
- Extended Temp
Front IP65- CE
- FCC
- Resistive
VIO-219-PC100-EHL Description
The VIO-219-PC100 Series delivers robust and efficient industrial computing with a 19-inch SXGA touchscreen display and Intel Celeron J1900 quad-core processor.
Designed for long-term reliability, it features a durable die-cast aluminum front panel with IP65 protection and fanless thermal design.
With options for resistive or capacitive touch, dual LAN, and six COM ports, it provides flexible connectivity for control, automation, and HMI systems.
Expansion support includes dual Mini PCIe slots, CFast, and mSATA storage, while the PC110 models add universal I/O brackets for additional interfaces.
Operating on wide 9–50 V DC input and supporting ignition sensing, the VIO-219-PC100 Series is ideal for industrial machinery, transportation, and automation environments where stability and endurance are essential.
VIO-219-PC100-EHL Specifications
| Overview | |
|---|---|
| Brand & Model | Premio VIO-219-PC100-EHL |
| Features | Embedded Fanless Industrial |
| Display | |
| Touch Controller | See Variant Specifications |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Performance | |
| Processor Series | Intel Celeron J Series Elkhart Lake |
| Processor Models | Intel Celeron J6413: 1.8~3.0GHz, 4 Cores, 4 Threads, 1.5MB Cache, 10W |
| Performance Cores | 4 Cores |
| Memory | 1x DDR4 2666MHz SO-DIMM Slot, 32GB |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | DP++ HDMI 2.0 |
| Multi Display Support | Triple Display Support |
| Display Outputs | 1x Display Port 1x HDMI |
| Audio | |
| Codec | RealTek ALC888S, HD Audio |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 1x 2.5 GbE LAN [RJ45] 1x GbE LAN [RJ45] | |
| LAN Controllers | Intel I210 Intel I225 |
| USB | 4x USB Ports |
| 2x USB 2.0 [Type A] 2x USB 3.2 Gen 2 [Type A] | |
| Serial | 6x Serial Ports |
| 2x RS232/422/485 [Board] 4x RS232/422/485 [DB9] | |
| Digital I/O | Isolated DIO [8-in, 8-out] |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052] 1x M.2 E-Key [USB/PCIe] [2230] | |
| mPCIe | 1x mPCIe Slots |
| 1x mPCIe [SATA/USB] | |
| PCIe | See Variant Specifications |
| SIM Slots | 1x SIM Slots |
| Wireless Connectivity | Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x 2.5" HDD/SSD 1x mSATA 2x M.2 SSD |
| Power | |
| Power Input | 9-36V DC Input [Terminal Block] Optional AC Power Supply |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Environmental Conditions | |
| Operating Temperature | -10°C to 60°C [14°F to 140°F] |
| Storage Temperature | -20°C to 70°C [-4°F to 158°F] |
| Humidity | 10-80% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | See Variant Specifications |
| Dimensions | See Variant Specifications |
| Mounting Options | VESA Mount |
No specifications match your search.
See product variants.
VIO-219-PC100-EHL Variants
Premio VIO-219C-PC100-EHL-1E 19″ Quad Core Industrial Touch Panel Computer
VIO-219-PC100-EHL with Capactive Touch and PCIe
| Overview | |
|---|---|
| Brand & Model | Premio VIO-219C-PC100-EHL-1E |
| Display | |
| Touch Controller | Projective Capacitive Touch |
| Expansion | |
| PCIe | 1x PCIe Slots |
| 1x PCIe [x4 Slot] | |
| Mechanical Properties | |
| Weight | 7.79 Kg (17.14 Lbs) |
| Dimensions | 450mm x 375mm x 93mm (17.72" x 14.76" x 3.66") |
Premio VIO-219R-PC100-EHL-1E 19″ Industrial PCAP Touch HMI
VIO-219-PC100-EHL with Resistive Touch and PCIe
| Overview | |
|---|---|
| Brand & Model | Premio VIO-219R-PC100-EHL-1E |
| Display | |
| Touch Controller | Resistive Touch |
| Expansion | |
| PCIe | 1x PCIe Slots |
| 1x PCIe [x4 Slot] | |
| Mechanical Properties | |
| Weight | 7.72 Kg (16.98 Lbs) |
| Dimensions | 450mm x 375mm x 93mm (17.72" x 14.76" x 3.66") |
Premio VIO-219C-PC100-EHL 19″ Indsutrial PCAP Touch Screen Computer
VIO-219-PC100-EHL with Capactive Touch
| Overview | |
|---|---|
| Brand & Model | Premio VIO-219C-PC100-EHL |
| Display | |
| Touch Controller | Projective Capacitive Touch |
| Mechanical Properties | |
| Weight | 7.68 Kg (16.9 Lbs) |
| Dimensions | 450mm x 375mm x 71mm (17.72" x 14.76" x 2.8") |
Premio VIO-219R-PC100-EHL 19″ SXGA Industrial Touch AIO PC
VIO-219-PC100-EHL with Resistive Touch
| Overview | |
|---|---|
| Brand & Model | Premio VIO-219R-PC100-EHL |
| Display | |
| Touch Controller | Resistive Touch |
| Mechanical Properties | |
| Weight | 7.64 Kg (16.81 Lbs) |
| Dimensions | 450mm x 375mm x 71mm (17.72" x 14.76" x 2.8") |
