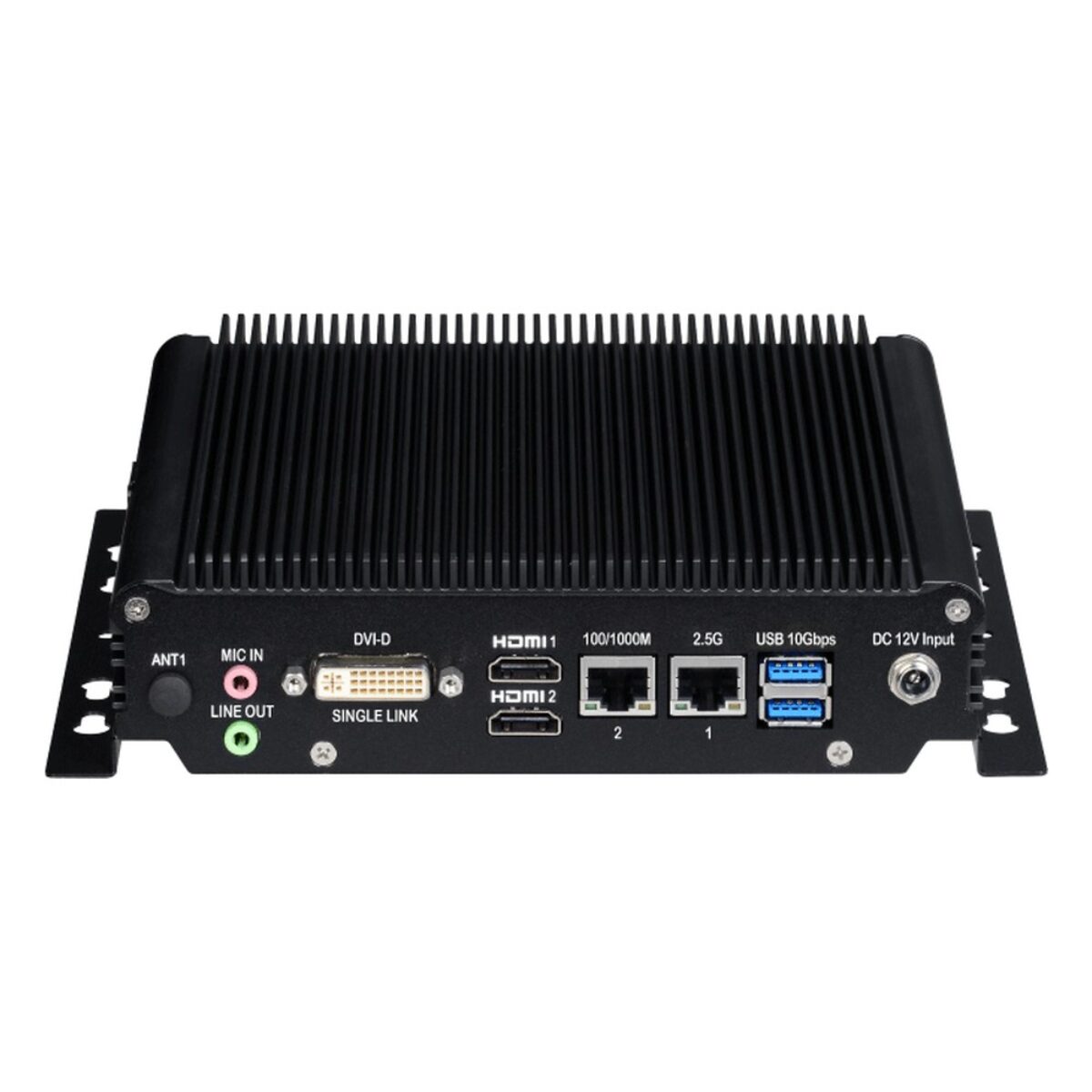

Sintrones SBOX-2602 Intel 11th Gen Core Industrial Mini PC with 2.5GbE, Triple Display and 12V DC Input

Behind a signage screen or inside a kiosk, height is usually the dimension that decides what fits. The Sintrones SBOX-2602 is an industrial mini PC 50 mm high, including its wall bracket, with three display outputs and Intel 11th Gen Core processing. Sintrones aims it at digital signage, kiosks, smart retail and factory automation, and it runs fanless.

Processor options are the Core i7-1185G7E with four cores and eight threads up to 4.4 GHz, the Core i5-1145G7E, the Core i3-1115G4E and the Celeron 6305E. TDP is set at 15 W by default, configurable from 12 W to 28 W. One DDR4 SO-DIMM socket takes up to 32 GB, there is a TPM 2.0, and Iris Xe graphics on the i7 and i5, or UHD graphics on the i3 and Celeron, drive two HDMI 2.0b ports and one single-link DVI-D.

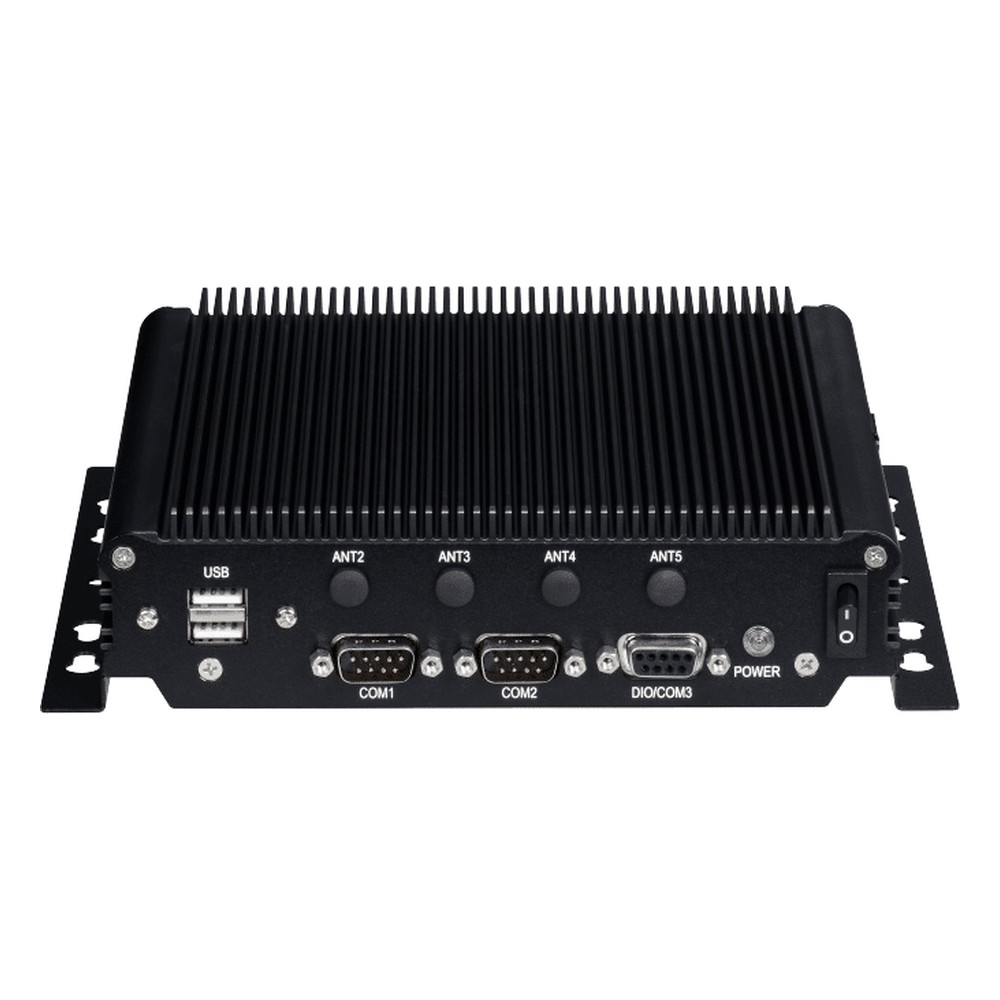

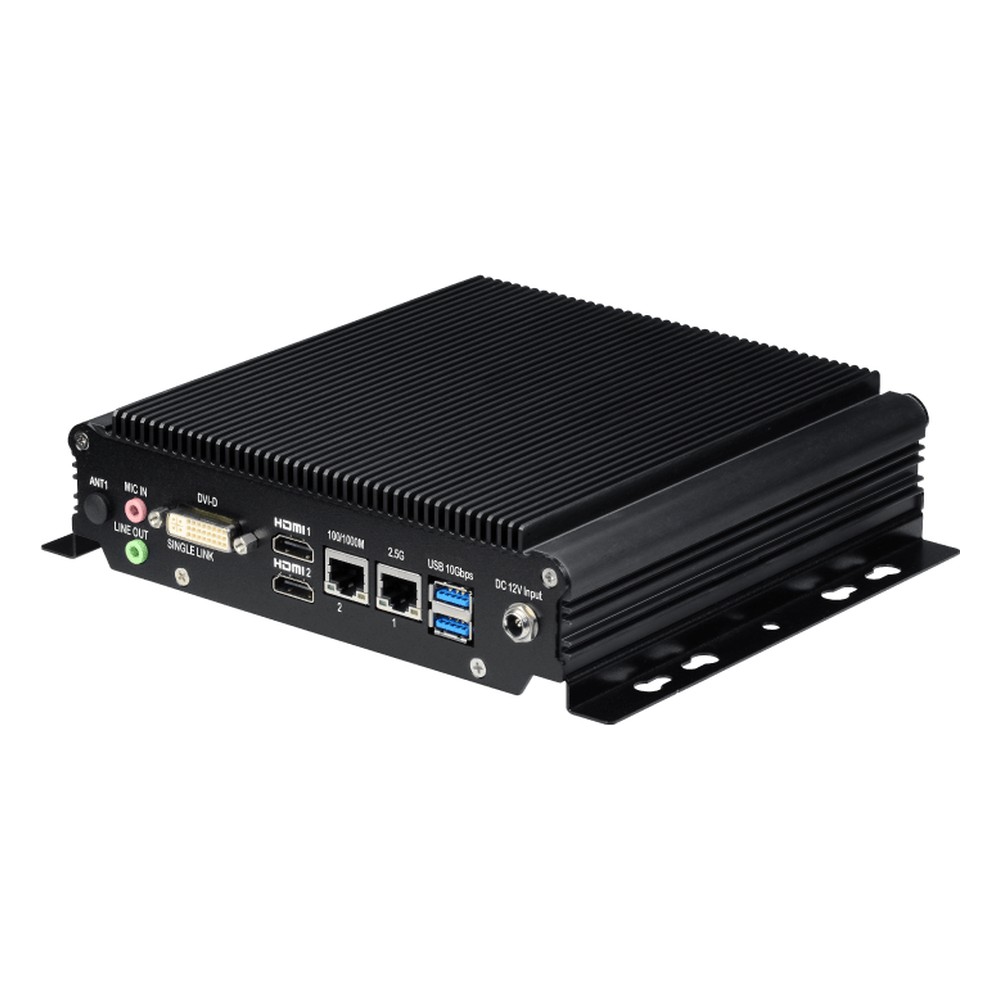

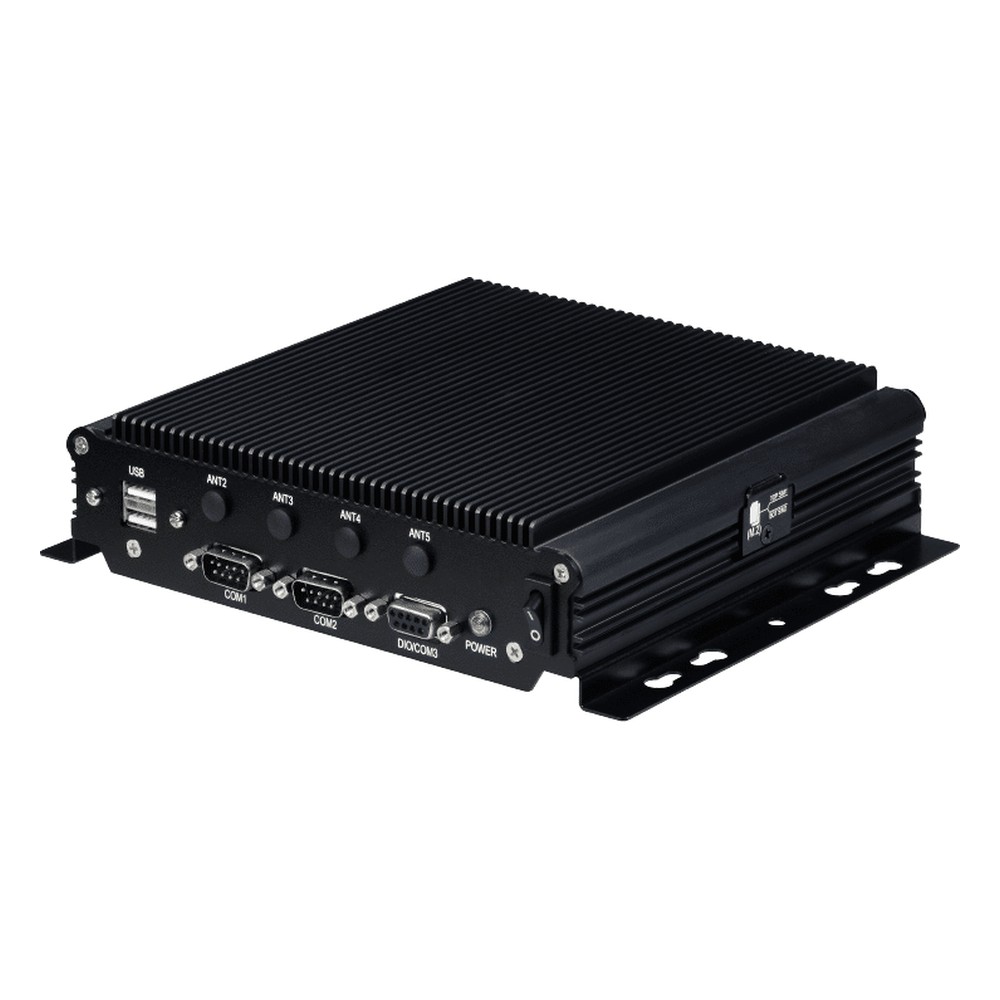

The SBOX-2602 has one Intel 2.5GbE and one Intel GbE port, two USB 3.2 Gen 2 and two USB 2.0 ports, two RS-232/422/485 ports with an optional third port, and a GPIO port with four inputs and four outputs at 5 V TTL. An M.2 Key B socket with two SIM sockets takes an optional 5G or LTE module and an M.2 Key E socket takes optional Wi-Fi and Bluetooth, with five antenna holes. Storage is a 2.5″ SATA drive and an M.2 2280 Key M socket for NVMe or SATA. We supply it configured and tested, with memory, storage, the OS image and any wireless modules fitted.

Power is 12 V DC through a DC jack. The mini PC operates from -30 °C to 60 °C with 0.6 m/s airflow and carries CE and FCC Class A. It weighs 1.6 kg and wall-mounts as standard, with optional VESA and DIN rail kits for mounting on a screen or in a cabinet. For four COM ports and a 9 to 36 V DC terminal block in a case of the same size, see the SBOX-2622, and the VBOX-3122 adds 9 to 60 V vehicle power with ignition control.
