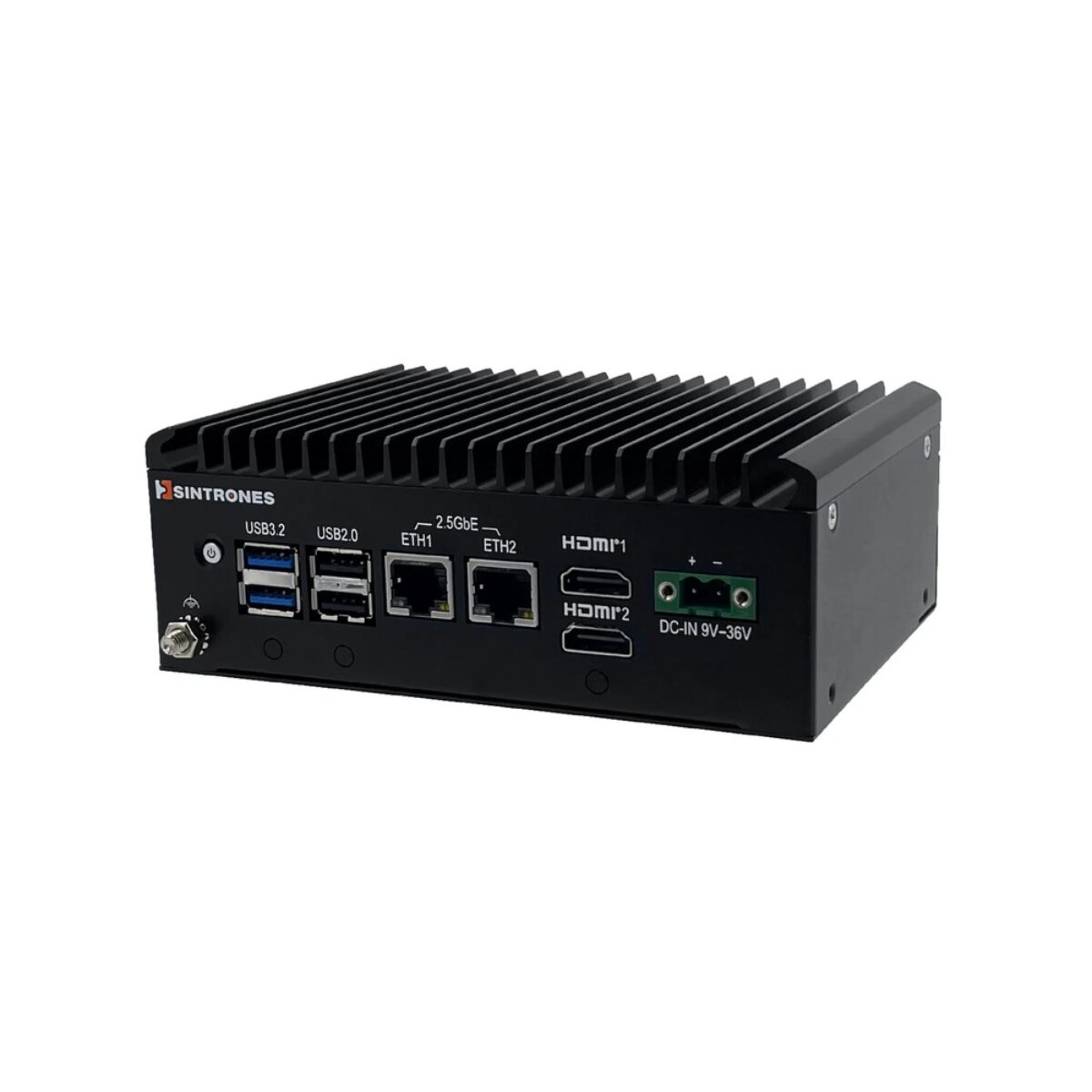

Sintrones SBOX-2625 Intel Twin Lake N150 Fanless Mini Industrial PCs

Space is often the first constraint in a kiosk, a pole-mounted enclosure or a crowded control cabinet, and the computer has to fit around everything else. The Sintrones SBOX-2625 series answers with palm-sized mini industrial PCs measuring 150 x 106 x 55 mm, fanless and rated from -40 °C to 70 °C, on Intel Twin Lake or Atom x7433RE processors.

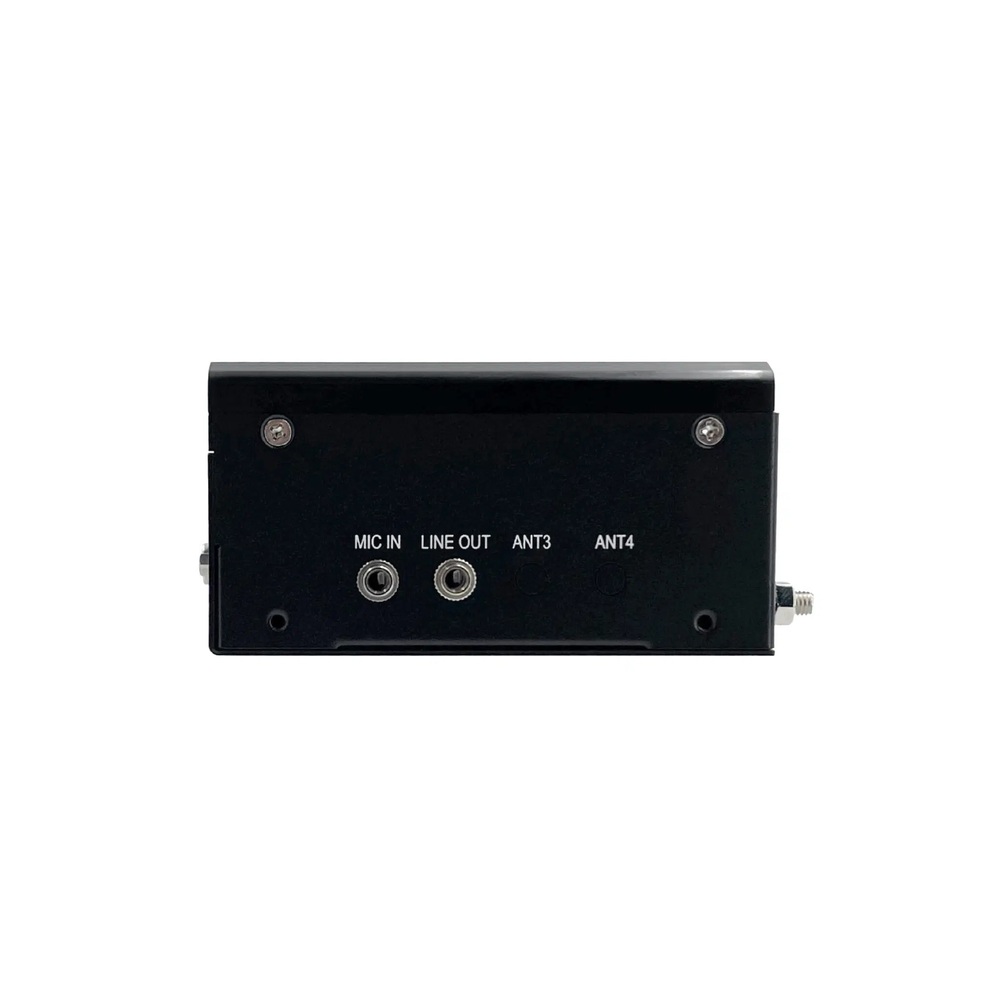

Compute is an Intel Processor N150 with four cores up to 3.6 GHz, an Intel Core 3 N355 with eight cores up to 3.9 GHz or an Intel Atom x7433RE with four cores up to 3.4 GHz, with up to 16 GB of DDR5-4800 on one SO-DIMM and TPM 2.0. Intel Graphics drives two HDMI 2.0b outputs at up to 3840 x 2160, and two Intel I226-LM 2.5GbE ports give each model separate uplink and downlink networks. Storage is a 2.5-inch SATA SSD, and the M.2 Key B combo slot takes either a 4G or 5G module or an M.2 2242 SATA SSD, with an M.2 Key E slot for Wi-Fi. Because that slot is a combo, a build carries a cellular modem or a second SSD rather than both, which is worth settling at the specification stage. Line-out and mic-in audio are on every version.

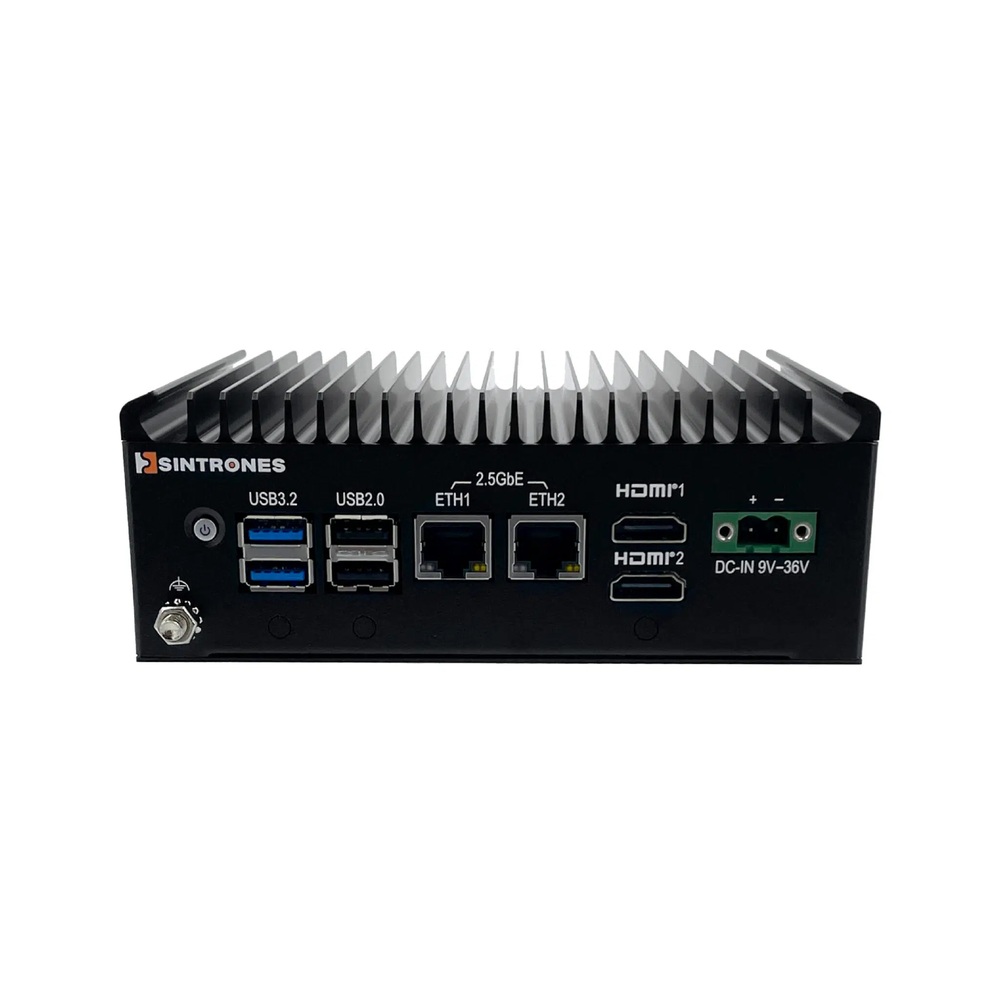

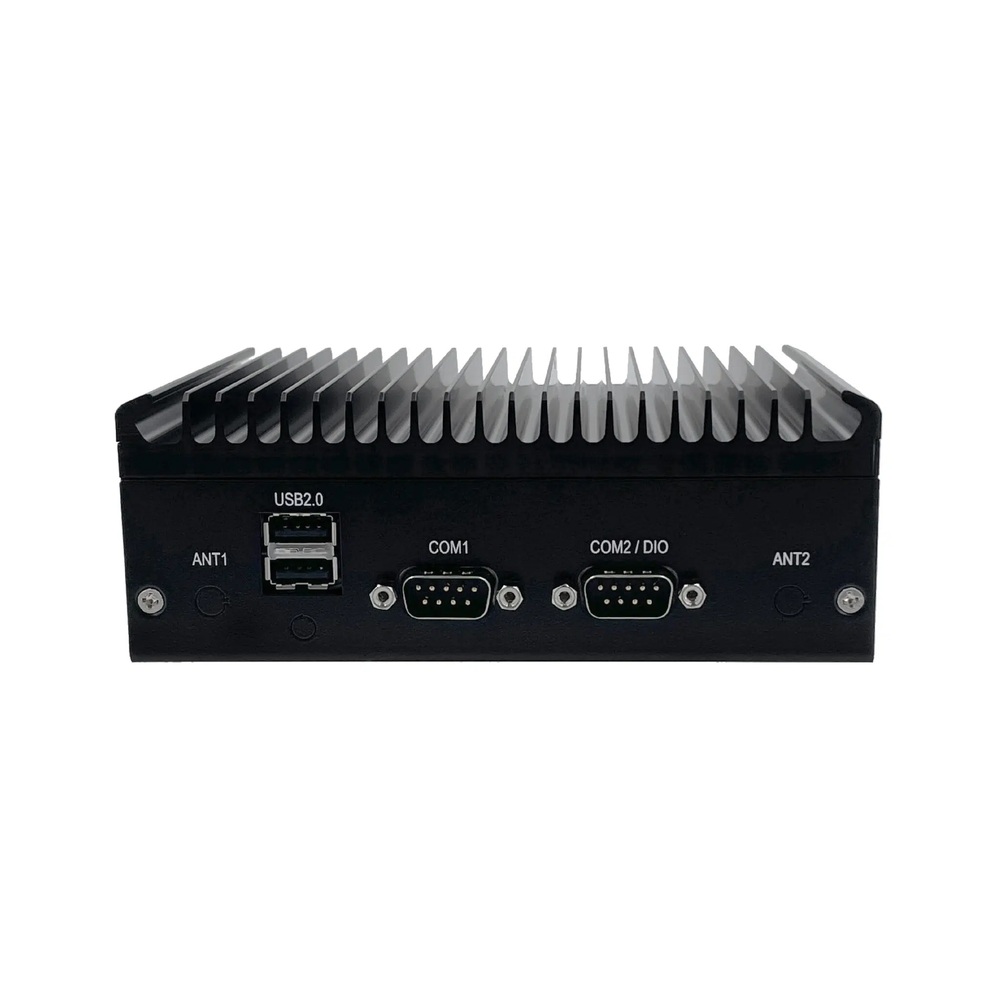

Three versions differ by I/O. The SBOX-2625 has two USB 3.2 Gen 1 and four USB 2.0 ports with two RS-232/422/485 ports, for kiosks and retail peripherals. The SBOX-2625-2S has two RS-232/422/485 ports plus four digital inputs and four outputs, for machine signals and relays. The SBOX-2625-3S has two RS-232/422/485 ports and one RS-232 port, for serial gateway work. The 2S and 3S versions carry two USB 3.2 Gen 1 and two USB 2.0 ports.

All versions take 9 to 36 V DC (nominal 12 V or 24 V) on a two-pin terminal block with over-current, over-voltage, surge and reverse-polarity protection, and support Windows 11 IoT Enterprise LTSC and Ubuntu 24.04 LTS. The SBOX-2625 series mounts on DIN rail, a wall or VESA, runs fanless with 0.6 m/s airflow and carries CE, FCC Class A, UKCA and IEC/EN 62368-1 compliance, which suits these Sintrones mini industrial PCs to retail counters, kiosks, smart poles and machine cabinets.
