Stereolabs ZED-X-NARROW (ZED-312110) GMSL2 IP67 Stereo Camera with Narrow 4.6 mm Lenses, Up to 35 m Depth and 12 cm Baseline
Extended Temp
CE
FCCZED-X-NARROW Overview

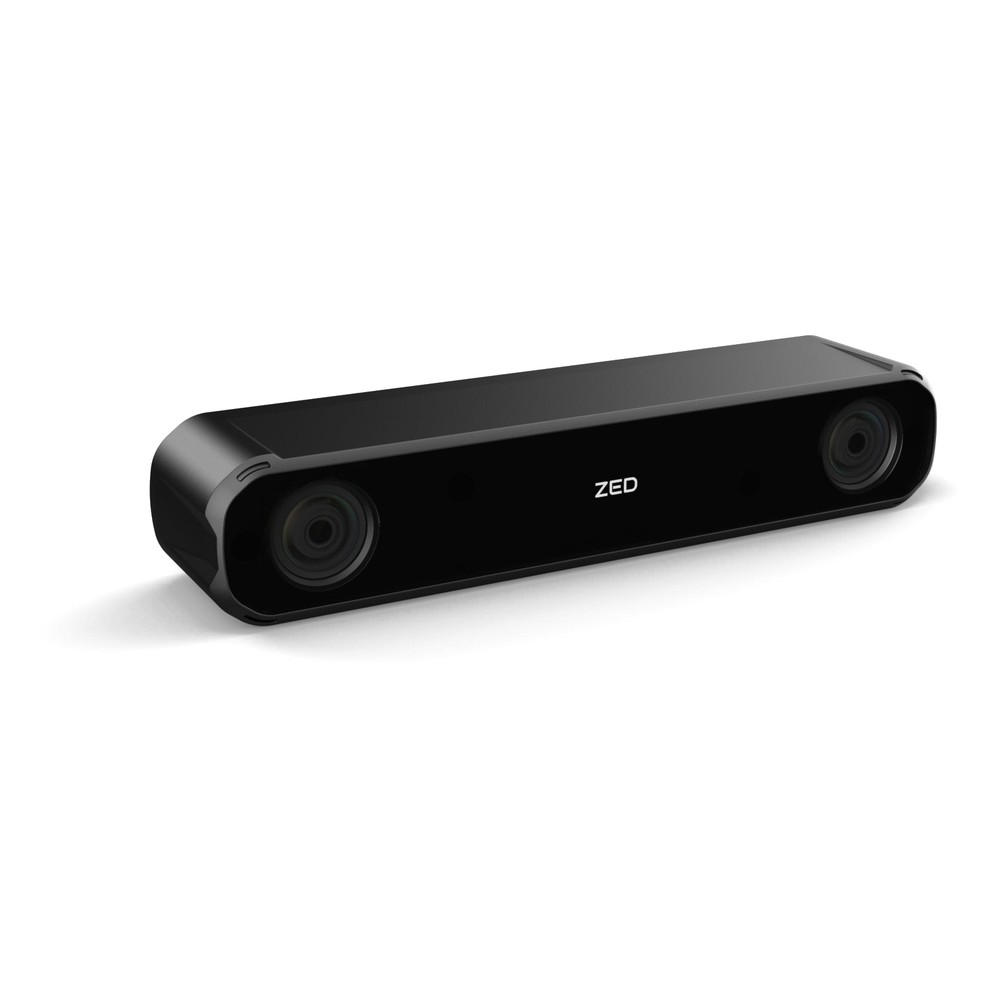

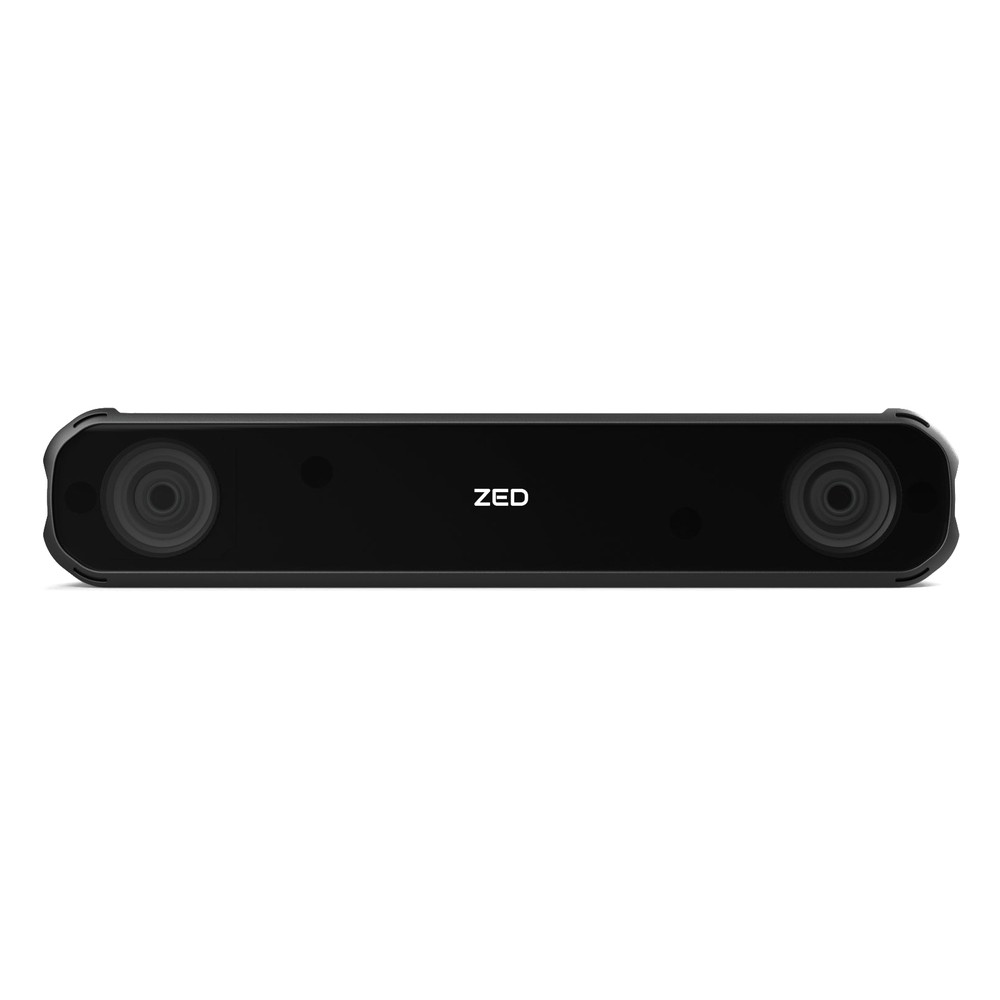

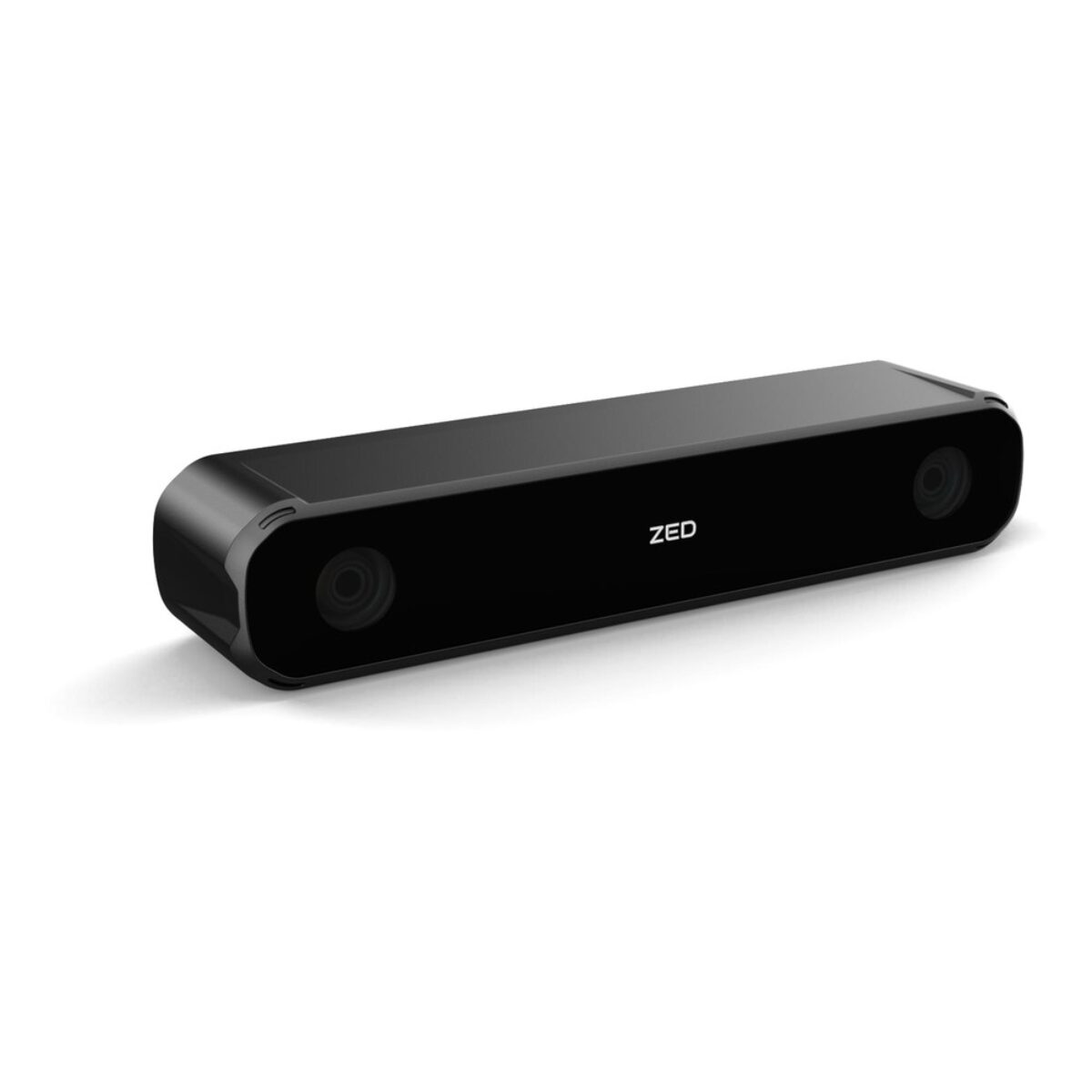

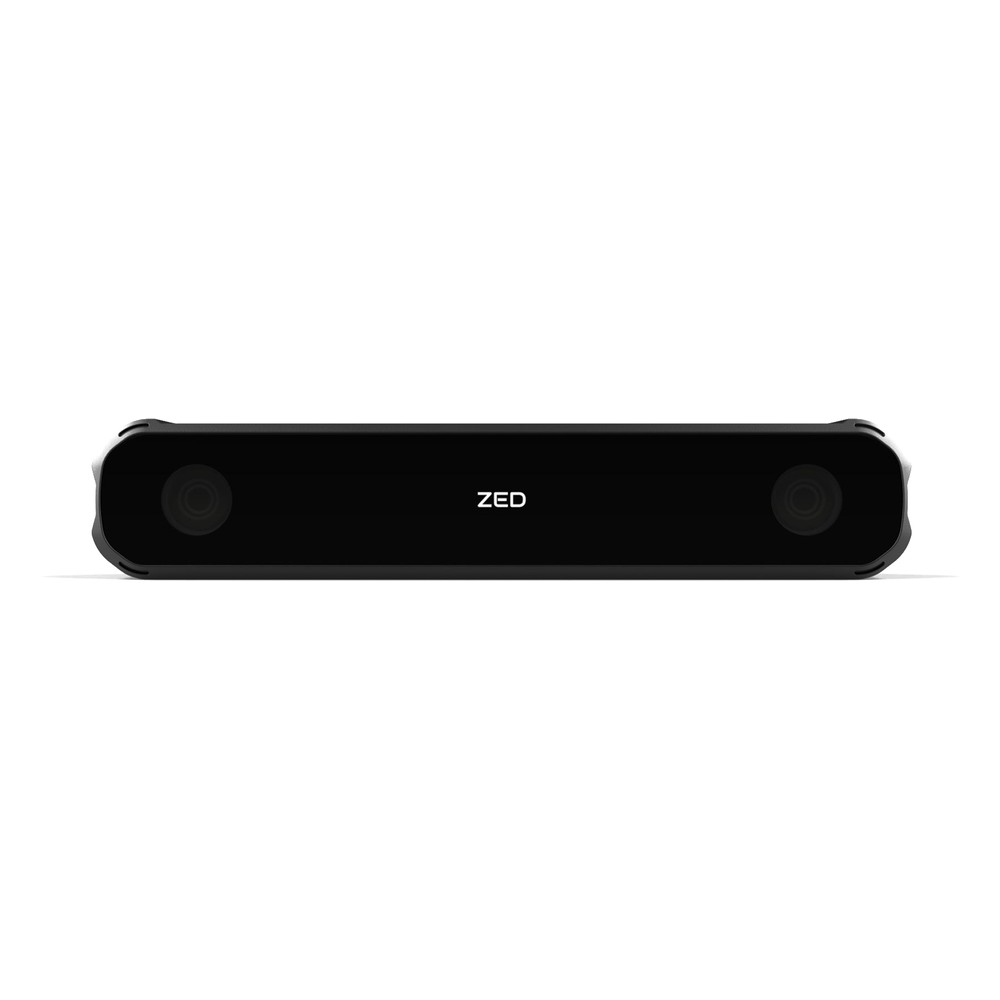

The faster a vehicle moves, the further ahead it needs to see. An autonomous vehicle in a logistics yard or on a busy outdoor site needs depth well beyond a few meters. The Stereolabs ZED-X-NARROW is the long-range build of the ZED-X series, pairing 4.6 mm lenses with a 12 cm baseline so depth and person detection reach much further than the wide-angle version.
The 4.6 mm f/2.0 lenses cover 73° horizontally, 45° vertically and 87° diagonally. Depth runs from 1 m to 35 m, with an ideal range to 20 m and accuracy within 0.4% at 2 m and 7% at 20 m, and the ZED SDK tracks bodies to 15 m and detects objects in 3D to maximum depth. Two 1/2.6″ 2.3MP global-shutter sensors deliver 1920 x 1200 at 60 fps or 960 x 600 at 120 fps, so a moving target does not smear or skew between frames. A 200 Hz IMU rated to 12g supports tracking on rough surfaces.

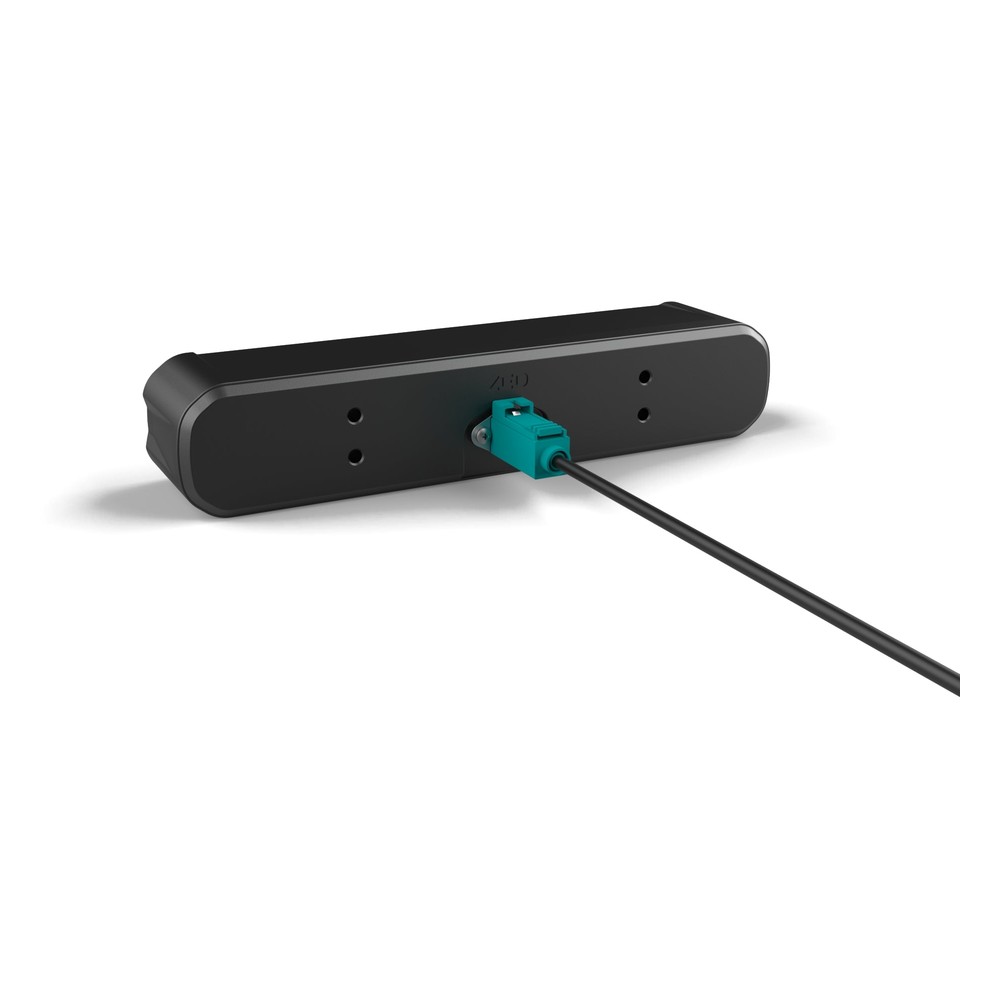

The ZED-X-NARROW sends video and receives power over a single GMSL2 coax with a lockable FAKRA Z connector, for runs up to 15 m and a typical 1.46 W draw. Hosts are NVIDIA Jetson Orin and Xavier modules on Jetson Linux; on Jetson AGX Orin a ZED-LINK-QUAD takes up to eight cameras, synced within 100 µs. Close to the vehicle, the ZED-X-WIDE covers a 120° diagonal view, and the ZED-X-NARROW-POL adds a polarizer for glare outdoors.

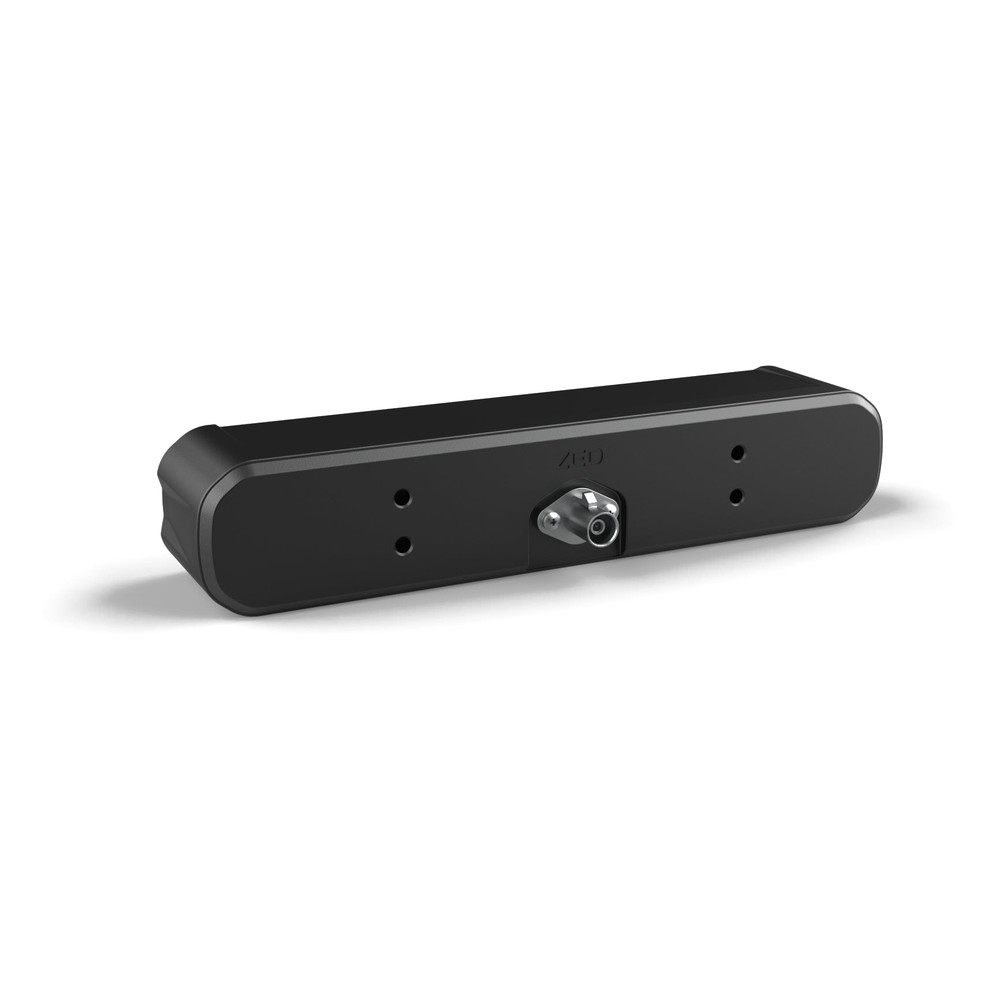

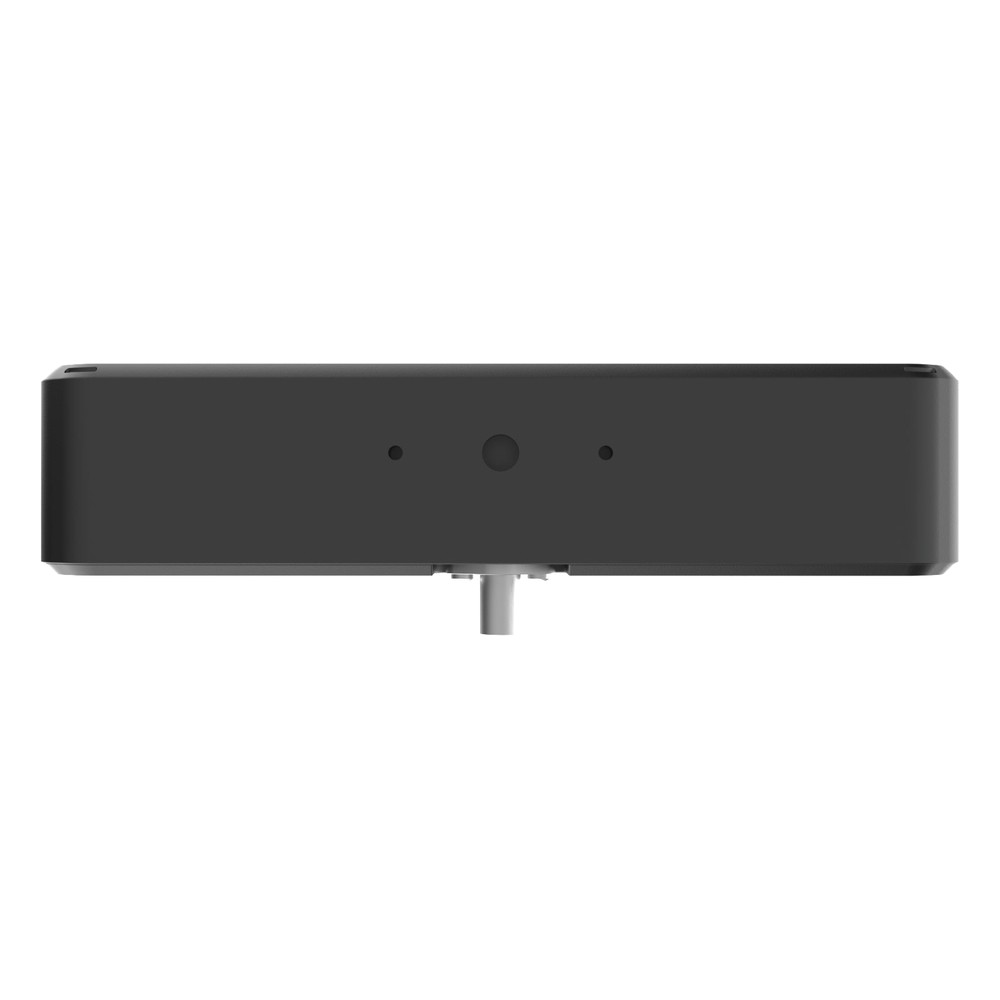

The IP67-rated aluminum body runs from -20 °C to 60 °C at up to 90% humidity at 40 °C, and is rated for 2g RMS vibration from 3 to 500 Hz. A 1/4″-20 thread, 2x M3 holes and 4x M4 rear holes suit bumpers, masts and the optional tiltable mount. We supply the ZED-X-NARROW tested on a Jetson Orin host with JetPack, the ZED SDK and GMSL2 capture configured, and with optional FAKRA cables up to 15 m.
ZED-X-NARROW Specifications
| Overview | |
|---|---|
| Brand & Model | Stereolabs ZED-X-NARROW (ZED-312110) |
| Features | Rugged Waterproof |
| Camera | |
| Camera Type | Stereo |
| Camera Interface | GMSL2 [FAKRA Z] |
| Image Sensor | Dual 2.3MP 1/2.6" [3µm] |
| Video Modes | 2x 1920x1200 @ 60fps 2x 960x600 @ 120fps |
| Shutter Type | Global Shutter |
| Lens | Narrow |
| Field of View | 73°H x 45°V x 87°D [4.6mm] |
| Stereo Baseline | 120mm |
| Depth Range | 1.0 to 35m |
| Motion Sensors | 6-axis IMU [200Hz] |
| Compatible Hosts | NVIDIA Jetson Orin NVIDIA Jetson Xavier |
| Environmental Conditions | |
| Operating Temperature | -20°C to 60°C [-4°F to 140°F] |
| Ingress Protection | IP67 IP67 [Dustproof, Protection against immersion in water up to 1 meter for 30 minutes] |
| Certification | CE EMC FCC IC (ICES-003) REACH RoHS TSCA |
| Mechanical Properties | |
| Weight | 239 g (8.4 oz) |
| Dimensions | 163mm x 32mm x 37mm (6.43" x 1.25" x 1.44") |
| Mounting Options | Tripod Mount |
- ZED-X-NARROW Datasheet Download
Official Stereolabs USA Distributor
Things Embedded is an official Stereolabs USA distributor, and we supply the ZED-X-NARROW tested with the matching GMSL2 cable and a ZED Link capture card or ZED Box, with JetPack and the ZED SDK configured on the host before it ships. Within the Vecow range, the ZED-X-WIDE swaps to 2.2 mm lenses for a 120° diagonal view and depth from 0.3 m, with reach to 20 m.
Across our range, the ZED-X-NARROW sits with our GMSL cameras, long-range stereo cameras and industrial camera range.
