Vecow EAC-4000-AR08-OOB NVIDIA Jetson Orin Nano 8GB Embedded Box PC with Allxon OOB Management, Mini PCIe and Wide Temperature

Large fleets of identical units are where out-of-band management pays back fastest, because the same fault on fifty sites is fifty trips. The Vecow EAC-4000-AR08-OOB brings the Allxon out-of-band module to the Jetson Orin Nano 8GB, so most hangs and lock-ups can be cleared without a visit. Within the EAC-4000 series, it suits retail analytics, smart city cameras and delivery robots rolled out in numbers.

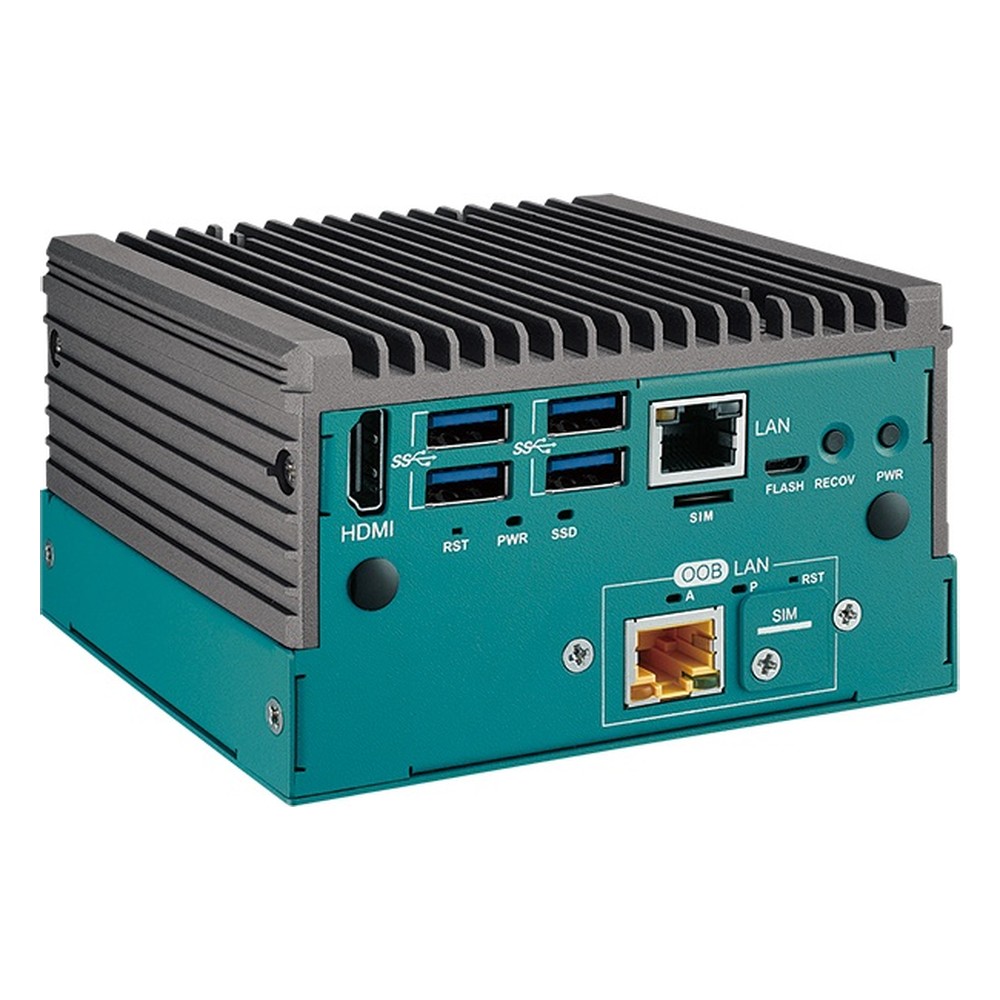

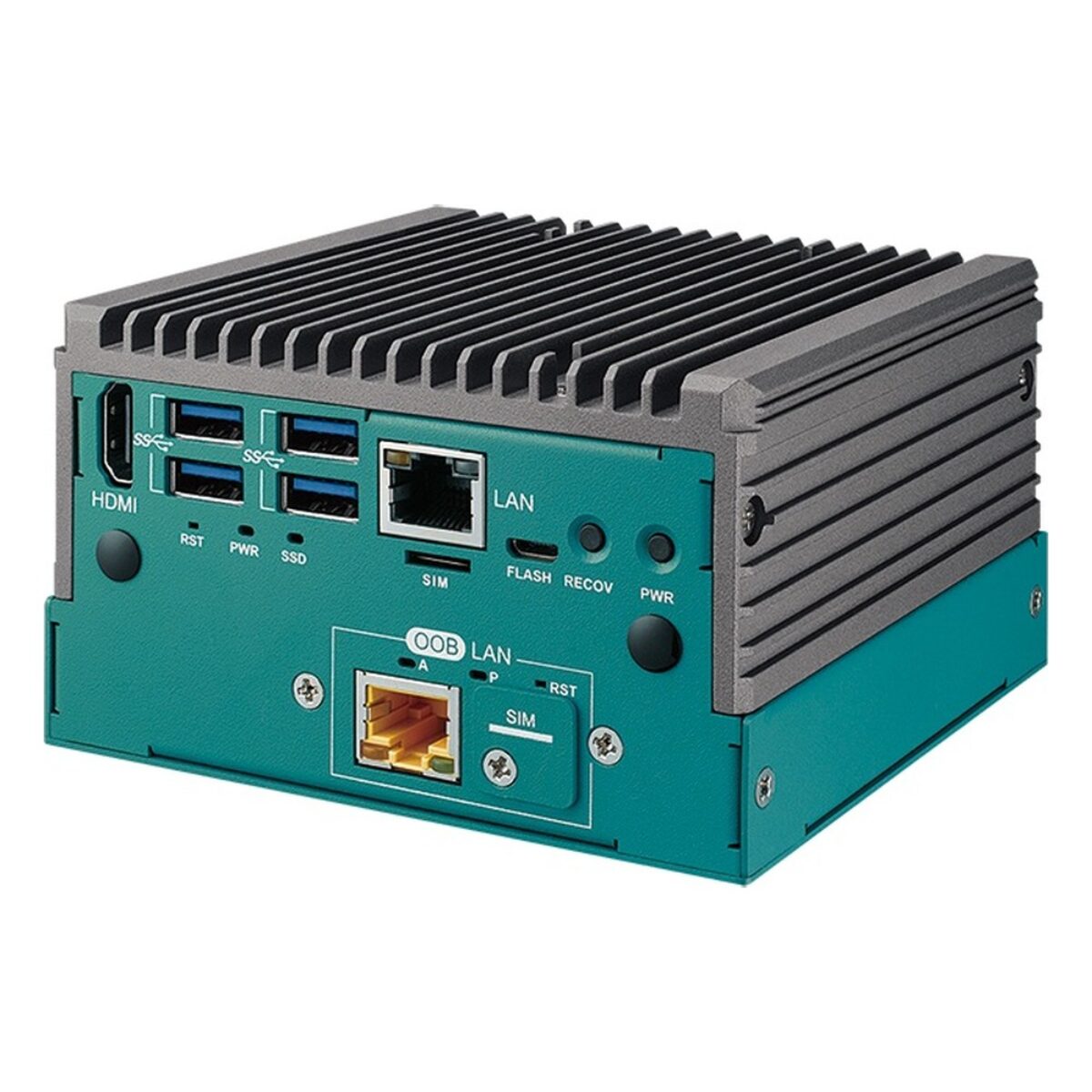

Management runs on a Nuvoton NUC980 MCU with a separate 10/100 Ethernet port, a full-size Mini PCIe socket on USB and a nano SIM, giving remote power on and off, reset, power cycling and a cloud serial console through Allxon. The main system uses a six-core Arm Cortex-A78AE CPU, a 1024-core Ampere GPU with 32 Tensor Cores and 8 GB of LPDDR5, rated at up to 40 TOPS, with HEVC decode of up to five 1080p streams at 60 fps. We supply the EAC-4000-AR08-OOB with JetPack 6.2 on Ubuntu 22.04, the NVMe SSD and the Allxon module configured and tested.

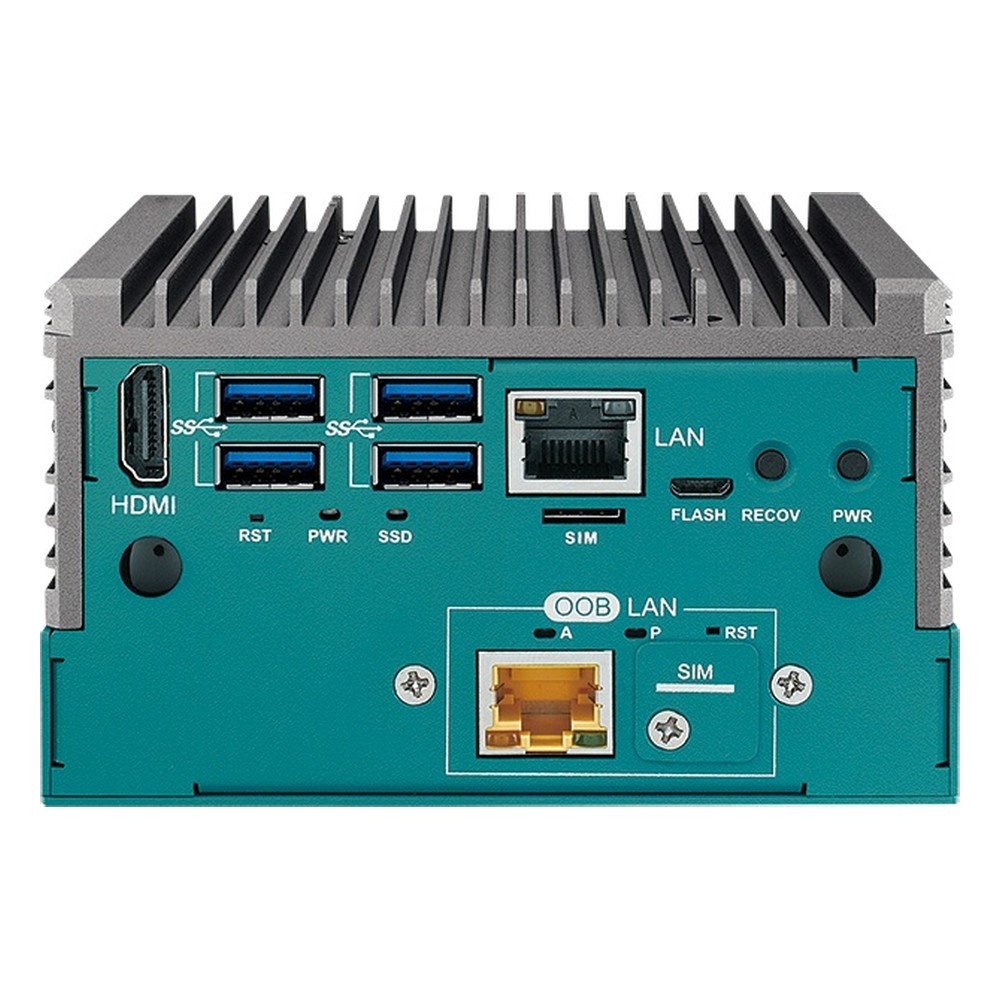

The system side has one Gigabit Ethernet port, four USB 3.1 Type-A ports, HDMI 2.0 at up to 4K at 60 Hz and two DB9 COM ports switchable between RS-232, RS-422 and RS-485. Its own full-size Mini PCIe socket, nano SIM and two antenna positions take an optional 4G or Wi-Fi module, and the NVMe SSD sits in an M.2 Key M socket on PCIe 4.0 x4.

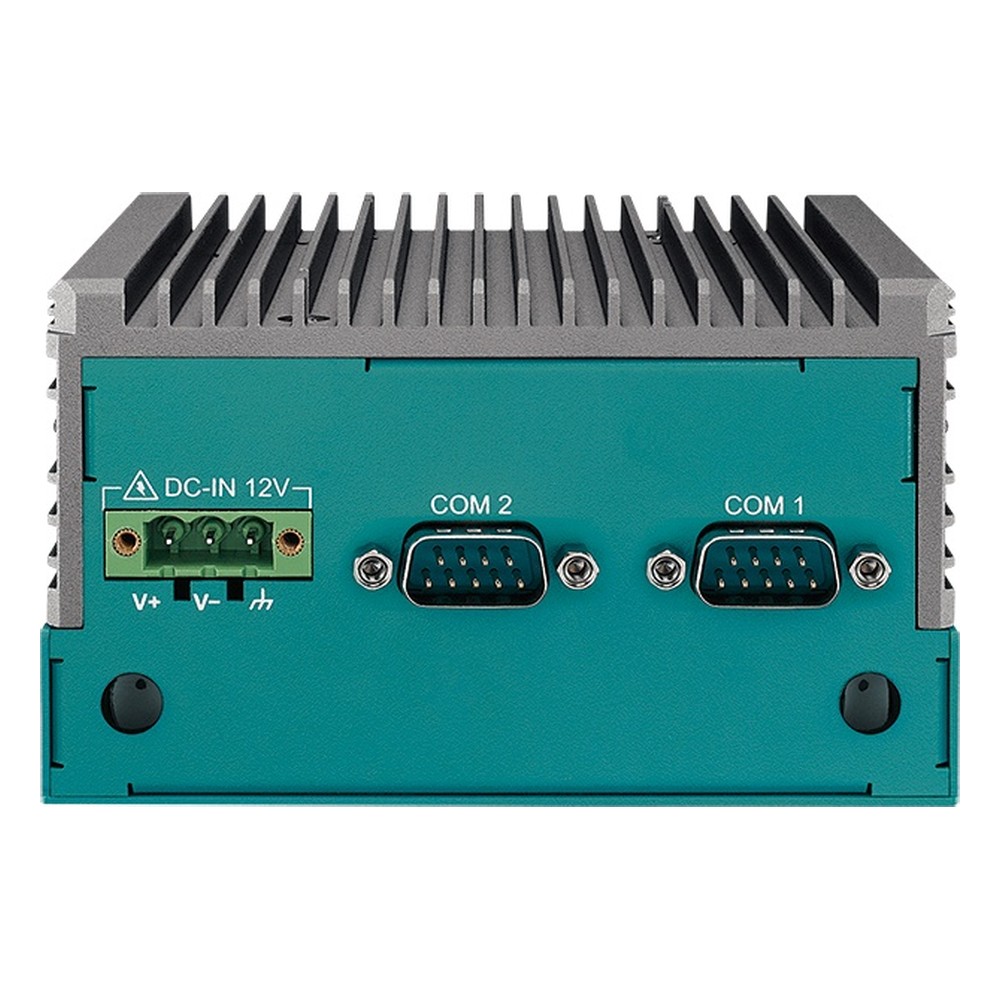

Power is 12 V DC on a three-pin terminal block. The enclosure is fanless, rated from -25 °C to 55 °C in 15 W mode, with MIL-STD-810G shock and vibration testing and EN 50155 and EN 50121-3-2 compliance listed by Vecow. It mounts on a wall or an optional DIN rail. The EAC-4000-AR08 is the same unit without the module, and the EAC-4000-XR08-OOB keeps the management on the Orin NX 8GB.
