Vecow EAC-4000F-XR08 NVIDIA Jetson Orin NX 8GB Embedded Box PC with Super Mode Fansink, 4x USB 3.1 and Mini PCIe with SIM

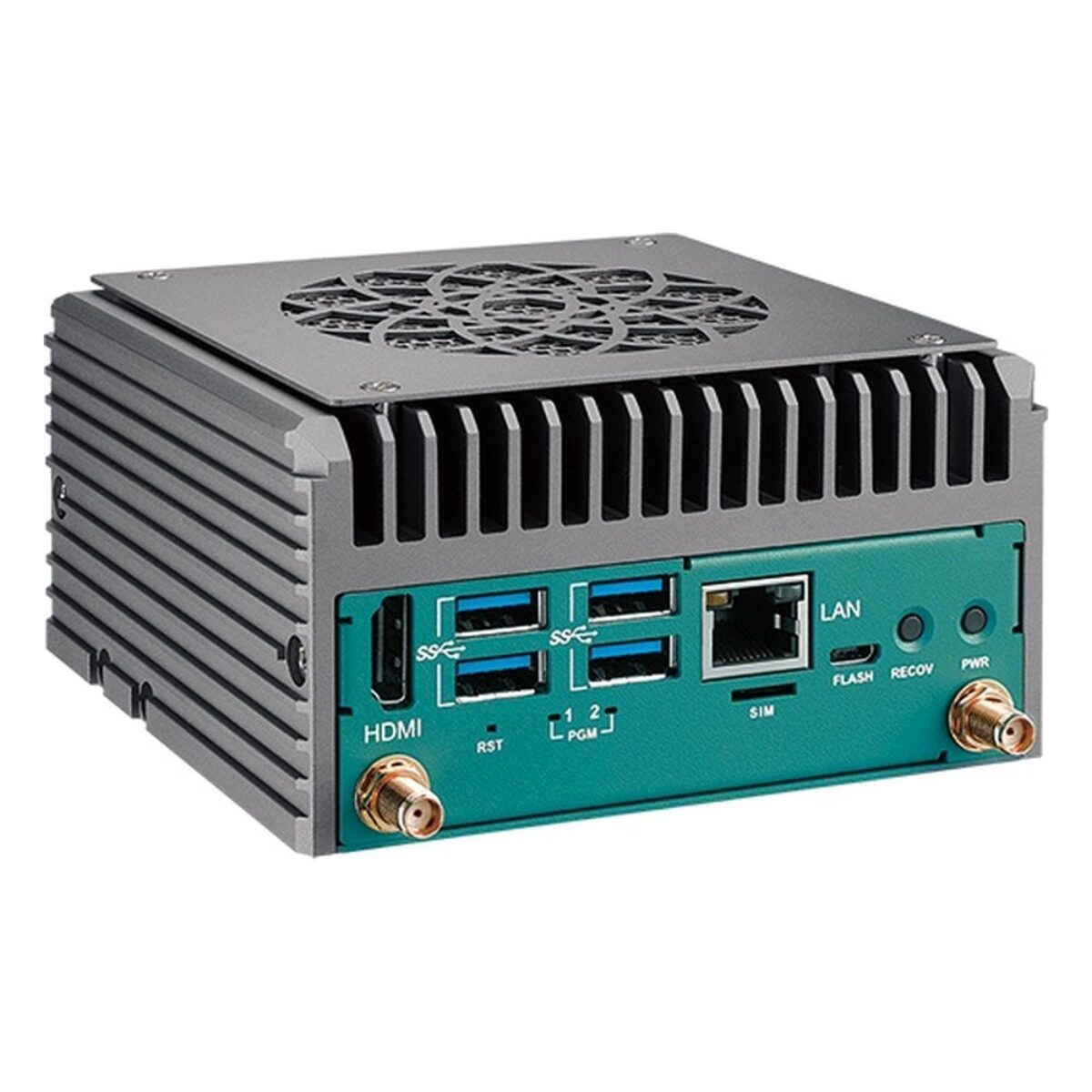

When a model fits comfortably in 8 GB but the frame rate falls short, the answer is often more clock rather than more memory. Super Mode gives the Jetson Orin NX that extra clock at 40 W, and the Vecow EAC-4000F-XR08 adds the cooling to sustain it. A fansink sits over the heatsink of this EAC-4000 series embedded box PC, so the EAC-4000F-XR08 can hold high TDP conditions rather than throttling back.

Inside is a six-core Arm Cortex-A78AE CPU, a 1024-core NVIDIA Ampere GPU with 32 Tensor Cores, one NVDLA engine and 8 GB of LPDDR5, rated at up to 70 TOPS in standard mode. The GPU core count matches the 16GB module, so many vision models see a useful lift from Super Mode here. HEVC hardware encode handles up to six 1080p streams at 60 fps. We supply it with JetPack 6.2 on Ubuntu 22.04 and the NVMe SSD fitted, configured and tested at the power mode you plan to run.

The front carries four USB 3.1 Type-A ports, one Gigabit Ethernet port on RJ45, an HDMI 2.0 output at up to 4K at 60 Hz, a nano SIM slot and a micro USB flash port. Two DB9 COM ports on the rear switch between RS-232, RS-422 and RS-485. Inside, the M.2 Key M socket runs the NVMe SSD on PCIe 4.0 x4, and the full-size Mini PCIe socket takes an optional 4G or Wi-Fi and Bluetooth module with two antennas.

Power is 12 V DC on a three-pin terminal block. In 40 W Super Mode with the fansink, Vecow rates operation from -25 °C to 45 °C, and up to 55 °C in 15 W mode. Shock and vibration are tested to MIL-STD-810G, with EN 50155 and EN 50121-3-2 compliance listed, and the unit mounts on a wall or an optional DIN rail. The fanless EAC-4000-XR08 suits lower power modes, and the EAC-4000F-XR16 doubles the memory.
