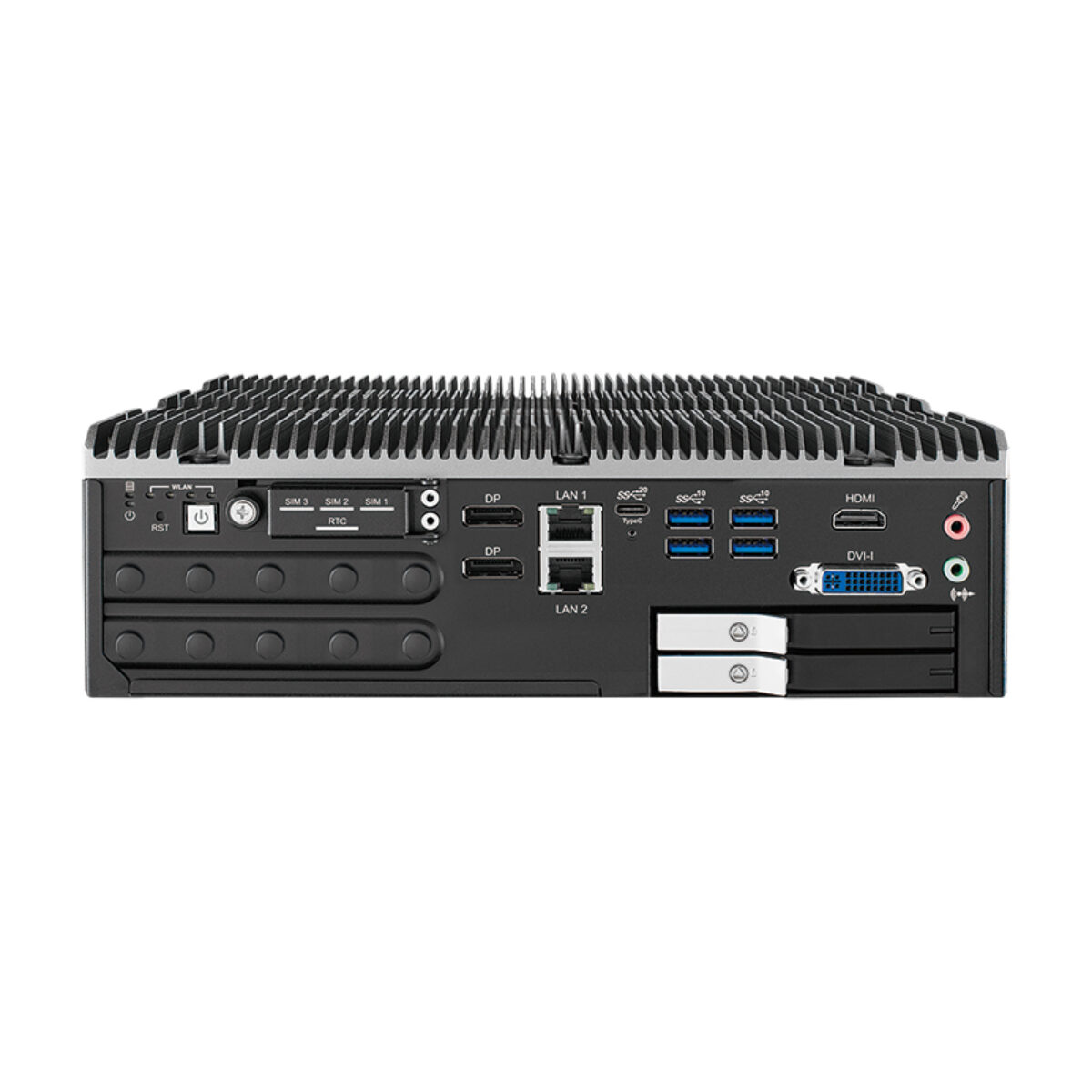

Vecow ECX-3200 PEG Intel 12th/13th Gen Core Industrial PC with GPU Support and 4x 2.5GbE PoE+

The ECX-3200 PEG is the single-GPU PoE+ build of the Vecow ECX-3000 PEG series, with one PCIe x16 slot, four 2.5GbE PoE+ ports on RJ45 and two front-access SSD trays. An industrial GPU PC for camera analytics with one discrete graphics card.

  • Single PCIe x16 GPU Slot: One PCIe x16 slot for an NVIDIA or AMD graphics card, within a GPU power budget of up to 200 W.
  • 4x 2.5GbE PoE+ plus 2x GbE: Four IEEE 802.3at 2.5GbE PoE+ ports on Intel I226, alongside two GbE ports, one with iAMT.
  • Two Front-Access SSD Trays: Two 2.5″ SATA III trays with software RAID 0 or 1, plus an M.2 Key M PCIe x4 slot.
  • Intel Core 200S and 12th to 14th Gen: Bartlett Lake-S Core 200S or 12th, 13th and 14th Gen Core i9 to i3 on the R680E chipset, up to 65 W.
  • 12-50 V DC and MIL-STD-810G: 12-50 V DC input with 16-mode software ignition control, MIL-STD-810G shock and vibration, and EN 50155 EMC.
View ECX-3000 PEG Series
Processor Brand: IntelIntel
Operating Software: LinuxLinux
Operating Software: WindowsWindows
Multi Display Support: Quad Display SupportQuad Display Support
Ethernet Speed: 2.5GbE2.5GbE
PoE Support: PoE SupportPoE Support
USB Connector Type: Type CType C
USB Generation: USB3USB3
M.2: 44x M.2
mPCIe: 11x mPCIe
PCIe: 11x PCIe
SIM Slots: 11x SIM
Connectivity: 4G4G
Connectivity: 5G5G
Connectivity: WirelessWi-Fi
Thermal Dissipation: FanlessFanless
Certification: CECE
Certification: EN50155EN50155
Certification: FCCFCC
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications
  • Downloads
  • Media

ECX-3200 PEG Overview

Many camera analytics systems need one discrete GPU and a few powered cameras, not a stack of expansion slots. The ECX-3200 PEG is the single-GPU PoE+ industrial GPU PC in the Vecow ECX-3000 PEG series, with one PCIe x16 slot, four 2.5GbE PoE+ ports on RJ45 and two SSD trays.

The ECX-3200 PEG runs on the Intel R680E chipset and takes Intel Core 200S processors (Bartlett Lake-S) or 12th, 13th and 14th Gen Core i9, i7, i5 and i3, up to 24 cores and 65 W TDP; Vecow notes the 14th Gen parts are for PC client use conditions only. Two DDR5 5200 MHz SO-DIMM slots take up to 96 GB. The PCIe expansion is for an NVIDIA or AMD graphics card, with a GPU power budget of up to 200 W, which suits AI inference, 3D vision and visualization at the edge.

Expansion on the ECX-3200 PEG is one PCIe x16 slot, plus a Mini PCIe socket, two M.2 Key B sockets and an M.2 Key E socket with three nano SIM slots for 5G, 4G or Wi-Fi. Networking is two GbE ports plus four 2.5GbE IEEE 802.3at PoE+ ports on RJ45, for IP cameras powered from the computer. Two front-access 2.5″ SSD trays support software RAID 0 or 1, beside an M.2 Key M PCIe x4 slot. Six USB 3.2 Gen 2 ports, a 20 Gbps USB 3.2 Gen 2×2 Type-C port, four COM ports and 32 isolated DIO complete the I/O.

The 79 mm tall, 4.5 kg chassis runs on 12-50 V DC with 16-mode software ignition control, rated -20 °C to 45 °C with its system fan, and carries MIL-STD-810G shock and vibration ratings and EN 50155 EMC listings. For locking M12 connectors, see the ECX-3200MX PEG.

ECX-3200 PEG Specifications

Overview
Brand & ModelVecow ECX-3200 PEG
FeaturesCompact
Embedded
Industrial
Performance
Processor SeriesIntel Core 12th Gen Alder Lake
Intel Core 13th Gen Raptor Lake
Processor ModelsIntel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W
Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W
Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W
Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W
Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W
Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W
Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W
Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W
Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W
Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W
Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W
Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W
Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W
Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W
Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W
Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W
Performance Cores4 Cores
6 Cores
12 Cores
14 Cores
16 Cores
24 Cores
Memory2x DDR4 2400MHz SO-DIMM Slots, 64GB
ChipsetIntel R608E
BIOSAMI
Secure Crypto ProcessorTPM 2.0 (Trusted Platform Module)
Operating SystemLinux
Graphics
Integrated GPUIntel UHD Series
Display StandardsDP++
HDMI 2.0
Multi Display SupportQuad Display Support
Display Outputs1x DVI
1x HDMI
2x Display Port
Audio
CodecRealtek ALC888S-VD, 7.1 Channel HD Audio
InterfaceLine-Out
Mic-In
I/O
Ethernet6x Ethernet Ports
2x GbE LAN [RJ45]
4x 2.5 GbE LAN [RJ45] [PoE]
LAN ControllersIntel I210
Intel I219LM
USB7x USB Ports
1x USB 3.2 Gen 2 [Type C]
6x USB 3.2 Gen 2 [Type A]
Serial4x Serial Ports
4x RS232/422/485 [DB9]
Digital I/OIsolated DIO [16-in, 16-out]
Expansion
M.24x M.2 Expansion Slots
1x M.2 B-Key [PCIe/USB 3.0/USB] [2280/3042]
1x M.2 B-Key [PCIe/USB 3.0/USB] [2280/3052]
1x M.2 E-Key [USB/PCIe] [2230]
1x M.2 M-Key [PCIe x4] [2280]
mPCIe1x mPCIe Slots
1x mPCIe [PCIe/USB/SATA]
PCIe1x PCIe Slots
1x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen4]
SIM Slots1x SIM Slots
Wireless ConnectivityOptional 4G Modem
Optional 5G Modem
Optional WiFi/Bluetooth
Storage
Storage1x M.2 SSD
2x 2.5" HDD/SSD
2x SATA Ports
RAIDRAID 0 (Striping)
RAID 1 (Mirroring)
Power
Power Input12V-50V DC Input [Terminal Block]
Power Support ModesAT: PWR on Input
ATX: Press Button to Power
Environmental Conditions
Thermal DissipationFanless Passively Cooled Chassis
Operating Temperature-20°C to 45°C [-4°F to 113°F]
Storage Temperature-40°C to 85°C [-40°F to 185°F]
Humidity5% - 95% (Non-condensing)
ShockMIL-STD-810G
CertificationCE
EN50155
FCC
UKCA
Mechanical Properties
Weight4.5 Kg (9.9 Lbs)
Dimensions260mm x 240mm x 79mm (10.24" x 9.45" x 3.11")
Mounting OptionsRack Mount
VESA Mount
Wall Mount
RCX-2700-PEG-EAC-2000 Case Study Card
Case Study GPU Computers Command Edge AI Inference Systems for Automated Food Factory A USA muffin manufacturer replaced manual bake checks with AI vision inspection: a GPU training server builds the models, and fanless machine vision PCs on the line inspect every muffin and adjust the ovens.

Official Vecow USA Distributor

Things Embedded is an official Vecow USA distributor, fitting ECX-3000 PEG computers into USA camera analytics projects. The ECX-3200 PEG suits single-GPU analytics with four powered cameras on RJ45. Within the wider Vecow range, the ECX-4000 series uses Intel Core Ultra with an integrated NPU for fanless AI inference without a card.

It sits in our edge AI computers range, and its four powered ports place it with our Power-over-Ethernet computers. The ECX-3000 series is the fanless 12th Gen Core box for projects without a discrete GPU. The ECX-3000 AI series pairs 13th Gen Core with a Hailo-8 accelerator for lower-power inference.
