Vecow ECX-3200MX PEG Intel 12th/13th Gen Core Industrial PC with GPU Support and M12 PoE+

The ECX-3200MX PEG is the M12 build of the Vecow ECX-3000 PEG series, moving its four 2.5GbE PoE+ ports to X-coded M12 connectors beside one PCIe x16 GPU slot. A rugged GPU computer for vehicles and machines where locking connectors matter.

  • Single PCIe x16 GPU Slot: One PCIe x16 slot for an NVIDIA or AMD graphics card, within a GPU power budget of up to 200 W.
  • 4x 2.5GbE PoE+ on M12: Four IEEE 802.3at 2.5GbE PoE+ ports on X-coded M12 connectors, keeping camera links secure under vibration.
  • Two Front-Access SSD Trays: Two 2.5″ SATA III trays with software RAID 0 or 1, plus an M.2 Key M PCIe x4 slot.
  • Intel Core 200S and 12th to 14th Gen: Bartlett Lake-S Core 200S or 12th, 13th and 14th Gen Core i9 to i3 on the R680E chipset, up to 65 W.
  • 12-50 V DC and MIL-STD-810G: 12-50 V DC input with 16-mode software ignition control, MIL-STD-810G shock and vibration, and EN 50155 EMC.
View ECX-3000 PEG Series
Processor Brand: IntelIntel
Operating Software: LinuxLinux
Operating Software: WindowsWindows
Multi Display Support: Quad Display SupportQuad Display Support
Ethernet Speed: 2.5GbE2.5GbE
PoE Support: PoE SupportPoE Support
USB Connector Type: Type CType C
USB Generation: USB3USB3
M.2: 44x M.2
mPCIe: 11x mPCIe
PCIe: 11x PCIe
SIM Slots: 11x SIM
Connectivity: 4G4G
Connectivity: 5G5G
Connectivity: WirelessWi-Fi
Thermal Dissipation: FanlessFanless
Certification: CECE
Certification: EN50155EN50155
Certification: FCCFCC
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications
  • Downloads
  • Media

ECX-3200MX PEG Overview

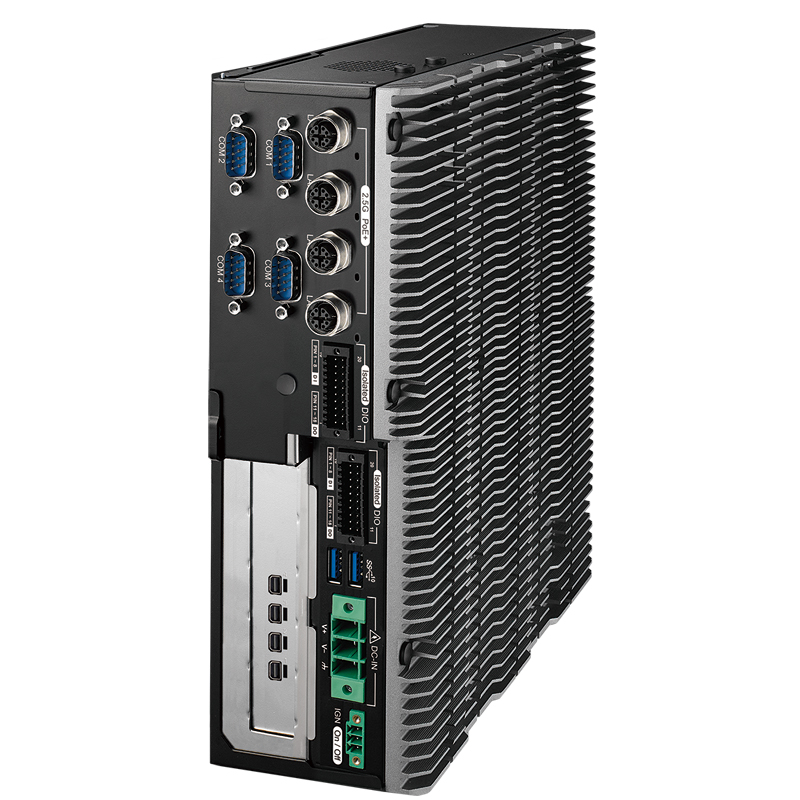

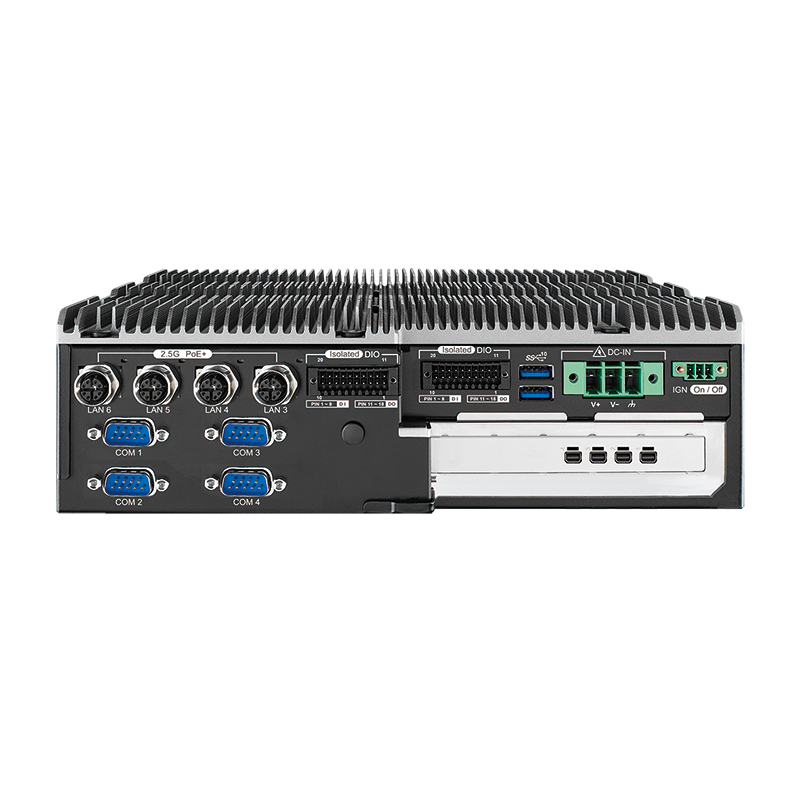

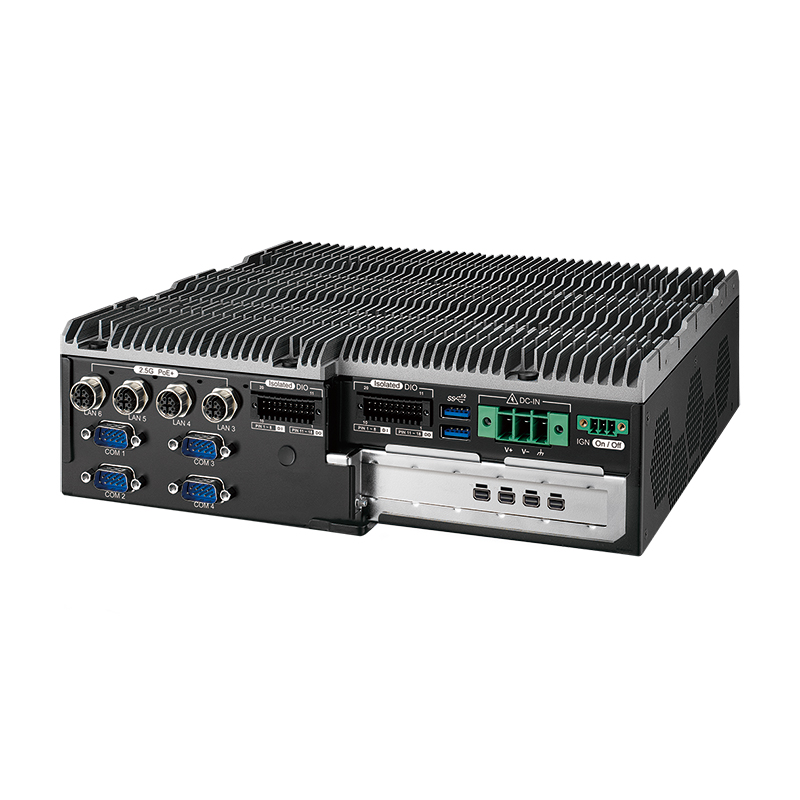

On vehicles and machines, RJ45 camera connectors can work loose under vibration. The ECX-3200MX PEG avoids that by putting its four 2.5GbE PoE+ ports on X-coded M12 connectors. It is the M12 rugged GPU computer in the Vecow ECX-3000 PEG series, with one PCIe x16 slot for a discrete graphics card.

The ECX-3200MX PEG runs on the Intel R680E chipset and takes Intel Core 200S processors (Bartlett Lake-S) or 12th, 13th and 14th Gen Core i9, i7, i5 and i3, up to 24 cores and 65 W TDP; Vecow notes the 14th Gen parts are for PC client use conditions only. Two DDR5 5200 MHz SO-DIMM slots take up to 96 GB. The PCIe expansion is for an NVIDIA or AMD graphics card, with a GPU power budget of up to 200 W, which suits AI inference, 3D vision and visualization at the edge.

Expansion on the ECX-3200MX PEG is one PCIe x16 slot, plus a Mini PCIe socket, two M.2 Key B sockets and an M.2 Key E socket with three nano SIM slots for 5G, 4G or Wi-Fi. Networking is two GbE ports plus four 2.5GbE IEEE 802.3at PoE+ ports on X-coded M12 connectors. Two front-access 2.5″ SSD trays support software RAID 0 or 1, beside an M.2 Key M PCIe x4 slot. Six USB 3.2 Gen 2 ports, a 20 Gbps USB 3.2 Gen 2×2 Type-C port, four COM ports and 32 isolated DIO complete the I/O.

The 79 mm tall, 4.5 kg chassis runs on 12-50 V DC with 16-mode software ignition control, rated -20 °C to 45 °C with its system fan, with MIL-STD-810G operating shock and vibration and EN 50155 EMC listings. The ECX-3200 PEG offers the same layout with RJ45 PoE+ ports.

ECX-3200MX PEG Specifications

Overview
Brand & ModelVecow ECX-3200MX PEG
FeaturesCompact
Embedded
Industrial
M12 Connectors
Rugged
Performance
Processor SeriesIntel Core 12th Gen Alder Lake
Intel Core 13th Gen Raptor Lake
Processor ModelsIntel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W
Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W
Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W
Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W
Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W
Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W
Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W
Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W
Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W
Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W
Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W
Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W
Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W
Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W
Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W
Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W
Performance Cores4 Cores
6 Cores
12 Cores
14 Cores
16 Cores
24 Cores
Memory2x DDR4 2400MHz SO-DIMM Slots, 64GB
ChipsetIntel R608E
BIOSAMI
Secure Crypto ProcessorTPM 2.0 (Trusted Platform Module)
Operating SystemLinux
Graphics
Integrated GPUIntel UHD Series
Display StandardsDP++
HDMI 2.0
Multi Display SupportQuad Display Support
Display Outputs1x DVI
1x HDMI
2x Display Port
Audio
CodecRealtek ALC888S-VD, 7.1 Channel HD Audio
InterfaceLine-Out
Mic-In
I/O
Ethernet6x Ethernet Ports
2x GbE LAN [RJ45]
4x 2.5 GbE LAN [M12] [PoE]
LAN ControllersIntel I210
Intel I219LM
USB7x USB Ports
1x USB 3.2 Gen 2 [Type C]
6x USB 3.2 Gen 2 [Type A]
Serial4x Serial Ports
4x RS232/422/485 [DB9]
Digital I/OIsolated DIO [16-in, 16-out]
Expansion
M.24x M.2 Expansion Slots
1x M.2 B-Key [PCIe/USB 3.0/USB] [2280/3042]
1x M.2 B-Key [PCIe/USB 3.0/USB] [2280/3052]
1x M.2 E-Key [USB/PCIe] [2230]
1x M.2 M-Key [PCIe x4] [2280]
mPCIe1x mPCIe Slots
1x mPCIe [PCIe/USB/SATA]
PCIe1x PCIe Slots
1x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen4]
SIM Slots1x SIM Slots
Wireless ConnectivityOptional 4G Modem
Optional 5G Modem
Optional WiFi/Bluetooth
Storage
Storage1x M.2 SSD
2x 2.5" HDD/SSD
2x SATA Ports
RAIDRAID 0 (Striping)
RAID 1 (Mirroring)
Power
Power Input12V-50V DC Input [Terminal Block]
Power Support ModesAT: PWR on Input
ATX: Press Button to Power
Environmental Conditions
Thermal DissipationFanless Passively Cooled Chassis
Operating Temperature-20°C to 45°C [-4°F to 113°F]
Storage Temperature-40°C to 85°C [-40°F to 185°F]
Humidity5% - 95% (Non-condensing)
ShockMIL-STD-810G
CertificationCE
EN50155
FCC
UKCA
Mechanical Properties
Weight4.5 Kg (9.9 Lbs)
Dimensions260mm x 240mm x 79mm (10.24" x 9.45" x 3.11")
Mounting OptionsRack Mount
VESA Mount
Wall Mount
