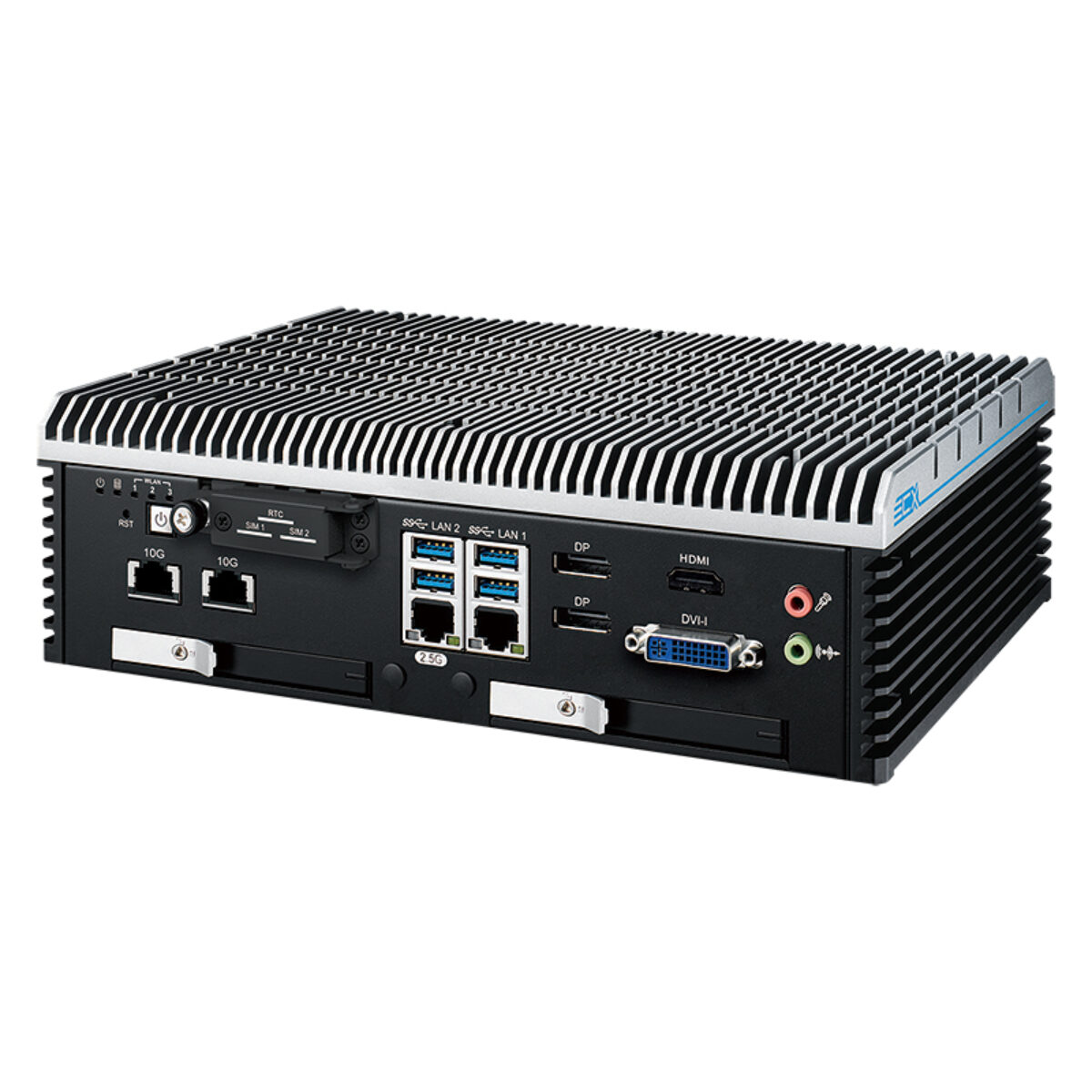

Vecow ECX-3071XR Intel Alder Lake Core i9-12900E Industrial PC with Dual 10GbE, PoE+ and Removable SSD
Intel
Linux
Windows
Quad Display Support
2.5GbE
10GbE
PoE Support
USB3
3x M.2
1x mPCIe
2x SIM
4G
Wi-Fi
NVMe SSD
Ignition Control
Fanless
Extended Temp
CE
EN50155
FCCECX-3071XR Overview
Vision systems that both record locally and push data upstream need fast storage and a fast uplink at the same time. The ECX-3071XR adds two front-access 2.5″ drive trays to the 10GbE layout for that job. It is the 10GbE removable-storage industrial PC in the Vecow ECX-3000 series, with an internal fan to cool the extra controller.
The ECX-3071XR runs 12th Gen Intel Core i9, i7, i5 and i3 Alder Lake-S processors on the Intel R680E chipset, up to the 16-core Core i9-12900E at 65 W TDP, with two DDR4 3200 MHz SO-DIMMs for up to 64 GB, ECC or non-ECC. Intel UHD Graphics 770 drives four independent displays over two DisplayPort, DVI-I and HDMI, and vPro, TSN and TPM 2.0 support remote management, deterministic networking and secure boot.

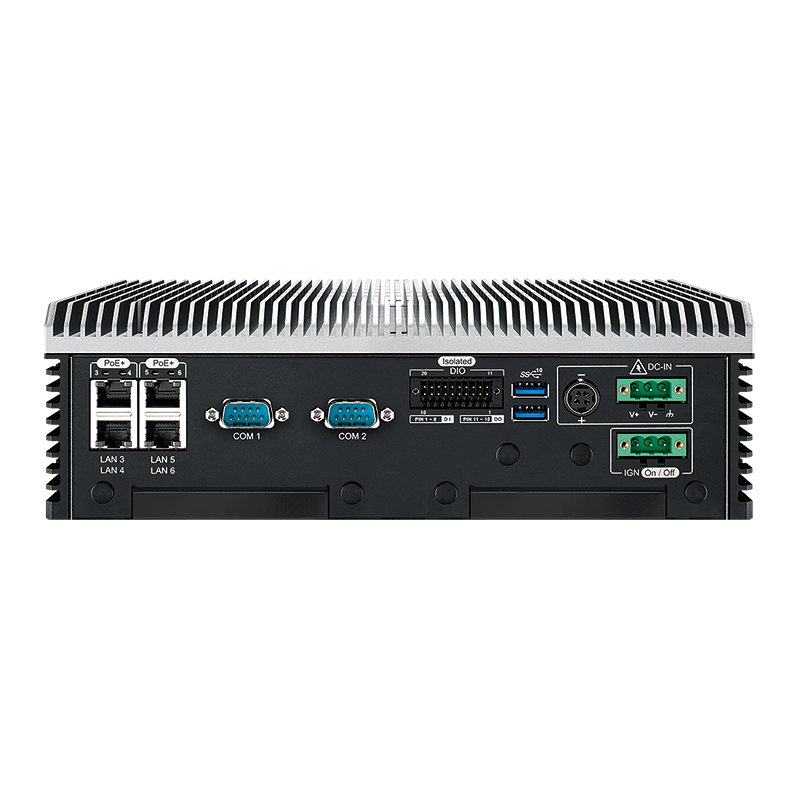

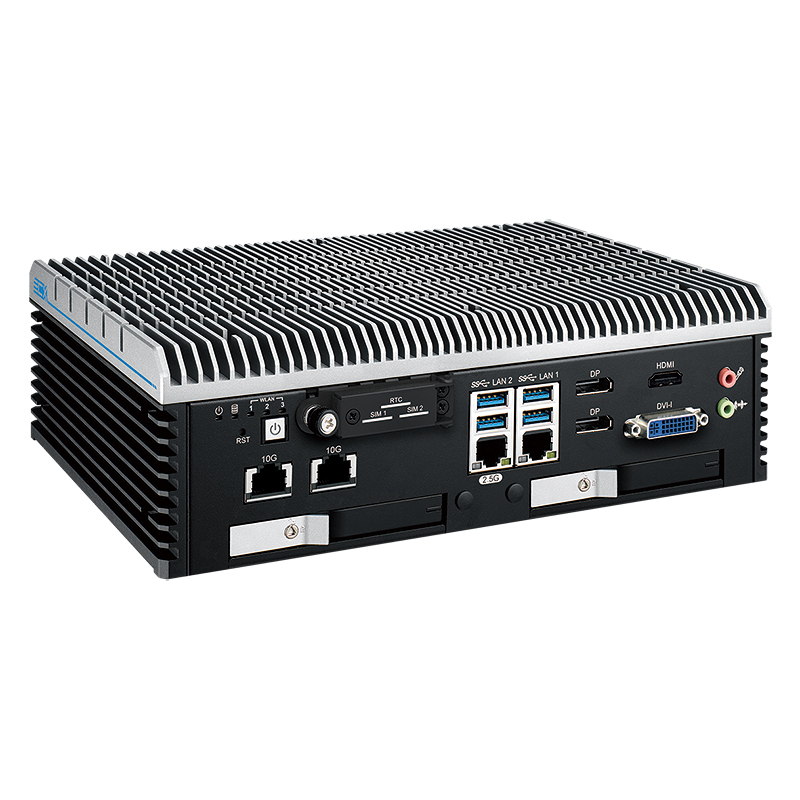

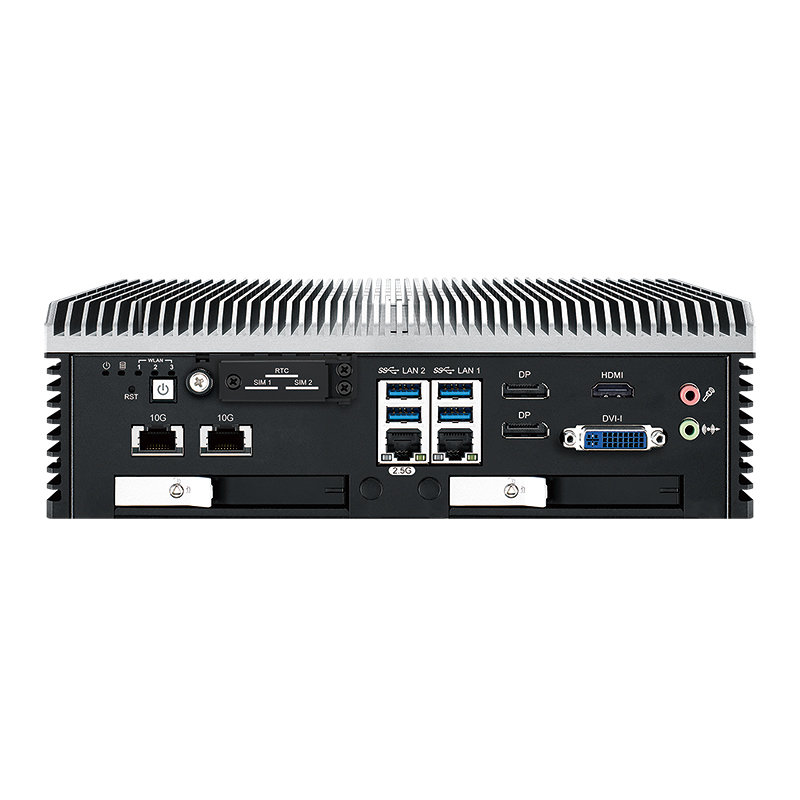

Networking on the ECX-3071XR is eight ports: two Intel X710-AT2 10GbE ports, four 2.5GbE IEEE 802.3at PoE+ ports at 25.5 W each, one 2.5GbE port with TSN and one GbE port with iAMT. Two front-access 2.5″ SSD or HDD trays support software RAID 0 or 1, beside an M.2 Key M PCIe x4 socket. Six USB 3.2 Gen 2 ports, two COM ports, 16 isolated DIO, a Mini PCIe socket, M.2 Key B and Key E sockets and two external SIM sockets cover field I/O and 4G, 5G or Wi-Fi modules.
The industrial PC runs on 9 V to 50 V DC through a terminal block or 4-pin Mini-DIN, with 16-mode software ignition control for vehicle installs. With its internal fan the 10GbE build is rated from 0 °C to 50 °C, with IEC 60068 shock and vibration testing and EN 50155 and EN 50121-3-2 EMC listings. The 260 x 175 x 79 mm, 3.8 kg Vecow chassis wall-mounts, with DIN-rail and 2U rack kits optional. For the same networking without trays, see the ECX-3071X.
ECX-3071XR Specifications
| Overview | |
|---|---|
| Brand & Model | Vecow ECX-3071XR |
| Features | Fanless Industrial |
| Performance | |
| Processor Series | Intel Core 12th Gen Alder Lake |
| Processor Models | Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W |
| Performance Cores | 4 Cores 6 Cores 12 Cores 16 Cores |
| Memory | 2x DDR4 3200MHz SO-DIMM Slots, 64GB |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 10 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Multi Display Support | Quad Display Support |
| Display Outputs | 1x Display Port 1x DVI 1x HDMI |
| Audio | |
| Codec | Realtek ALC888S-VD, 7.1 Channel HD Audio |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 8x Ethernet Ports |
| 1x 2.5 GbE LAN [RJ45] 1x GbE LAN [RJ45] 2x 10 GbE LAN [RJ45] 4x 2.5 GbE LAN [RJ45] [PoE] | |
| LAN Controllers | Intel I225 Intel X710-AT2 |
| PoE Standard | PoE+ [IEEE 802.3at] |
| PoE Power Budget | 25.5W |
| USB | 6x USB Ports |
| 6x USB 3.2 Gen 2 [Type A] | |
| Serial | 2x Serial Ports |
| 2x RS232/422/485 [DB9] | |
| Digital I/O | DIO [16-lines] |
| Remote Management | Intel vPro |
| Expansion | |
| M.2 | 3x M.2 Expansion Slots |
| 1x M.2 B-Key [USB] [3042/3052] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4] [2280] | |
| mPCIe | 1x mPCIe Slots |
| 1x mPCIe [PCIe/USB/SIM/SATA] | |
| SIM Slots | 2x SIM Slots |
| Wireless Connectivity | Optional 4G Modem Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 1x mSATA 2x 2.5" HDD/SSD |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 9-50V DC Input [Terminal Block] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Ignition Sensing | Supports Ignition Control |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -40°C to 75°C [-40°F to 167°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-64 |
| Certification | CE EN50121-3-2 EN50155 FCC |
| Mechanical Properties | |
| Weight | 3.8 Kg (8.36 Lbs) |
| Dimensions | 260mm x 79mm x 175mm (10.24" x 3.11" x 6.89") |
| Mounting Options | 19" Rack Mount Desktop DIN Mount Wall Mount |
Official Vecow USA Distributor
Things Embedded is an official Vecow USA distributor, working with ECX-3000 units on USA vision and recording projects. The ECX-3071XR suits recording systems with a 10GbE uplink and swappable drives. Within the wider Vecow range, the ECX-3000 PEG series takes a discrete GPU card for heavier vision models.
It belongs with our PoE+ computers and our industrial box PCs. The ECX-4000 series moves to Intel Core Ultra with an integrated NPU, PoE+ and 10GbE, and the HPS-1000 series offers AMD Ryzen Pro 5000 for projects standardized on AMD.
