Vecow ECX-3200 Intel Core 200S and 12th to 14th Gen Industrial Embedded Computers with PCIe x16 and Extended Temperature
The Vecow ECX-3200 series is a family of fanless industrial embedded computers for socketed Intel Core 200S and 12th to 14th Gen processors at up to 65 W TDP, with a PCIe x16 slot, up to 96 GB of DDR5, four COM ports, 9 to 50 V DC input and -40 °C to 75 °C operation with 35 W CPUs. The ECX-3200 series suits AMRs, smart retail, machine control and vehicle deployments.
- Socketed Intel Core up to 65 W: Core 200S and 12th to 14th Gen processors on the R680E chipset, with up to 24 cores and 96 GB of DDR5.
- PCIe x16 Expansion Slot: One PCIe x16 slot for a capture, motion or network card, plus mini PCIe, three M.2 sockets and optional SUMIT.
- Fanless -40 °C to 75 °C: Fanless operation from -40 °C to 75 °C with 35 W CPUs, or -40 °C to 55 °C with 65 W CPUs, with airflow.
- Serial, USB-C and Digital I/O: Four RS-232/422/485 ports, six USB 3.2 Gen 2, a 20 Gbps USB-C port and isolated DIO or GPIO on every model.
- 9 to 50 V DC with Ignition Control: Wide-range DC input with 16-mode software ignition control, and EMC to EN 50155 and EN 50121-3-2 requirements.
Intel- Linux
- Windows
Type C
USB3- 4x M.2
- 1x mPCIe
- 1x PCIe
- 3x SIM
- 4G
- 5G
GPS/GLONASS- Wi-Fi
- NVMe SSD
- Ignition Control
- Fanless
- Extended Temp
- CE
- EN50155
- FCC
2.5GbE
PoE Support
ECX-3200 Description
Machines, robots and kiosks are taking on more vision and control work, which usually means a socketed desktop processor, a slot for an add-in card and enough serial and digital I/O to talk to the rest of the equipment, all without a fan. The Vecow ECX-3200 series covers that with three fanless industrial embedded computers that share one design and differ in their networking.

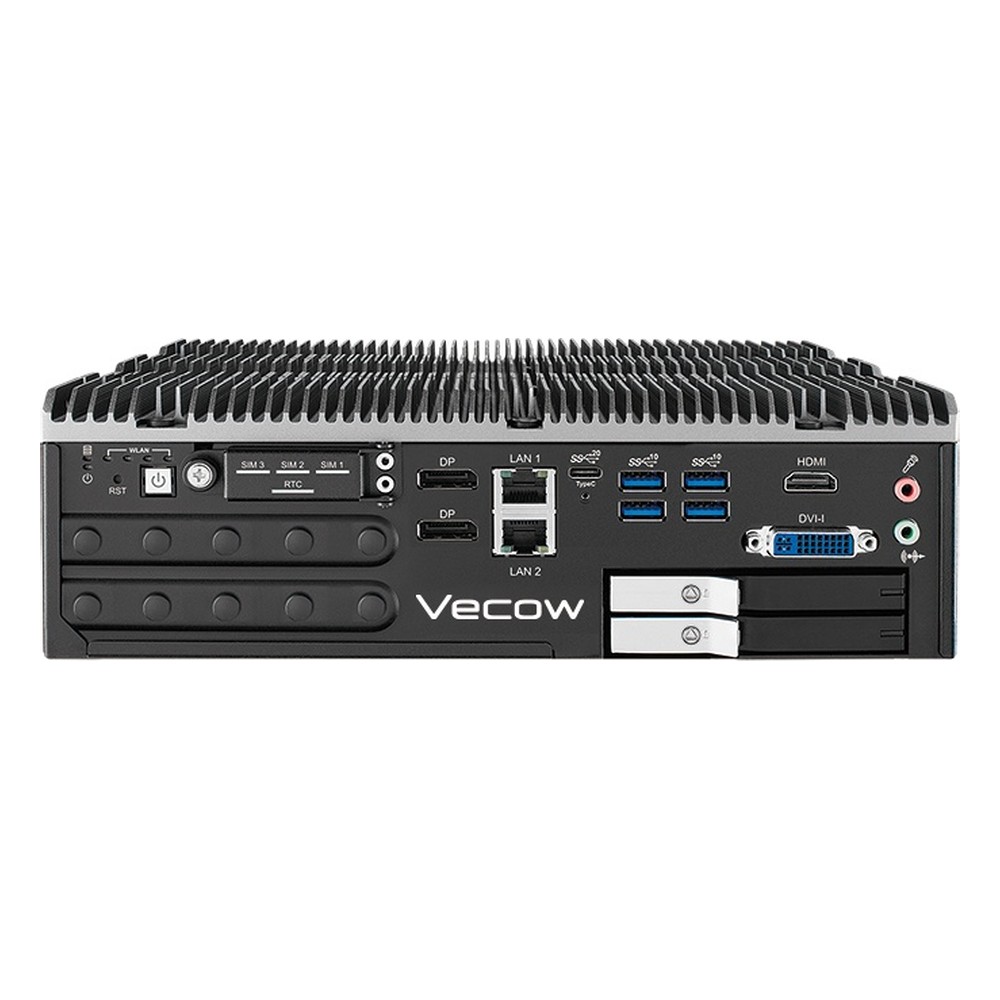

All three take Intel Core 200S (Bartlett Lake-S), 14th, 13th and 12th Gen processors on the R680E chipset at up to 65 W TDP, with up to 24 cores, two DDR5 5200 SO-DIMM sockets for up to 96 GB and Intel UHD graphics on DVI-I, HDMI and two 8K DisplayPort outputs. One PCIe x16 slot takes a capture, motion or network card, and the manual lets it run as x16 or two x8. Mini PCIe, two M.2 B key sockets and an M.2 E key socket take optional 5G, 4G and Wi-Fi modules, with three nano SIM sockets, and storage is an M.2 PCIe x4 SSD plus two front-access 2.5″ trays with RAID 0 and 1. Vecow lists Windows 11 and Linux.
The ECX-3200MX puts four 2.5GbE PoE+ ports on X-coded M12 connectors, alongside two GbE ports and 32 isolated DIO, for robots and vehicles where vibration can work RJ45 plugs loose. The ECX-3200 has the same four 2.5GbE PoE+ ports on RJ45 with 32 isolated DIO, which suits vision cells and retail systems that power their cameras from the computer. The ECX-3100 drops PoE for two GbE ports and 16 GPIO, for control cabinets and signage where the peripherals bring their own power.
Every ECX-3200 model runs from 9 to 50 V DC with 16-mode software ignition control and a remote switch input. With airflow, Vecow rates the series from -40 °C to 75 °C with 35 W CPUs and from -40 °C to 55 °C with 65 W CPUs, with optional fan sink modules, and lists CE, FCC, EN 50155 and EN 50121-3-2 for EMC. Wall mounting is standard, with optional VESA, DIN rail and 2U rack kits, so the same industrial embedded computer can go into a vehicle, a machine cabinet or a rack.
ECX-3200 Specifications
| Overview | |
|---|---|
| Brand & Model | Vecow ECX-3200 |
| Features | See Variant Specifications |
| Performance | |
| Processor Series | Intel Core 14th Gen Raptor Lake Refresh Intel Core Series 2 Bartlett Lake Intel Core 12th Gen Alder Lake Intel Core 13th Gen Raptor Lake |
| Processor Models | Intel Core 3 201E: 3.6~4.8GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core 3 201TE: 2.9~4.6GHz, 4 Cores, 8 Threads, 12MB Cache, 45W Intel Core 5 221E: 2.7~5.2GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core 5 221TE: 1.8~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 45W Intel Core 5 223PE: 2.9~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 223PTE: 2.3~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 7 251E: 2.1~5.6GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core 7 251TE: 1.4~5.4GHz, 24 Cores, 32 Threads, 36MB Cache, 45W Intel Core 7 253PE: 2.5~5.5GHz, 10 Cores, 20 Threads, 33MB Cache, 65W Intel Core 7 253PTE: 1.8~5.4GHz, 10 Cores, 20 Threads, 33MB Cache, 45W Intel Core 9 273PE: 2.3~5.7GHz, 12 Cores, 24 Threads, 36MB Cache, 65W Intel Core 9 273PTE: 1.4~5.5GHz, 12 Cores, 24 Threads, 36MB Cache, 45W Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W |
| Performance Cores | 4 Cores 6 Cores 8 Cores 10 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Memory | 2x DDR5 5200MHz SO-DIMM Slot, 96GB |
| Chipset | Intel R680E |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Outputs | 1x DVI 1x HDMI 2x Display Port |
| Audio | |
| Codec | Realtek ALC888S-VD, 7.1 Channel HD Audio |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | See Variant Specifications |
| LAN Controllers | See Variant Specifications |
| USB | 7x USB Ports |
| 1x USB 3.2 Gen 2x2 [Type C] 6x USB 3.2 Gen 2 [Type A] | |
| Serial | 4x Serial Ports |
| 4x RS232/422/485 [DB9] | |
| Remote Management | Intel AMT Intel vPro |
| Expansion | |
| M.2 | 4x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe/USB 3.0/USB] [2280/3042] 1x M.2 B-Key [PCIe/USB 3.0/USB] [2280/3052] 1x M.2 E-Key [USB/PCIe] [2230] 1x M.2 M-Key [PCIe x4] [2280] | |
| mPCIe | 1x mPCIe Slots |
| 1x mPCIe [PCIe/USB/SIM] | |
| PCIe | 1x PCIe Slots |
| 1x PCIe [x16 Slot] | |
| SIM Slots | 3x SIM Slots |
| Wireless Connectivity | Optional 4G Modem Optional 5G Modem Optional GPS/GLONASS Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 2x 2.5" HDD/SSD [SATA] |
| NVMe | NVMe SSD Support |
| Front Accessible Storage | Front Accessible Storage |
| RAID | RAID 0 (Striping) RAID 1 (Mirroring) |
| Power | |
| Power Input | 9-50V DC Input [Terminal Block] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Ignition Sensing | Supports Ignition Control |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -40°C to 55°C [-40°F to 131°F] -40°C to 75°C [-40°F to 167°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-64 |
| Certification | CE EN50121-3-2 EN50155 FCC |
| Mechanical Properties | |
| Weight | 4.5 Kg (9.9 Lbs) |
| Dimensions | 260mm x 240mm x 79mm (10.24" x 9.45" x 3.11") |
| Mounting Options | DIN Mount Rack Mount VESA Mount Wall Mount |
No specifications match your search.
See product variants.
ECX-3200 Variants

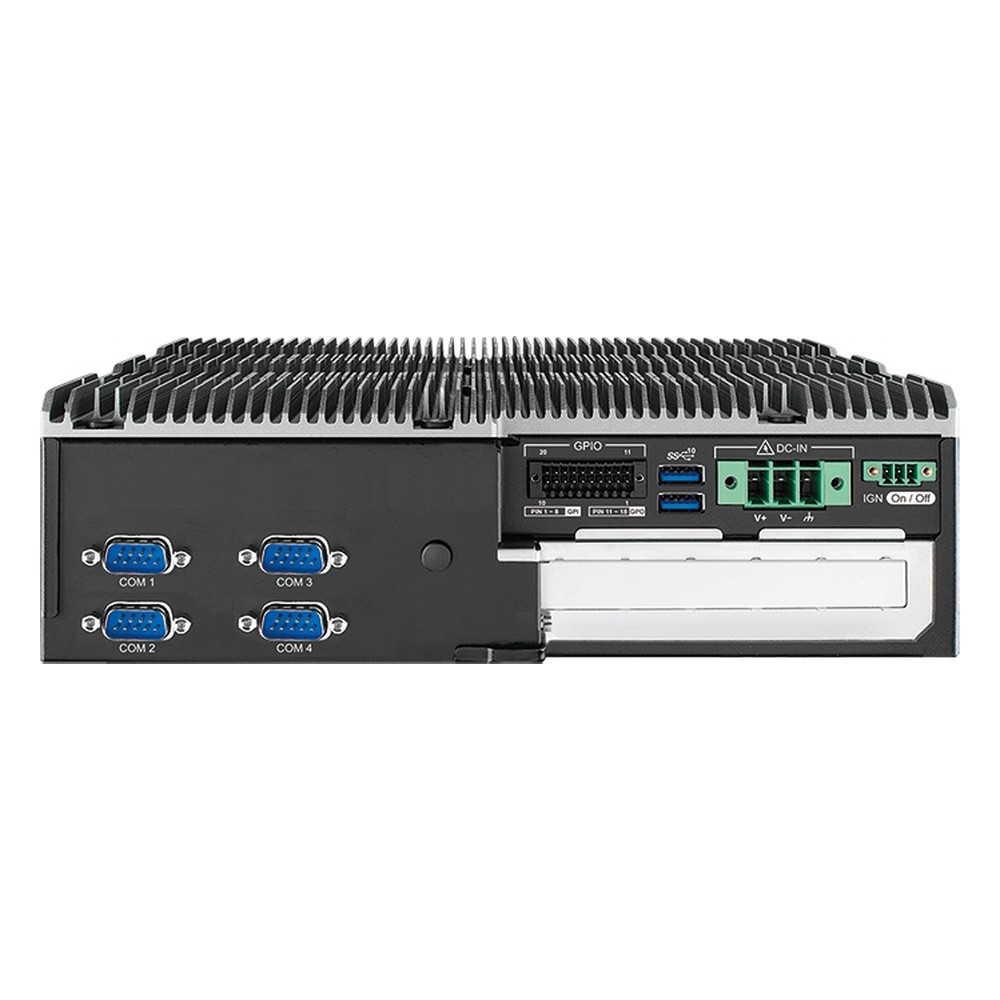

Vecow ECX-3100 Intel Alder Lake to Bartlett Lake Industrial Embedded Computer with PCIe x16, 16 GPIO and Extended Temperature
ECX-3100 with dual GbE, PCIe x16, 16 GPIO and 9-50V DC
| Overview | |
|---|---|
| Brand & Model | Vecow ECX-3100 |
| Features | Embedded, Expandable, Fanless, Industrial |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x GbE LAN [RJ45] | |
| LAN Controllers | Intel I210, Intel I219LM |
| GPIO | GPIO [16-lines] |

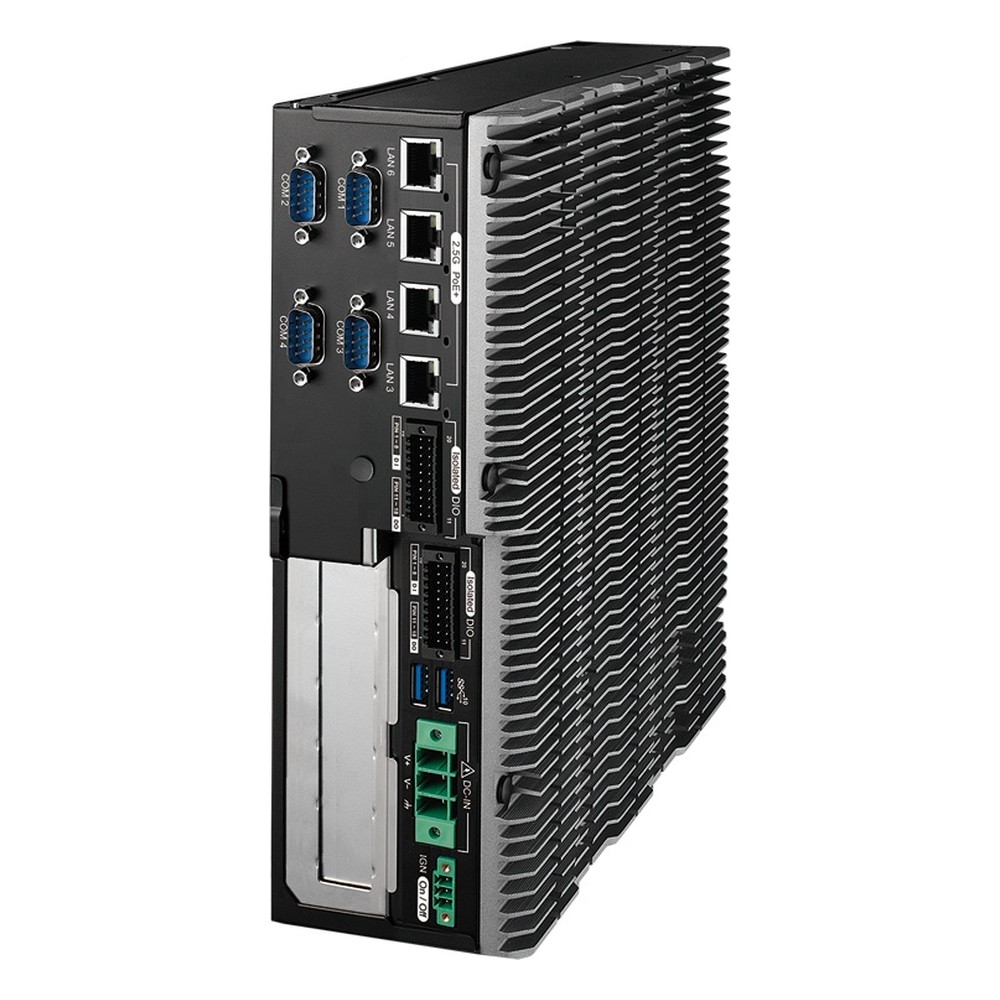

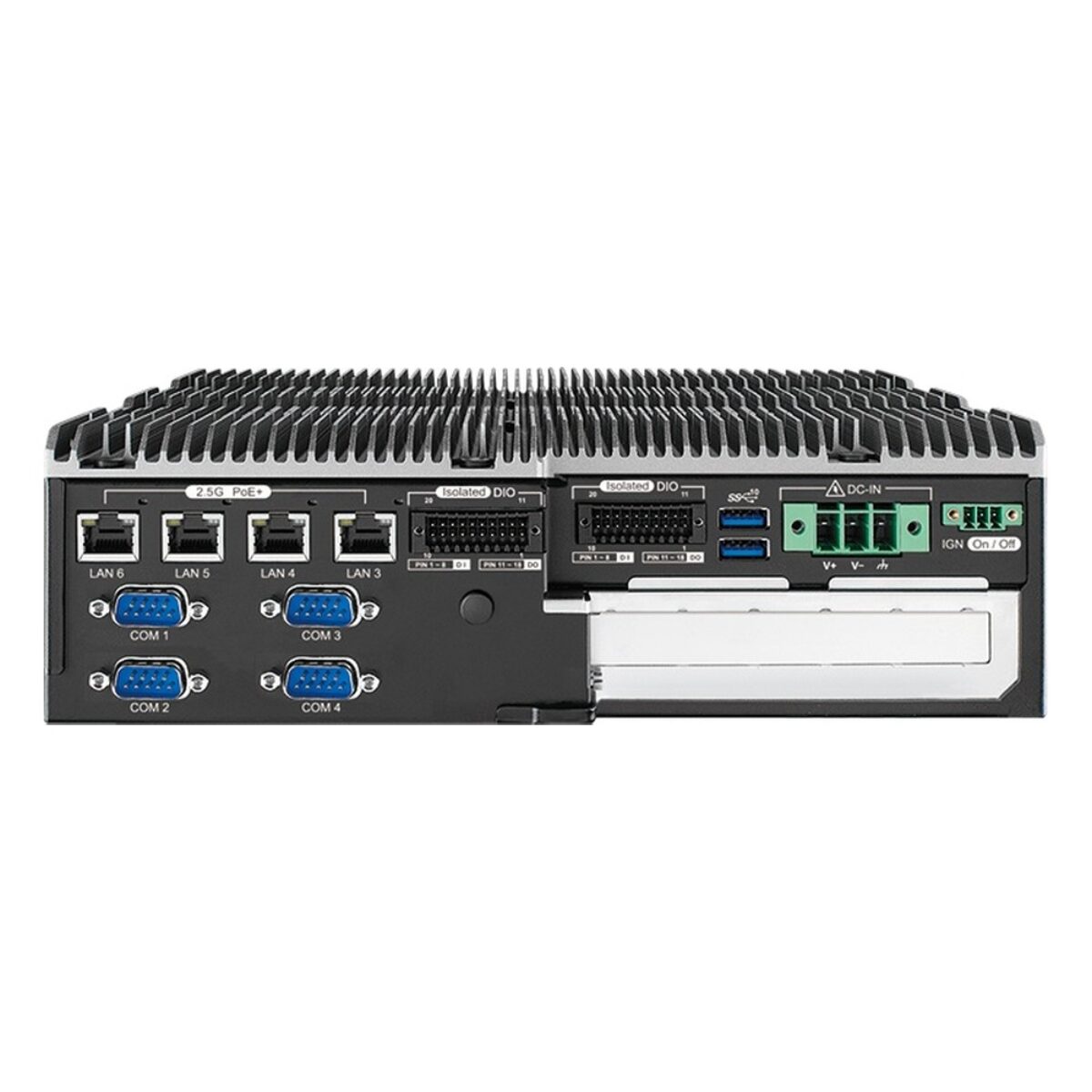

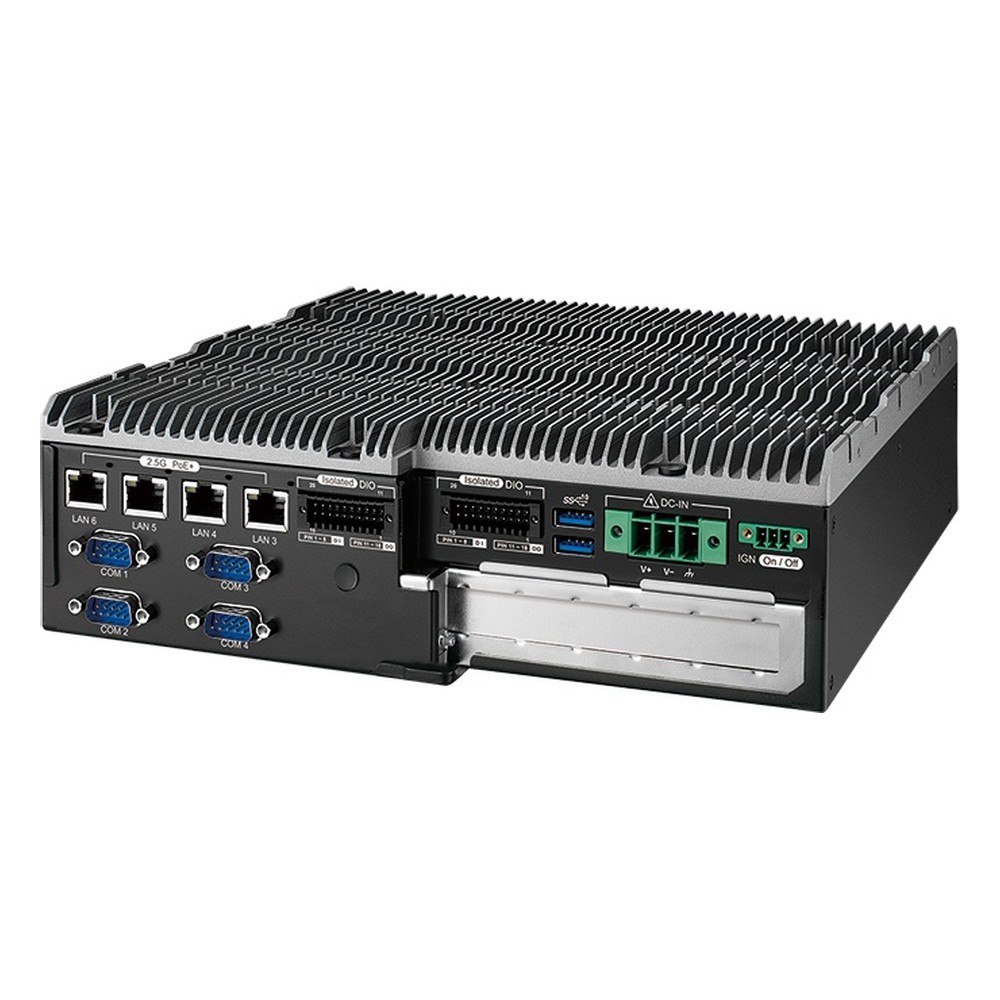

Vecow ECX-3200 Intel Bartlett Lake and Raptor Lake Industrial Embedded Computer with 4x 2.5GbE PoE+ and -40 to 75 °C
ECX-3200 with 4x 2.5GbE PoE+ RJ45, PCIe x16, 32 isolated DIO and 9-50V DC
| Overview | |
|---|---|
| Brand & Model | Vecow ECX-3200 |
| Features | Embedded, Expandable, Fanless, Industrial, Isolated I/O |
| I/O | |
| Ethernet | 6x Ethernet Ports |
| 2x GbE LAN [RJ45], 4x 2.5 GbE LAN [RJ45] [PoE] | |
| LAN Controllers | Intel I210, Intel I219LM, Intel I226 |
| PoE Standard | PoE+ [IEEE 802.3at] |
| PoE Power Budget | 25.5W |
| Digital I/O | Isolated DIO [16-in, 16-out] |
Vecow ECX-3200MX Intel Core 200S and 14th Gen Industrial Embedded Computer with M12 PoE+, PCIe x16 and Extended Temperature
ECX-3200MX with 4x M12 2.5GbE PoE+, PCIe x16, 32 isolated DIO and 9-50V DC
| Overview | |
|---|---|
| Brand & Model | Vecow ECX-3200MX |
| Features | Embedded, Expandable, Fanless, Industrial, M12 Connectors, Rugged, Isolated I/O |
| I/O | |
| Ethernet | 6x Ethernet Ports |
| 2x GbE LAN [RJ45], 4x 2.5 GbE LAN [M12] [PoE] | |
| LAN Controllers | Intel I210, Intel I219LM, Intel I226 |
| PoE Standard | PoE+ [IEEE 802.3at] |
| PoE Power Budget | 25.5W |
| Digital I/O | Isolated DIO [16-in, 16-out] |
No related media available for this product series.
Official Vecow USA Distributor
Things Embedded is an official Vecow USA distributor, and we supply the ECX-3200 series configured and tested, with the processor, DDR5 memory, SSDs, the Windows 11 or Linux image, wireless modules, antennas and any add-in card fitted before it ships. We set the ignition and BIOS options to suit the vehicle or machine, and we support each system for the life of the project. Within the Vecow range, the ECX-3200G series adds 16 GMSL camera inputs in place of the PCIe x16 slot, and the ECX-3000 PEG builds come with a graphics card fitted in the same slot, for vision or display work that needs a discrete GPU.
Across our range, the ECX-3200 series sits with our fanless PCs, our PoE computers and our railway computers.
