Vecow ECX-3200MX Intel Core 200S and 14th Gen Industrial Embedded Computer with M12 PoE+, PCIe x16 and Extended Temperature
Intel
Linux
Windows
2.5GbE
PoE Support
Type C
USB3
4x M.2
1x mPCIe
1x PCIe
3x SIM
4G
5G
GPS/GLONASS
Wi-Fi
NVMe SSD
Ignition Control
Fanless
Extended Temp
CE
EN50155
FCCECX-3200MX Overview

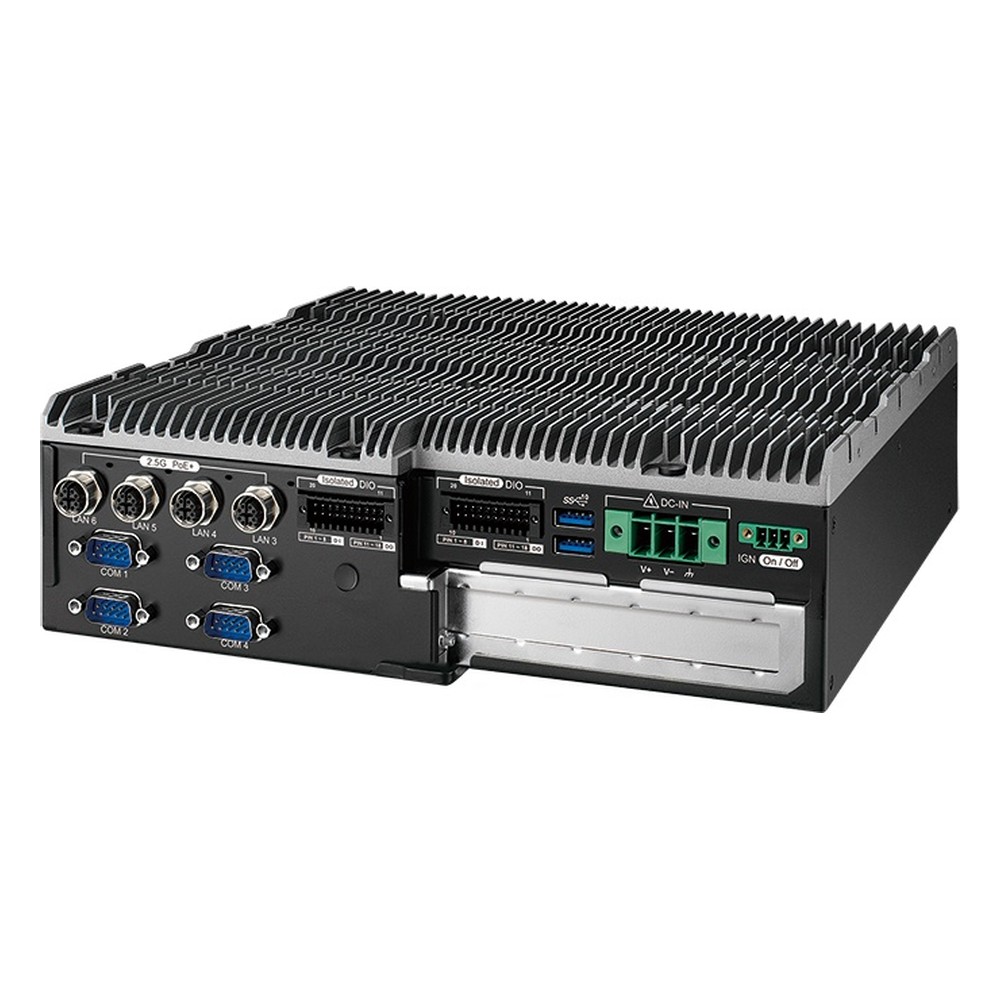

Cameras and sensors on mobile robots, kiosks and machines often need power and data from the same cable, and the connectors have to stay seated through vibration. The Vecow ECX-3200MX is an industrial embedded computer for that job, a member of the ECX-3200 series with four 2.5GbE PoE+ ports on X-coded M12 connectors and a fanless, finned case.
The ECX-3200MX takes socketed Intel Core 200S (Bartlett Lake-S), 14th, 13th and 12th Gen processors on the R680E chipset at up to 65 W TDP, with up to 24 cores on the Core 7 251E or Core i9-14900. Two DDR5 5200 SO-DIMM sockets take up to 96 GB, and Intel UHD 770/730 graphics drive DVI-I, HDMI and two DisplayPort outputs at up to 7680 x 4320. Vecow lists vPro, TCC and TSN support with Windows 11 or Linux.

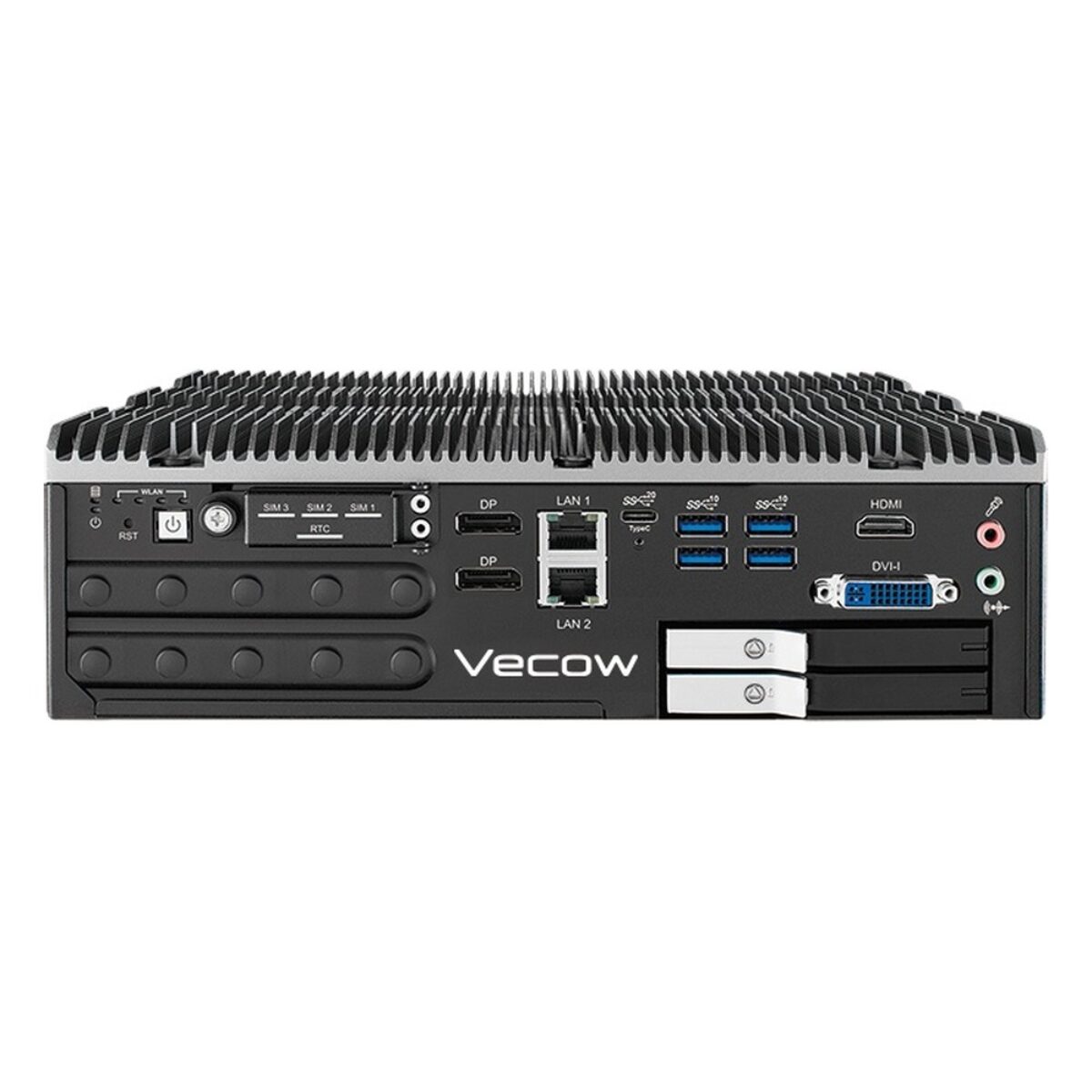

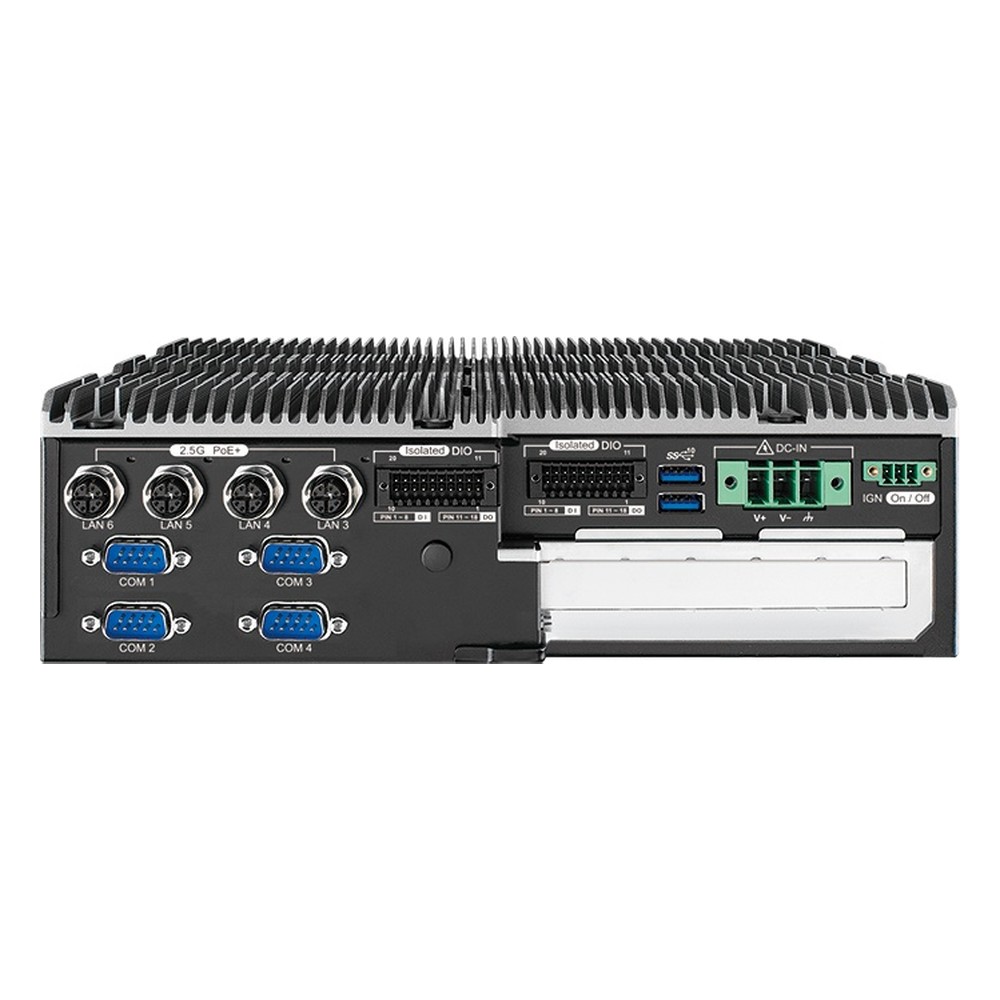

Networking runs to six ports: an Intel I219LM GbE port with iAMT, an I210 GbE port and four Intel I226 2.5GbE ports on M12, each with IEEE 802.3at PoE+ at 25.5 W. Alongside sit six USB 3.2 Gen 2 ports, a USB 3.2 Gen 2×2 Type-C port at 20 Gbps, four RS-232/422/485 ports, 32 isolated DIO (16 in, 16 out) and three nano SIM sockets. One PCIe x16 slot takes an add-in card, with mini PCIe, two M.2 B key sockets for optional 5G or 4G and an M.2 E key socket for optional Wi-Fi. Storage is an M.2 M key PCIe x4 SSD plus two front-access 2.5″ trays on SATA III with RAID 0 and 1.

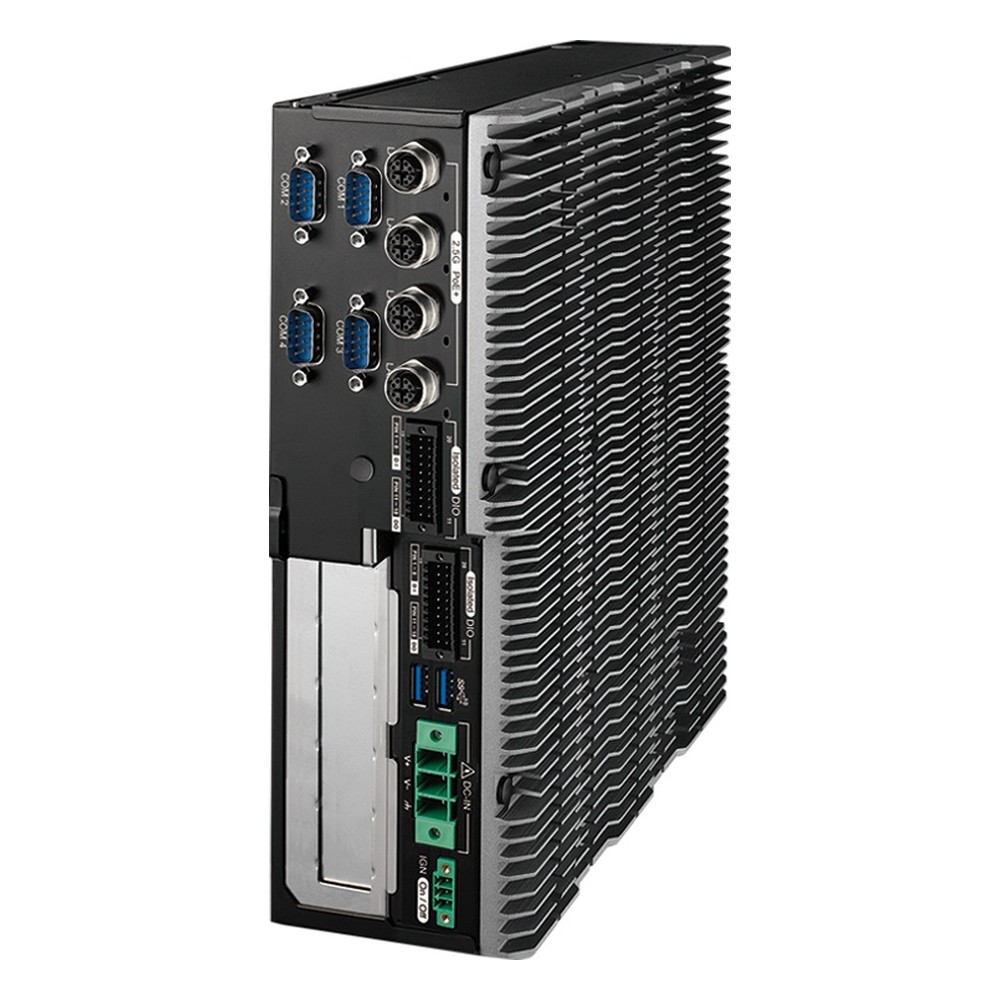

Power is 9 to 50 V DC on a terminal block, with 16-mode software ignition control and a remote switch input. With airflow, the ECX-3200MX runs from -40 °C to 75 °C with 35 W CPUs or -40 °C to 55 °C with 65 W CPUs, and fan sink modules are optional. Vecow lists CE and FCC, with EMC to EN 50155 and EN 50121-3-2 requirements. It wall mounts, with optional VESA, DIN rail and 2U rack kits. The ECX-3200 uses RJ45 for the same PoE+ ports, and the ECX-3200G adds 16 GMSL camera inputs.
ECX-3200MX Specifications
| Overview | |
|---|---|
| Brand & Model | Vecow ECX-3200MX |
| Features | Embedded Expandable Fanless Industrial M12 Connectors Rugged Isolated I/O |
| Performance | |
| Processor Series | Intel Core 14th Gen Raptor Lake Refresh Intel Core Series 2 Bartlett Lake Intel Core 12th Gen Alder Lake Intel Core 13th Gen Raptor Lake |
| Processor Models | Intel Core 3 201E: 3.6~4.8GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core 3 201TE: 2.9~4.6GHz, 4 Cores, 8 Threads, 12MB Cache, 45W Intel Core 5 221E: 2.7~5.2GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core 5 221TE: 1.8~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 45W Intel Core 5 223PE: 2.9~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 223PTE: 2.3~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 7 251E: 2.1~5.6GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core 7 251TE: 1.4~5.4GHz, 24 Cores, 32 Threads, 36MB Cache, 45W Intel Core 7 253PE: 2.5~5.5GHz, 10 Cores, 20 Threads, 33MB Cache, 65W Intel Core 7 253PTE: 1.8~5.4GHz, 10 Cores, 20 Threads, 33MB Cache, 45W Intel Core 9 273PE: 2.3~5.7GHz, 12 Cores, 24 Threads, 36MB Cache, 65W Intel Core 9 273PTE: 1.4~5.5GHz, 12 Cores, 24 Threads, 36MB Cache, 45W Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W |
| Performance Cores | 4 Cores 6 Cores 8 Cores 10 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Memory | 2x DDR5 5200MHz SO-DIMM Slot, 96GB |
| Chipset | Intel R680E |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Outputs | 1x DVI 1x HDMI 2x Display Port |
| Audio | |
| Codec | Realtek ALC888S-VD, 7.1 Channel HD Audio |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 6x Ethernet Ports |
| 2x GbE LAN [RJ45] 4x 2.5 GbE LAN [M12] [PoE] | |
| LAN Controllers | Intel I210 Intel I219LM Intel I226 |
| PoE Standard | PoE+ [IEEE 802.3at] |
| PoE Power Budget | 25.5W |
| USB | 7x USB Ports |
| 1x USB 3.2 Gen 2x2 [Type C] 6x USB 3.2 Gen 2 [Type A] | |
| Serial | 4x Serial Ports |
| 4x RS232/422/485 [DB9] | |
| Digital I/O | Isolated DIO [16-in, 16-out] |
| Remote Management | Intel AMT Intel vPro |
| Expansion | |
| M.2 | 4x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe/USB 3.0/USB] [2280/3042] 1x M.2 B-Key [PCIe/USB 3.0/USB] [2280/3052] 1x M.2 E-Key [USB/PCIe] [2230] 1x M.2 M-Key [PCIe x4] [2280] | |
| mPCIe | 1x mPCIe Slots |
| 1x mPCIe [PCIe/USB/SIM] | |
| PCIe | 1x PCIe Slots |
| 1x PCIe [x16 Slot] | |
| SIM Slots | 3x SIM Slots |
| Wireless Connectivity | Optional 4G Modem Optional 5G Modem Optional GPS/GLONASS Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 2x 2.5" HDD/SSD [SATA] |
| NVMe | NVMe SSD Support |
| Front Accessible Storage | Front Accessible Storage |
| RAID | RAID 0 (Striping) RAID 1 (Mirroring) |
| Power | |
| Power Input | 9-50V DC Input [Terminal Block] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Ignition Sensing | Supports Ignition Control |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -40°C to 55°C [-40°F to 131°F] -40°C to 75°C [-40°F to 167°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-64 |
| Certification | CE EN50121-3-2 EN50155 FCC |
| Mechanical Properties | |
| Weight | 4.5 Kg (9.9 Lbs) |
| Dimensions | 260mm x 240mm x 79mm (10.24" x 9.45" x 3.11") |
| Mounting Options | DIN Mount Rack Mount VESA Mount Wall Mount |
Official Vecow USA Distributor
Things Embedded is an official Vecow USA distributor, and we supply the ECX-3200MX configured and tested, with the processor, memory, storage and operating system image fitted before it ships. Within the Vecow range, the ECX-3200 uses RJ45 connectors for the same four 2.5GbE PoE+ ports on the same fanless design.
Across our range, the ECX-3200MX sits with our rugged computers, PoE computers and Intel Bartlett Lake systems.
