Vecow SPC-9000-165U Intel Core Ultra 7 165U Mini Industrial PC with Dual 2.5GbE TSN, 9-55V DC Ignition and Extended Temperature
Intel
Linux
Windows
Triple Display Support
2.5GbE
Type C
USB3
3x M.2
1x SIM
4G
5G
GPS/GLONASS
Wi-Fi
NVMe SSD
Ignition Control
Fanless
Extended Temp
CE
EN50155
FCCSPC-9000-165U Overview

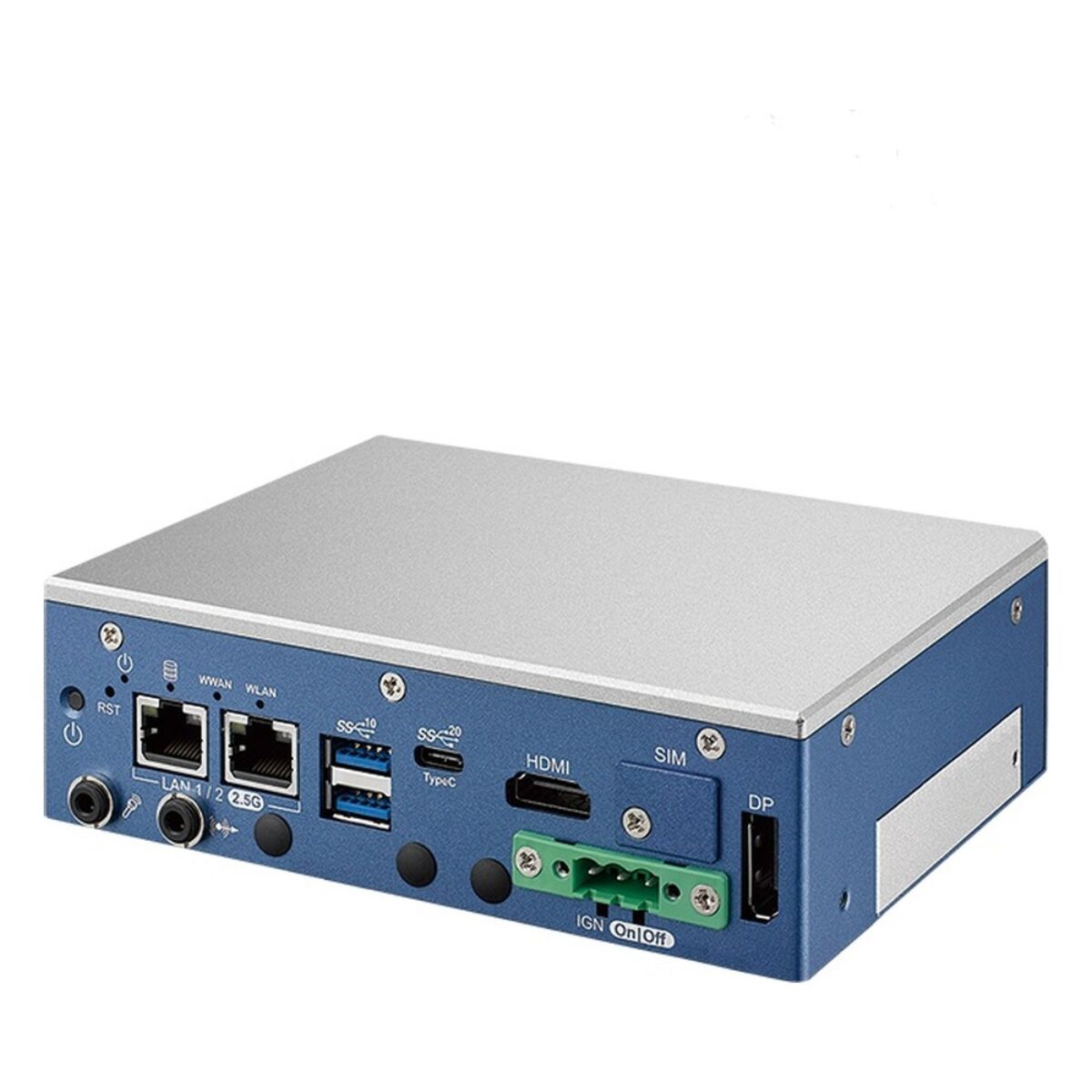

Autonomous mobile robots and vending machines often have little room for a computer and no tolerance for a fan. The Vecow SPC-9000-165U is the slimmest build in the SPC-9000 series, using a flat heat spreader rather than fins, with the Core Ultra 7 165U for the extra CPU headroom.
The Intel Core Ultra 7 165U is a Meteor Lake-U processor with 12 cores, Intel graphics and an Intel AI Boost NPU rated at 11 TOPS. One DDR5 5600 SO-DIMM socket takes up to 48 GB. Intel vPro, TCC and an onboard TPM 2.0 are supported, so the SPC-9000-165U suits SLAM, local vision and remote fleet management on Windows 11 or Linux.

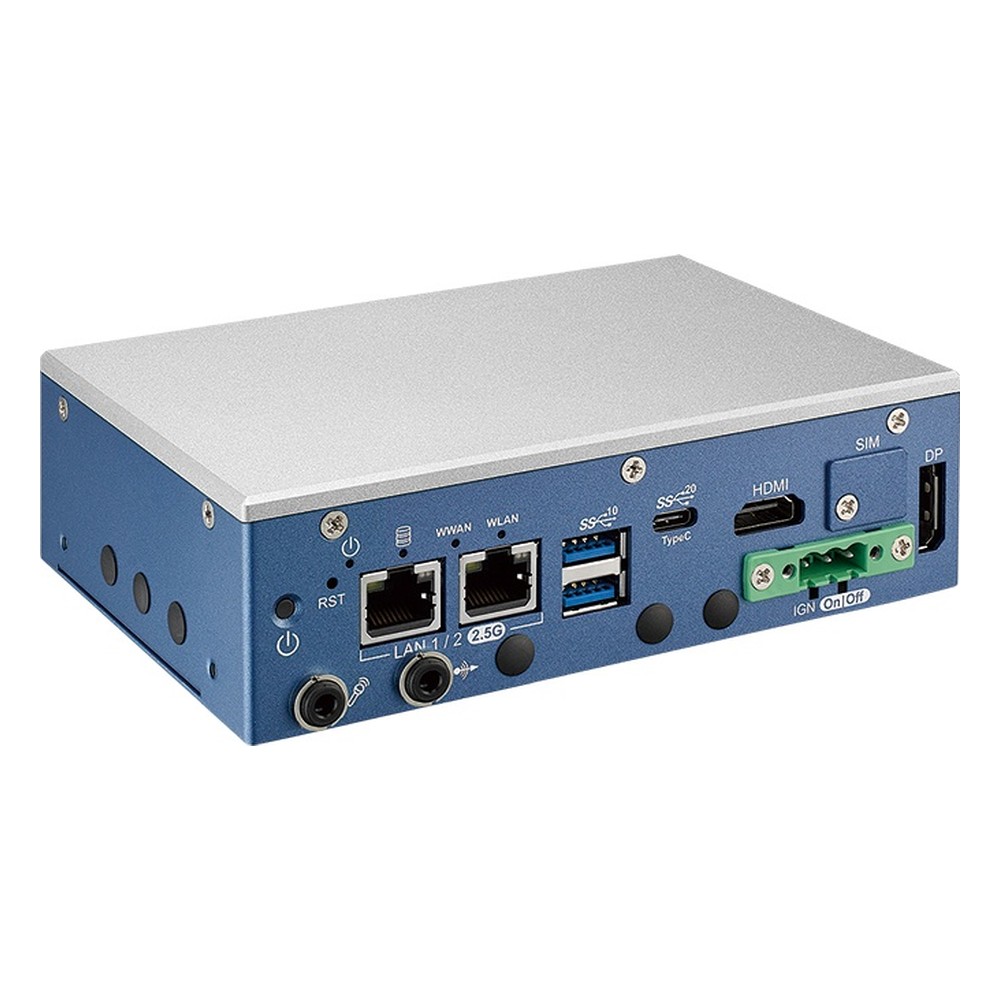

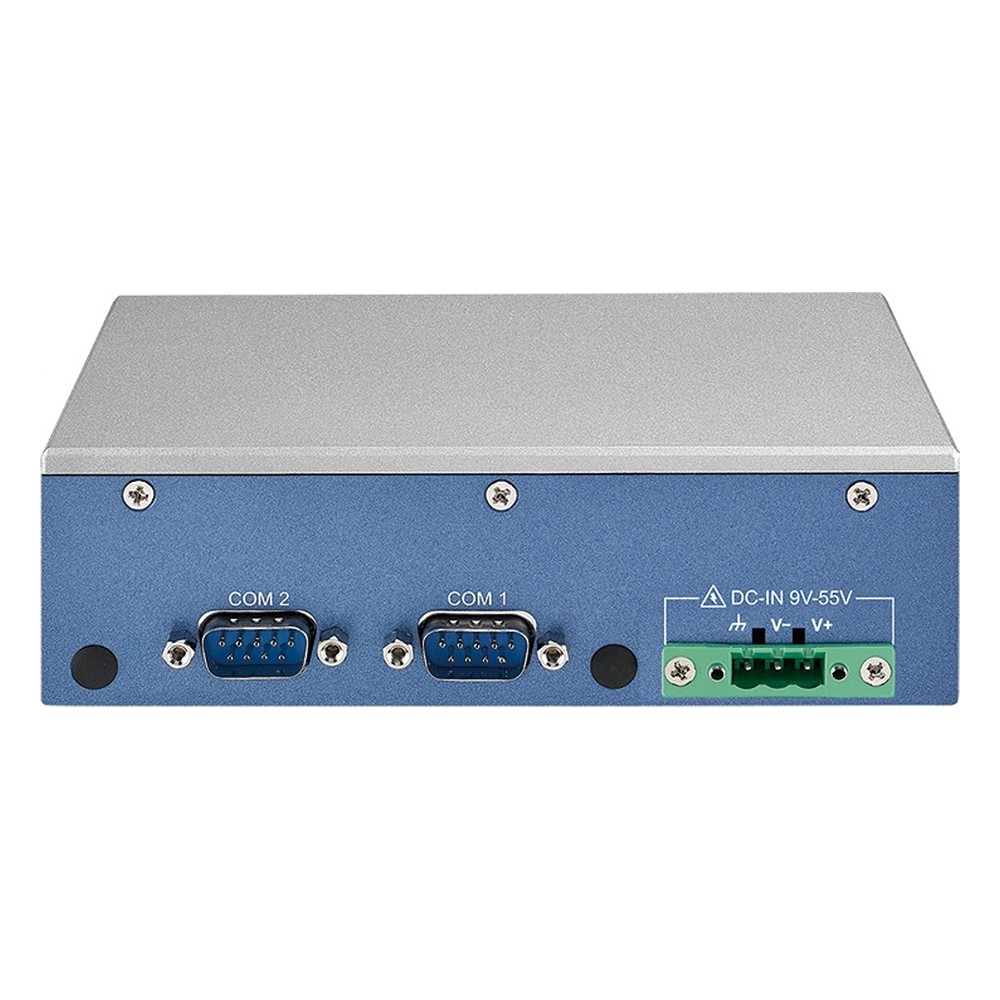

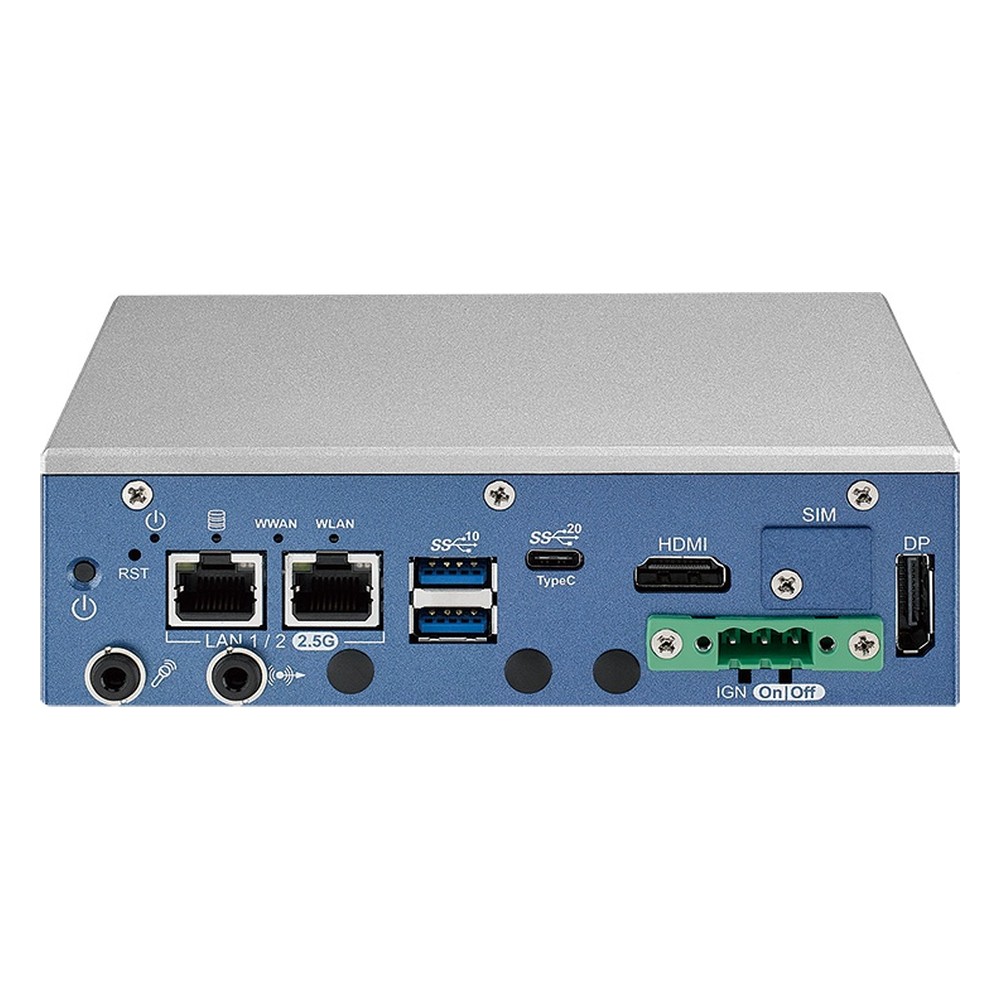

Networking is two Intel I226 2.5GbE ports with TSN, and two COM ports configurable for RS-232, RS-422 or RS-485 carry 8 kV ESD protection. Displays run from HDMI 2.1, DisplayPort 1.4 and DisplayPort over a USB 3.2 Gen 2×2 Type-C port, with two USB 3.2 Gen 2 Type-A alongside. Storage is an M.2 2280 M key socket on PCIe 4.0 x4 or SATA and an internal SATA III drive bay. An M.2 B key socket with an external nano SIM takes an optional 4G or 5G module, an M.2 E key socket takes optional Wi-Fi, and an optional SUMIT B module, in a customized chassis, can add 10GigE, 10G SFP+ or 4G.
Power is 9 to 55 V DC on a terminal block, with 16-mode software ignition control and a remote power switch terminal for vehicle and machine wiring. The SPC-9000-165U is rated from -40 °C to 60 °C with airflow, with shock to IEC 60068-2-27 and vibration to IEC 60068-2-64. Vecow lists CE, FCC and ICES marks and EN 50155 and EN 50121-3-2 compliance. We supply it configured and tested, with memory, storage and the OS image fitted. The SPC-9100-165U uses a finned heatsink for 75 °C, and the SPC-9000-135U is the Core Ultra 5 version.
SPC-9000-165U Specifications
| Overview | |
|---|---|
| Brand & Model | Vecow SPC-9000-165U |
| Features | Compact Embedded Fanless Industrial USB C |
| Performance | |
| Processor Series | Intel Core Ultra Series 1 Meteor Lake |
| Processor Models | Intel Core Ultra 7 165U: 1.7~4.9GHz, 12 Cores, 14 Threads, 12MB Cache, 15W |
| Performance Cores | 12 Cores |
| GPU / AI Accelerator | Intel NPU |
| AI Performance | 11 TOPS |
| Memory | 1x DDR5 5600MHz SO-DIMM Slot, 48GB |
| PCIe Gen Support | PCIe 4.0 |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel Graphics |
| Display Standards | Display Port 1.4a HDMI 2.1 |
| Multi Display Support | Triple Display Support |
| Display Outputs | 1x Display Port 1x HDMI 1x USB Type C |
| Audio | |
| Codec | Realtek ALC888S-VD, 7.1 Channel HD Audio |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| LAN Controllers | Intel I226IT |
| USB | 3x USB Ports |
| 1x USB 3.2 Gen 2x2 [Type C] 2x USB 3.2 Gen 2 [Type A] | |
| Serial | 2x Serial Ports |
| 2x RS232/422/485 [DB9] | |
| Remote Management | Intel vPro |
| Expansion | |
| M.2 | 3x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe x2 Gen3/USB 3.2 Gen 2/USB 2.0/SIM] [2242/3042/3052] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2280] | |
| SIM Slots | 1x SIM Slots |
| Wireless Connectivity | Optional 4G/5G Optional GPS/GLONASS Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x 2.5" HDD/SSD [SATA] 2x M.2 SSD |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 9-55V DC Input [Terminal Block] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Ignition Sensing | Supports Ignition Control |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -40°C to 60°C [-40°F to 140°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-64 |
| EMC | EN50121 |
| Certification | CE EN50121-3-2 EN50155 FCC IC (ICES-003) RoHS |
| Mechanical Properties | |
| Weight | 1.0 Kg (2.2 Lbs) |
| Dimensions | 150mm x 106mm x 44mm (5.92" x 4.18" x 1.74") |
| Mounting Options | DIN Mount VESA Mount Wall Mount |
Official Vecow USA Distributor
Things Embedded is an official Vecow USA distributor, and we supply the SPC-9000-165U configured and tested, with the memory, storage, operating system image and any wireless modules fitted before it ships. Within the Vecow range, the SPC-9100-165U uses a finned heatsink on the same Core Ultra 7 165U for operation up to 75 °C.
Across our range, the SPC-9000-165U sits with our rugged mini PCs, in-vehicle computers and Intel Core Ultra computers.
