HDMI 2.0 Capture Cards for 4K60 Sources
An HDMI 2.0 capture card takes 4K60 video from cameras, medical systems and computers, where a standard HDMI card would stop at 1080p. Available as PCIe and M.2 cards with one to four inputs and as USB units, including models that combine HDMI 2.0 with 12G-SDI or DisplayPort.
Options include loop-through on selected cards, HDR on selected USB models and Windows and Linux SDKs, suited to 4K medical imaging, streaming, simulation and inspection systems.
Speak to a video capture specialist to match the inputs and host interface to your 4K system.
Browse Our 4K60 HDMI Frame Grabbers

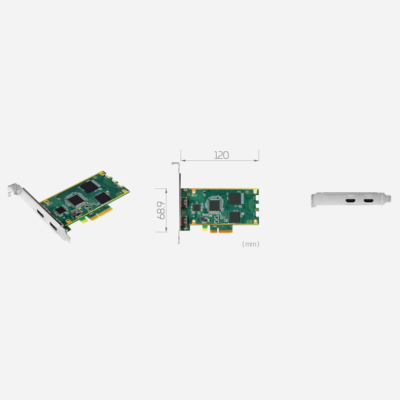

- Video Input: 1x HDMI2.0
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 1
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x HDMI2.0
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Video Input: 1x HDMI2.0
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 1
- Video Input: 1x DP, 1x DVI-D
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
HDMI 2.0 Capture Card Ranges Configured by Things Embedded
We work with a leading manufacturer of HDMI 2.0 capture cards, so the ranges below are the ones we specify for 4K recording and streaming systems. Compare them by inputs and host interface, then browse the models above or ask a video capture specialist which range suits your system.
SC710, SC720 and SC750 Yuan 4K and 8K Capture Cards
HDMI 2.0, HDMI 2.1, 12G-SDI, DisplayPort 1.4a and SDVoE capture at 4K60 and up to 8K on PCIe and M.2.
PD570, PD575 and UB5 Yuan USB Capture Cards
External USB 3.0 capture for HDMI, SDI and TVI sources, from 1080p60 to HDMI 2.0 and 2.1 4K models, working as UVC devices.
Not sure which range fits? Tell us the application and we will recommend the right model.
Explore Video Capture Cards by Signal and Form Factor
Compare every video capture category by signal, SDI and HDMI standard or form factor, and jump straight to the cards that fit your sources and host system.
HDMI 2.0 Capture Innovation & 4K Video Insights
Speak to a 4K HDMI Specialist.
Tell us the resolution and frame rate your sources output, the host system and how the video will be recorded or processed. We will recommend the right card for the bandwidth, then configure and test it with your system before it ships.
