Winmate FM10E-V 10.4″ IP65 Vehicle Mount Computer with Intel Atom x6425E and PCAP Touch

Most forklift terminals spend their day on one picking or warehouse management screen, and what matters is that they keep running through knocks, cold stores and battery swaps. The FM10E-V is Winmate’s 10.4 inch vehicle mount computer, built around an Intel Atom x6425E in a compact IP65 housing.

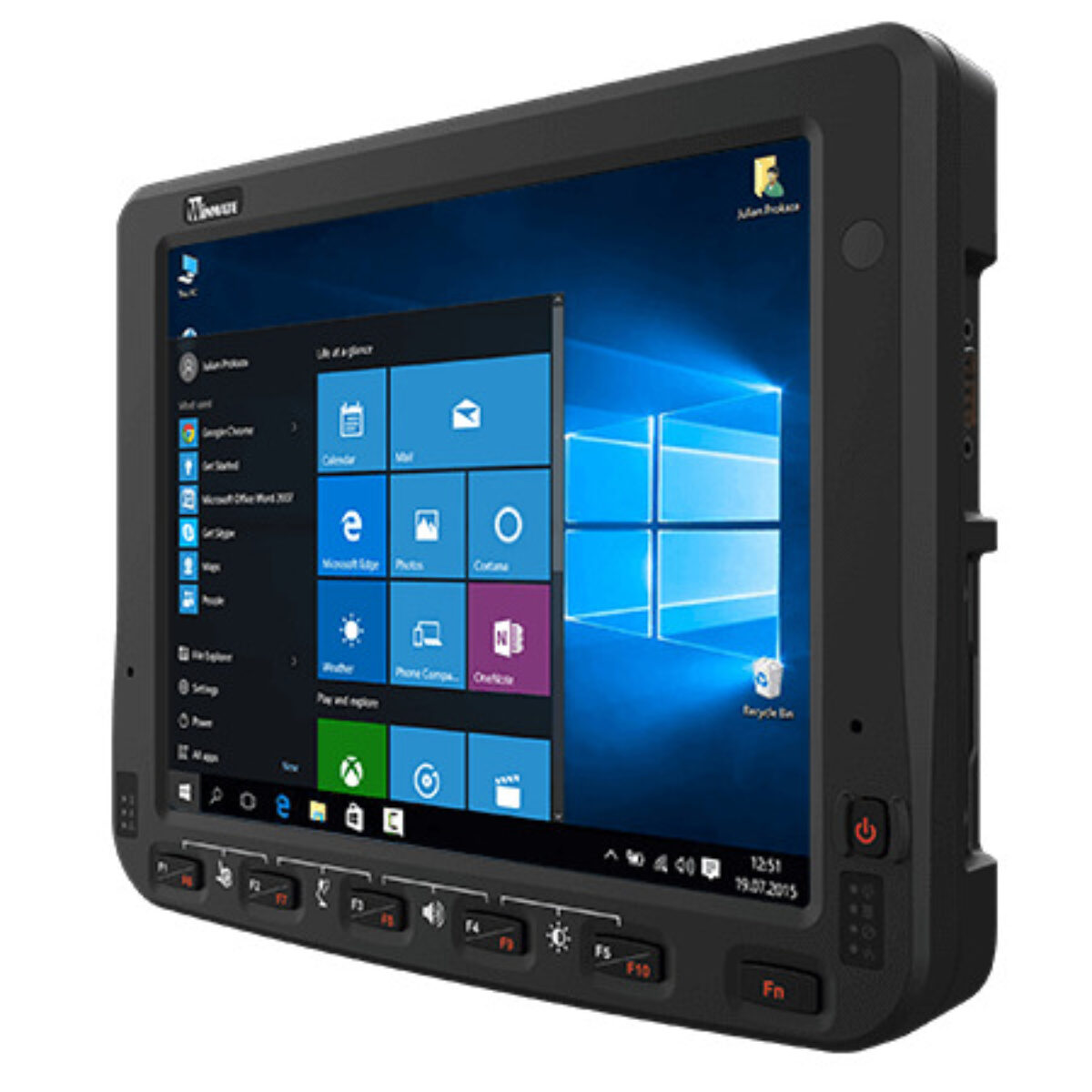

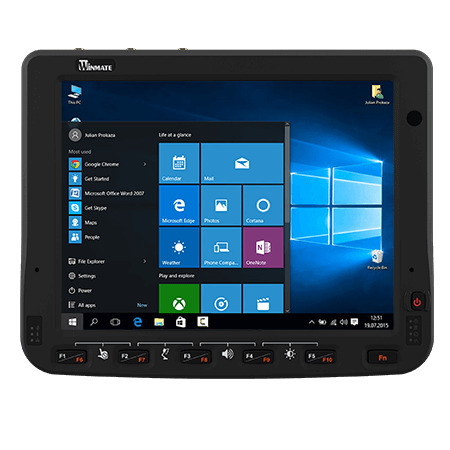

The Intel Atom x6425E is an Elkhart Lake processor at 2.0 GHz, a good fit for picking screens, terminal emulation and warehouse management clients. It ships with 4 GB of DDR4-3200 (8 GB optional), a 128 GB M.2 SSD (256 GB optional), a microSD slot, Windows 10 IoT Enterprise and TPM 2.0. The 10.4 inch 4:3 display runs at 1024 x 768 with 400 nits as standard and 800 nits as an option, 1200:1 contrast and 176° viewing. Projected capacitive multi-touch works with a stylus and with gloves, and six programmable function keys below the screen give drivers shortcuts they can hit without looking.

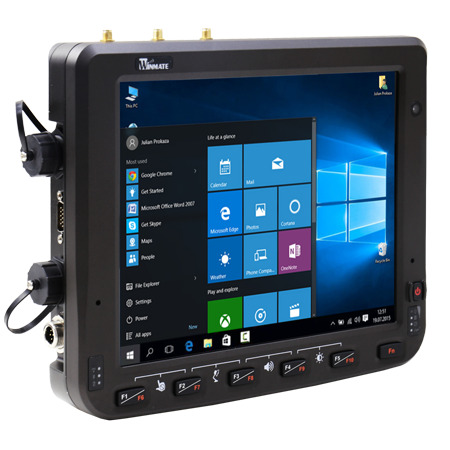

I/O covers a Gigabit LAN port that can be specified as a 30 W IEEE 802.3at PSE to power a camera, USB Type-C and USB 2.0 ports, and two RS-232/422/485 ports on DB9 with 5 V on pin 9 for serial scanners, with CANBus and two-in, two-out DIDO as options. WLAN and Bluetooth are built in, with 4G/LTE on a dual nano-SIM slot and GPS/GLONASS as options. The FM10AD-V puts a Core i5-1235U in the same 10.4 inch format, and the FM12E-V keeps the Atom on a 12.1 inch screen.

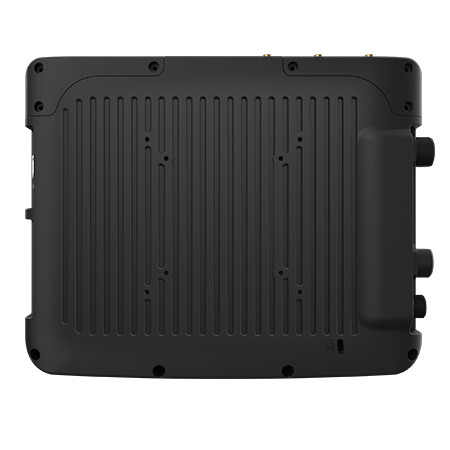

Power is 10 to 60 V DC with ignition control, covering 12, 24 and 48 V vehicle supplies. An optional 400 mAh UPS battery keeps the computer running for 20 minutes when the vehicle supply drops out. The IP65 waterproof and dustproof enclosure measures 268.1 x 214 x 51 mm, weighs 2.4 kg and fits RAM or VESA mounts. It operates from -30 to 50 °C at 5 to 90% humidity, is compliant with MIL-STD-810H Methods 516.8 and 514.8, and carries an IK07 impact rating. The unit carries CE and FCC marks, with UL60950-1, EN60950-1, PTCRB and IC (ICES-003) listed.
