Winmate FM12E 12.1″ Forklift Computer with Intel Atom x6000E or x7000RE and MIL-STD-810H

Larger screens matter on forklifts when the driver works from maps, multi-line pick lists or put-away screens, and a tablet that lifts out of the dock can go with them to check stock. The FM12E is Winmate’s 12.1 inch forklift computer built that way: a rugged tablet that locks into a vehicle dock, with an Intel Atom x6413E as standard. Winmate names warehouse logistics, fleet management and forklift operations as its intended uses.

The Atom x6413E at 1.5 GHz, up to 3 GHz, is standard, with the x6425E, x7433RE and x7835RE as options. Memory is 4 GB, up to 16 GB, and storage is 128 GB, up to 512 GB. Windows 11 IoT Enterprise LTSC is available. The 12.1″ 1024 x 768 PCAP display runs at 400 nits, with 800 nits as an option, 1000:1 contrast and 89 degree viewing angles, and works with hands, a stylus or gloves. Five programmable function buttons sit beside the screen, and the front panel is field replaceable to reduce service costs. That gives the FM12E room for WMS clients and map-based route apps.

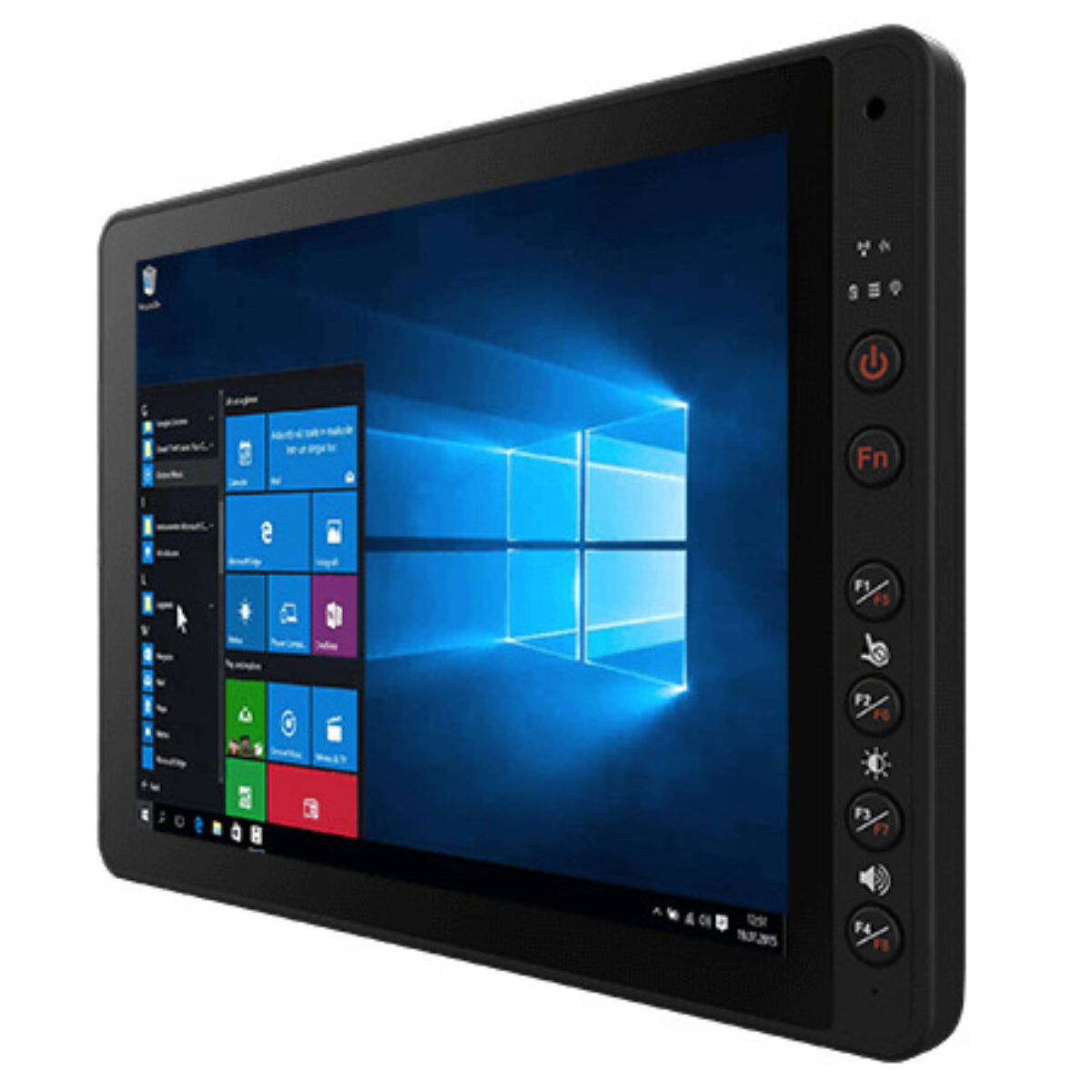

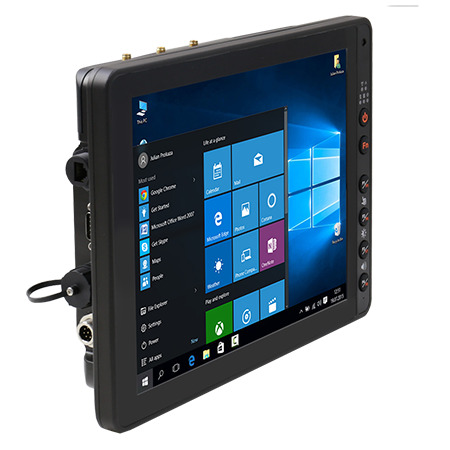

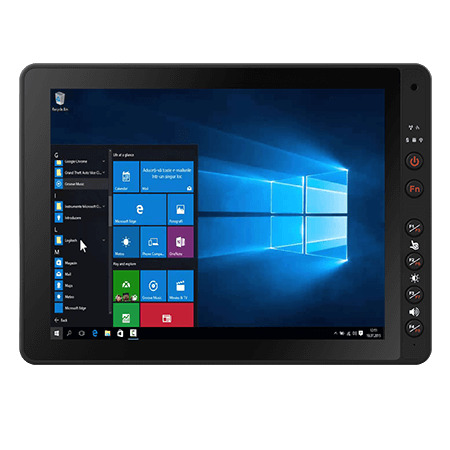

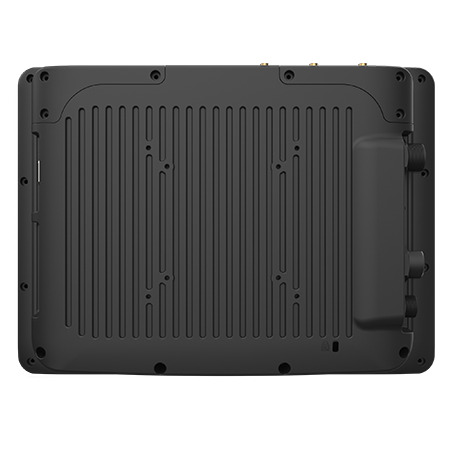

The tablet has a USB Type-C port, microSD and a dual nano-SIM slot, and the dock adds Gigabit LAN, two USB 2.0 ports through a DB9, two COM ports, two speakers and a CANBus or audio port. WLAN, Bluetooth and GPS/AGPS are built in, with 4G/LTE as an option. Within the Winmate range the FM12E-V is a fixed 12.1 inch IP65 vehicle mount computer with an Atom x6425E, and the FM12Q9 is a 12.1″ Android tablet with a Qualcomm QCS6490.

The dock takes 10 to 60 V DC with ignition control, and a UPS battery covers at least 30 minutes away from the vehicle supply. The unit is rated IP65 and IK07, is compliant with MIL-STD-810H Methods 516.8 and 514.8, and runs from -30 to 60 °C at 5 to 90% humidity. The aluminum alloy dock fits RAM or VESA mounts. Winmate lists CE, FCC, IC (ICES-003), UL60950-1, EN60950-1 and PTCRB. We supply the FM12E configured, with the OS installed, and tested before dispatch.
