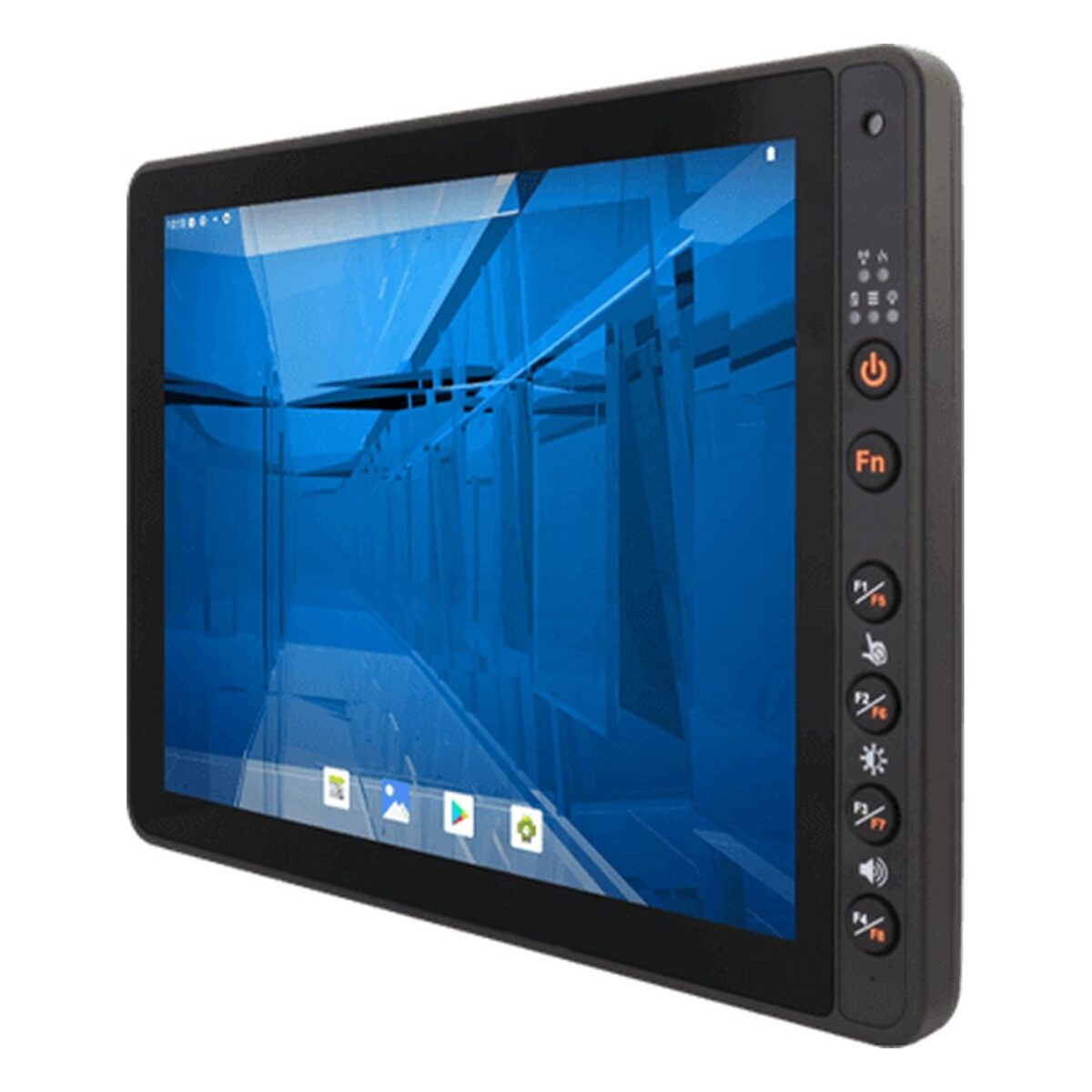

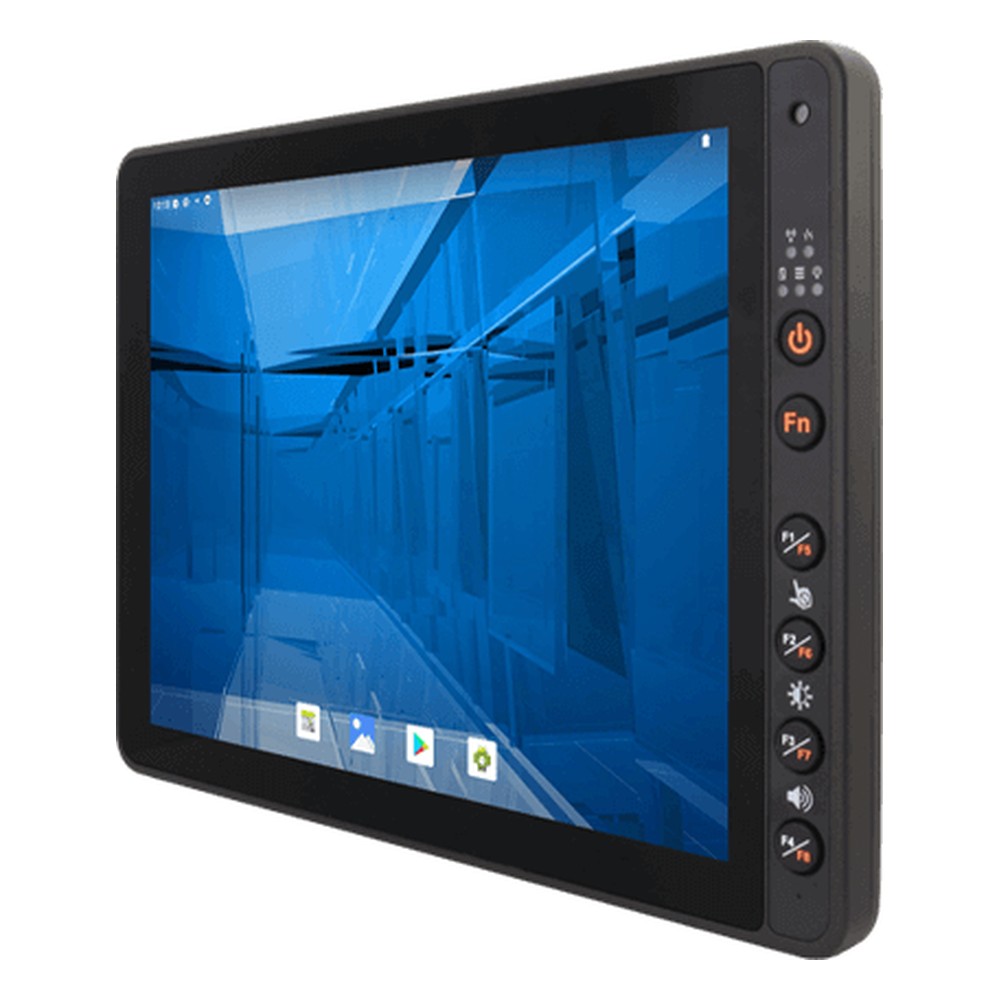

Winmate FM12MG-V 12.1″ IP65 Android Vehicle Mount Terminal with MediaTek Genio 510 and 10 to 60V DC

Drivers working from maps, put-away screens or long pick lists get more done on a larger display, as long as the terminal still survives the knocks and supply swings of a working truck. The FM12MG-V is Winmate’s 12.1 inch IP65 Android vehicle mount terminal for that work, a one-piece unit built around a MediaTek Genio 510. Winmate names warehouse logistics, fleet management and forklift operations as its intended uses.

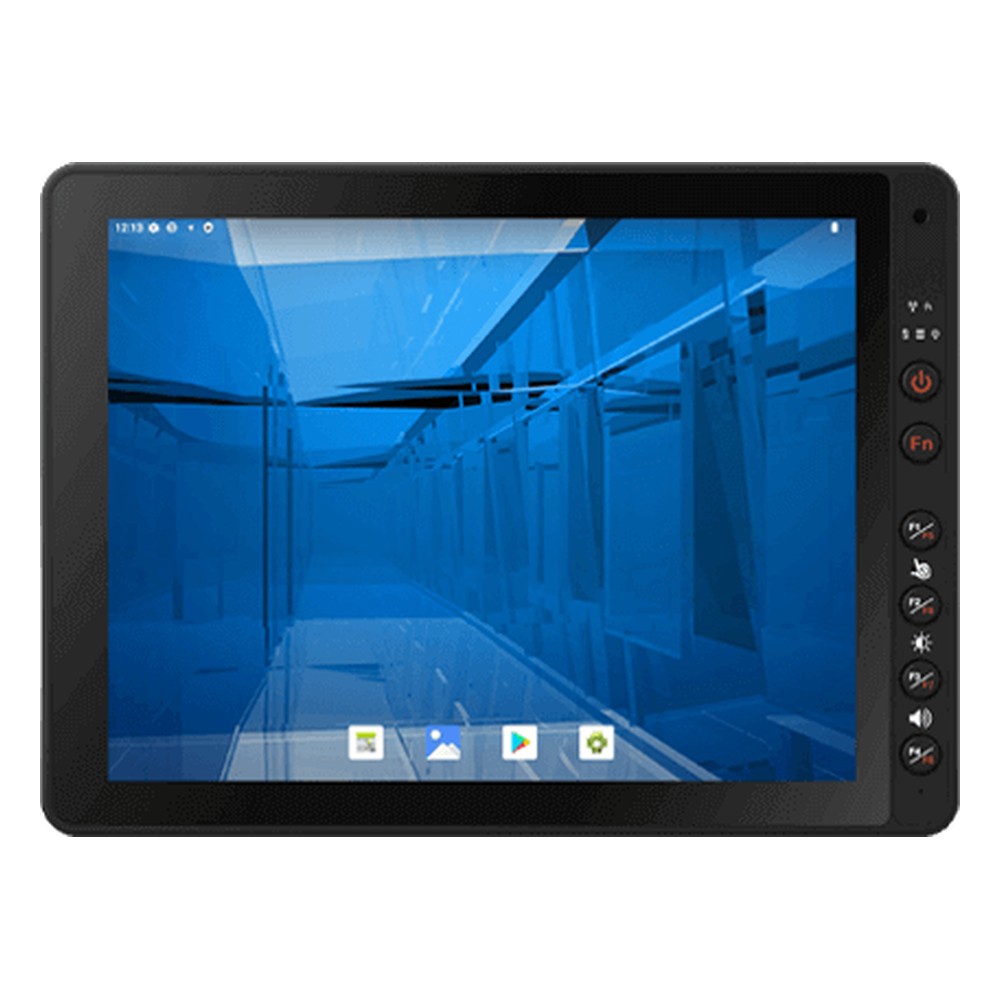

The MediaTek Genio 510 pairs two Arm Cortex-A78 and four Cortex-A55 cores at 2.0 GHz with 4 GB of memory, 64 GB of storage and a microSD slot. Android 13 is standard, with Linux Yocto 5.10 with Qt 5.15 or Linux Ubuntu 22.04 as options. The 12.1″ 1024 x 768 PCAP display runs at 400 nits, with 800 nits as an option, 1000:1 contrast and 89 degree viewing angles, and works with hands, a stylus or gloves. Five programmable function buttons sit beside the screen, and the front and rear modules are replaceable to keep servicing simple. That gives the FM12MG-V room for map-based route apps and multi-line picking screens.

I/O covers a Gigabit LAN port that can be specified as 30 W 802.3at PSE for a camera, USB 2.0 Type-C OTG and Type-A ports and two RS-232/422/485 ports on DB9, with optional CANBus and either audio or two-in, two-out DIDO. WLAN and Bluetooth are built in, with 4G/LTE and GPS/GLONASS as options. Within the Winmate range the FM12E-V is the 12.1 inch IP65 terminal with an Intel Atom x6425E for Windows fleets, and the FM12Q9 is a 12.1″ Android tablet and dock with a Qualcomm QCS6490 and Android 15.

Power is 10 to 60 V DC with ignition control, covering 12, 24 and 48 V vehicles, and an optional UPS battery gives 20 minutes of backup. The aluminum housing is rated IP65 and IK07, is compliant with MIL-STD-810H Methods 516.8 and 514.8, runs from -30 to 60 °C and fits VESA mounts. It carries CE and FCC marks. We supply the FM12MG-V configured, with the OS installed, and tested before dispatch.
