Winmate IB70SB7-101 Intel Celeron N2930 Fanless Industrial Box PC

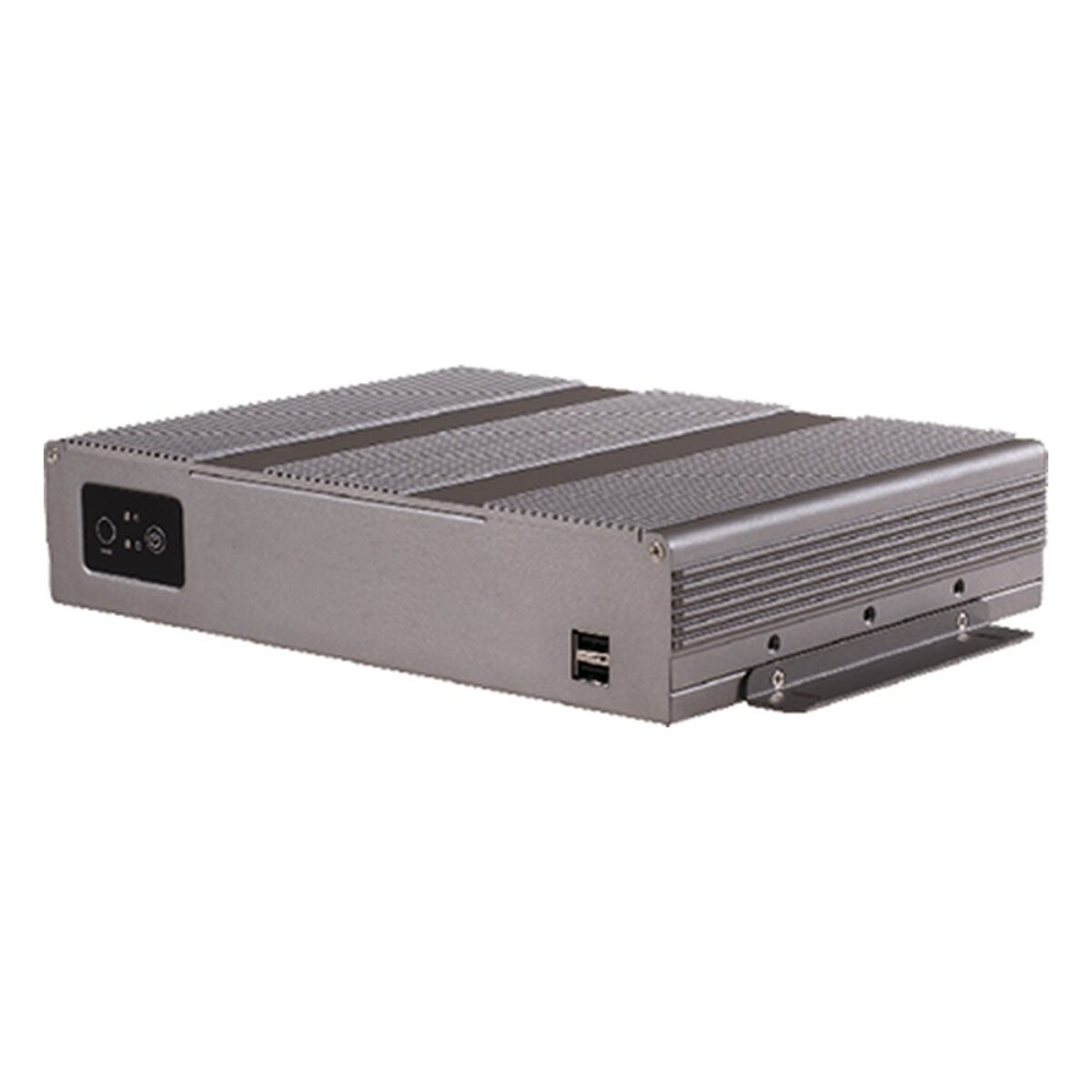

Kiosks and self-service terminals tend to collect peripherals: a receipt printer, a card reader, a barcode scanner and a touch display, each wanting its own port. The IB70SB7-101 is Winmate’s fanless industrial box PC for that job, with an Intel Celeron N2930, three serial ports and six USB ports in a silent metal housing.

The Celeron N2930 is a quad-core processor running at up to 2.16 GHz, with two DDR3L-1600 SO-DIMM slots holding 4 GB as standard and 8 GB as an option. That typically suits kiosk software, data collection and IoT tasks. Storage is an mSATA SSD, 128 GB as standard with 256 or 512 GB options, and a 2.5″ SATA III SSD or hard drive is optional. Windows or Linux Ubuntu 20.04 are available.

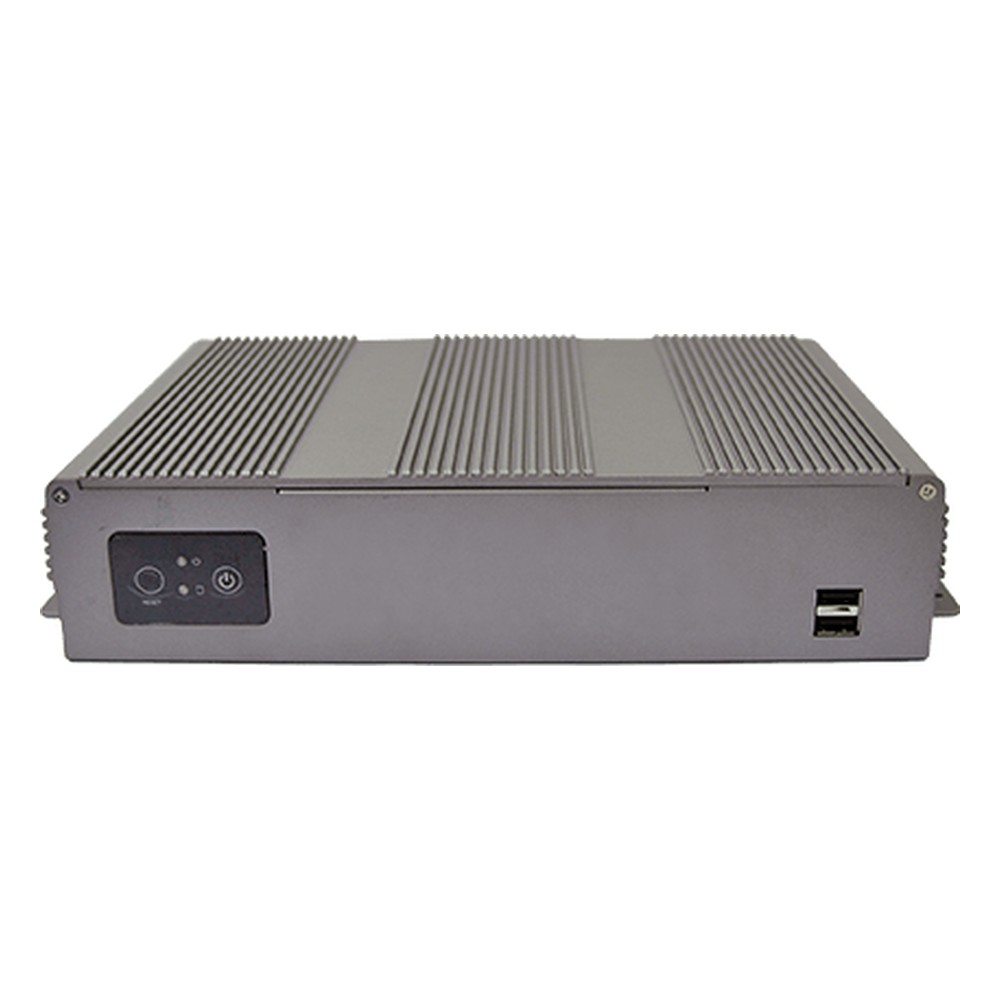

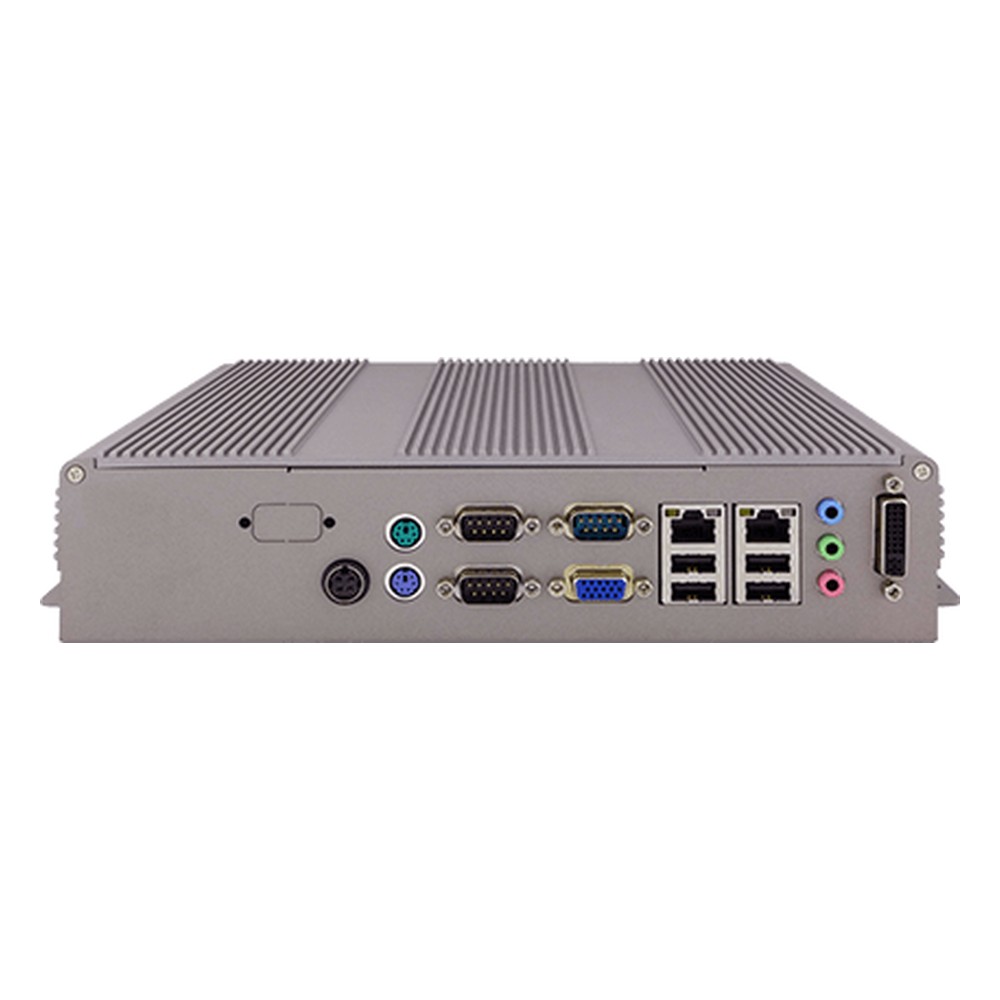

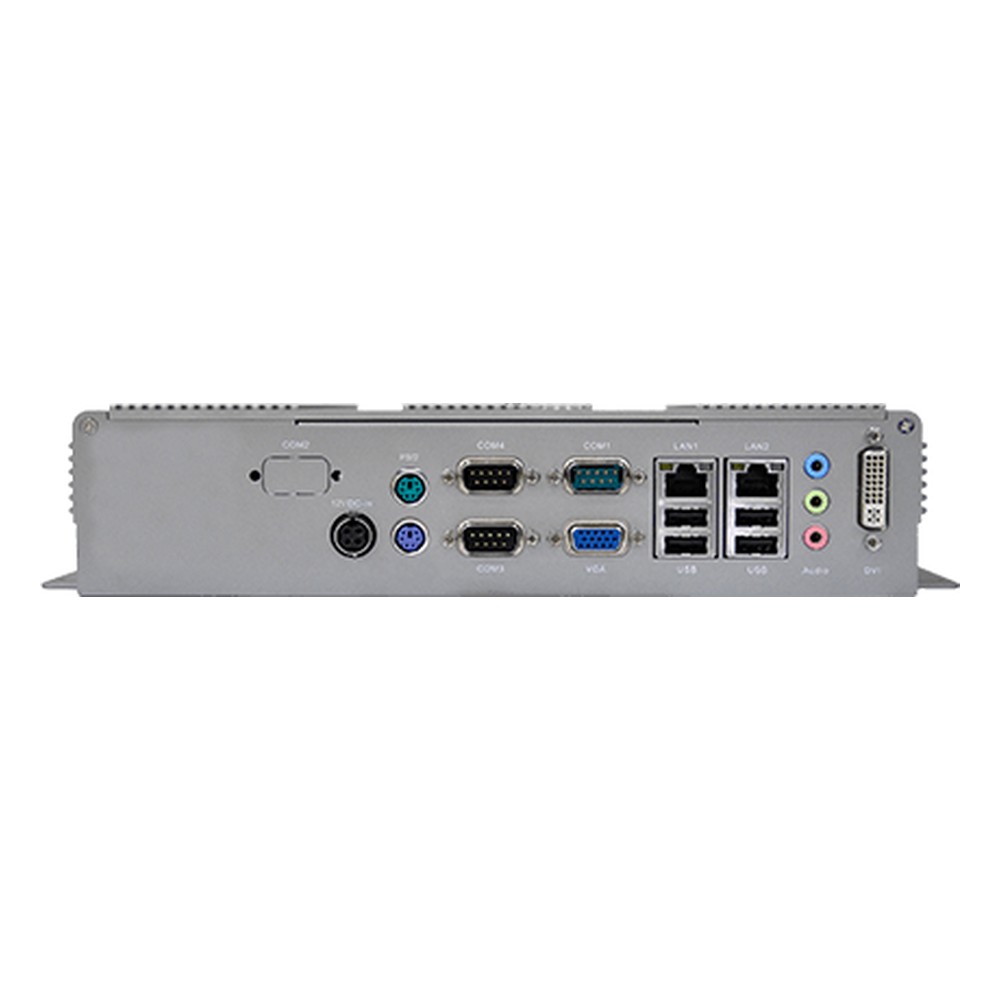

The IB70SB7-101 has two Gigabit Ethernet ports on Intel controllers, two USB 2.0 ports on the front, and one USB 3.2 Gen 1 and three USB 2.0 ports on the rear. Serial I/O is one RS-232/422/485 port and two RS-232 ports, with one more RS-232 optional. Video is VGA, with DVI optional, and audio has mic in, line in and line out. A second mini PCIe slot takes optional Wi-Fi. Within the Winmate range the IE32SB3-101 is a newer M Series box PC with an Elkhart Lake Celeron N6211 and two 2.5GbE ports, and the IBMH100 is an M Series box PC with an Intel Atom E3845 and a swappable drive bay.

Power is 12 V DC on a four-pin DIN connector or a lockable jack, with an AC adapter supplied. The fanless housing runs from 0 to 50 °C and sits on a desk. It carries CE and FCC marks. We supply it configured, with the OS installed, and tested before dispatch.
