Winmate LDS410D-16P 19″ 1U Rack Mount KVM Console Drawer with 16-Port KVM and SXGA LCD
Fanless
CE
FCCLDS410D-16P Overview

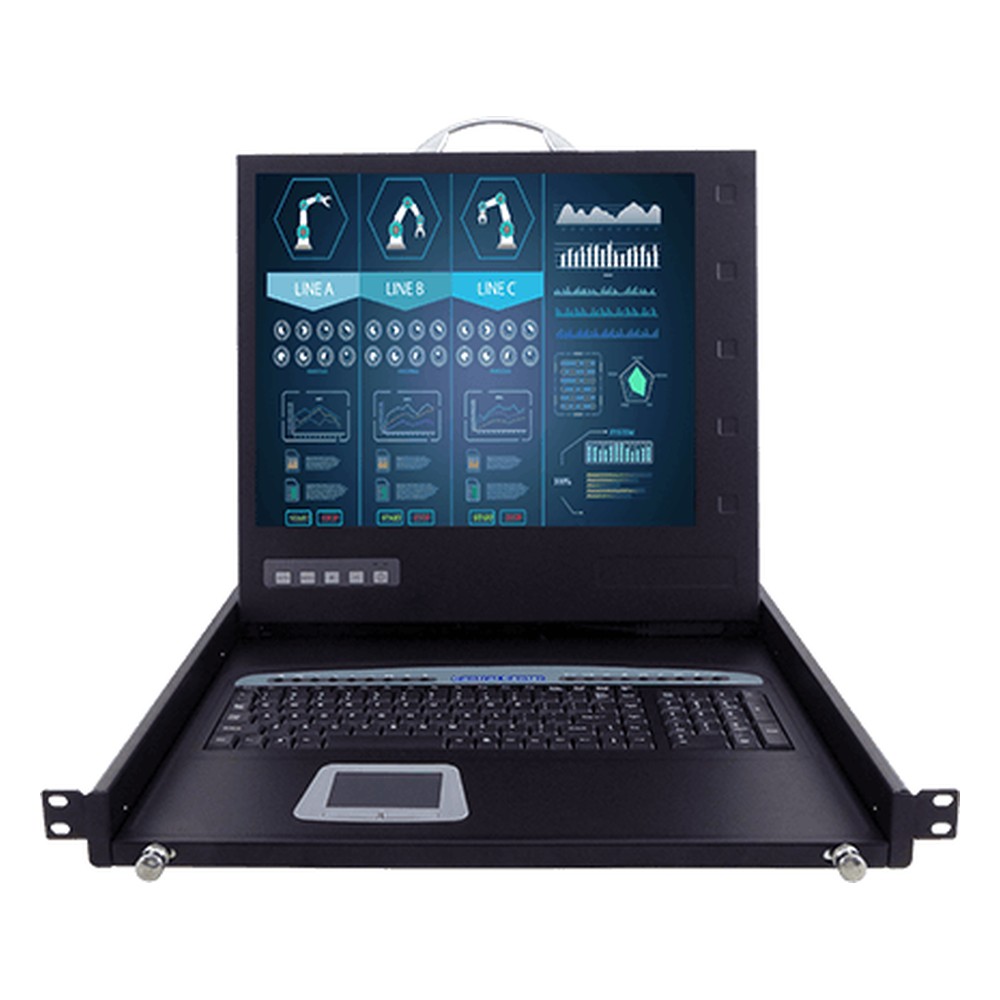

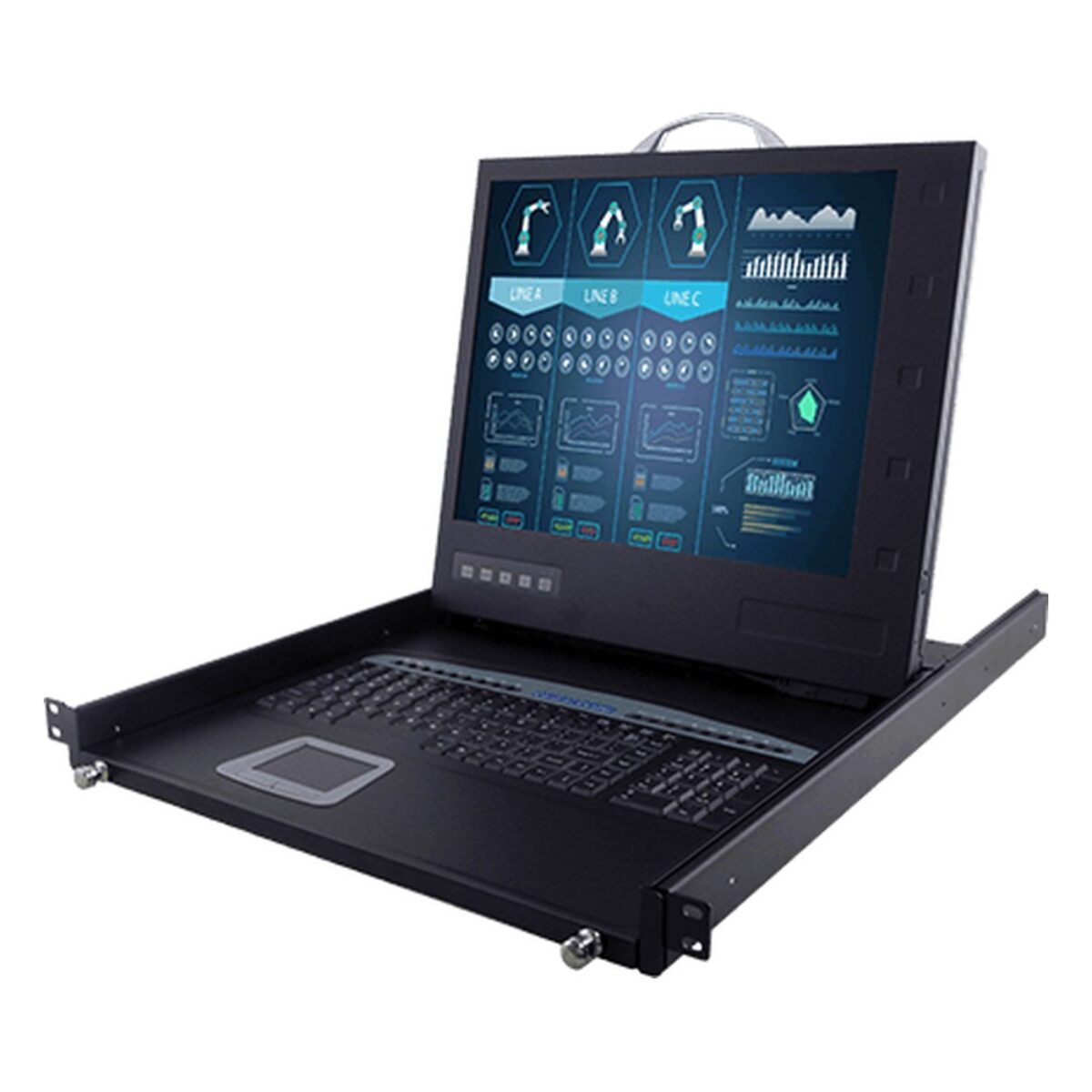

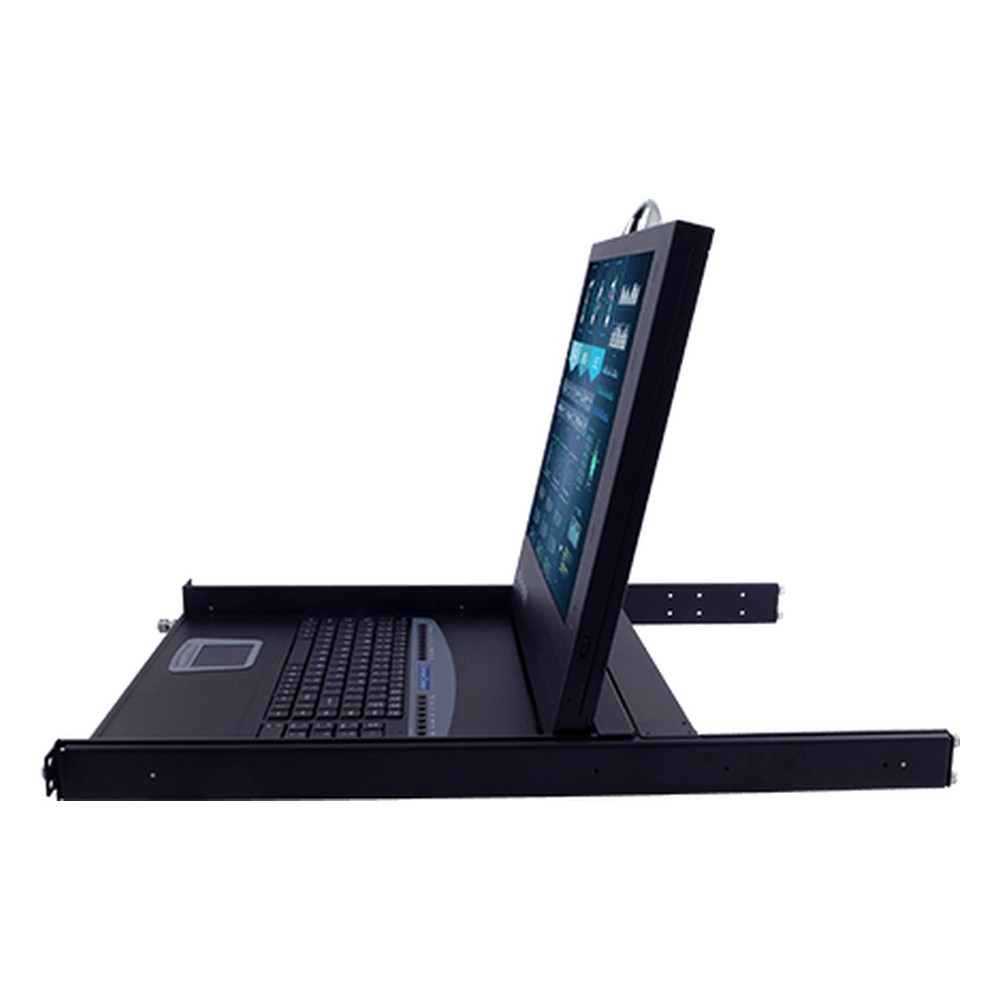

Server rooms and equipment racks often hold a stack of machines that only need a screen and keyboard now and then, for set-up, updates or a fault. The LDS410D-16P is Winmate’s 19 inch 1U rack mount KVM console drawer for that job: a pull-out screen, keyboard and touch pad in one rack unit, with a built-in 16-port KVM.
The 19″ panel shows 1280 x 1024 (SXGA) at 250 nits, with 1000:1 contrast, 16.2 million colors and viewing angles of 170 degrees horizontal and 160 degrees vertical. Five keys (minus, plus, power, Esc and Enter) handle the on-screen menu. It comes with an 88-key keyboard with an integrated touch pad and a 17-key numeric keypad, so data entry and pointing happen at the rack without a separate mouse.
Video comes in over 16 VGA computer ports, so one LDS410D-16P can switch between up to 16 servers or industrial PCs in the rack, with keyboard and mouse connections alongside. Within the Winmate range the LDS410D-1P is the same 19″ drawer with a single VGA input, and the LDS310D-16P is the 16-port version with a 17 inch, 350 nit panel.
Power is 100 to 240 V AC straight into the drawer, with a power cord supplied. The fanless design runs from 0 to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C, and Winmate describes the pull-out metal housing as built for shock resistance in rack or portable use. It carries CE and FCC marks. We supply the LDS410D-16P configured and tested before dispatch.
LDS410D-16P Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate LDS410D-16P |
| Features | Fanless Industrial KVM Console |
| Display | |
| Display | 19"[5:4, 1280 x 1024, SXGA] |
| Brightness | 250 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 16x Display Ports |
| Video Inputs | 16x VGA Input |
| Power | |
| Power Input | 100-240V AC |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 609mm x 482mm x 44mm (23.98" x 18.98" x 1.73") |
- LDS410D-16P Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the LDS410D-16P configured and tested for USA server room and equipment rack projects. Within the Winmate range the LDS410D-1P is the single-input version of this 19 inch drawer, and the LDS310D-16P is the 17 inch 16-port model.
The LDS410D-16P sits among our 19 inch rack mount monitors, our 19 inch industrial monitors and our 5:4 monitors. Where one console with a larger screen has to manage a rack of servers, this is a sensible model to shortlist.
