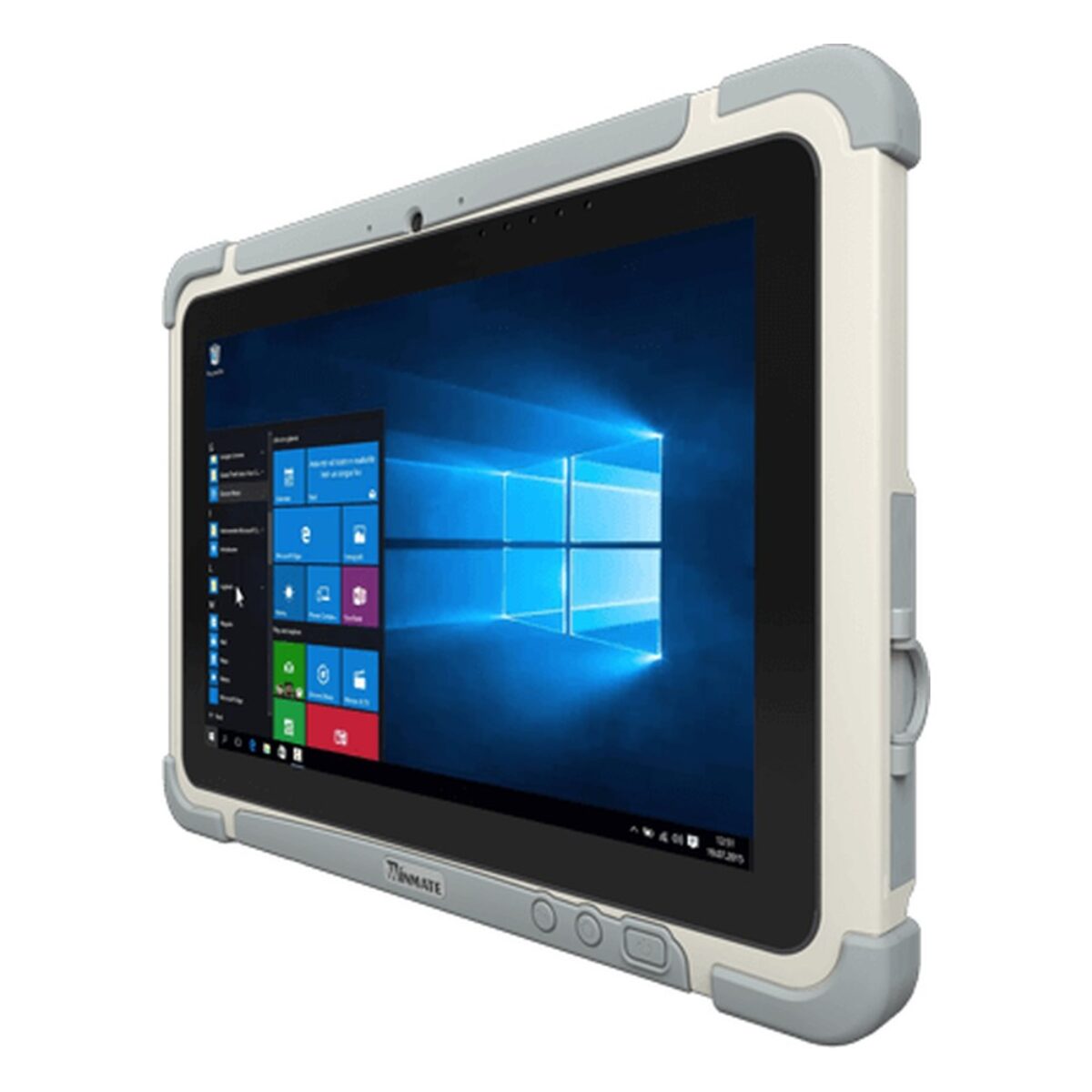

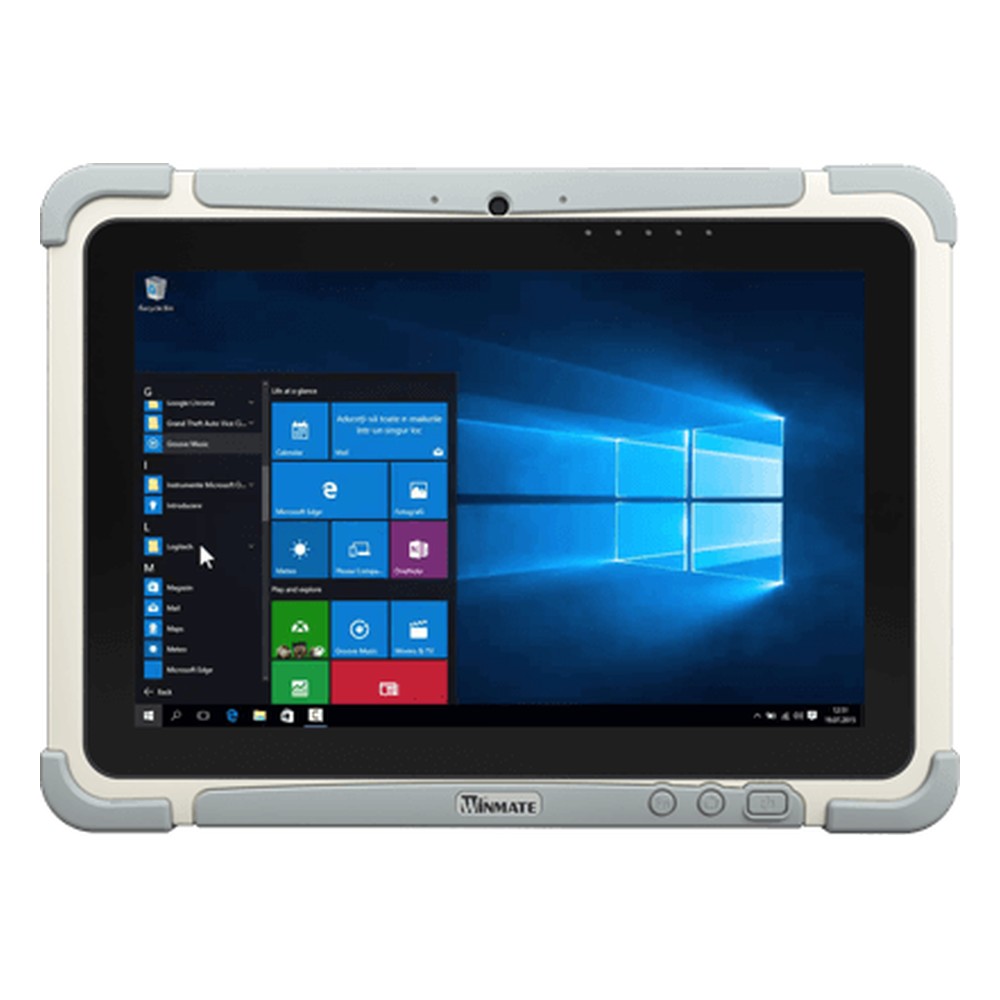

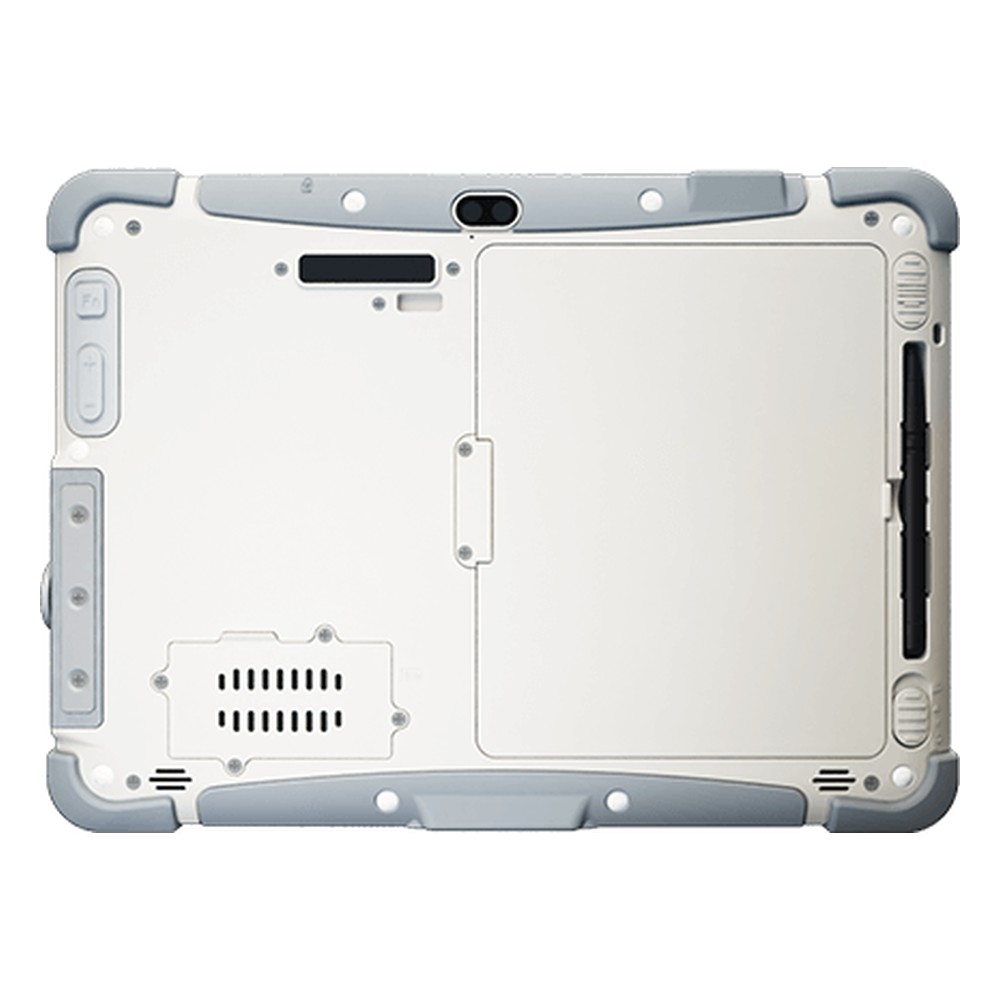

Winmate M101EK-ME 10.1″ Medical Tablet with Intel Celeron N6211 and IEC 60601-1 Compliance

Ward rounds, clinical carts and equipment rooms need a tablet that can be wiped down, carried between rooms and kept running through a shift. The M101EK-ME is Winmate’s 10.1″ healthcare tablet for hospital workflows, clinical carts and medical equipment integration, with an Intel Celeron N6211, an antimicrobial housing and IP65 sealing.

Winmate lists the M101EK-ME for IEC 60601-1, IEC 60601-1-2 and UL 60601-1, with CE and FCC marks. The Celeron N6211 runs at 1.2 GHz with turbo up to 3.0 GHz, and an Intel Pentium N6415 is an option. Memory is 4 GB as standard with 8 GB optional, and storage is a 128 GB SSD with 256 GB and 512 GB options plus a micro SD slot for SDXC cards. TPM 2.0 and a Kensington lock slot are included, with Windows 11 IoT Enterprise LTSC installed. The 10.1 inch 1920 x 1200 screen gives 800 nits with optical bonding and anti-glare treatment, and Winmate lists stylus, glove and wet-touch modes.

Connections are one USB 3.0 Type-A port, one USB 3.0 Type-C port with 20 V Power Delivery input, an optional Micro HDMI output, an audio combo jack and a 19-pin docking connector. Wi-Fi, Bluetooth and GPS, GLONASS, Galileo and BeiDou are built in, with 4G or 5G optional, and there are 2MP front and 8MP autofocus rear cameras. A barcode reader, HF or UHF RFID and a smart card reader are optional. Within the Winmate range the M101EK is the standard build of this tablet with a wider -20 °C to 60 °C range, and the M101AN uses an Intel N150.

The M101EK-ME operates from 0 °C to 35 °C and is tested to MIL-STD-810G methods for shock, vibration and a 4 ft drop. Power is 19 V DC, with an AC adapter and capacitive stylus supplied. A desk dock, VESA kit and straps are optional. We supply it configured, with the OS installed, and tested before dispatch, ready to deploy.
