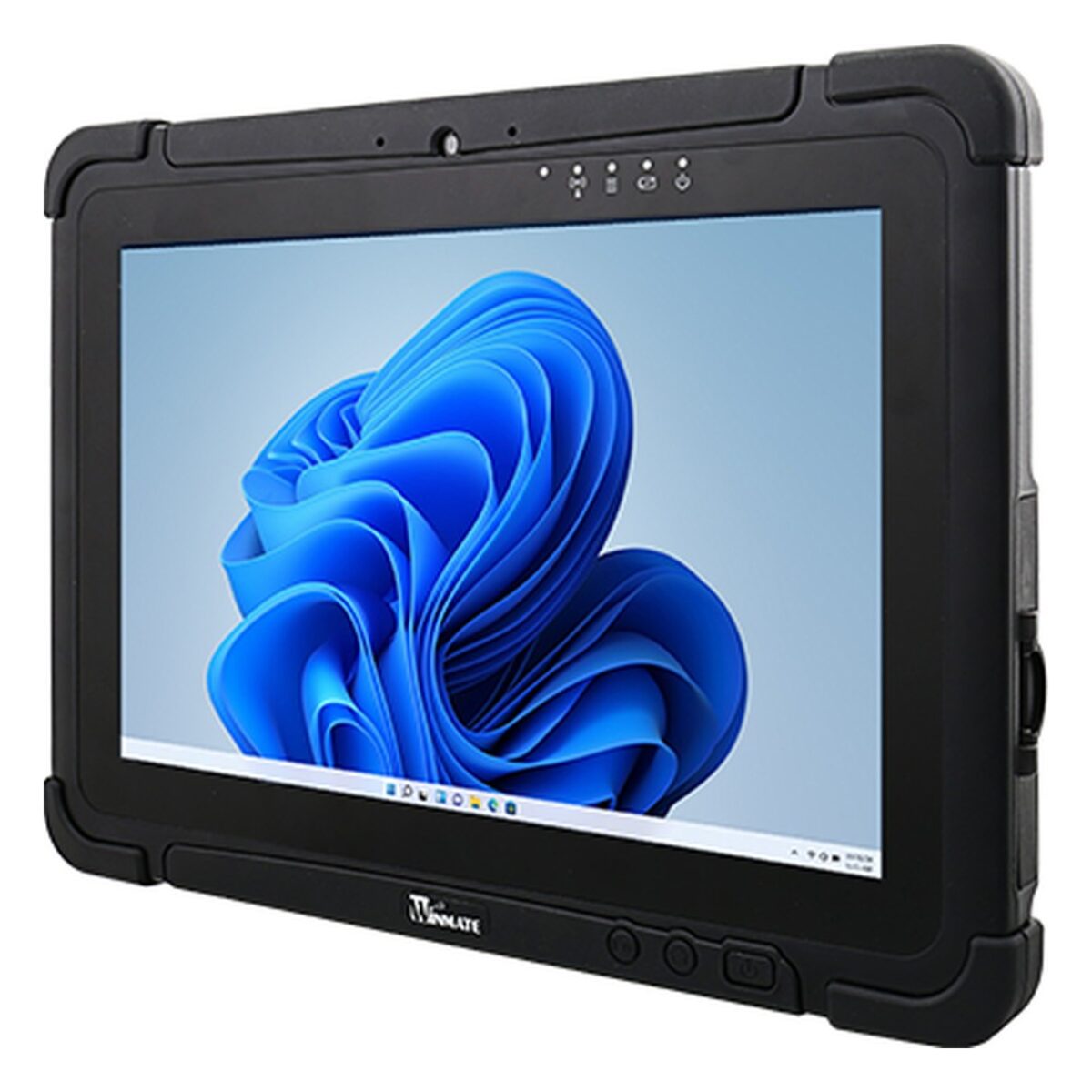

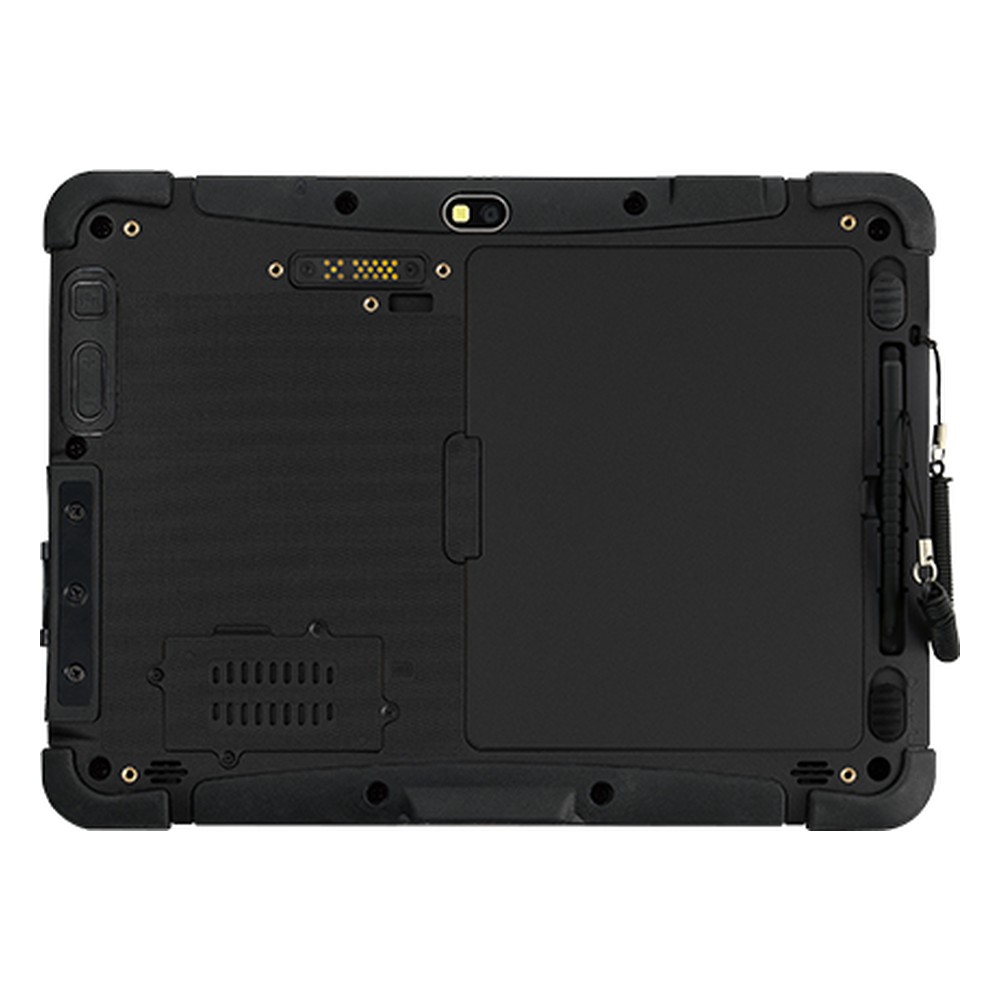

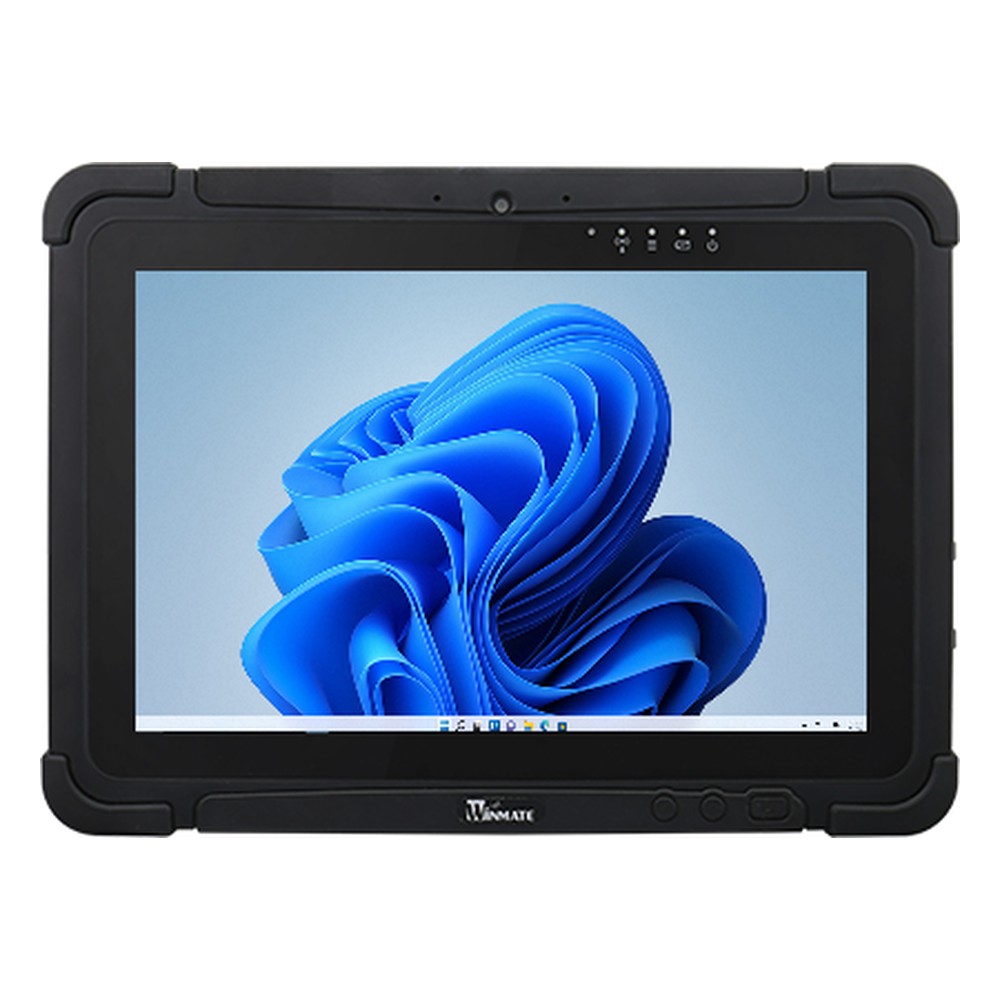

Winmate M101AN 10.1″ Rugged Tablet PC with Intel N150 (Twin Lake), Hot-Swap Battery and IP65

Fieldwork and data collection rarely end when a battery runs low, so a tablet that keeps running through a battery change saves both time and lost forms. The M101AN is Winmate’s 10.1″ rugged Windows tablet with an Intel Processor N150 and a hot-swappable battery, sealed to IP65 for fieldwork, industrial tasks and data collection.

The N150 runs at up to 3.6 GHz. Memory is 4 GB as standard with 8 GB or 16 GB optional, and storage is a 128 GB SSD with 256 GB and 512 GB options plus a micro SD slot that takes SDXC cards. TPM 2.0 and a Kensington lock slot are included, with Windows 11 IoT Enterprise LTSC installed. The 10.1 inch 1920 x 1200 screen gives 800 nits with optical bonding, anti-glare treatment and projected capacitive multi-touch.

Connections are one USB 3.0 Type-A port, one USB 3.0 Type-C port with 20 V Power Delivery input, an optional Micro HDMI output, an audio combo jack and a 19-pin docking connector, plus an optional expansion connector. Wi-Fi, Bluetooth and GPS/GLONASS are built in, with 4G or 5G optional, and there are 2MP front and 8MP autofocus rear cameras. A 1D/2D barcode reader, HF RFID and add-on UHF RFID and smart card readers are optional. Within the Winmate range the M101EK is the same tablet with an Intel Celeron N6211, and the M116AN is the 11.6 inch N150 model with an 850 nit screen.

The M101AN is tested to MIL-STD-810H methods for shock, vibration and a 4 ft drop, and operates from -20 °C to 60 °C. Winmate quotes around nine hours from the standard battery and 16 from the 10280 mAh pack. Power is 19 V DC, with an AC adapter and capacitive stylus supplied. Docks, a vehicle cradle, a VESA kit and straps are optional, and it carries CE and FCC marks. We supply it configured, with the OS installed, and tested before dispatch, ready to deploy.
