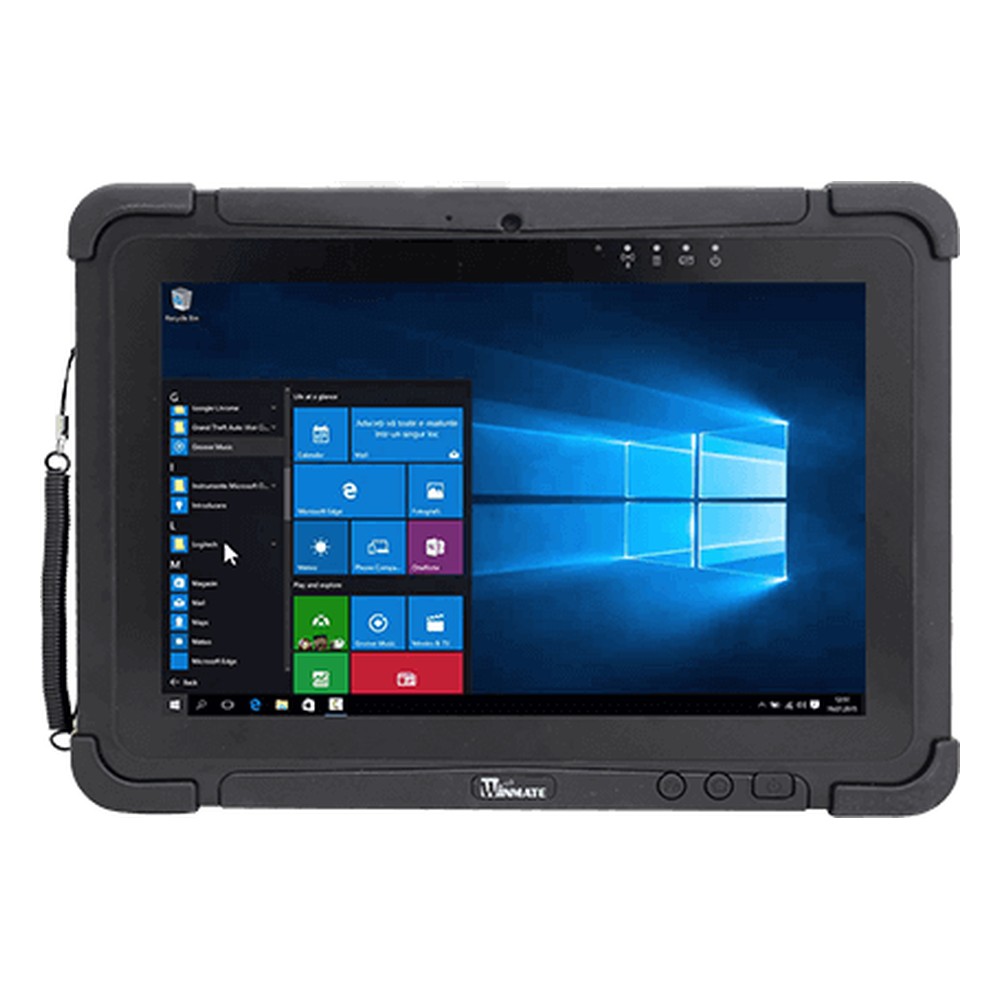

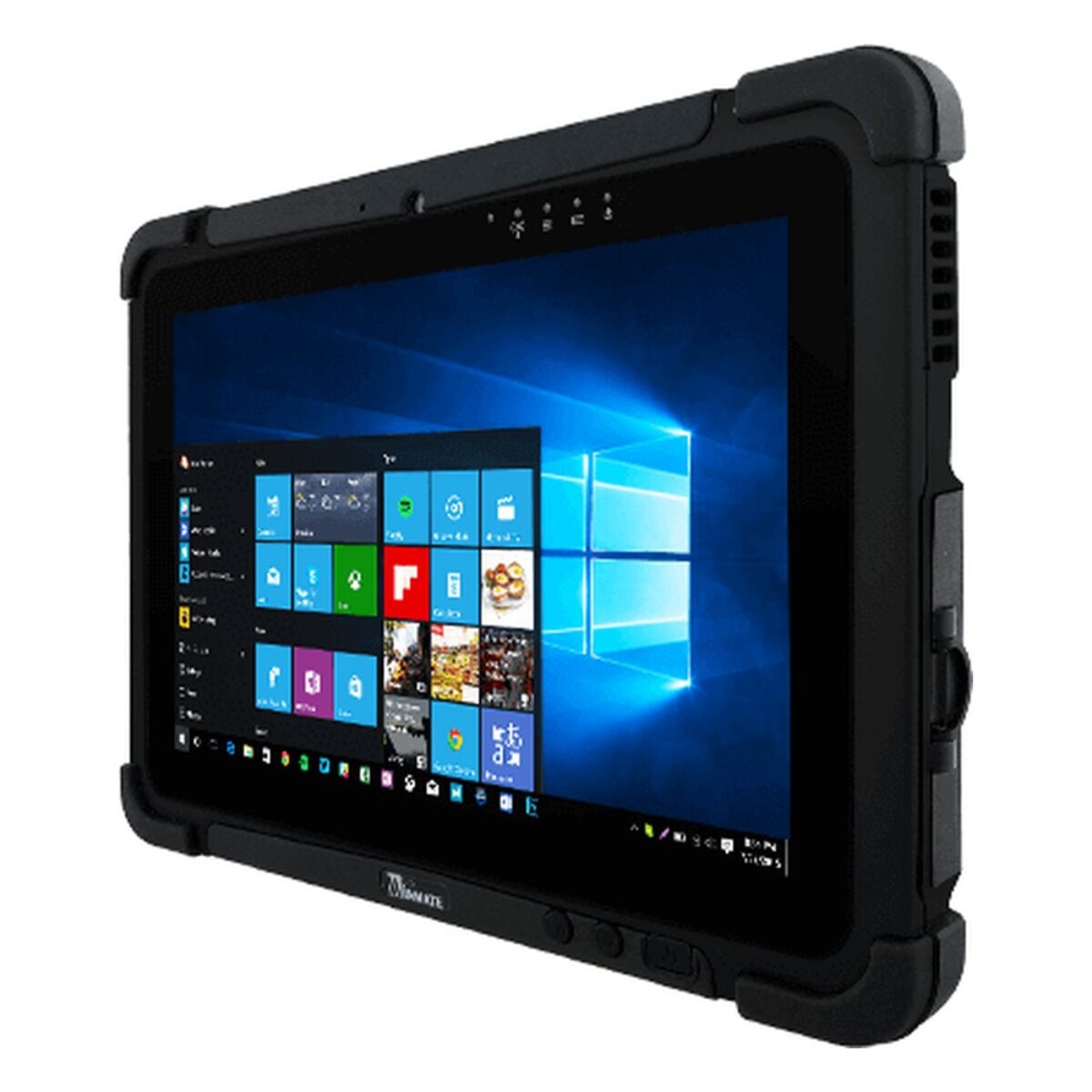

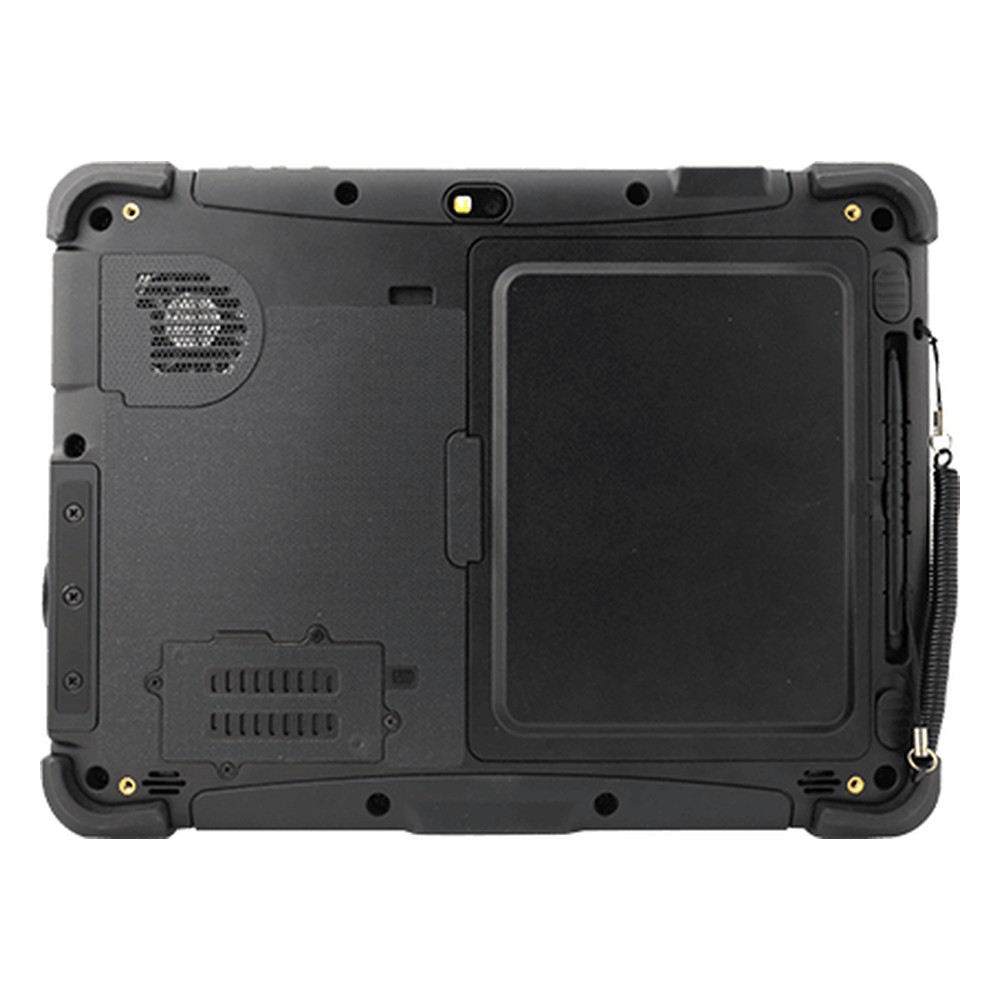

Winmate M101TG 10.1″ Military Rugged Tablet with Intel Core i5-1135G7, MIL-STD-461G and Hot-Swap Battery

Data collection in the field usually means a tablet that is light enough to carry all day and sealed against whatever the weather does. The M101TG is Winmate’s 10.1 inch military rugged tablet for that, with an Intel Core i5-1135G7, a 10.1″ optically bonded display, a hot-swappable battery and MIL-STD-461G EMC. Winmate names fieldwork, industrial tasks and data collection as its uses.

The Core i5-1135G7 is an 11th Gen Tiger Lake processor running at 2.4 GHz with turbo to 4.2 GHz and Intel Iris Xe graphics. Memory is 8 GB as standard with 16 GB or 32 GB optional, and storage is a 128 GB SSD with options to 2 TB, plus a micro SDXC slot. TPM 2.0 is fitted, SOTI MobiControl is supported and the tablet runs Windows 11 IoT Enterprise LTSC. The screen shows 1920 x 1200 at 800 nits with optical bonding and anti-glare treatment under projected capacitive multi-touch.

One USB 3.0 Type-A port and a USB-C port with 20 V power delivery in sit on the tablet, with an optional micro HDMI output and a 19-pin docking connector. Wi-Fi, Bluetooth, GPS and GLONASS are built in; 4G LTE, 5G, HF RFID and a 1D/2D barcode reader are optional, with a Micro SIM slot. Front and rear cameras, volume keys and two programmable keys are fitted. The M101AD is the same 10.1 inch tablet with a 12th Gen Core i5-1235U and Gigabit LAN, and the M116TG is the 11.6 inch model with an 850 nit screen.

The M101TG is sealed to IP65, tested to MIL-STD-810H Methods 516.8 and 514.8 for shock, vibration and a 4 ft drop, and lists MIL-STD-461G EMC. A fan cools it from -20 °C to 60 °C. The hot-swappable battery gives around eight hours, power comes from a 19 V adapter or USB-C, and a desk dock, vehicle dock and vehicle cradle are optional. We supply it configured, with Windows installed, and tested, ready to deploy.
