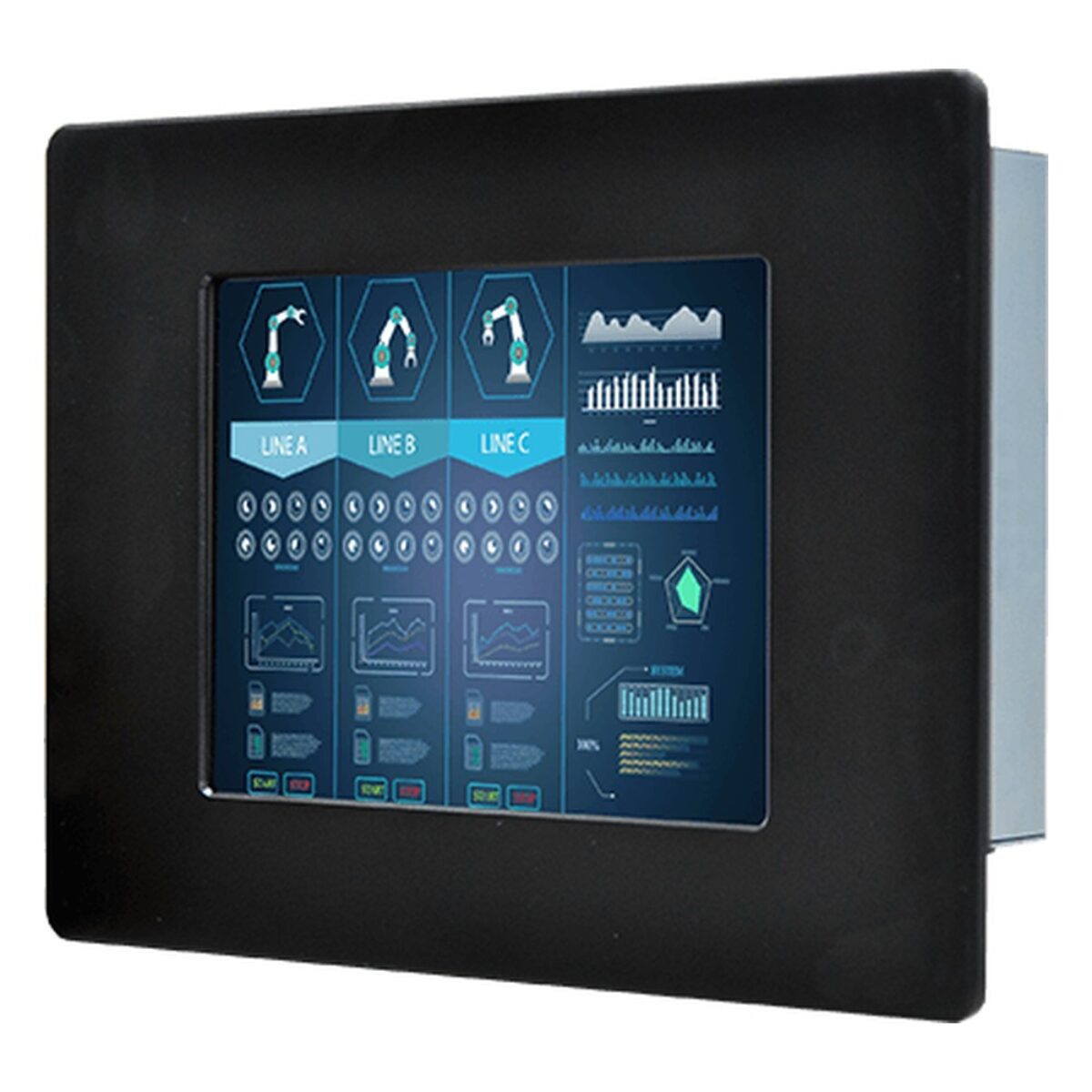

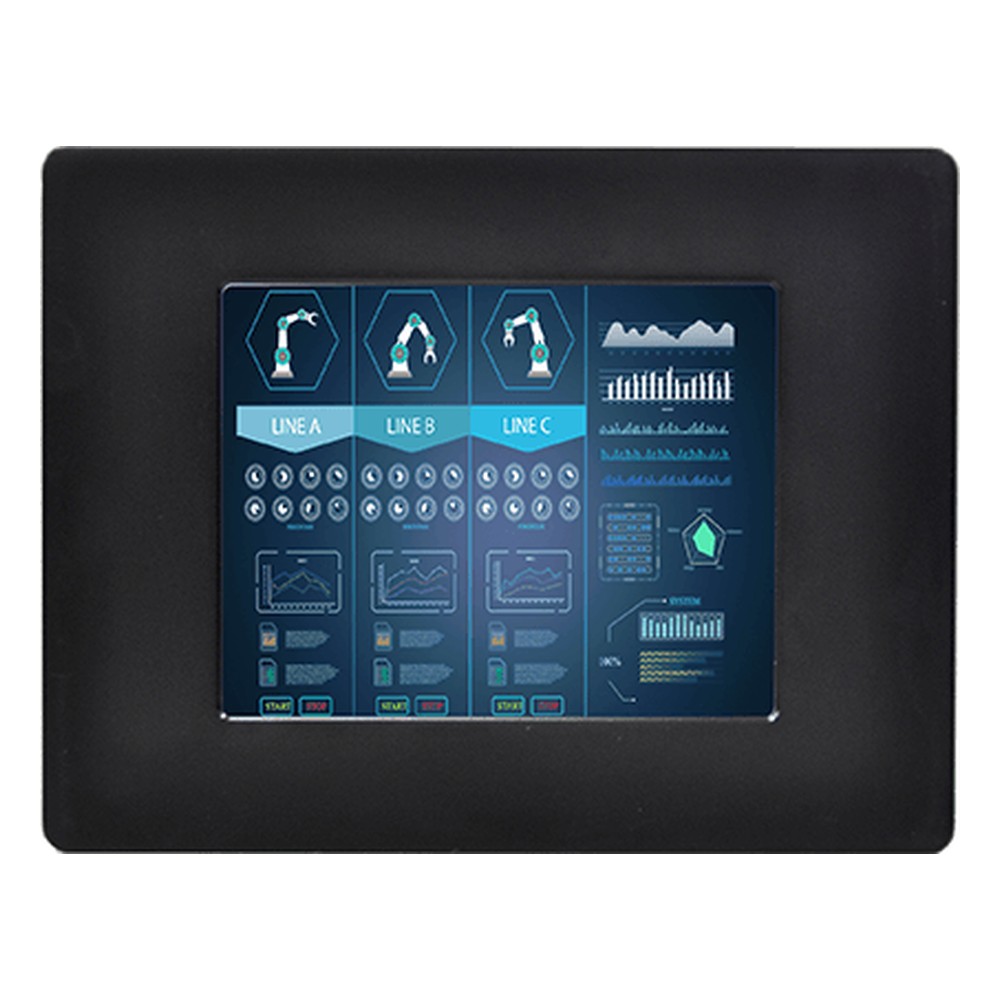

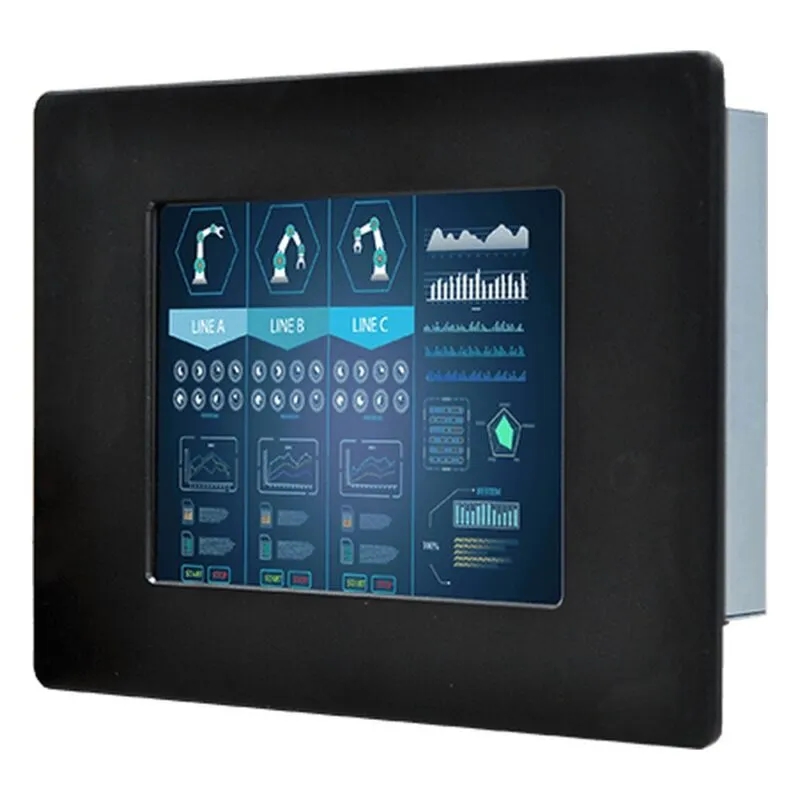

Winmate R05T100-PMD1HB 5.7″ Panel Mount Monitor with Resistive Touch and VGA LCD

Small operator stations, from a packing machine to a pump skid, often only need a 640 x 480 screen for a handful of buttons and readings. The R05T100-PMD1HB is Winmate’s 5.7 inch panel mount monitor for that kind of job, with a 900 nit panel, and it connects to a separate PC or controller in factory automation, kiosks and control rooms.

The 5.7″ panel shows 640 x 480 (VGA) at 900 nits, with 300:1 contrast and viewing angles of 140 degrees horizontal and 100 degrees vertical. At 900 nits it is a high-brightness panel that helps in well-lit halls and near windows. Resistive touch is an option, as is protection glass without touch, so the screen can be specified for touch or display-only duty. Five keys (minus, plus, power, Esc and Enter) handle the on-screen menu, and a remote controller is optional.

The R05T100-PMD1HB connects to a separate industrial PC or controller over VGA as standard, with HDMI and DVI inputs available as options, and both a VGA and an HDMI cable come in the box. A USB port carries touch data back to the host. An audio line-in and two speakers are optional. Within the Winmate range the R05T100-OFD1HB is the open frame version of this 5.7″ monitor with the same 900 nit panel, and the R05T100-IPD1HB is the front IP65 model for splashed panels.

Power is a 12 V DC input, and an AC adapter and power cord are supplied. The fanless metal housing with an aluminum bezel runs from 0 to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. VESA mounting is standard and panel mounting is listed as an option, with VESA screws supplied. It carries CE and FCC marks. We supply the R05T100-PMD1HB configured and tested before dispatch, and we can help pair it with the right host computer.
