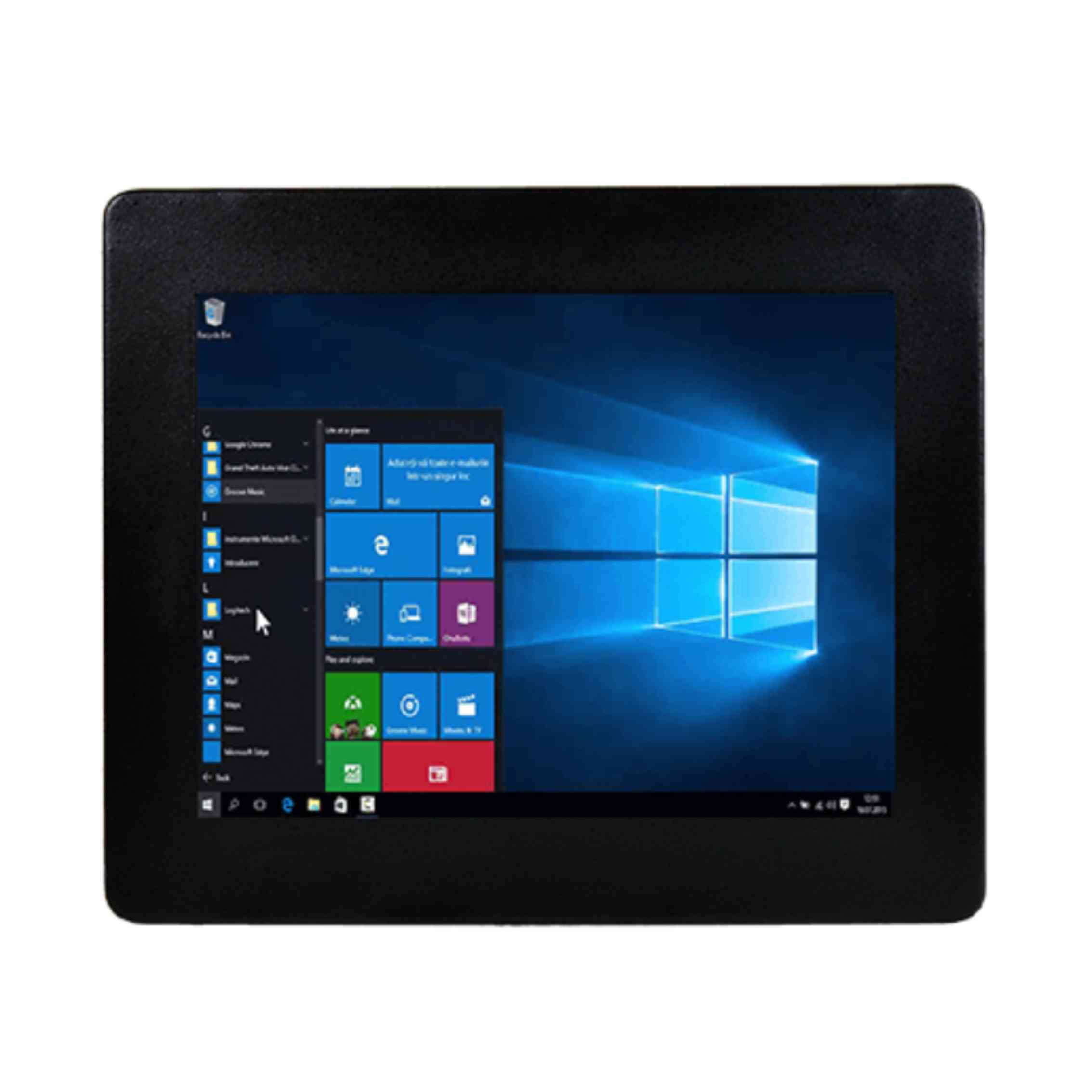

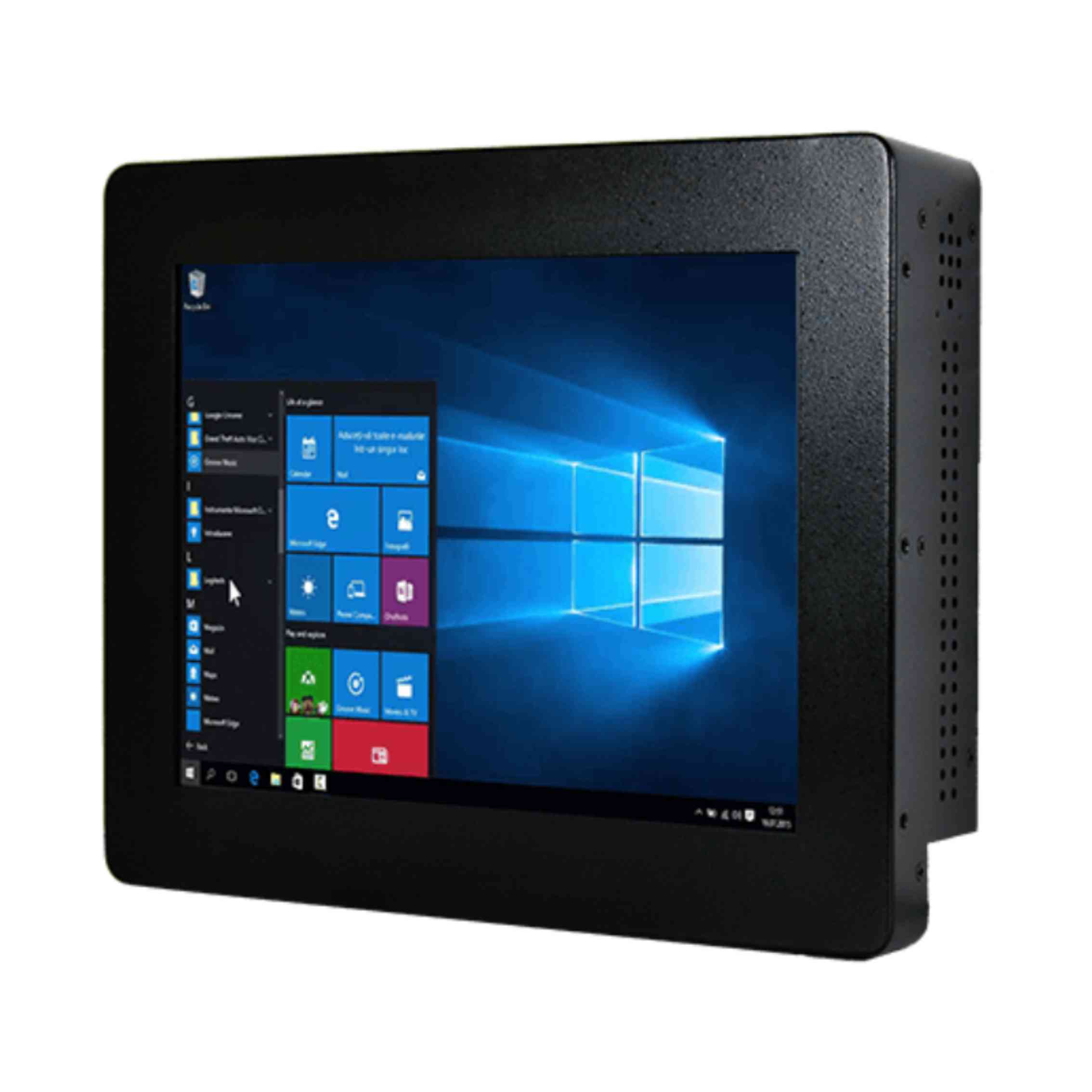

Winmate R08IE3S-CHT1WT 8.4″ Wide Temperature Chassis Panel PC with Intel Celeron N6211 and SVGA Screen

Plant rooms, cold stores and outdoor kiosks swing through temperatures that a standard office-grade panel PC is not rated for. The R08IE3S-CHT1WT is Winmate’s 8.4 inch wide temperature chassis panel PC: a fanless Intel Celeron N6211 computer and an 800 x 600 screen in a metal chassis rated to operate from -20 °C to 60 °C.

The Intel Celeron N6211 is an Elkhart Lake processor running at up to 3.0 GHz, with the Celeron N6210 as an option. One DDR4-3200 SO-DIMM socket takes 4 GB as standard and 8 GB or 16 GB as options, and storage is a 128 GB M.2 2242 SSD with a 2.5 inch SATA bay available. TPM 2.0 is on board, and Windows 11 IoT Enterprise, Windows 10 IoT Enterprise or Ubuntu 22.04 can be supplied. The screen runs at 450 nits with 600:1 contrast, with resistive touch or protection glass as front options, and a brightness knob sits on the underside.

Connections are two Gigabit Ethernet ports on Intel controllers, two USB 3.2 Gen 2×1 ports, one RS-232/422/485 and one RS-232 port and an optional HDMI 2.0 output. An M.2 E-key slot takes a Wi-Fi and Bluetooth module. The R08IE3S-CHU1 is the same chassis for 0 to 50 °C rooms with a 600 nit panel, and the R12IE3S-CHM2WT is the 12.1 inch wide temperature model.

Power is 12 V DC on a 2.5 mm jack, with a 12 V, 50 W AC adapter supplied. The R08IE3S-CHT1WT is fanless, operates from -20 °C to 60 °C at 30 to 90% humidity, has a front rated IP65 and carries CE and FCC marks. It measures 236 x 190 x 60 mm, weighs 2.2 kg and mounts on a 75 x 75 mm VESA pattern.
