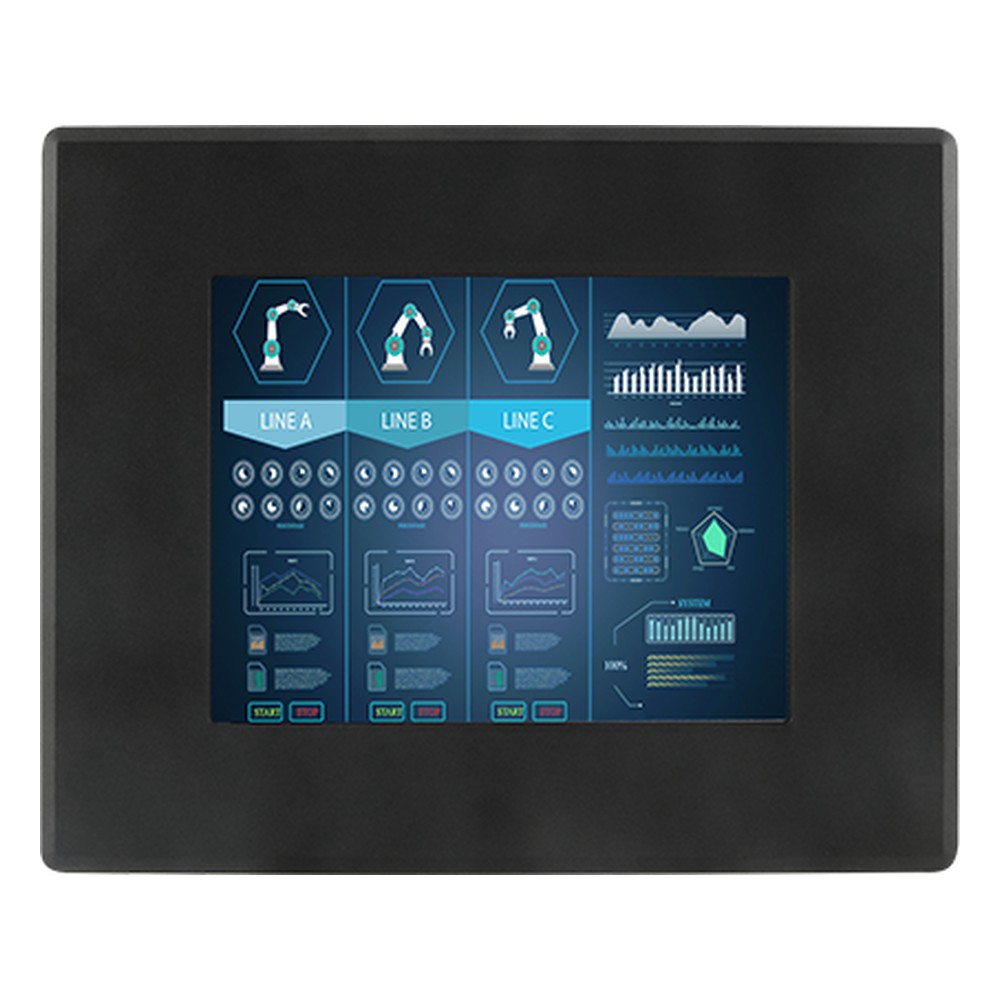

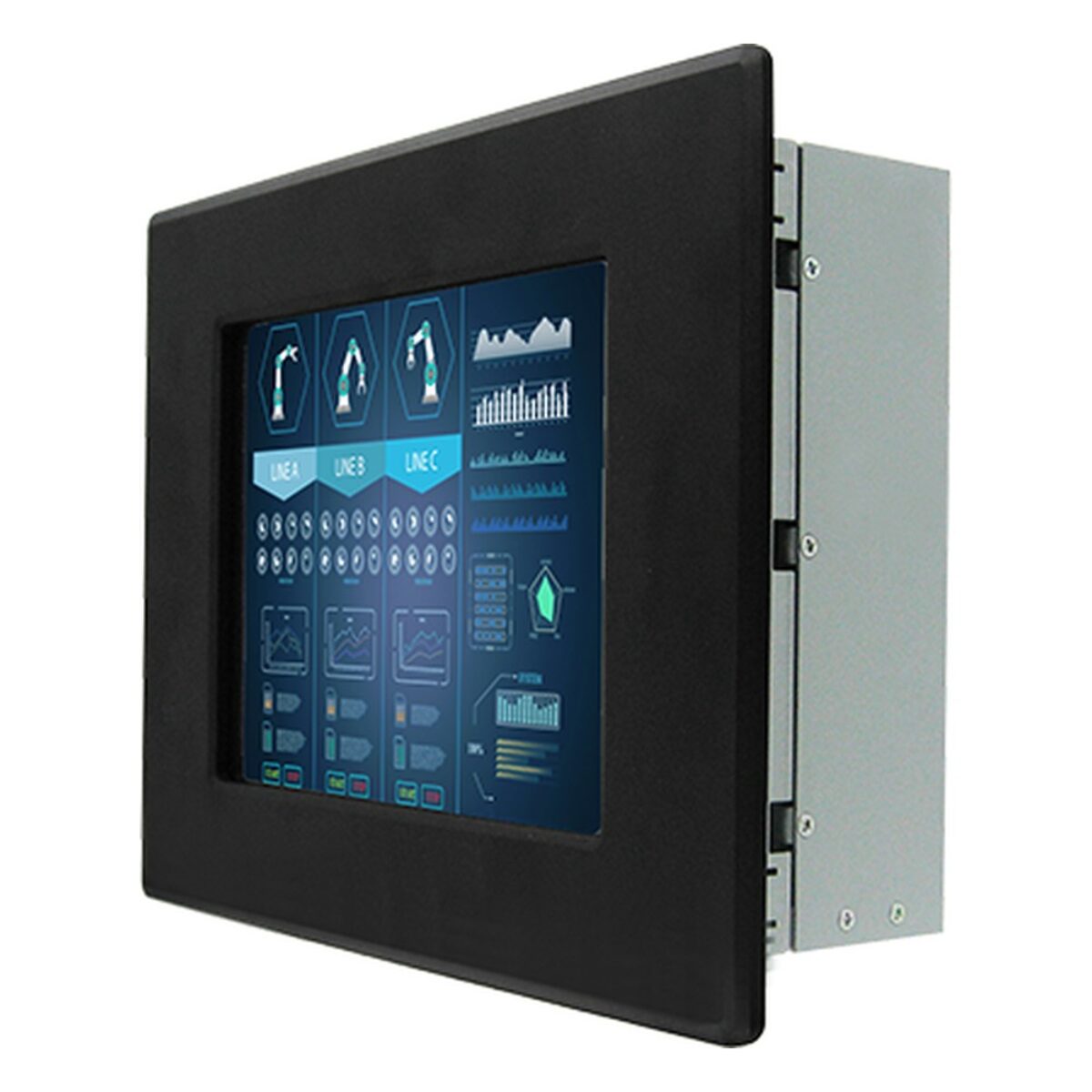

Winmate R08L200-PMU1 8.4″ Panel Mount Monitor with Resistive Touch and SVGA LCD

Factory automation panels, kiosks and control rooms often need a display fitted into a cabinet door or console, driven by a computer that sits elsewhere. The R08L200-PMU1 is Winmate’s 8.4 inch panel mount monitor for that kind of install, with an 8.4″ SVGA panel at 600 nits and resistive touch with SAW as an option. It connects to the host computer over VGA, with HDMI or DVI as options.

The 8.4″ SVGA panel runs at 600 nits with 600:1 contrast, 262K colors and 150 degree horizontal and 130 degree vertical viewing angles, which suits indoor lighting in control rooms and enclosures. Resistive touch is standard over one USB port, with SAW touch or protection glass without touch as options.

Video comes in on VGA as standard, with HDMI and DVI inputs as options, so the R08L200-PMU1 pairs with most industrial PCs and box PCs. An audio line in and two speakers are optional, and five keys (power, plus, minus, Esc and Enter) run the on-screen menu. VGA and HDMI cables and a manual come in the box. Within the Winmate range the R08IE3S-PMU1 is the panel PC version with an Intel Celeron N6211 built in, and the R08T200-PMT1OD is the 1000 nit sunlight readable model rated from -10 °C to 60 °C.

Power is 12 V DC in, and an AC adapter and power cord are supplied. The fanless metal housing runs from 0 to 50 °C and stores from -10 °C to 60 °C, at 10 to 90% humidity, non-condensing, which suits indoor cabinets and control rooms. It takes VESA or panel mounting, and it carries CE and FCC marks. We supply the R08L200-PMU1 configured and tested before dispatch.
