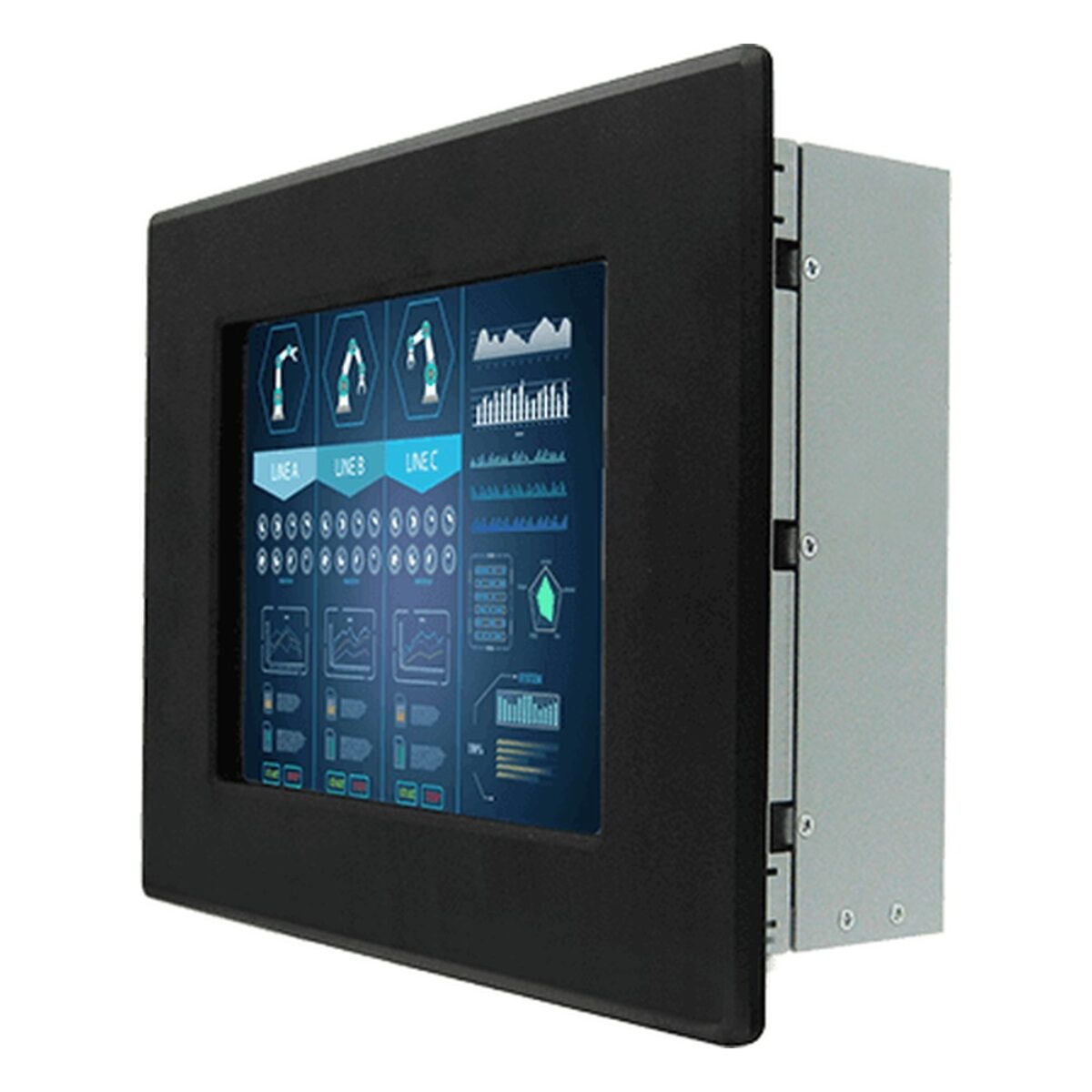

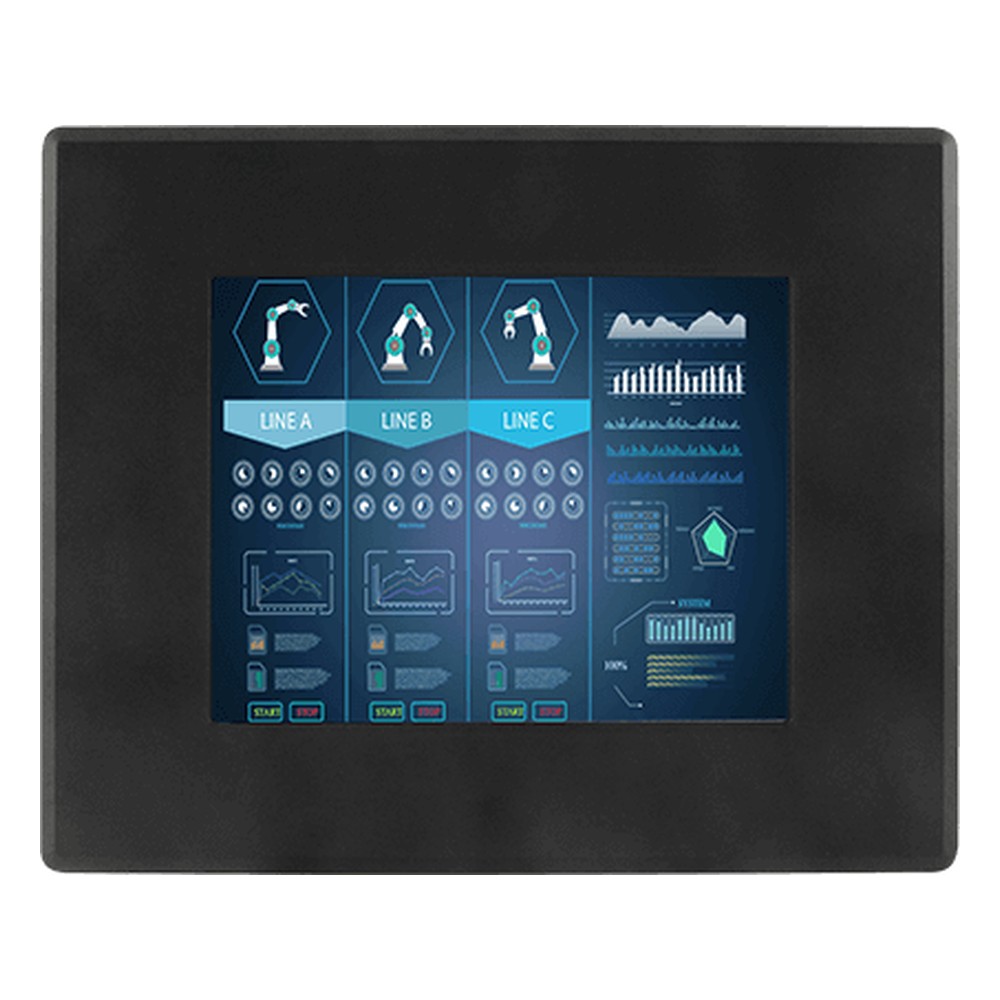

Winmate R08T200-PMT1OD 8.4″ Sunlight Readable Panel Mount Monitor with 1000 Nit SVGA Display and Wide Temperature
Resistive
High Bright
Extended Temp
CE
FCCR08T200-PMT1OD Overview
Control panels and kiosk fronts in bright or unheated areas need a screen that sits in a cabinet door or console and stays readable when the light is strong. The R08T200-PMT1OD is Winmate’s 8.4 inch sunlight readable panel mount monitor for those installs, with an 8.4″ SVGA panel at 1000 nits, resistive touch as standard and a -10 °C to 60 °C operating range. It pairs with a separate industrial PC over VGA, with HDMI or DVI as options.
The 8.4″ SVGA panel runs at 1000 nits with 600:1 contrast, 16.2 million colors and 160 degree horizontal and 140 degree vertical viewing angles, so the picture typically stays readable in direct light. Resistive touch is standard, connected over one USB port, and protection glass without touch is available as an option.
Video comes in on VGA as standard, with HDMI and DVI inputs as options, so the R08T200-PMT1OD pairs with most industrial PCs and box PCs. An audio line in and two speakers are optional, and five keys (power, plus, minus, Esc and Enter) run the on-screen menu. VGA and HDMI cables and a manual come in the box. Within the Winmate range the R08T200-OFT1HB is the open frame model with a 1000 nit SVGA LCD and VGA input, and the R08T200-IPT1WT is the front IP65 version with a wide temperature range and resistive touch.
Power is 12 V DC in, and an AC adapter and power cord are supplied. The display runs from -10 °C to 60 °C and stores from -20 °C to 70 °C, at 10 to 90% humidity, non-condensing. It is built for panel mounting in a cabinet door or console, and it carries CE and FCC marks. We supply the R08T200-PMT1OD configured and tested before dispatch.
R08T200-PMT1OD Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R08T200-PMT1OD |
| Features | Industrial |
| Display | |
| Display | 8.4"[4:3, 800 x 600, SVGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Resistive Touch |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 160° Horizontal, 140° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 600:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Operating Temperature | -10°C to 60°C [14°F to 140°F] |
| Storage Temperature | -20°C to 70°C [-4°F to 158°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
- R08T200-PMT1OD Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R08T200-PMT1OD configured and tested for USA control panel, kiosk and outdoor equipment projects. Within the Winmate range the R08T200-OFT1HB is the open frame model with a 1000 nit SVGA LCD and VGA input, and the R08T200-IPT1WT is the front IP65 version with a wide temperature range and resistive touch.
The R08T200-PMT1OD sits among our sunlight readable monitors, our panel mount monitors and our resistive touch monitors. Where an 8.4 inch panel mount touchscreen faces strong light and a wide temperature range, this is a sensible model to shortlist.
