Winmate R08L200-PPU1 8.4″ PCAP Panel Mount Monitor with SVGA LCD and 600 Nits
PCAP
Fanless
Front IP65
CE
FCCR08L200-PPU1 Overview

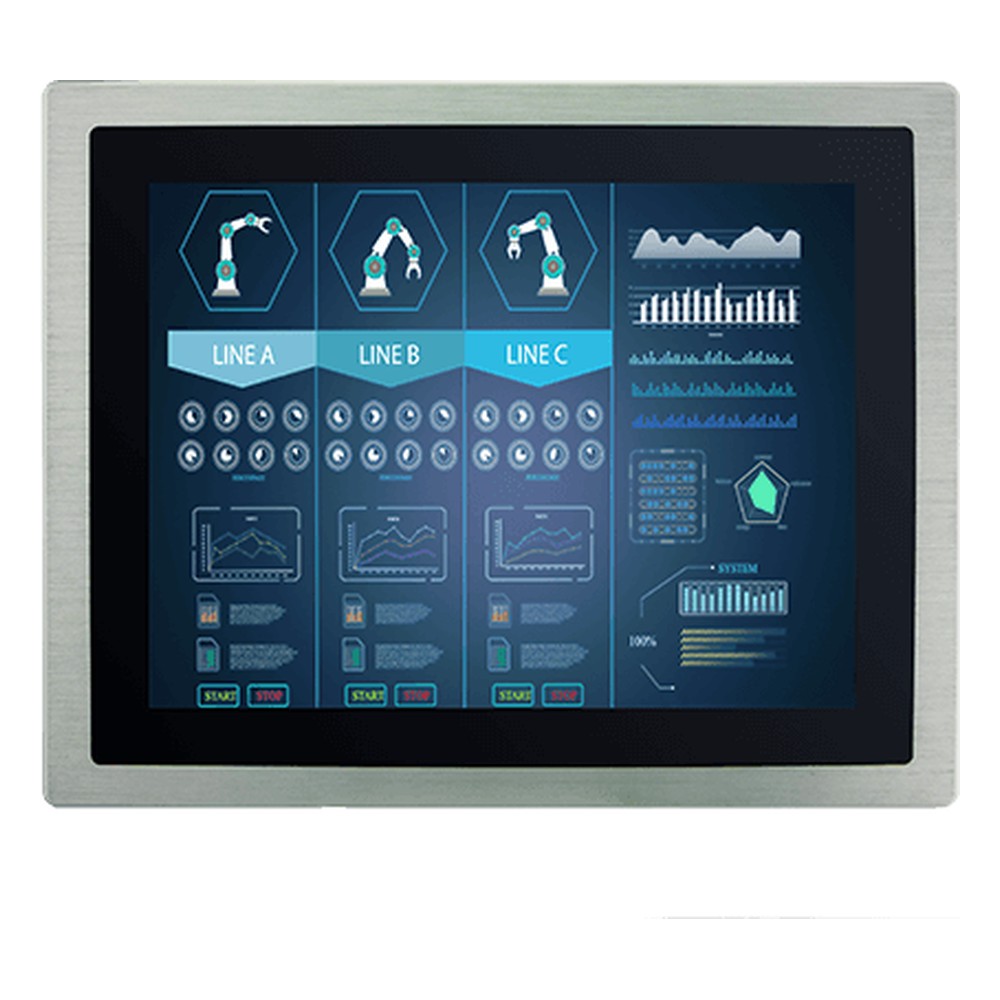

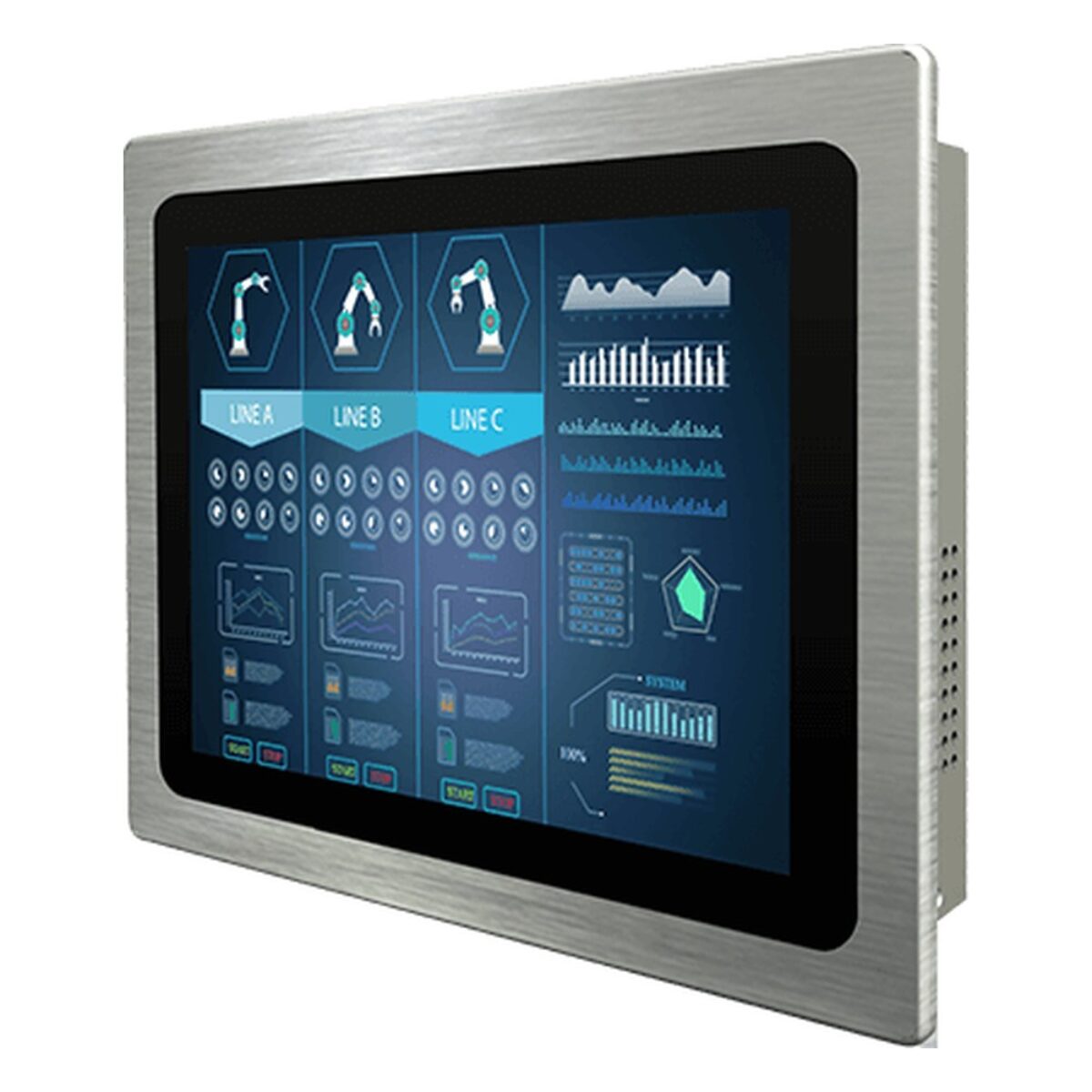

On an automation panel or a kiosk front, the display usually has to fit a cut-out, cope with splashes at the front and connect to a separate industrial PC or controller. The R08L200-PPU1 is Winmate’s 8.4 inch panel mount touch monitor for that installation: a 8.4″ 800 x 600 SVGA projected capacitive touchscreen in a metal housing with an aluminum bezel, sealed to IP65 at the front.
The 800 x 600 panel runs at 600 nits with 600:1 contrast and 150 degree horizontal and 130 degree vertical viewing angles. The 4:3 format suits HMI and SCADA screens laid out for older square-format displays. Projected capacitive multi-touch reports to the host computer over USB, so swipe and pinch gestures work through the glass.
Video comes in over VGA as standard, with HDMI and DVI as options, and a single USB port carries touch back to the computer. An audio line-in and two speakers are optional. Five keys (minus, plus, power, Esc and Enter) run the on-screen menu for brightness and input settings. Within the Winmate range, the R08L200-PMU1 is the panel mount version with resistive touch, and the R08L200-CHU1 is the chassis version with resistive touch.
Power is 12 V DC, and the monitor comes with VGA and HDMI cables, a 100 to 240 V AC to DC adapter and a power cord. The 8.4 inch monitor runs fanless from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -10 °C to 60 °C and carries CE and FCC marks. It fits a panel cut-out or a VESA mount. We supply the R08L200-PPU1 configured and tested before dispatch, and we can help pair it with the right industrial PC for the job.
R08L200-PPU1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R08L200-PPU1 |
| Features | Fanless Industrial |
| Display | |
| Display | 8.4"[4:3, 800 x 600, SVGA] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 600 Nits |
| Viewing Angle | Wide Viewing Angle |
| 150° Horizontal, 130° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 600:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 1.5 Kg (3.3 Lbs) |
| Dimensions | 233mm x 196mm x 51mm (9.17" x 7.72" x 2.01") |
- R08L200-PPU1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R08L200-PPU1 configured and tested for USA industrial and commercial display projects. Within the Winmate range the R08L200-PMU1 is the panel mount version with resistive touch, and the R08L200-CHU1 is the chassis version with resistive touch.
The R08L200-PPU1 sits among our panel mount monitors, our 4:3 monitors and our front IP65 monitors. Where an automation panel needs a 8.4 inch touchscreen that fits a cut-out and seals at the front, it is a sensible model to shortlist.
