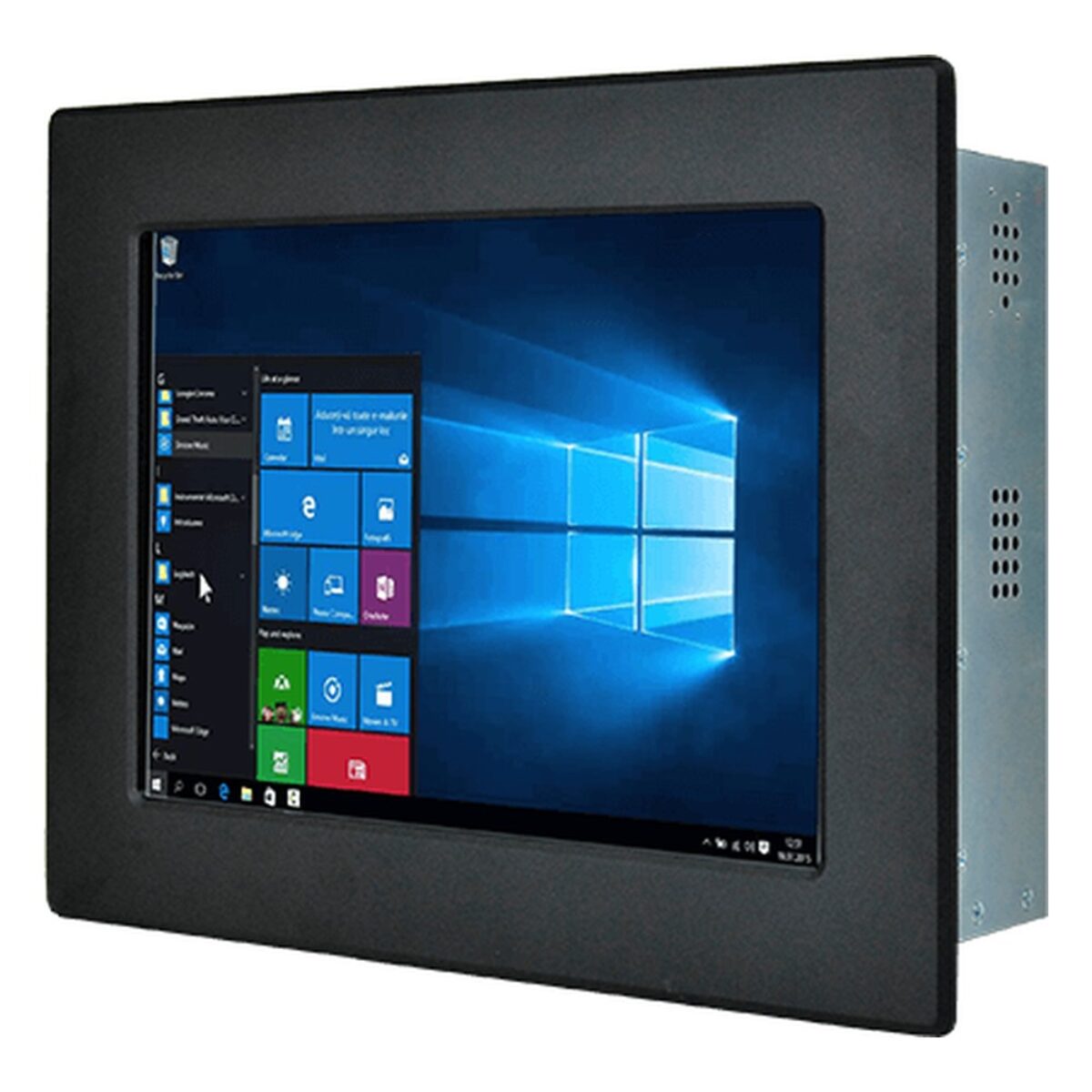

Winmate R10IAN3S-IPA1WT 10.4″ Front IP65 Panel PC with Intel Twin Lake N150 and Resistive Touch

Operator panels on machines in unheated buildings or warm plant rooms see a wider temperature swing than a standard panel PC is rated for, and the front still needs wiping down. The R10IAN3S-IPA1WT is Winmate’s 10.4 inch wide-temperature answer: a fanless panel PC with a front IP65 rating, an operating range of -20 °C to 60 °C and a 10.4″ 800 x 600 display rated at 400 nits with 700:1 contrast. Winmate pitches it at machine control, factory automation and operator HMI, with resistive touch or plain protection glass as options.

Inside is an Intel Processor N150, a quad-core Twin Lake chip at up to 3.6 GHz with Intel Graphics, typically enough for HMI runtimes and SCADA clients without a fan. One DDR5-4800 SO-DIMM holds 8 GB, or 16 GB as an option. A 128 GB SSD is standard with options to 2 TB, or an optional 2.5″ SATA III drive in place of the NVMe SSD. TPM 2.0 is on board, with Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 24.04.

Two 2.5GbE ports can keep a plant network apart from a machine network, and the two DB9 serial ports (one RS-232/422/485, one RS-232) reach PLCs and older instruments. Two USB 3.2 Gen 1 Type-A ports and a USB 3.2 Gen 2 Type-C port with DisplayPort Alt Mode complete the set, with HDMI 2.0b and Wi-Fi as options. The R10IAN3S-IPT2 is the same front IP65 housing with a 500 nit 1024 x 768 screen for 0 °C to 50 °C sites, and the R10IAN3S-CHA1WT is the wide-temperature chassis version for VESA mounting.

The front is rated IP65, so the operator face resists dust and water jets while the rear stays dry in the cabinet. It panel mounts with the supplied clips, or on VESA as an option. A 100 to 240 V AC adapter is supplied for the 12 V DC input. The fanless metal housing runs from -20 °C to 60 °C at 30 to 90% humidity, non-condensing, with CE and FCC marks. We supply the R10IAN3S-IPA1WT configured, with the OS installed, and tested before dispatch.
