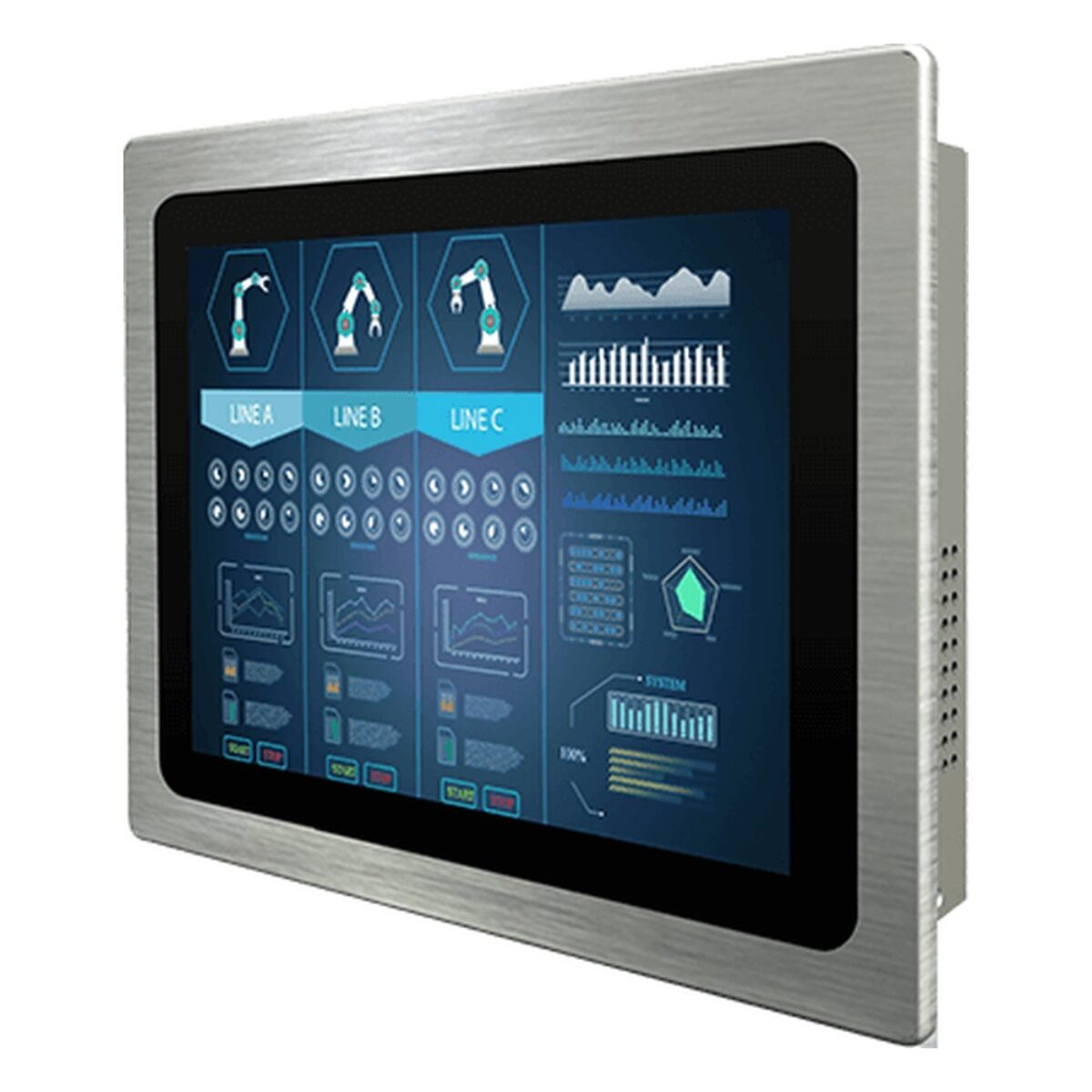

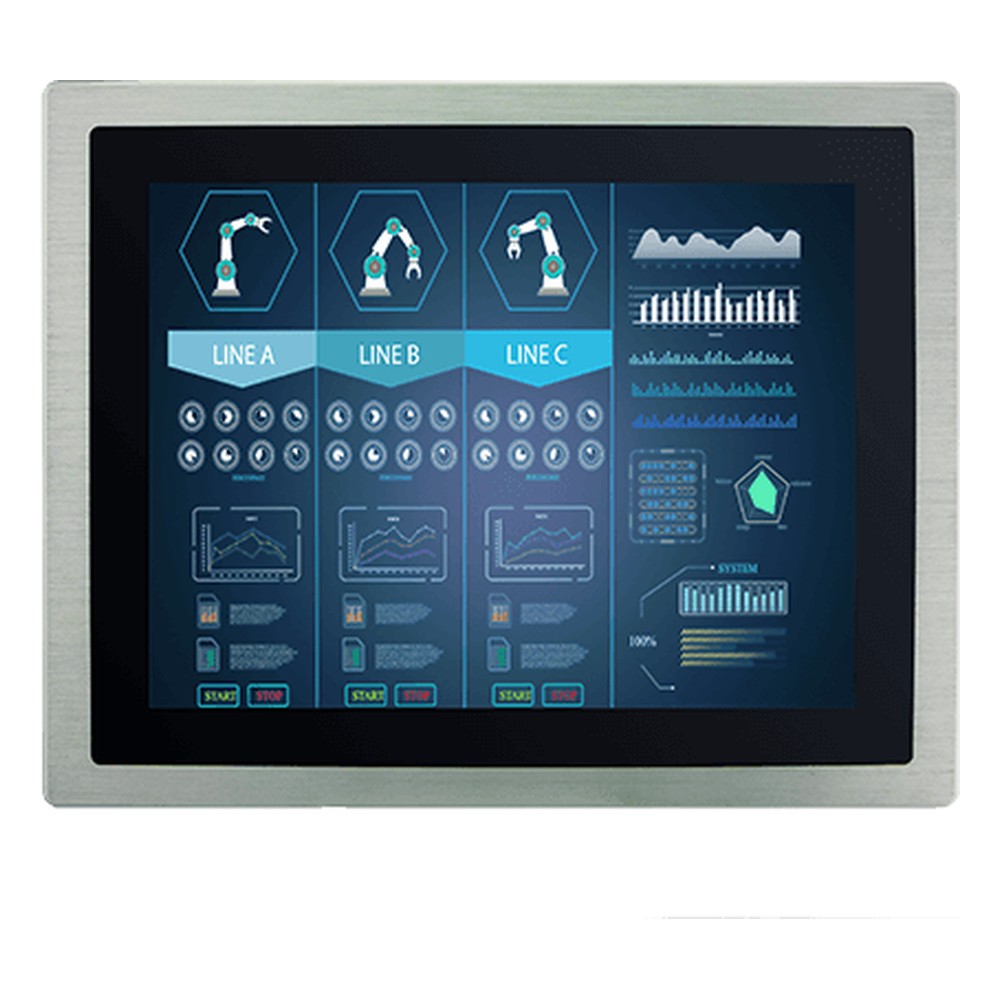

Winmate R10L100-PPT2(HB) 10.4″ PCAP Panel Mount Monitor with Optional 1000 Nit Panel and XGA LCD

A machine front or kiosk often needs a small gesture touchscreen that sits flush in a cut-out and can be wiped down with the rest of the panel. The R10L100-PPT2(HB) is Winmate’s 10.4 inch monitor from its Panel Mount Aluminum Display series: a 4:3 XGA screen with projected capacitive multi-touch, front IP65 sealing and an aluminum bezel. Winmate names industrial automation, kiosks and outdoor applications, and it connects to a separate industrial computer or controller.

The 10.4″ 1024 x 768 panel runs at 350 nits as standard with 1000:1 contrast and 176 degree viewing angles, and a 1000 nit panel is available as an option where sunlight reaches the screen. Projected capacitive multi-touch supports swipe and pinch gestures and connects over a single USB port.

Video comes in over VGA as standard, with HDMI or DVI inputs as options, and a five-key OSD handles set-up. An audio line-in and two speakers are optional, as is a remote controller. VGA and HDMI cables, a power cord and VESA screws come in the box. The R10L100-PCT2(HB) is the VESA-mounted chassis version of this 10.4 inch PCAP monitor, and the R10L100-PPP1HB is the panel mount model with an 800 x 600 panel at 1000 nits.

The 10.4 inch monitor is rated IP65 at the front and mounts into a panel cut-out or on VESA, in a metal housing with an aluminum bezel. It runs from 12 V DC, with a 24 V DC input as an option and a 100 to 240 V AC adapter supplied, operates fanless from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -10 °C to 60 °C and carries CE and FCC marks. We supply the R10L100-PPT2(HB) configured and tested before dispatch.
