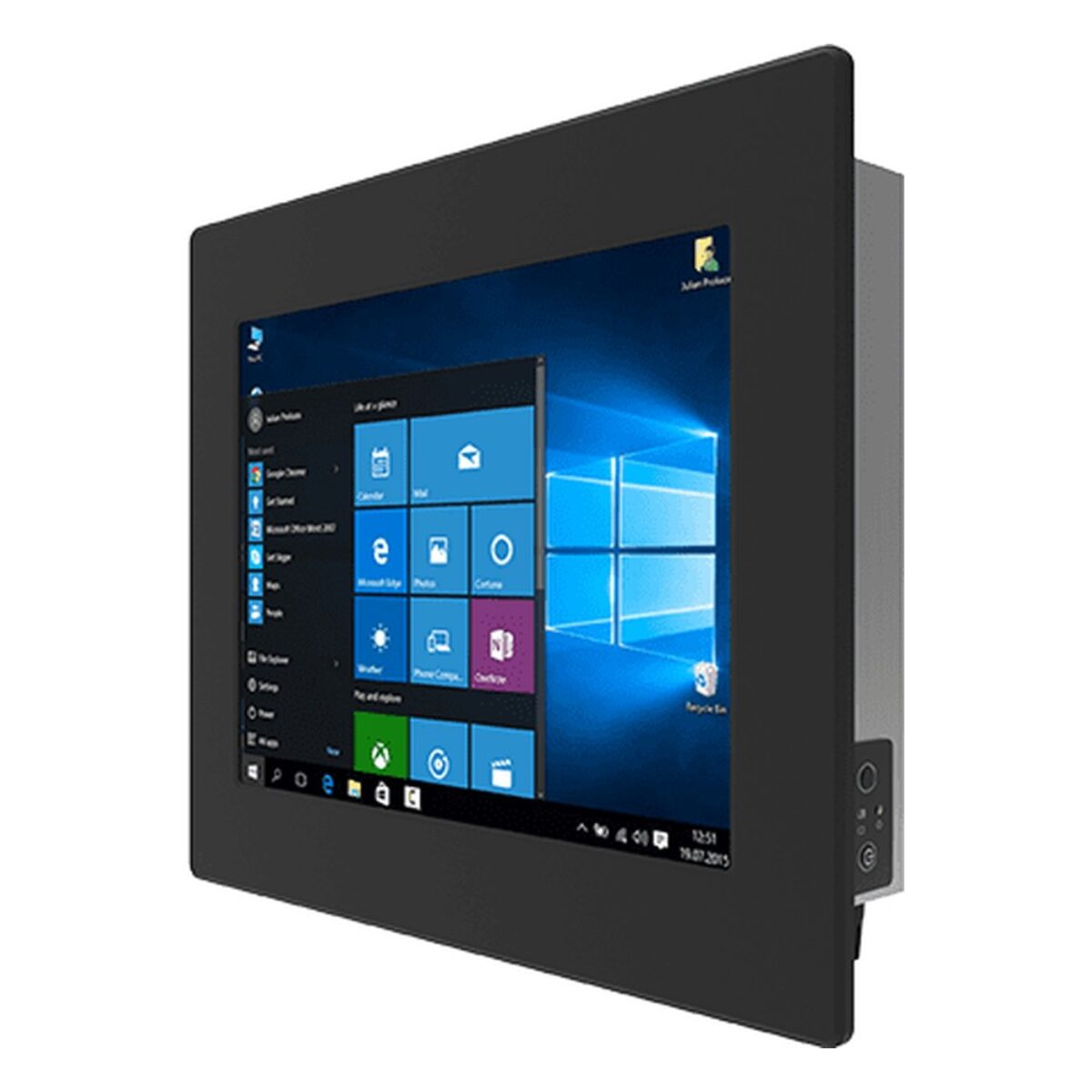

Winmate R12IAD3S-PMM2 12.1″ Panel Mount PC with 12th Gen Intel Core i5 and Resistive Touch

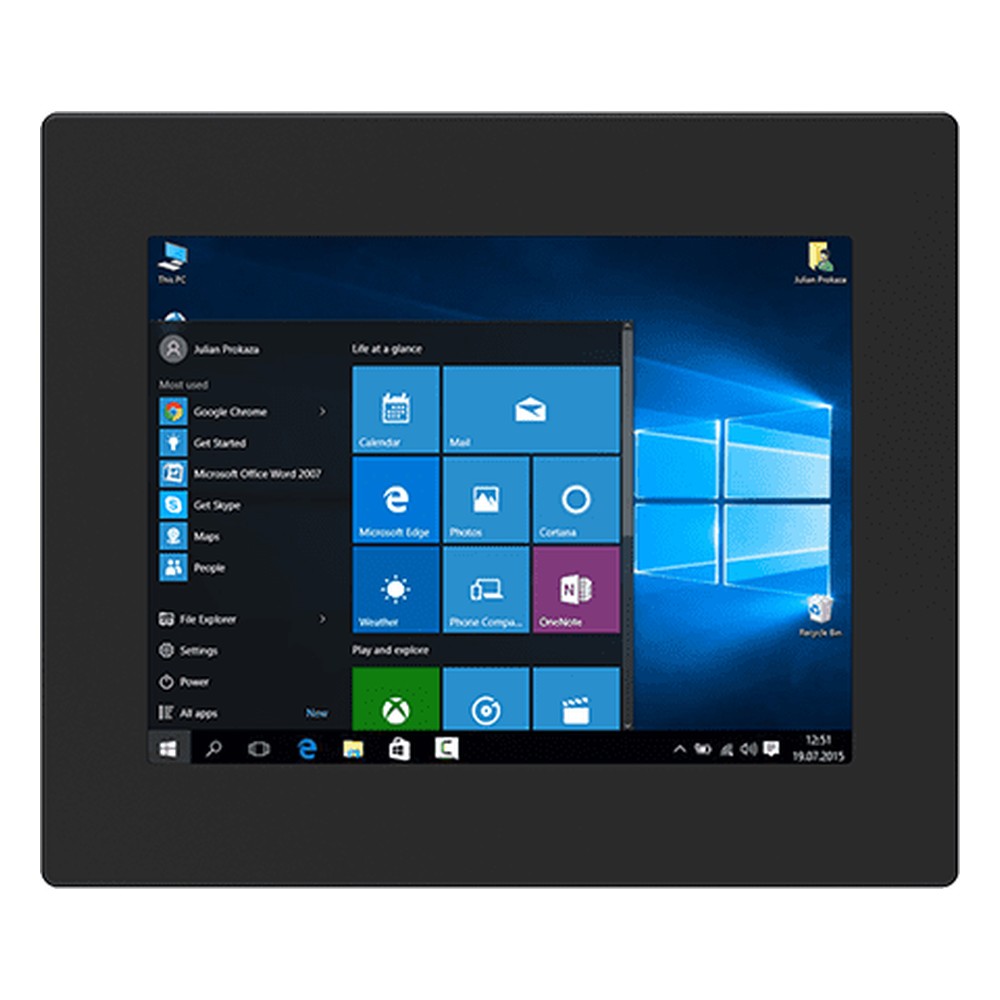

Many HMIs go into a cabinet door or machine enclosure that already keeps the dirt out, so the priority is processing, connections and a readable screen. The R12IAD3S-PMM2 is Winmate’s 12.1 inch panel mount PC for those installs, with a 12th Gen Intel Core i5-1235U and a 500 nit 1024 x 768 display with 1000:1 contrast.

The Core i5-1235U runs at up to 4.4 GHz with one DDR5-4800 SO-DIMM socket, 8 GB as standard and 16 or 32 GB as options, which typically leaves the R12IAD3S-PMM2 room for HMI software and a SCADA client. Storage is a 128 GB NVMe SSD as standard on an M.2 2280 M-key slot, with options to 4 TB and an optional 2.5″ SATA III drive. TPM 2.0 is on board, with Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04. Resistive touch is optional, as is protection glass without touch.

Connections include two 2.5GbE ports on Intel controllers, two USB 3.2 Gen 2×1 Type-A ports, one RS-232/422/485 and one RS-232 port for PLCs, scanners and serial instruments, and two speakers. HDMI 2.0 is optional, and an M.2 E-key slot takes optional Wi-Fi and Bluetooth. Within the Winmate range the R12IAN3S-PMM2 keeps the panel mount housing with an Intel N150 for lighter HMI duty, and the R12IAD3S-IPM2 adds a front IP65 rating for fronts that are washed down.

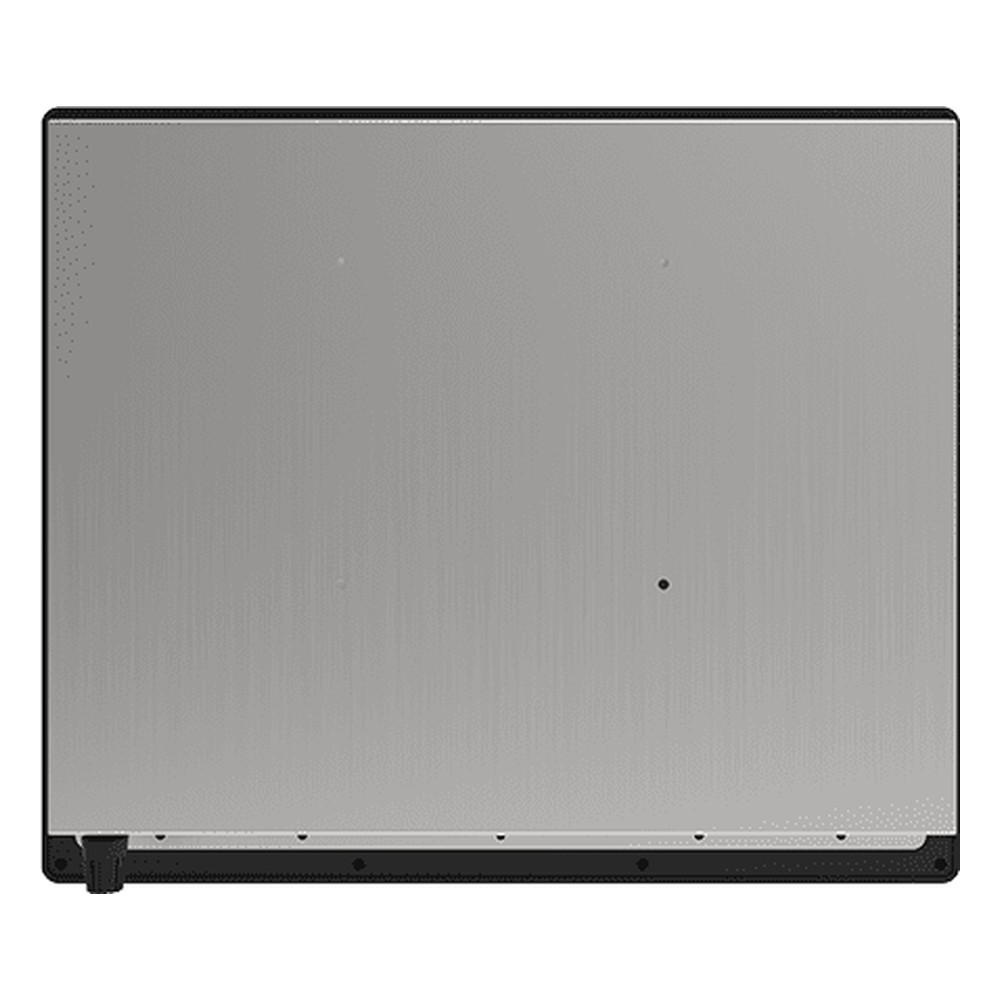

Power is 12 V DC on a barrel jack, with a 120 W AC adapter supplied. The fanless metal housing runs from 0 to 50 °C in non-condensing humidity, which suits indoor cabinets and control rooms. Mounting clips are supplied for panel mounting, with VESA as an option. It carries CE and FCC marks. We supply the R12IAD3S-PMM2 configured, with the OS installed, and tested before dispatch.
