Winmate R12IAN3S-MRM2 12.1″ Marine Panel PC with Intel N150 and 9 to 36V DC

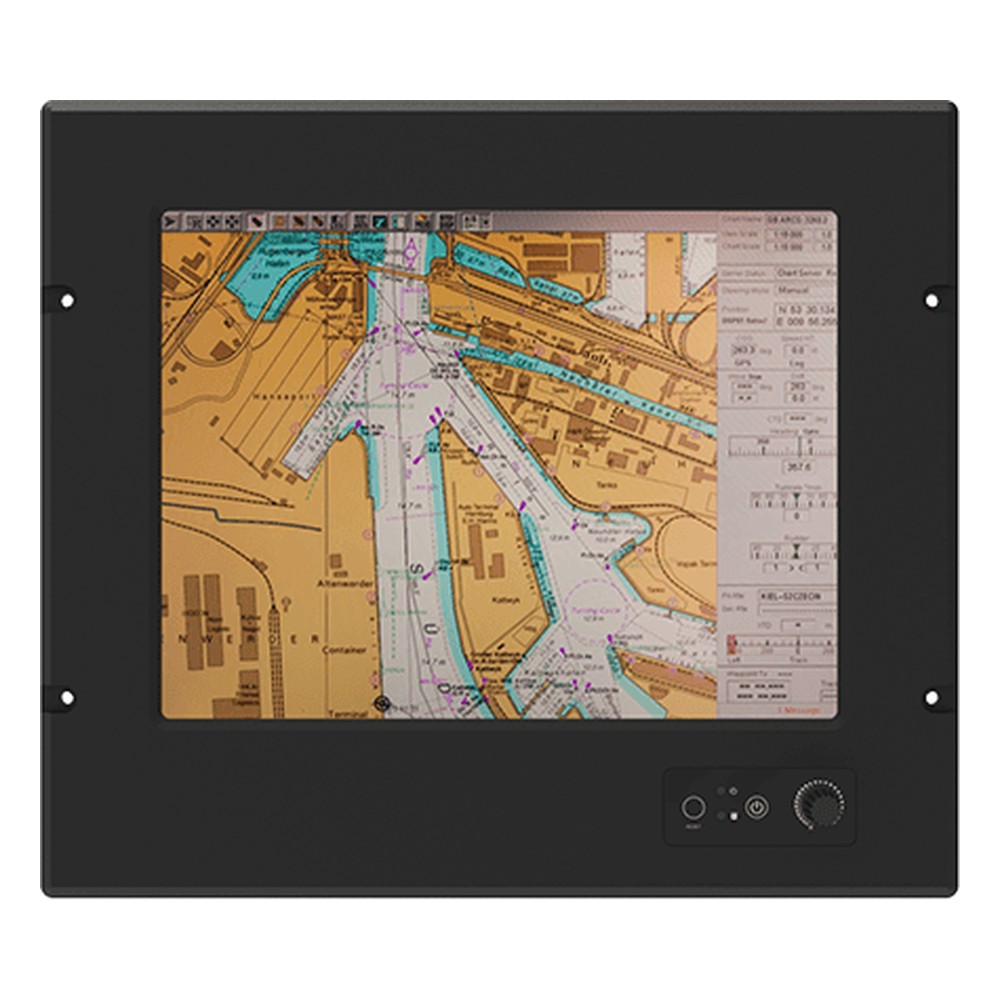

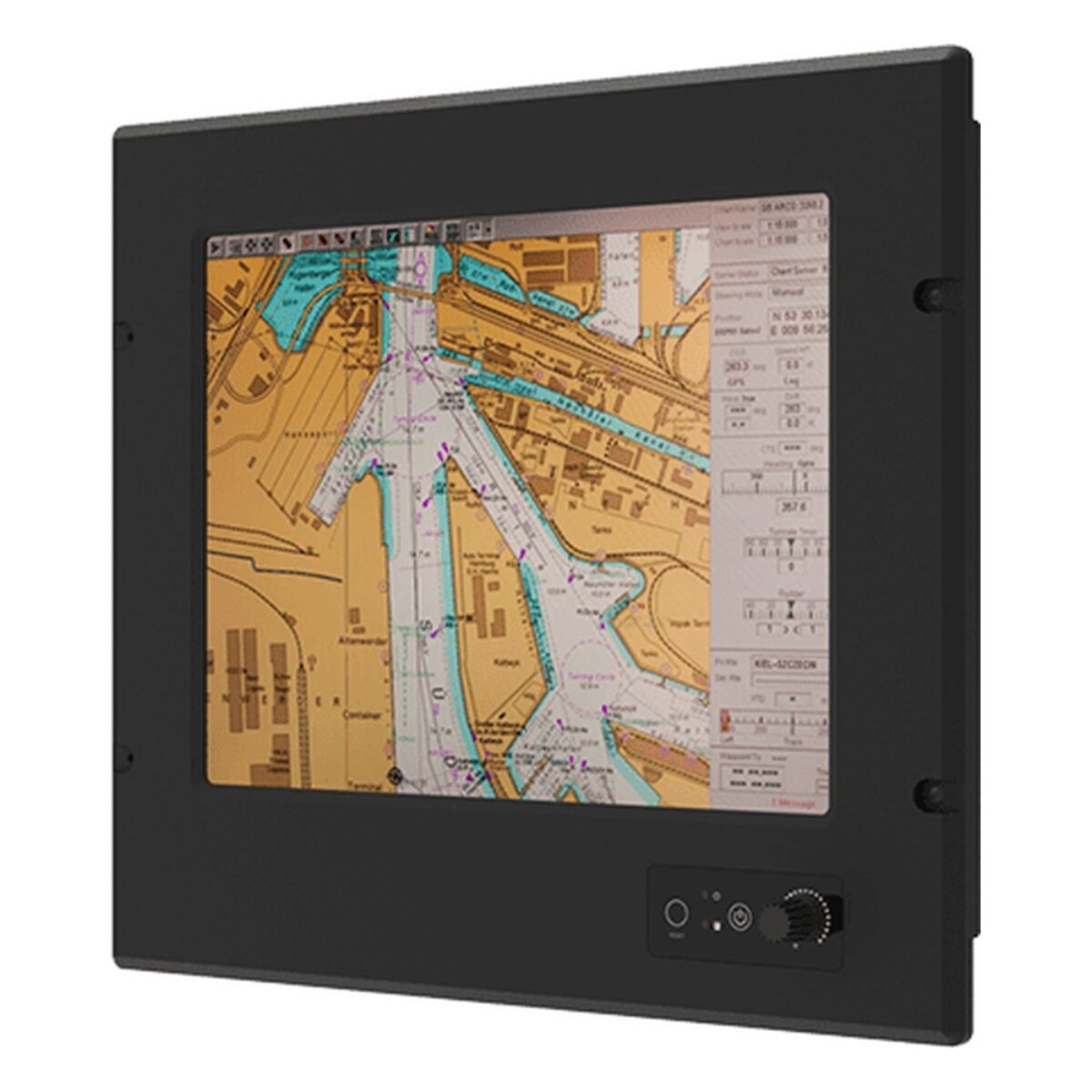

Engine rooms and bridge wings need small HMIs that sit flush in a console, cope with spray and run from the ship’s DC supply. The R12IAN3S-MRM2 is Winmate’s 12.1 inch marine panel PC for maritime automation and bridge systems: a fanless, flush panel mount unit in a metal housing with a powder-coated aluminum bezel, rated IP66 at the front, with a 12.1″ 1024 x 768 resistive touchscreen at 500 nits, 1000:1 contrast and 178 degree viewing angles.

Processing comes from an Intel Processor N150 with 6 MB cache at up to 3.6 GHz, with 8 GB of memory as standard and 16 GB as an option, and storage from 128 GB up to 4 TB. Windows 11 IoT Enterprise is supplied. That suits alarm monitoring, machinery and tank displays, and other shipboard HMIs that need dependable x86 compatibility more than heavy processing.

I/O includes two 2.5GbE LAN ports on RJ45 with Intel Ethernet controllers, two USB 3.2 Type-A ports, one USB 3.2 Type-C port and one RS-232 port. Two RS-232 ports or two isolated RS-422/485 ports and an HDMI output are optional. A physical dimming knob sets the backlight from nearly 0% to 100%, so the screen can be turned right down for night watch. AR glass is optional. The R12IT3S-MRM2 is the earlier build of this 12.1 inch marine design with an Intel Core i7-1165G7, and the R15IAN3S-MRM2 is the 15 inch model with the same Intel N150.

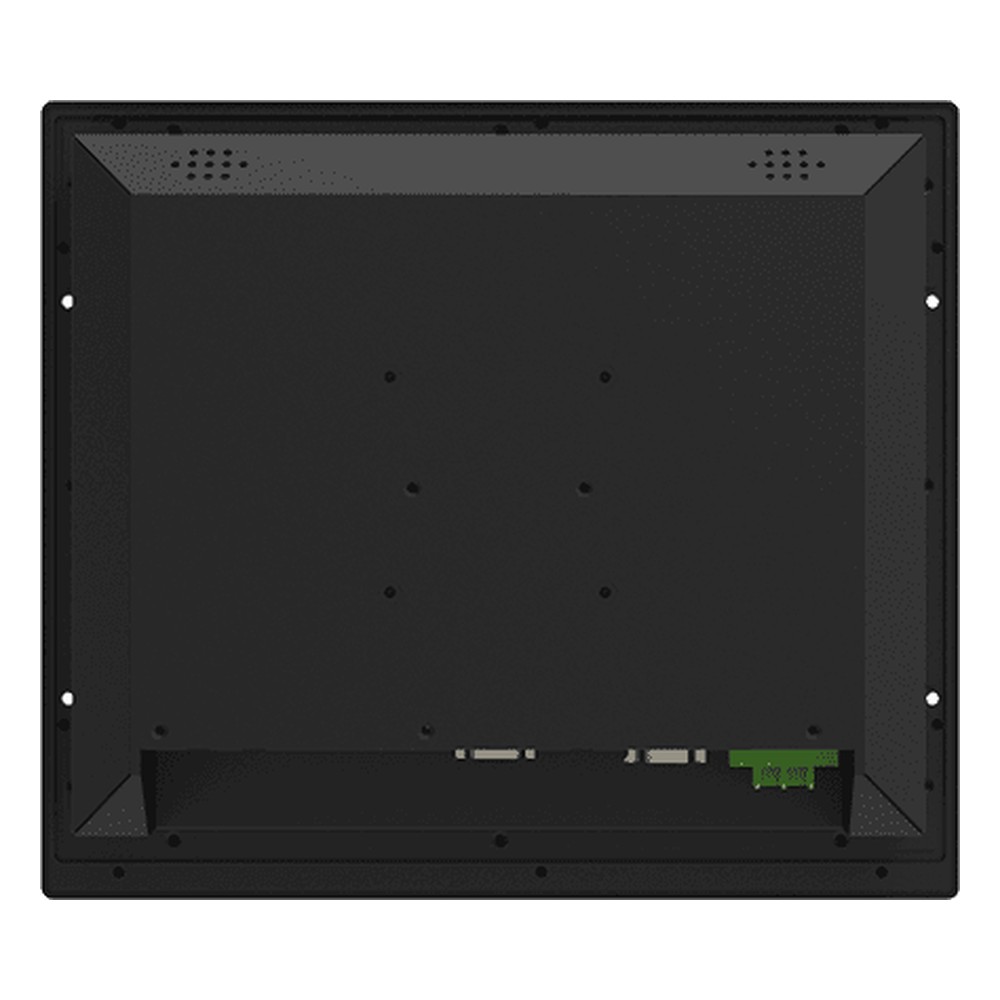

Power is 9 to 36 V DC, which tolerates the fluctuations of a vessel supply, and a 12 V AC adapter is supplied. The unit operates from -15 °C to 55 °C at 5 to 95% humidity, with shock rated at 15 G for 11 ms and vibration at 0.7 g to DNV-CG-0339 Class A. It panel or VESA mounts and carries CE and FCC marks. We supply the R12IAN3S-MRM2 configured, with the OS installed, and tested before dispatch.
