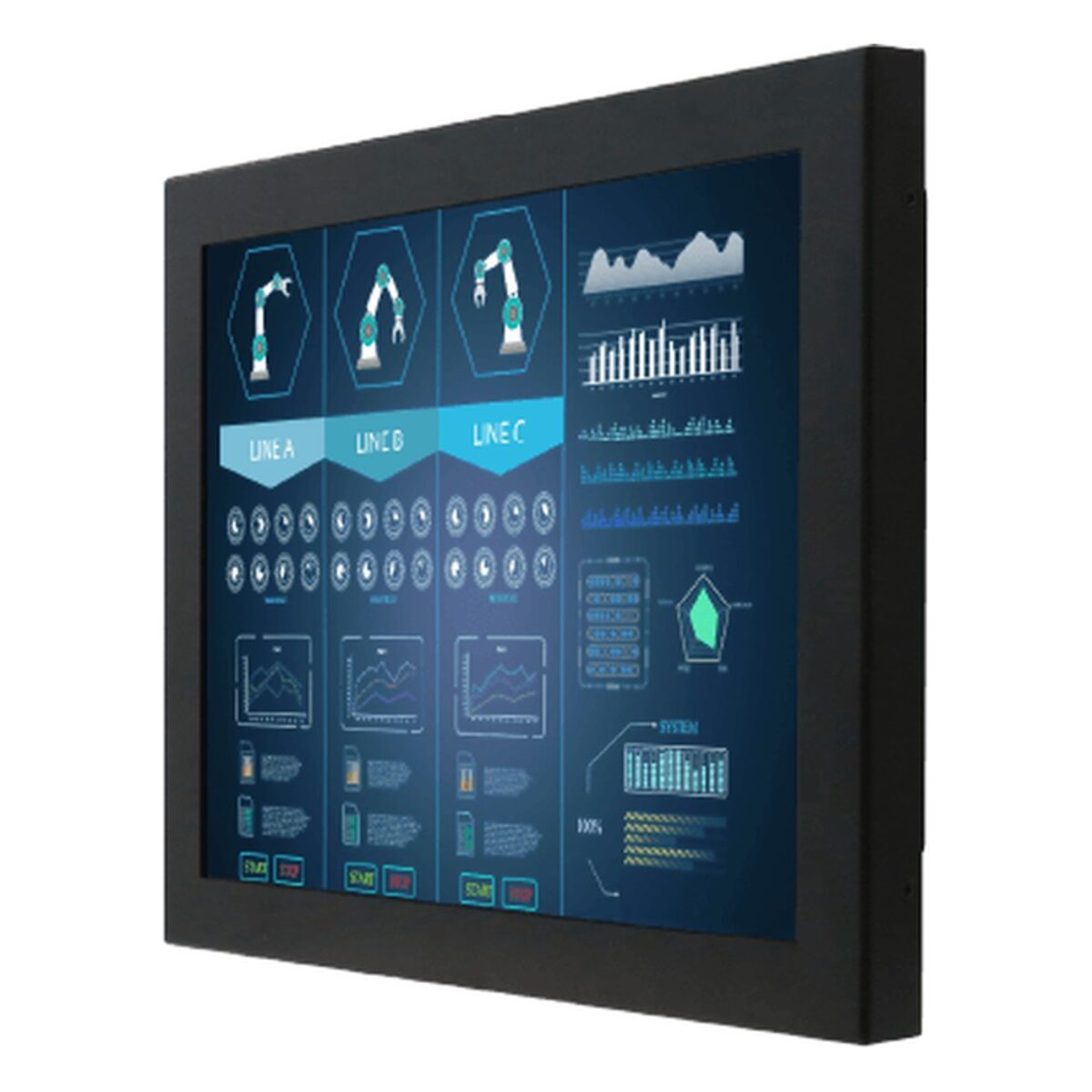

Winmate R12L600-CHM2 12.1″ Chassis Monitor with Resistive Touch and XGA LCD
Resistive
Fanless
CE
FCCR12L600-CHM2 Overview
A monitor in a control cabinet, kiosk or operator station usually has to fit a VESA arm or bracket and run all shift without a fan. The R12L600-CHM2 is Winmate’s 12.1 inch chassis monitor for that kind of job, built for industrial control systems, kiosks and outdoor installations.

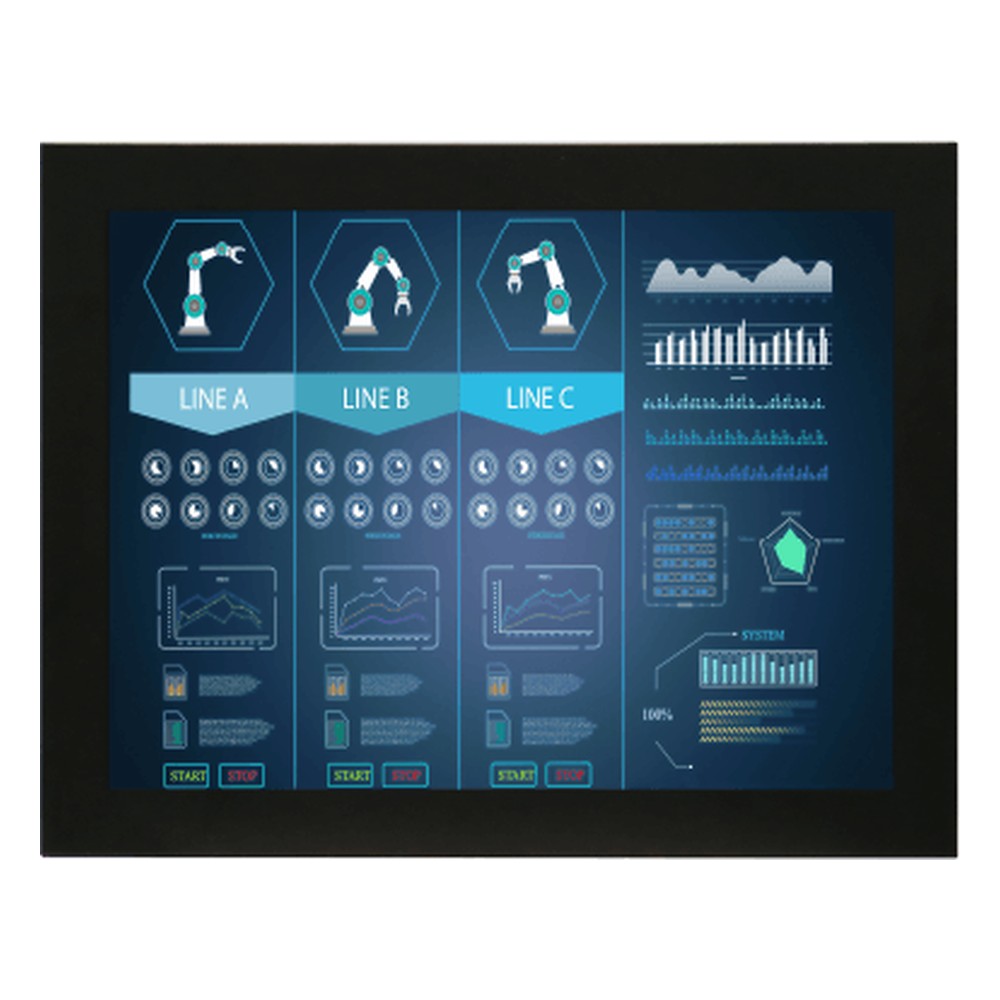

The 12.1″ 4:3 panel runs at 1024 x 768 (XGA) with 500 nits and a 1000:1 contrast ratio, and Winmate quotes viewing angles of 178° in both directions. Resistive touch comes as standard and works with gloves or a stylus. Winmate also offers SAW touch, or protection glass without touch where the screen only needs to display.

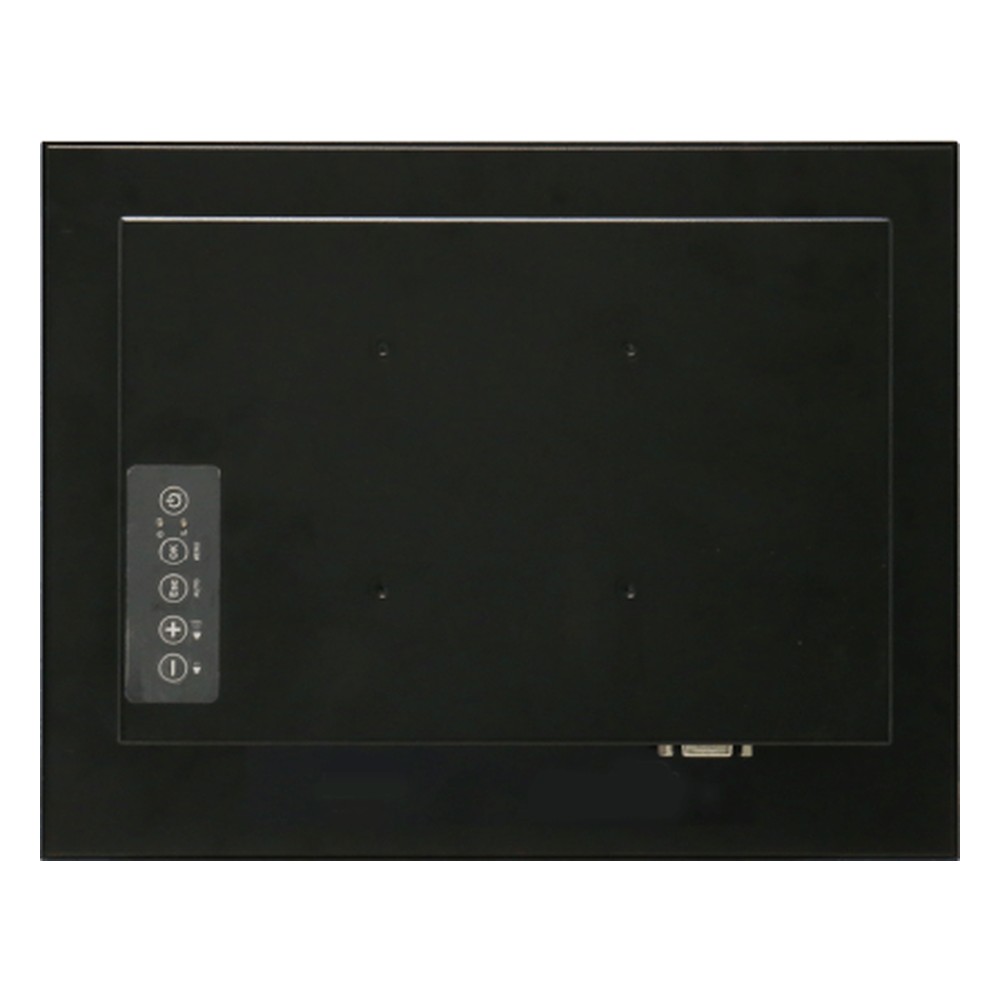

Video comes in over VGA as standard, with HDMI or DVI inputs available as options, and touch data runs over a single USB port. An audio line-in and two speakers are optional, and five keys handle the on-screen menu, with a remote control as an optional accessory. Within the Winmate range, the R12L600-CHM2TR is the transflective version at 600 nits, and the R12T600-CHL1 uses a 12.1″ 800 x 600 panel at 450 nits.
The R12L600-CHM2 runs from 12 V DC, with a 24 V DC input as an option, and an AC adapter comes with it, along with a power cord, VGA and HDMI cables and VESA screws. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. The 12.1 inch monitor cools without a fan, mounts on VESA and carries CE and FCC marks. It pairs with the industrial PC of your choice, and we supply it configured and tested before dispatch.
R12L600-CHM2 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R12L600-CHM2 |
| Features | Fanless Industrial |
| Display | |
| Display | 12.1"[4:3, 1024 x 768, XGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 500 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 2.0 Kg (4.4 Lbs) |
| Dimensions | 290mm x 230mm x 45mm (11.42" x 9.06" x 1.77") |
- R12L600-CHM2 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R12L600-CHM2 configured and tested for USA control room, kiosk and industrial projects. Within the Winmate range the R12IT3S-CHM2 is the panel PC version of this chassis, with an Intel Core i5-1135G7 built in.
The R12L600-CHM2 sits among our 12 inch industrial monitors, our chassis monitors and our resistive touch monitors. Where a project needs a 12.1 inch chassis monitor that connects to an existing computer, this is a sensible model to shortlist.
