Winmate R12T600-CHL1 12.1″ Chassis Monitor with Resistive Touch and SVGA LCD
Resistive
Fanless
CE
FCCR12T600-CHL1 Overview

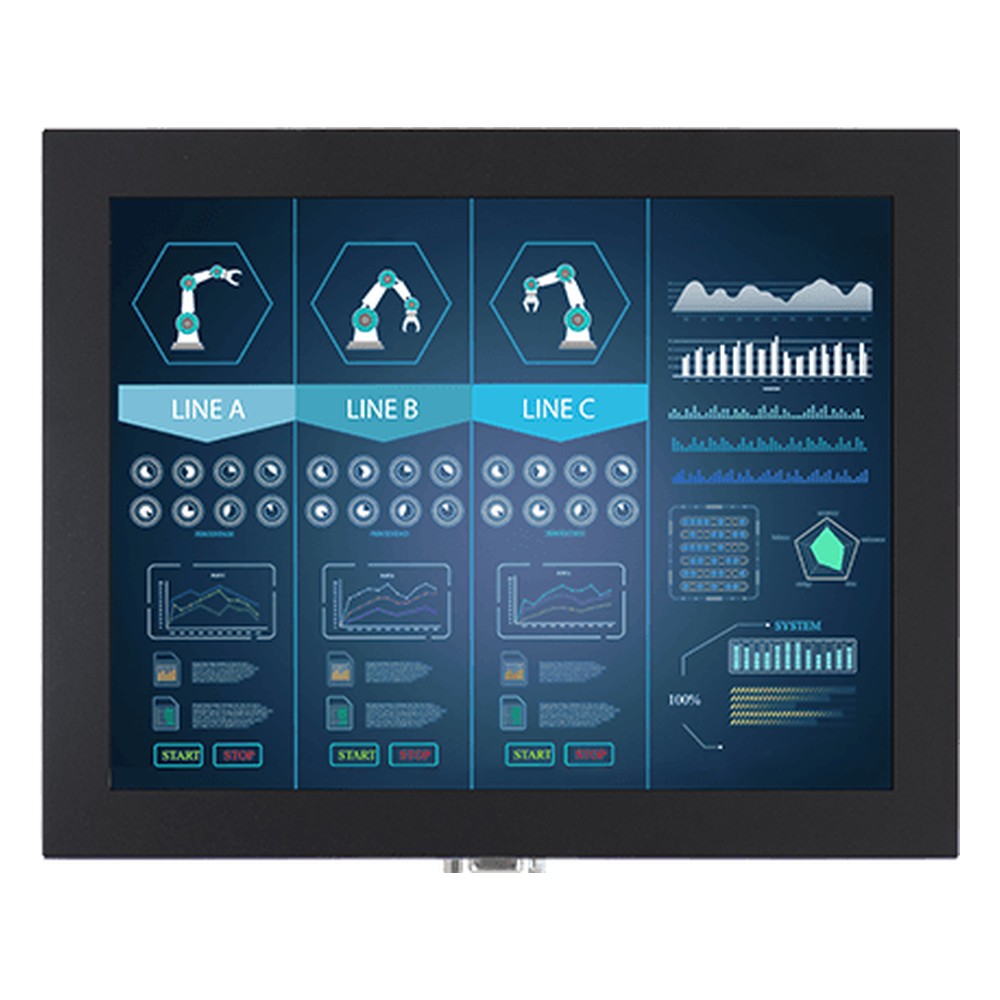

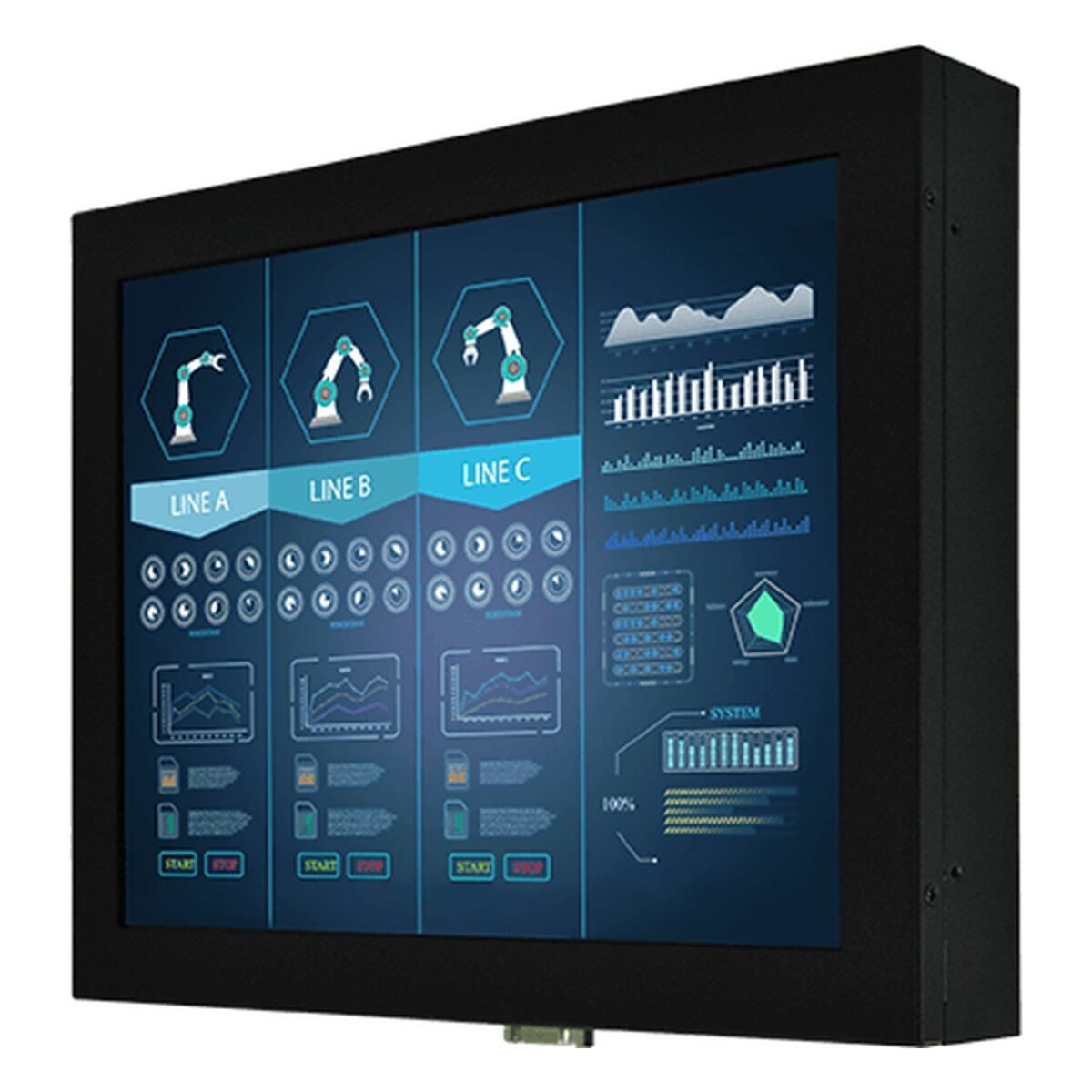

Operator stations and kiosks often run a computer out of sight and need a tough, self-contained screen in front of the user. The R12T600-CHL1 is Winmate’s 12.1 inch chassis monitor for that role, suited to industrial control systems, kiosks and outdoor installations.
The 12.1″ 4:3 panel runs at 800 x 600 (SVGA) with 450 nits and a 700:1 contrast ratio, and Winmate quotes viewing angles of 160° horizontally and 140° vertically. Resistive touch comes as standard and works with gloves or a stylus. Winmate also offers SAW touch, or protection glass without touch where the screen only needs to display.
Video comes in over VGA as standard, with HDMI or DVI inputs available as options, and touch data runs over a single USB port. An audio line-in and two speakers are optional, and five keys handle the on-screen menu, with a remote control as an optional accessory. Within the Winmate range, the R12L600-CHM2 moves to a 1024 x 768 XGA panel at 500 nits, and the R12L600-CHM2TR is a 1024 x 768 transflective version at 600 nits.
The R12T600-CHL1 runs from 12 V DC, with a 24 V DC input as an option, and an AC adapter comes with it, along with a power cord, VGA and HDMI cables and VESA screws. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. The 12.1 inch monitor cools without a fan, mounts on VESA and carries CE and FCC marks. It pairs with the industrial PC of your choice, and we supply it configured and tested before dispatch.
R12T600-CHL1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R12T600-CHL1 |
| Features | Fanless Industrial |
| Display | |
| Display | 12.1"[4:3, 800 x 600, SVGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 450 Nits |
| Viewing Angle | Wide Viewing Angle |
| 160° Horizontal, 140° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 700:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 2.0 Kg (4.4 Lbs) |
| Dimensions | 290mm x 230mm x 45mm (11.42" x 9.06" x 1.77") |
- R12T600-CHL1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R12T600-CHL1 configured and tested for USA control room, kiosk and industrial projects. Within the Winmate range the R10T600-CHP3 is the 10.4 inch VGA chassis version.
The R12T600-CHL1 sits among our 12 inch industrial monitors, our chassis monitors and our SAW touch monitors. Where a project needs a 12.1 inch chassis monitor that connects to an existing computer, this is a sensible model to shortlist.
