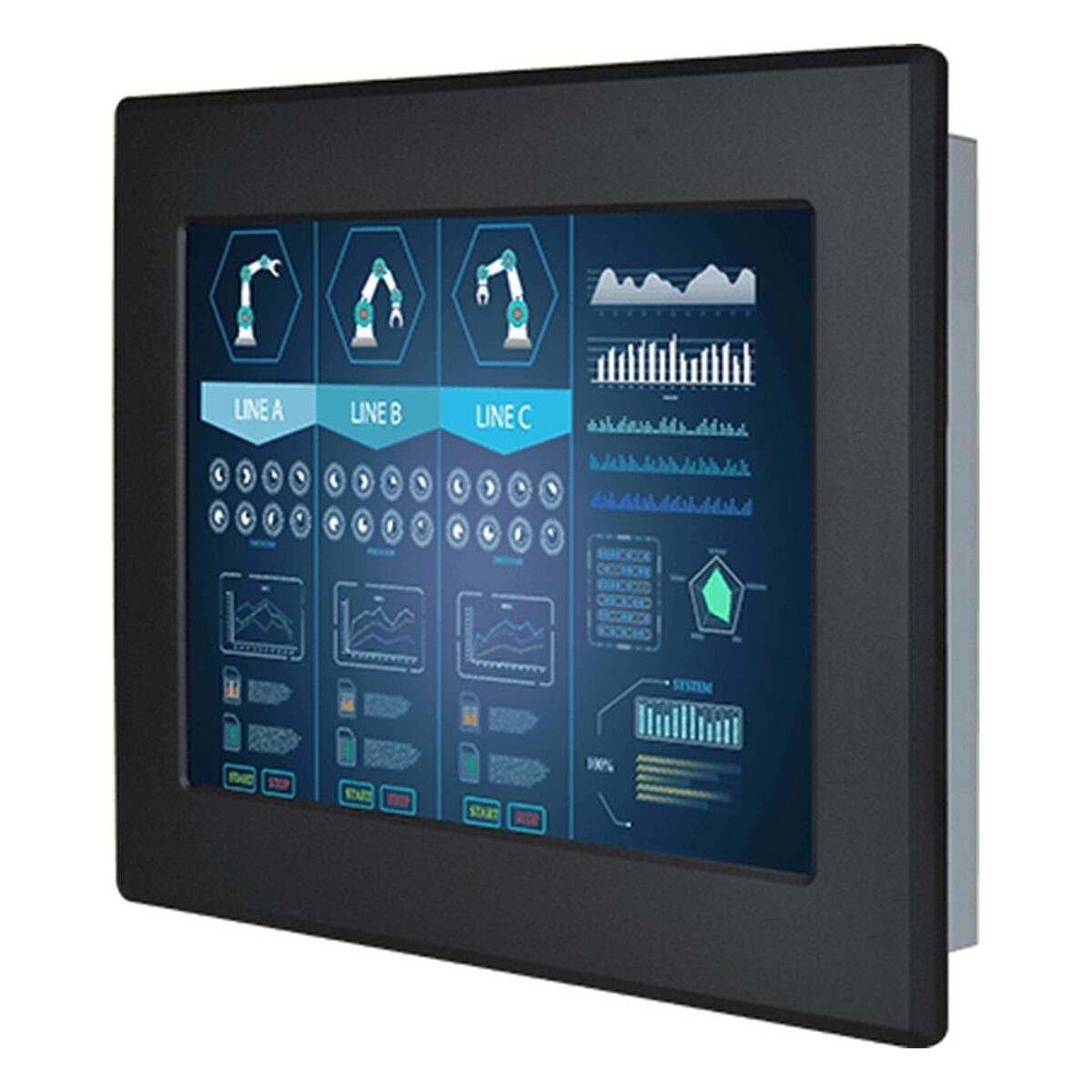

Winmate R12L600-PMM2HB 12.1″ Panel Mount Monitor with 1000 Nit XGA Display and Resistive Touch

Operator screens on loading bays, outdoor-facing kiosks and brightly lit lines need more than the usual 300 to 500 nits to stay readable. The R12L600-PMM2HB is Winmate’s 12.1 inch panel mount monitor with a 1000 nit high-brightness panel and resistive touch, and it connects to a separate PC in factory automation, kiosks and control rooms.

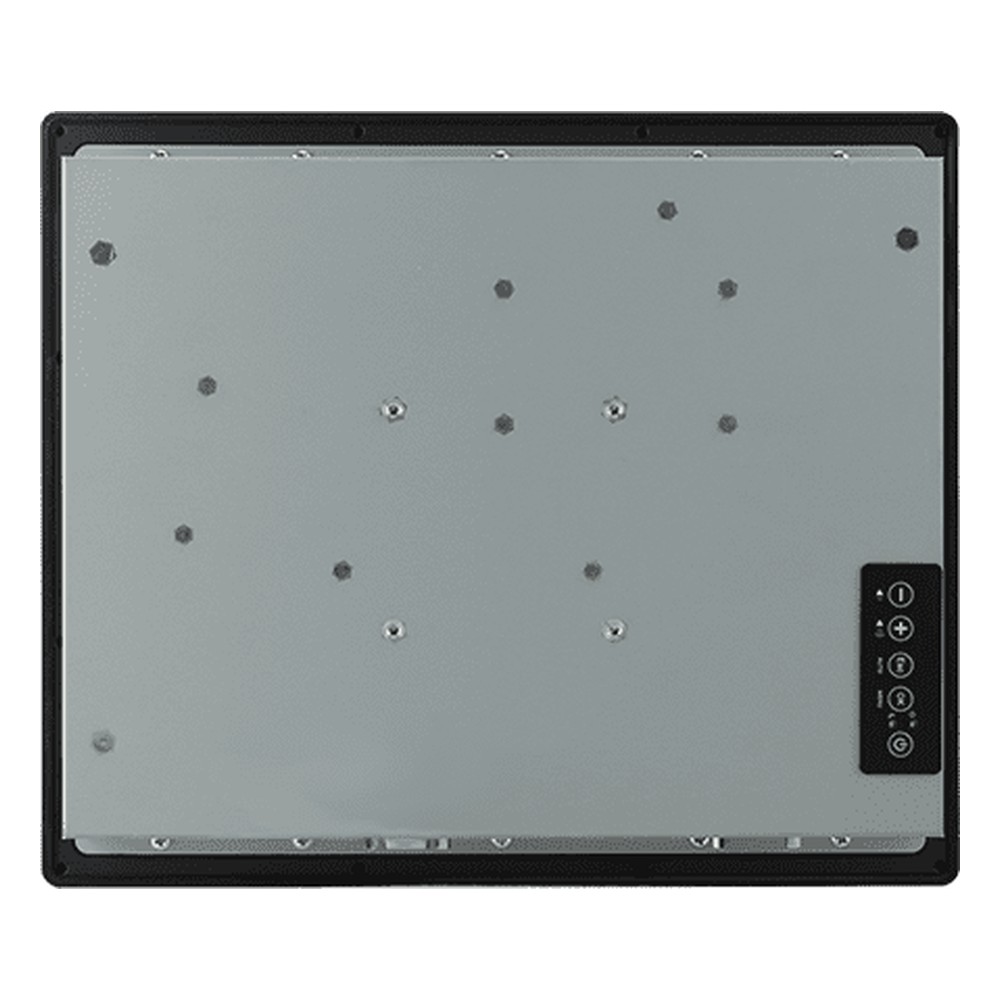

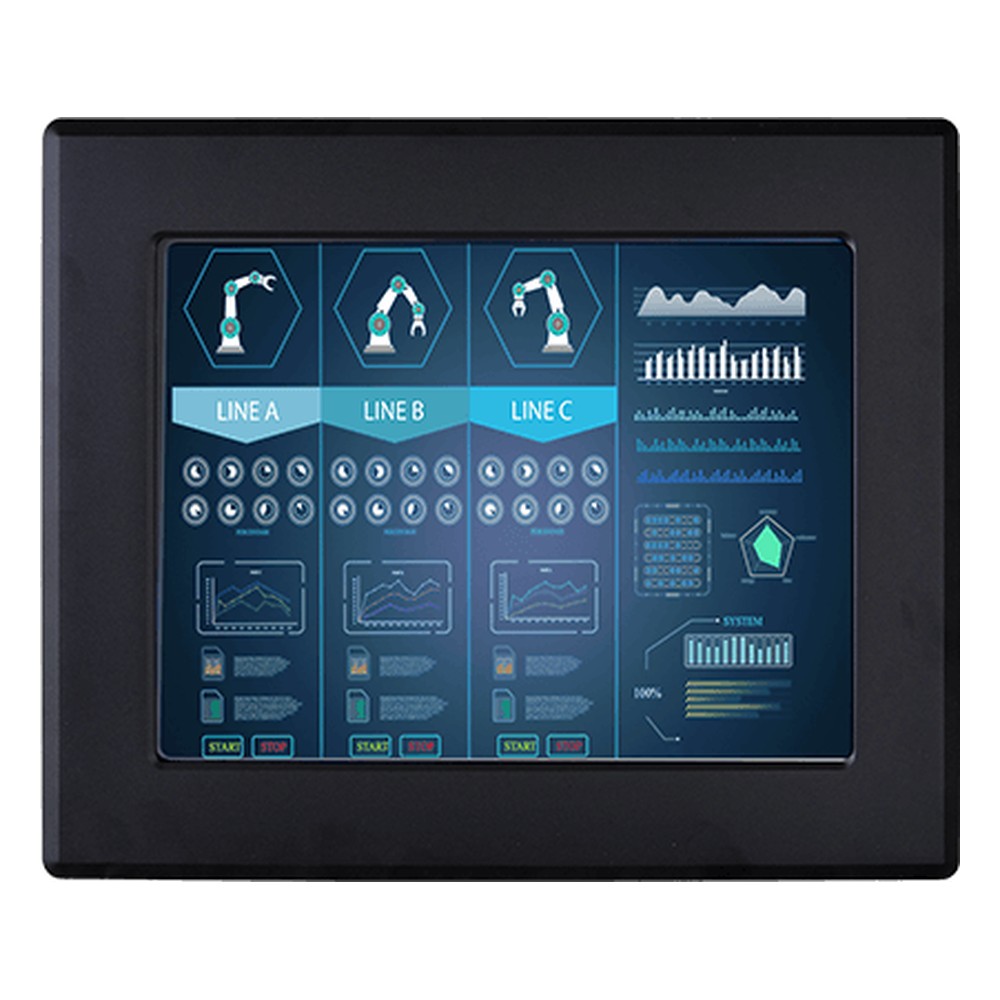

The 12.1″ panel shows 1024 x 768 (XGA) at 1000 nits, with 700:1 contrast and viewing angles of 160 degrees horizontal and 140 degrees vertical. At 1000 nits the panel is bright enough to read in direct sunlight or under strong lighting, which a standard 300 to 500 nit screen can struggle with. Resistive touch is fitted as standard, with SAW touch or protection glass without touch as options. Five keys (minus, plus, power, Esc and Enter) handle the on-screen menu, and a remote controller is optional.

The R12L600-PMM2HB connects to a separate industrial PC or controller over VGA as standard, with HDMI and DVI inputs available as options, and both a VGA and an HDMI cable come in the box. A USB port carries touch data back to the host. An audio line-in and two speakers are optional. Within the Winmate range the R12L600-PMM2 is the same panel mount design with a 500 nit panel and wider viewing angles, and the R12L600-PMM2OD is the sunlight readable version with a wide temperature range.

Power is 12 V DC, with a 24 V DC input listed as an option, and an AC adapter and power cord are supplied. The fanless metal housing runs from 0 to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. VESA mounting is standard and panel mounting is listed as an option, with VESA screws supplied. It carries CE and FCC marks. We supply the R12L600-PMM2HB configured and tested before dispatch, and we can help pair it with the right host computer.
