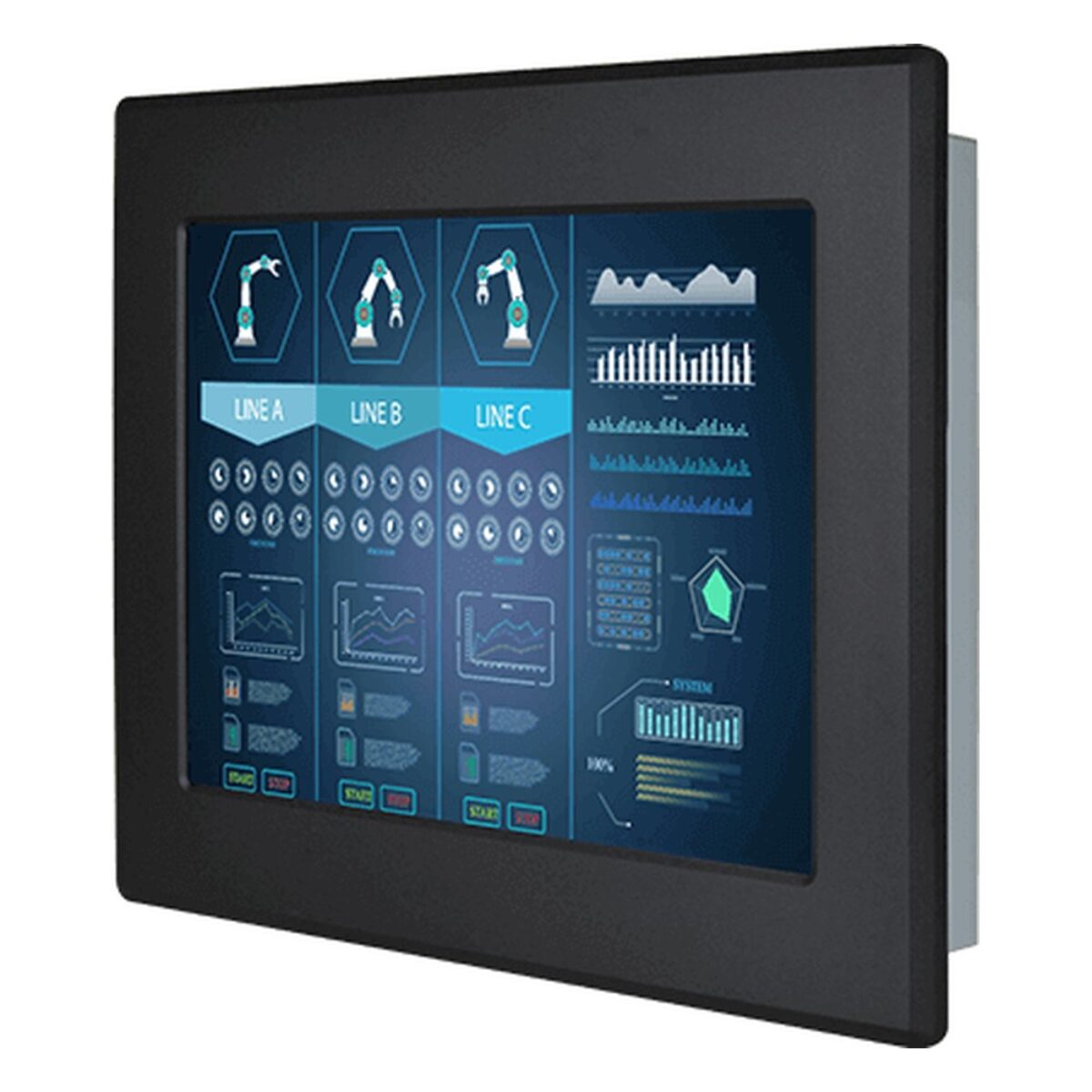

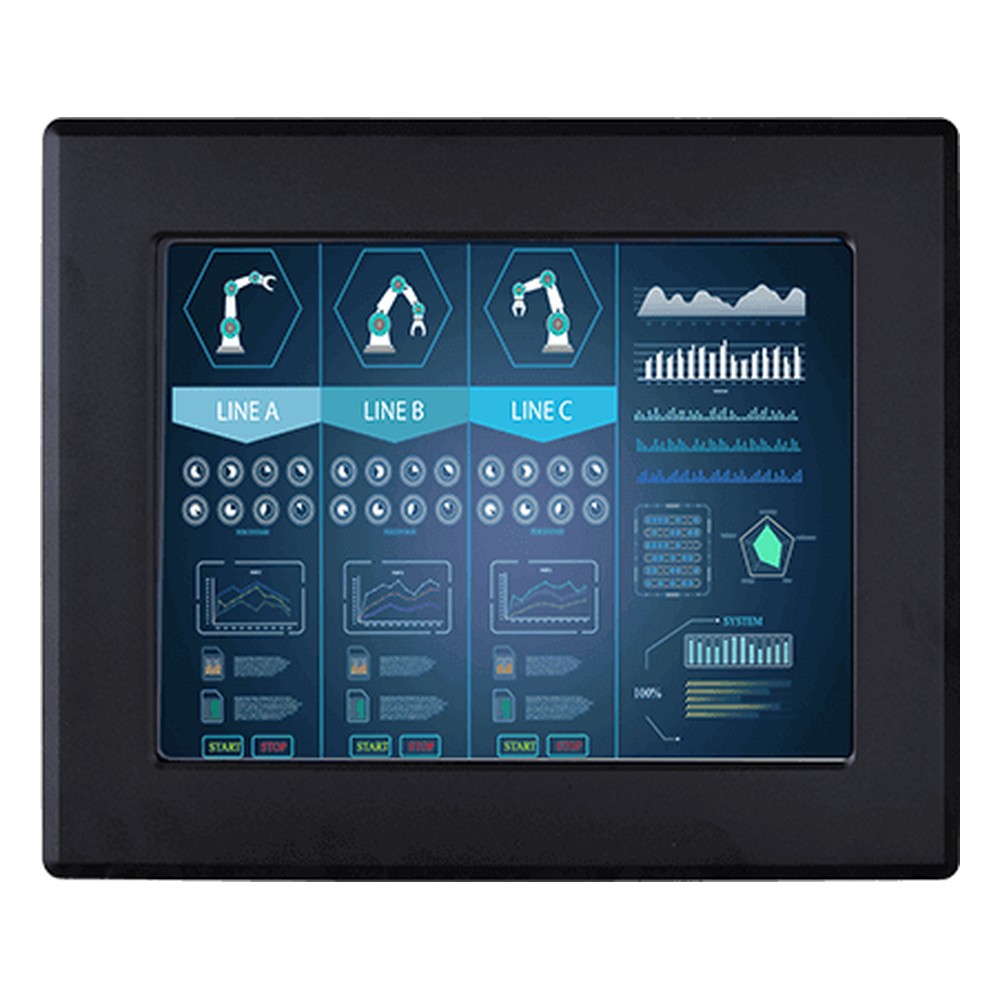

Winmate R12L600-PMM2 12.1″ Panel Mount Monitor with Resistive Touch and XGA LCD

A 12.1 inch XGA screen is a common size for machine HMIs, big enough for a full SCADA page yet small enough for a narrow cabinet door. The R12L600-PMM2 is Winmate’s 12.1 inch panel mount monitor for that job, with a 500 nit panel and resistive touch, and it connects to a separate PC in factory automation, kiosks and control rooms.

The 12.1″ panel shows 1024 x 768 (XGA) at 500 nits, with 1000:1 contrast and viewing angles of 178 degrees horizontal and 178 degrees vertical. Resistive touch is fitted as standard, with SAW touch or protection glass without touch as options. Five keys (minus, plus, power, Esc and Enter) handle the on-screen menu, and a remote controller is optional.

The R12L600-PMM2 connects to a separate industrial PC or controller over VGA as standard, with HDMI and DVI inputs available as options, and both a VGA and an HDMI cable come in the box. A USB port carries touch data back to the host. An audio line-in and two speakers are optional. Within the Winmate range the R12L600-PMM2HB is the same panel mount design with a 1000 nit panel for bright areas, and the R12IAD3S-PMM2 is the panel PC version with a 12th Gen Intel Core i5 built in.

Power is 12 V DC, with a 24 V DC input listed as an option, and an AC adapter and power cord are supplied. The fanless metal housing runs from 0 to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. VESA mounting is standard and panel mounting is listed as an option, with VESA screws supplied. It carries CE and FCC marks. We supply the R12L600-PMM2 configured and tested before dispatch, and we can help pair it with the right host computer.
