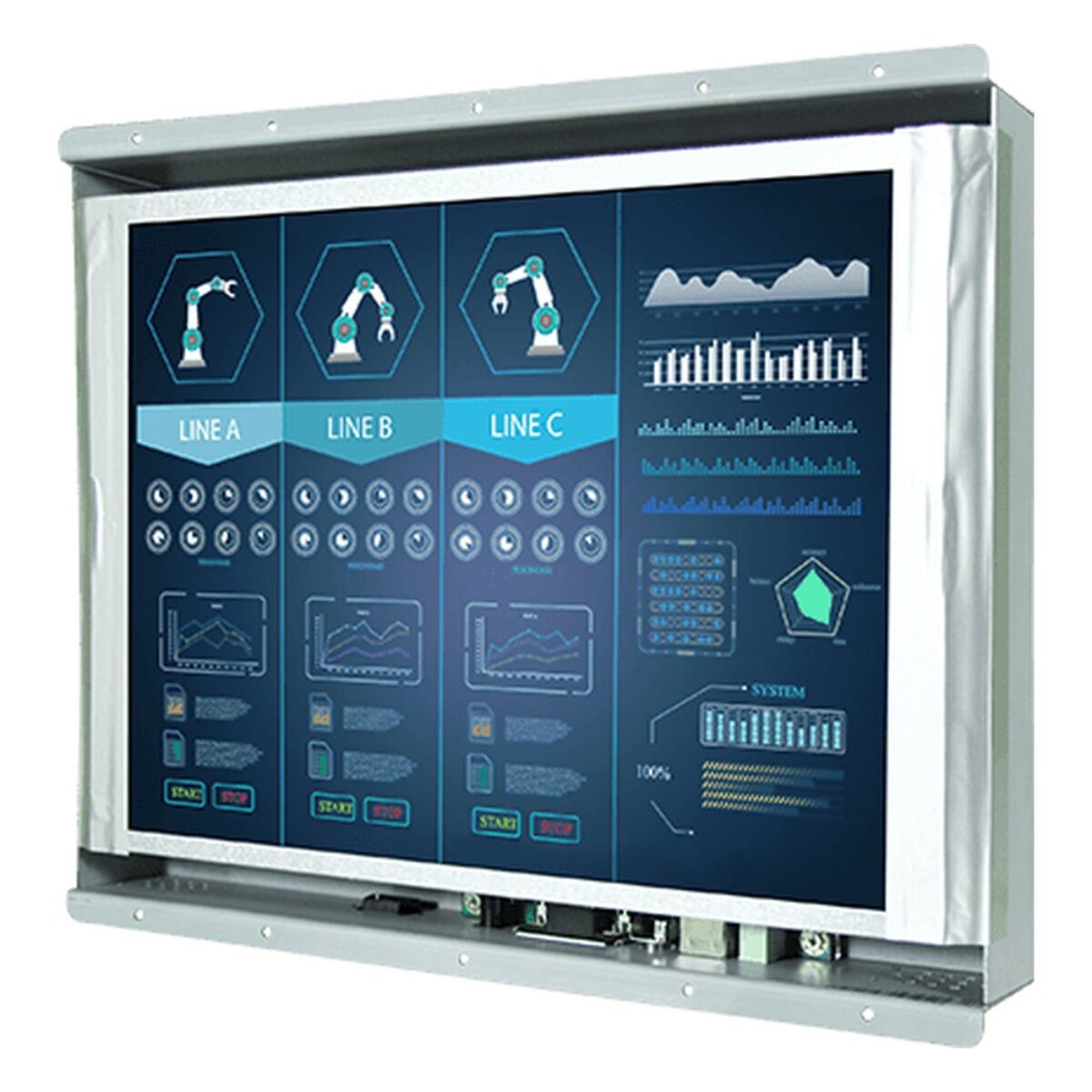

Winmate R12T600-OFL1HB 12.1″ Open Frame Monitor with 1000 Nit SVGA Display and Resistive Touch

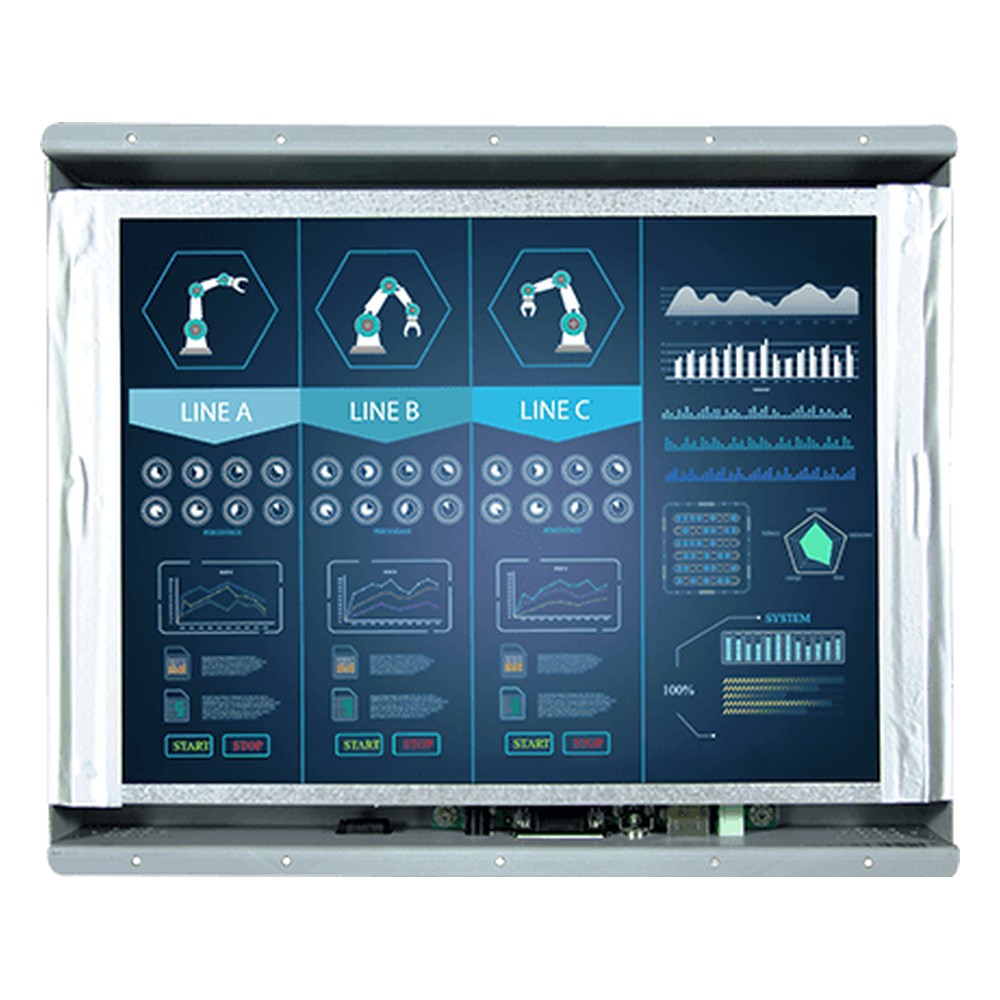

Kiosk makers and machine builders often want the display without a finished bezel, so it sits behind a front panel they have designed themselves. The R12T600-OFL1HB is Winmate’s 12.1 inch open frame monitor for that job, with a 12.1″ SVGA panel at 1000 nits, which is sunlight readable, and optional resistive or SAW touch. It connects to a separate computer over VGA, with HDMI or DVI as options.

The 12.1″ SVGA panel runs at 1000 nits with 700:1 contrast, 16.2 million colors and 160 degree horizontal and 140 degree vertical viewing angles, so the picture typically stays readable in direct light. Resistive touch, SAW touch and protection glass without touch are all options, with a USB port for the touchscreen where one is fitted.

Video comes in on VGA as standard, with HDMI and DVI inputs as options, so the R12T600-OFL1HB pairs with most industrial PCs and box PCs. An audio line in and two speakers are optional, and five keys (power, plus, minus, Esc and Enter) run the on-screen menu. VGA and HDMI cables and a manual come in the box. Within the Winmate range the R12T600-PML1HB is the panel mount version with a 1000 nit SVGA display, and the R12T600-CHL1 is the chassis version with a 12.1 inch SVGA LCD and resistive touch.

Power is 12 V DC in, with a 24 V DC input as an option, and an AC adapter and power cord are supplied. The fanless metal housing runs from 0 to 50 °C and stores from -10 °C to 60 °C, at 10 to 90% humidity, non-condensing, which suits indoor cabinets and control rooms. It takes VESA or rear mounting behind your own bezel, and it carries CE and FCC marks. We supply the R12T600-OFL1HB configured and tested before dispatch.
