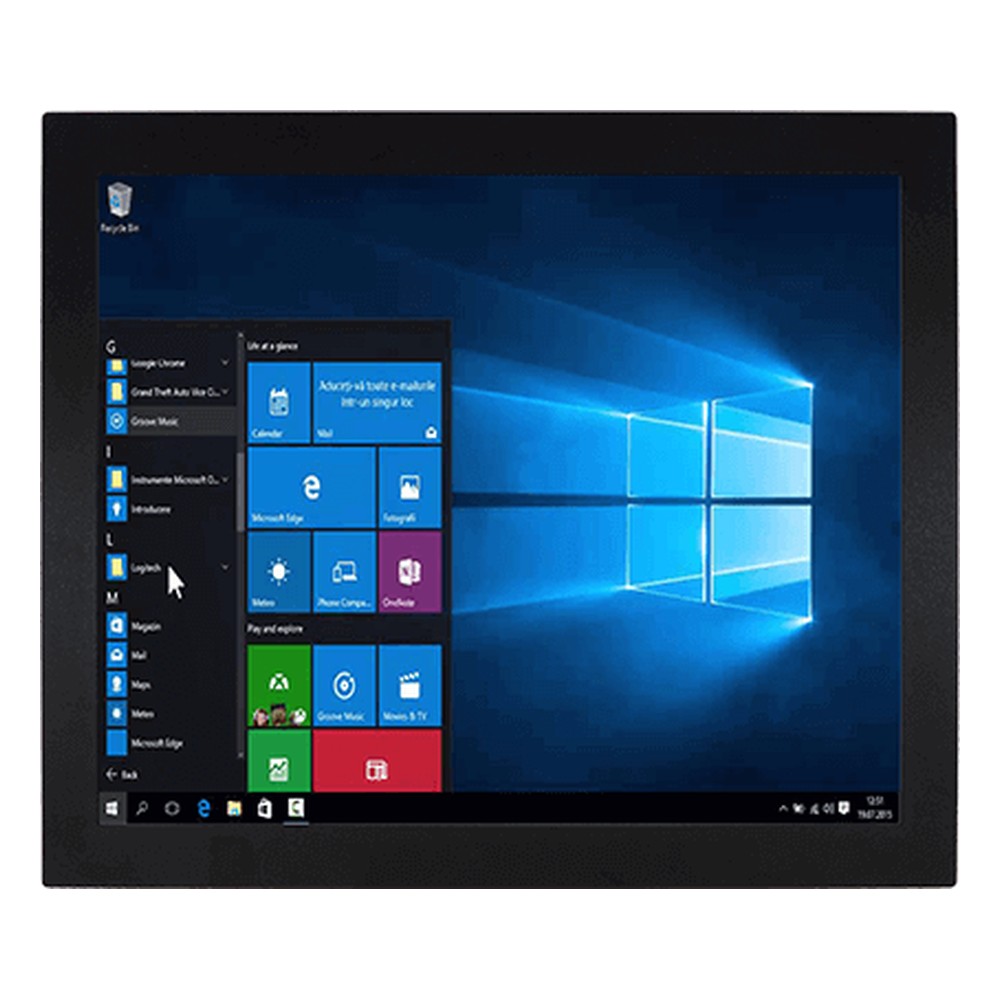

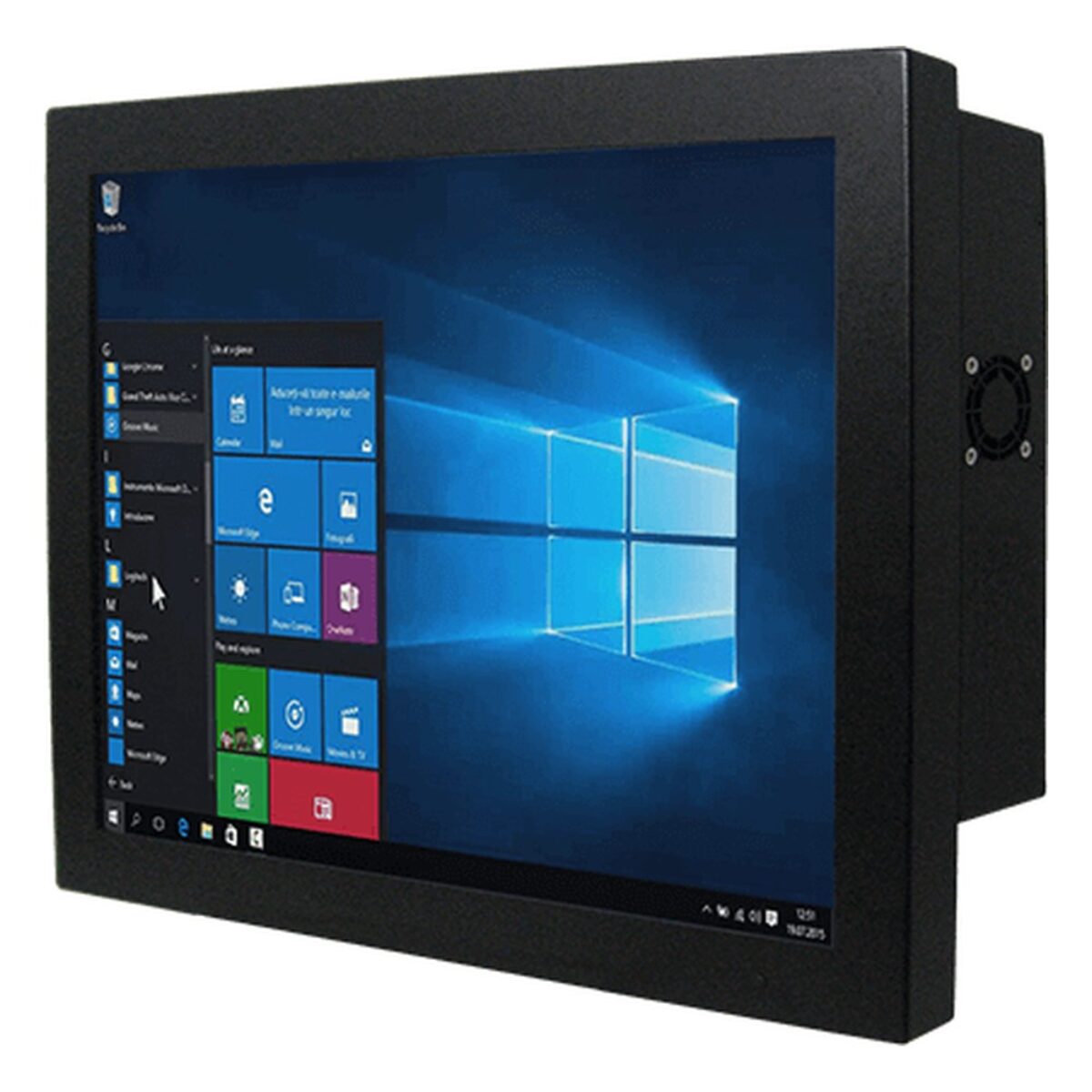

Winmate R15IAD7T-CHC3 15″ Chassis Panel PC with 12th/14th Gen Intel Core and Resistive Touch

A chassis panel PC is often the simplest way to put an HMI on a machine: one unit on a VESA arm, wall bracket or stand, with the computer behind the screen. The R15IAD7T-CHC3 is Winmate’s 15 inch chassis panel PC for that kind of install, with a choice of 12th Gen Core TE and 14th Gen Core T processors and a 300 nit 1024 x 768 display with 2000:1 contrast.

Processor options run from the Core i3-12100TE as standard to the i9-12900TE, or 14th Gen Core T parts up to the i9-14900T at up to 5.5 GHz, on an Intel R680E chipset, so the R15IAD7T-CHC3 can be sized from a single HMI to heavier SCADA work. Two DDR5-4800 SO-DIMM sockets take up to 64 GB. Storage is a 128 GB NVMe SSD as standard on an M.2 2280 M-key slot, with options to 4 TB and two optional 2.5″ SATA III bays with RAID. TPM 2.0 is on board, with Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04. Resistive touch is optional, as is protection glass without touch.

Connections include two 2.5GbE ports on Intel controllers, four 10 Gbps USB 3.2 Gen 2×1 Type-A ports, one RS-232/422/485 and one RS-232 port for PLCs, and mic-in and line-out audio. A DisplayPort 1.4a output runs a second screen at up to 4096 x 2160 at 60 Hz, with HDMI 2.0b optional, and an M.2 E-key slot takes optional Wi-Fi and Bluetooth. Within the Winmate range the R15IAD3S-CHC3 is the fanless chassis version with a Core i5-1235U, and the R15IAD7T-IPC3 puts the same processor choice behind a front IP65 bezel.

Power is 12 V DC on a 4-pin DIN connector, with a 220 W AC adapter supplied. The fan-cooled metal housing runs from 0 to 50 °C in non-condensing humidity, which suits indoor cabinets and control rooms. VESA mounting is standard, with VESA screws supplied. It carries CE and FCC marks. We supply the R15IAD7T-CHC3 configured, with the OS installed, and tested before dispatch.
