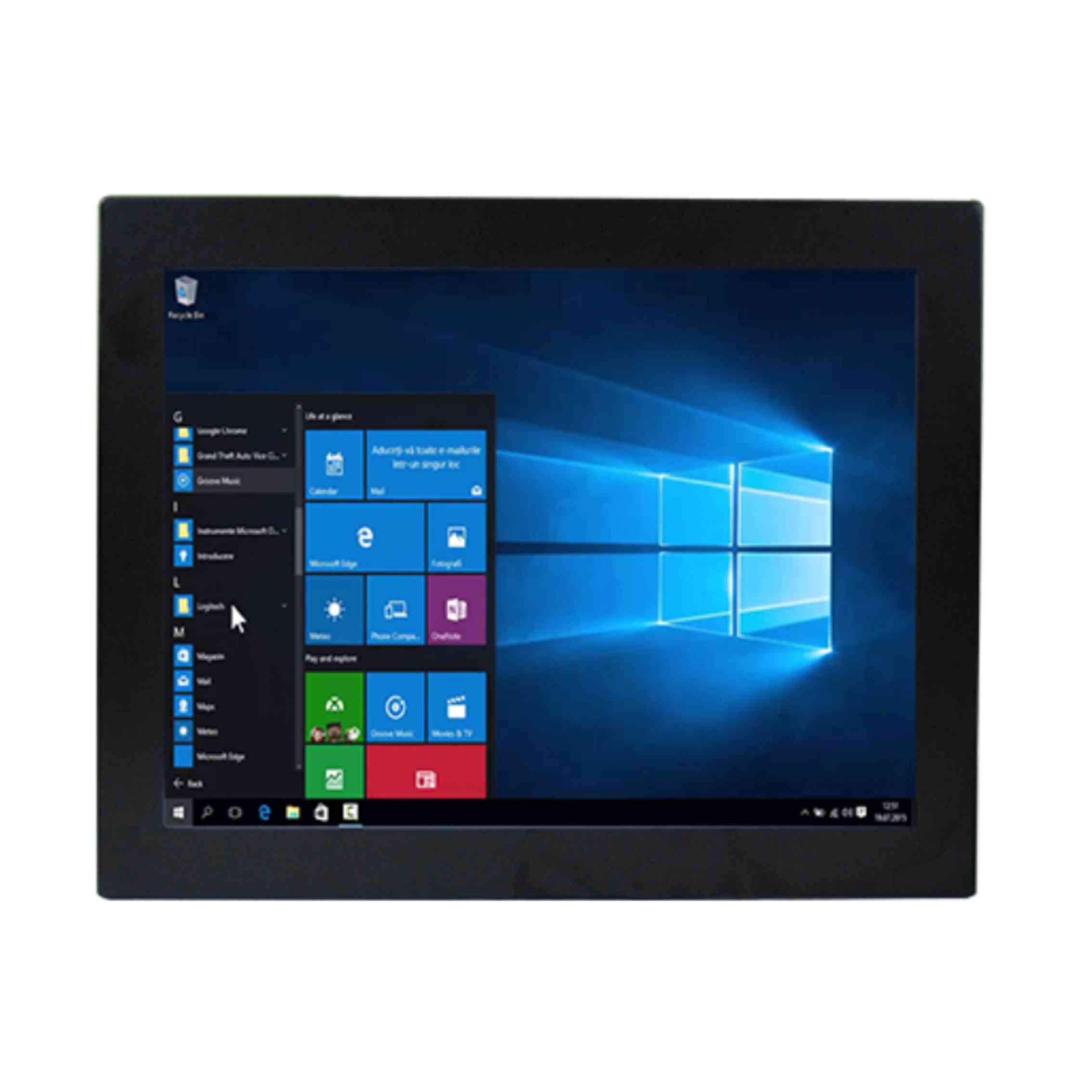

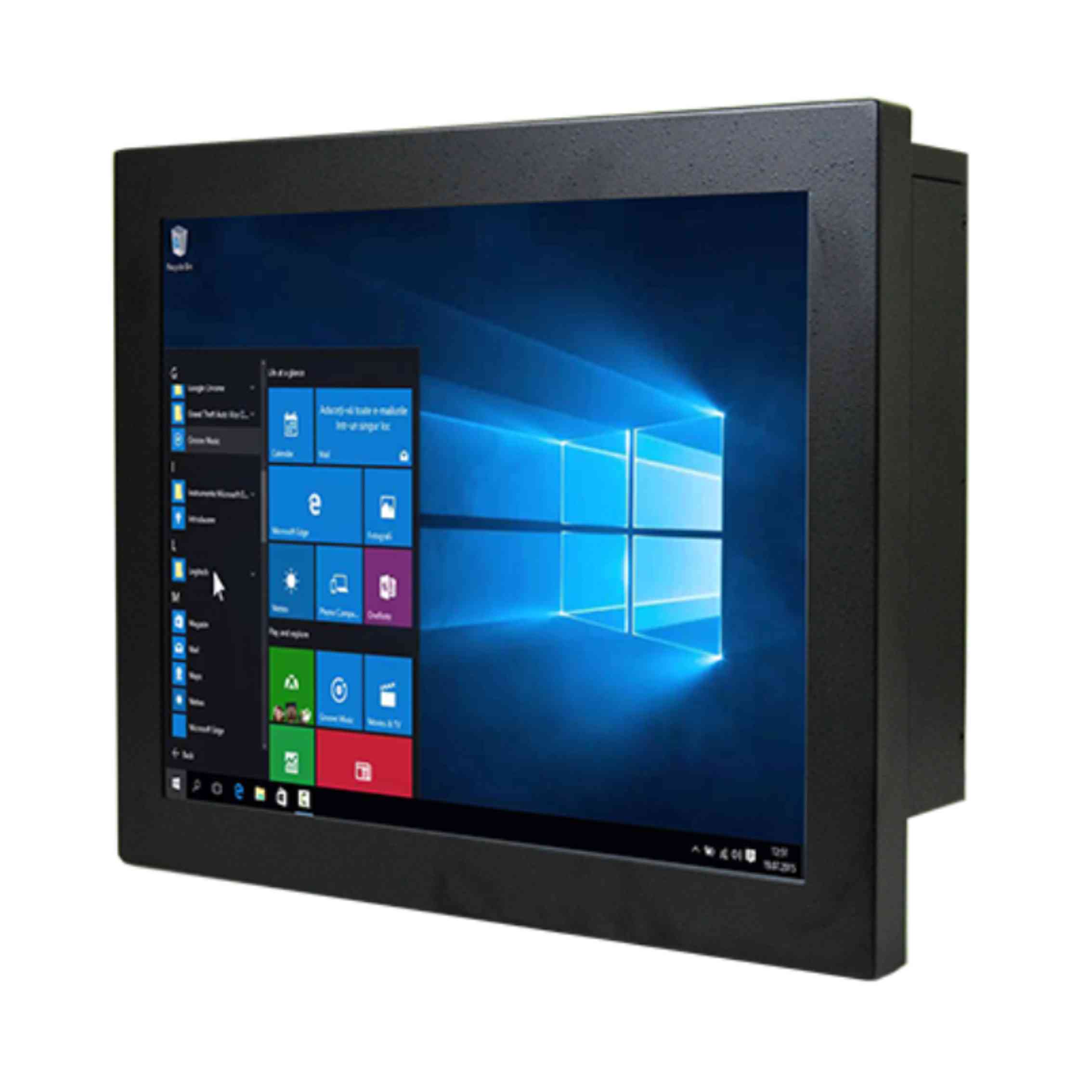

Winmate R15IP7T-CHA3WT 15″ Wide Temperature Chassis Panel PC with Intel Pentium N4200 and 500 Nit Display

A 15 inch HMI in an unheated room or a warm enclosure has to start in the cold and keep running as it warms up. The R15IP7T-CHA3WT is Winmate’s 15 inch chassis panel PC for those installs, with an Intel Pentium N4200 in a fanless metal housing rated to operate from -20 °C to 60 °C.

The display is a 500 nit 1024 x 768 panel with 2500:1 contrast and 176 degree viewing angles, with a brightness adjustment knob, resistive touch as an option and protection glass without touch as an alternative. The Intel Pentium N4200 runs at 1.1 GHz with bursts up to 2.5 GHz, with two DDR3L-1866 SO-DIMM sockets holding 4 GB as standard and 8 GB as an option. Storage is a 128 GB M.2 2242 SSD with 256 GB or 512 GB as options, and SATA III connections for 2.5 inch SSD or HDD drives are available as an option. TPM 2.0 is on board, with Windows 10 IoT Enterprise or Linux Ubuntu 20.04 available.

The rear I/O is generous for a panel PC: two Gigabit LAN ports on Intel controllers, four USB 3.2 Gen 1×1 Type-A ports, one RS-232/422/485 port and one RS-232 port, mic in, line out and two speakers. A DisplayPort 1.2 output drives a second screen at up to 4096 x 2160 at 60 Hz, with HDMI 1.4 at up to 3840 x 2160 at 30 Hz and VGA as options. A PCIe 2.0 x1 slot takes an add-in card, and an M.2 2230 E-key slot takes an optional Wi-Fi module. The R15IP7T-CHC3 is the standard temperature version with a 300 nit panel, and the R12IP7T-CHM2WT is the 12.1 inch wide temperature model.

Power is 12 V DC on a four-pin DIN connector, with a 100 to 240 V AC 12 V 50 W adapter supplied. The unit operates from -20 °C to 60 °C at 30 to 90% humidity, non-condensing, and stores from -25 °C to 65 °C. It measures 360 x 290 x 70 mm, weighs 4.2 kg and mounts on 75 x 75 or 100 x 100 mm VESA. It carries CE and FCC marks.
