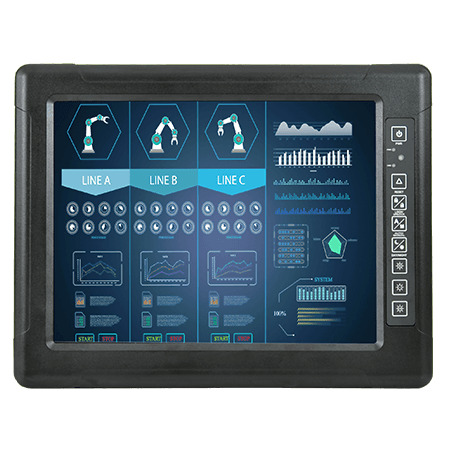

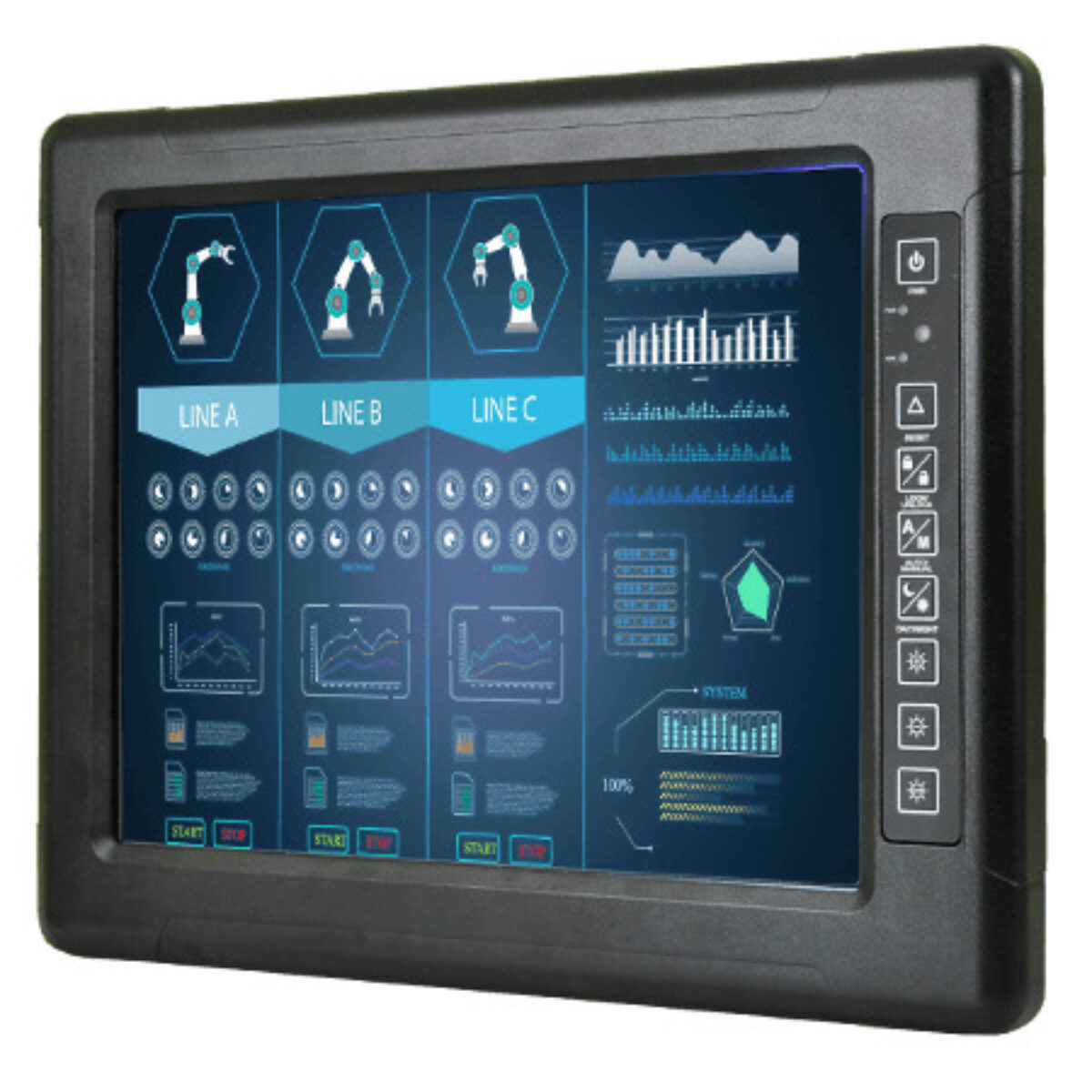

Winmate R15L100-67C3(HB) 15″ IP67 Waterproof Monitor with Bonded 5-Wire Resistive Touch and M12 Connectors

Outdoors, on a vehicle or in a washdown area, water reaches the back and sides of a monitor as well as the front, and a front-only rating leaves the connectors exposed. The R15L100-67C3(HB) is Winmate’s 15 inch G-WIN IP67 display, with the whole housing and every connector sealed to IP67.

The 15 inch 4:3 panel runs at 1024 x 768 with 2000:1 contrast and 88° viewing in every direction. Winmate optically bonds the display with an anti-moisture treatment, which cuts internal reflection and keeps the image clear when temperature and humidity swing, and a built-in ambient light sensor is fitted. A high-brightness sunlight-readable panel is listed as an option for outdoor use.

Touch is 5-wire resistive, bonded to the panel under anti-reflective protection glass, so it responds to gloved hands and styluses, and it reports over an M12 USB connector or an optional M12 RS-232 connector. Video comes in on an M12 VGA connector, with HDMI on an M21 connector as an option. The R19L100-67FTP(HB) is the 19 inch PCAP version, and the R15IB3S-67C3(HB) adds a built-in computer.

Power is 9 to 36 V DC with isolation on an M12 waterproof connector. The aluminum housing measures 398 x 308 x 58 mm and mounts on 100 x 100 mm VESA or an optional yoke stand. It operates from -10 to 55 °C, or -40 to 70 °C with the optional intelligent heater, and is vibration-tested to MIL-STD-810G Method 514.6. The monitor carries CE and FCC marks, and Winmate names industrial visualization, control rooms and equipment monitoring as typical uses.
